Mark Donohue 1969 Camaro Die Cast

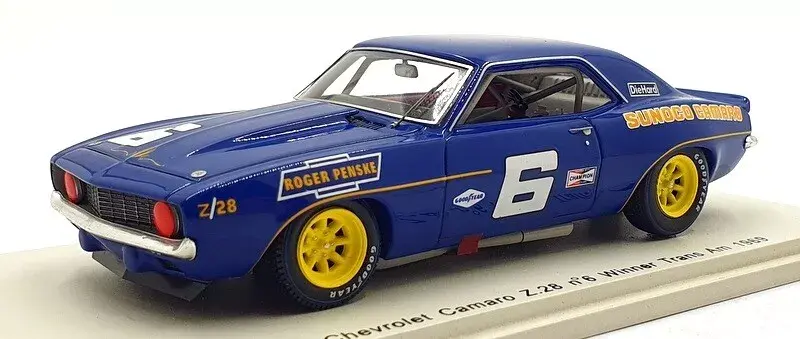

This page explains how a 1:43 Mark Donohue 1969 Camaro die cast is actually made, and what the model teaches about real zinc and aluminium casting. It is written for engineers and buyers who want the tooling logic, not the collector story. By the end you can judge which features of a miniature are castable at production scale, and which are not.

Zinc alloy 1:43 bodyDraft and wall rulesSmall-feature limitsBatch repeatability
Mark Donohue 1969 Camaro die cast model next to cast metal parts
Quick answers

Key takeaways

The body is a die castingMolten zinc alloy fills a hardened steel mold under pressure, so the shell comes out near net shape.
Scale changes the rulesA 1:43 part cannot copy full-size wall thickness; thin walls need higher injection speed and better venting.
Draft is not optionalEvery vertical face on the miniature needs relief or the part tears on ejection.
Detail has a floorBelow roughly 0.3 mm, cast lettering and grille slats stop repeating cleanly.
Fundamentals

What the Mark Donohue 1969 Camaro die cast really is

A Mark Donohue 1969 Camaro die cast is a small metal shell made the same way a full-size zinc housing is made: molten alloy is forced into a steel mold at high pressure, held briefly, then ejected. The 1:43 body is not stamped, not printed, and not carved. It is cast. That single fact decides everything about how it looks, how heavy it feels, and where the detail stops.

The alloy is usually Zamak-family zinc, sometimes with a small aluminium or copper addition. Zinc melts around 380–420 °C, far below aluminium at roughly 660 °C. Lower temperature means longer mold life and better reproduction of fine surface texture. For a miniature with script badges and thin trim, zinc wins on detail. Aluminium wins on weight and corrosion behavior in outdoor use.

The mold itself is the expensive part. A two-plate die with a moving slide for the hood or trunk opening can cost many times the price of the parts it produces. This is why small casting runs of a single model are tooling-limited, not material-limited. Once the die exists, adding part number 5,001 is nearly free. Making part number one is not.

So when you pick up the model, you are holding a production casting, not a prototype. The same process limits apply as on your own parts: draft angle, wall thickness, corner radii, and where the gate can be placed without leaving a visible mark. Read the miniature as a worked example of those limits.

  • 1
    ProcessHigh-pressure die casting into hardened H13-class tool steel.
  • 2
    AlloyZinc alloy for fine detail; aluminium for lower weight and higher melting margin.
  • 3
    Cost driverThe die, not the metal. Volume amortizes tooling; one-offs do not.
Tooling logic

Why draft, walls, and radii decide the shape

Draft is the taper on any face parallel to the pull direction. On a 1:43 body, a 1–2° draft per side is typical. Without it, the casting shrinks onto the core and drags. You get scoring on the roof line or a torn rocker panel. On a full-size housing we often run 1.5–3°, because the same rule scales with depth: deeper walls need more relief.

Wall thickness on the miniature is usually 0.8–1.5 mm. That is already thin. Pushing below about 0.6 mm means the metal freezes before it reaches the far end of the cavity, and you get a cold shut or a short fill. The fix is not more pressure alone. You raise injection speed, widen the gate, and add vents at the last point to fill.

Corners matter more than people expect. A sharp internal corner concentrates stress and creates a hot spot that cools last. That is where porosity forms. A radius of at least half the wall thickness spreads the heat. On the miniature, look at the wheel arch and the window opening: they are rounded for exactly this reason, not for style.

Thick sections create the opposite problem. A boss or a pillar that is three times the wall thickness cools slowly, pulls metal from the thin skin, and leaves a shrink void inside. You cannot see it, but it shows up later as a sink mark on the visible surface. Design bosses at 60–70% of the nominal wall and core them out.

  • 1
    Draft1–2° per side on the model, 1.5–3° on larger castings.
  • 2
    Wall0.8–1.5 mm on the model; below 0.6 mm risks short fill.
  • 3
    Internal radiusAt least half the wall thickness to avoid hot spots.
  • 4
    Bosses60–70% of nominal wall, cored to avoid sink.
Feature limits

Where the miniature detail stops reproducing

Every casting process has a detail floor, the smallest feature that still fills and releases reliably. On a 1:43 zinc body, that floor sits near 0.3 mm for raised lettering and around 0.4 mm for slots and grille openings. Below that, the metal cools before it reaches the end of a narrow rib, and you get rounded or missing detail.

This is why model badges are sometimes cast as a shallow relief and then highlighted with paint, rather than cut as a deep 3D shape. The paint carries the contrast. The casting carries the shape. Two operations, one visual result. The same trick appears on production parts: a cast logo at 0.5 mm depth plus a laser mark reads sharper than a 1.5 mm engraved logo alone.

Slide actions solve undercuts, at a cost. Hood, door, and trunk openings on a die-cast model often need a moving slide or a lifter in the mold. Each slide adds tooling cost and maintenance. It also adds a parting line somewhere on the body, usually hidden along a panel gap. If you see a faint line under the door, that is the slide seam, not a defect.

Porosity is the hidden variable. Gas trapped during fill ends up as small voids, often just under the surface. It may not show on the first part. It shows after plating, when the surface is polished and the voids open up as pits. Good practice is to vent the last-fill regions well and keep the gate area out of visible cosmetic zones.

  • 1
    Raised textReliable down to about 0.3 mm height on zinc.
  • 2
    Slots and grillesAbout 0.4 mm minimum opening before fill becomes unreliable.
  • 3
    UndercutsNeed a slide or lifter; expect a parting line near the feature.
  • 4
    PorosityOften invisible until plating; control it with venting and gate placement.
From model to production

What the model teaches about real casting runs

The miniature and a full-size production casting follow the same sequence: fill, pack, cool, eject. Only the numbers change. A 1:43 body fills in a few milliseconds. A 4,000 mm structural housing fills in a few hundred. The physics is identical. Fast fill, uniform cooling, and clean ejection are the three requirements in both cases.

Batch repeatability is where the money is. The first casting off a new die tells you almost nothing. The ten-thousandth tells you whether the die is holding tolerance or wearing. On our own runs we check the first article, monitor in-process, and inspect before shipment, because a dimension that drifts at part 400 is cheap to catch and expensive to ship.

That is also why small casting projects often pair a cast body with machined details. Casting gives you the near-net shell. Machining gives you the bore, the flat face, or the thread that has to sit at ±0.005 mm. Trying to cast a precision bore directly usually fails, because shrinkage is not uniform in every direction.

If you are evaluating a supplier for this kind of work, ask three things: how the die is vented, where the gate lands relative to cosmetic surfaces, and how porosity is checked. A supplier who answers those three with numbers, not adjectives, is one you can plan a production run around.

  • 1
    Same physicsFill, pack, cool, eject applies at every part size.
  • 2
    RepeatabilityThe die condition at part 10,000 matters more than at part one.
  • 3
    Hybrid approachCast the shape, machine the critical bore and faces.
Material choice

Zinc vs aluminium for small cast bodies

Both alloys are castable. The choice follows detail, weight, and environment, not preference.

FactorZinc alloyAluminium alloy
Melt temperatureAbout 380–420 °CAbout 660 °C
Fine detailBest; holds thin script and slatsGood, but softer edges
Part weightHeavier for the same volumeAbout one third the density
Mold lifeLonger, lower thermal loadShorter, higher thermal cycling
CorrosionNeeds plating or paint outdoorsNatural oxide layer helps
Typical use1:43 model bodies, small housingsStructural brackets, heat-exposed parts

The practical verdict

Choose zinc die casting when fine surface detail and thin walls matter most; choose aluminium when weight, heat exposure, or outdoor corrosion resistance drives the decision. If the part needs a precision bore or a flat sealing face, cast the body and machine those features afterward.

FAQs

Mark Donohue 1969 Camaro die cast questions

Is a 1:43 die-cast model made the same way as a full-size casting?

Yes, in principle. Molten alloy is injected into a steel mold under pressure, packed, cooled, and ejected.

The differences are scale: fill times drop from hundreds of milliseconds to a few, and wall thickness drops from several millimeters to about one.

Why does the model feel heavier than a plastic one of the same size?

Zinc alloy has a density near 6.6 g/cm³, roughly six times that of ABS or polystyrene.

The weight is a direct result of the material, not an added insert. It also helps the model sit flat and hold its shape over time.

What is the smallest castable detail on a zinc model body?

Raised lettering holds well down to about 0.3 mm in height.

Slots and grille openings need roughly 0.4 mm to fill reliably. Below that, edges round off or the feature disappears.

Can the same die be used for both zinc and aluminium?

No. Aluminium runs about 200 °C hotter, so the tool steel grade, cooling layout, and gate design all change.

A die built for zinc will wear quickly and lose tolerance if you run aluminium in it.

How do you control porosity in a visible casting?

Vent the last-fill regions, keep the gate away from cosmetic faces, and avoid thick sections that cool last.

Porosity often only appears after plating, so it is worth checking with a first-article cross-section before committing to a full run.

When should a cast part be machined afterward?

Whenever a bore, thread, or flat face must hold a tight tolerance such as ±0.005 mm.

Casting shrinkage varies by direction, so those features are machined from the near-net casting instead of cast directly.
