Graphite Tools We Used: Three Eras of Electrode Machining

• 1
  Why Graphite Replaced Copper Electrodes
• 2
  Cutters and Parameters for Graphite Electrodes
• 3
  Dust Control and Machine Setup
• 4
  When Graphite Still Beats Copper
• 5
  Graphite vs Copper Electrode Comparison

Copper was the default electrode material for years. It cuts cleanly, it takes a polish, and it solders easily. Graphite arrived as a cheaper alternative and stayed because it machines two to three times faster at the same spindle speed. A copper electrode that takes 90 minutes on a three-axis mill often comes off the graphite bench in 30 to 40 minutes.

The weight difference matters more than most people expect. Copper density sits near 8.9 g/cm³. Graphite for electrodes runs about 1.7 to 1.9 g/cm³. A 200 mm long electrode in copper can weigh 6 kg or more. The same shape in graphite weighs a bit over 1 kg. Operators can load it by hand, and the toolholder sees far less inertial load during rapid moves.

Low electrode wear is the other reason. Graphite erodes more slowly in the EDM spark gap, so one electrode can often sink several cavities without redressing. Copper electrodes need more frequent replacement on deep ribs and sharp corners. That reduces the number of setups and keeps the burn consistent from first cavity to last.

Graphite also handles heat better. It does not soften or warp the way copper can during heavy roughing. Fine ribs hold their shape. The tradeoff is dust. Graphite is brittle and abrasive, and the powder it produces gets into everything if the machine is not set up for it.

• 1
  Faster cuttingTwo to three times the material removal rate of copper.
• 2
  Lighter electrodesAbout one fifth the density of copper, so manual handling is practical.
• 3
  Lower wearFewer electrode changes on deep ribs and sharp corners.

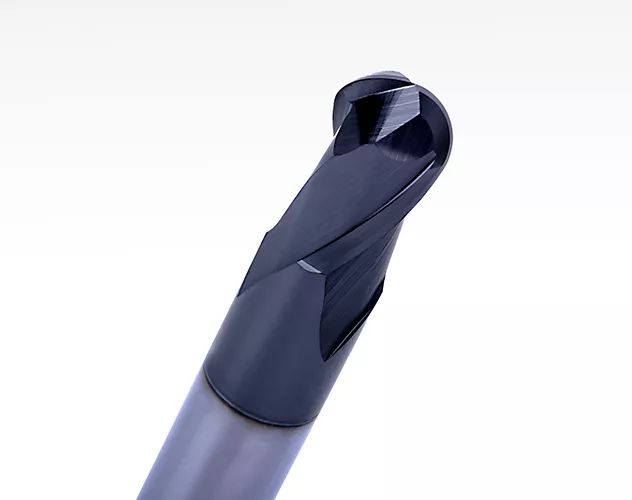

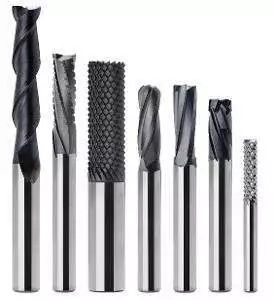

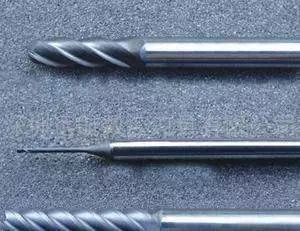

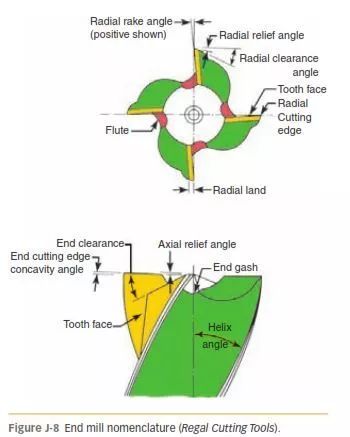

The graphite tools we used in the early days were mostly uncoated carbide, and they wore out fast. Diamond coating changed that. A chemical vapor deposition (CVD) diamond coating gives the cutting edge a hard surface that resists the abrasive graphite powder. Tool life jumps from a few electrodes per cutter to dozens.

Spindle speed runs high. On a 6 mm diamond-coated end mill, 8,000 to 12,000 rpm is normal. Feed per tooth stays modest, around 0.03 to 0.08 mm, because graphite chips are powdery and do not clear the flutes the way metal chips do. Too much feed packs the flutes and the cutter rubs instead of cutting.

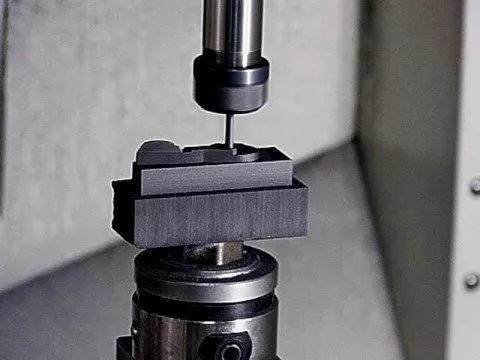

Depth of cut depends on the electrode detail. Roughing can take 0.5 to 1.0 mm axial depth. Finishing ribs and thin walls drops to 0.1 to 0.2 mm to avoid chipping. Graphite is brittle. A heavy finishing pass on a 0.8 mm rib will snap it, and no amount of fixturing saves it.

Chip clearance is the difference between a clean cut and a dust cloud. Air blast at 0.4 to 0.6 MPa keeps the powder moving. Flood coolant is not used, because graphite and water make a paste that clogs flutes and gums up the table. Vacuum extraction at the cut zone is standard on any machine that runs graphite daily.

• 1
  CoatingCVD diamond outperforms uncoated carbide by a wide margin.
• 2
  Speed8,000 to 12,000 rpm on a 6 mm cutter.
• 3
  ClearanceAir blast at 0.4 to 0.6 MPa; no flood coolant.

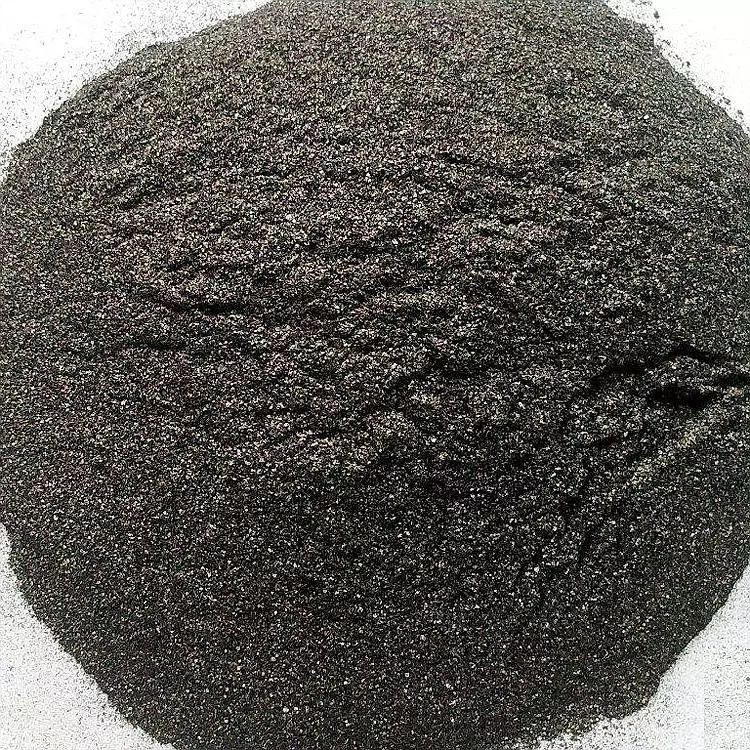

Graphite dust is conductive. It settles on ways, ballscrews and linear guides, and it works into the lubricant. Over months, that grit accelerates wear on precision surfaces. Any machine that cuts graphite regularly needs way covers and a vacuum system rated for fine powder, not just chips.

The dust is also a health issue. Graphite powder is respirable, and long exposure is a real concern. Enclosed machines with HEPA filtration on the extraction line are the practical answer. Operators should not be blowing the table clean with an open air gun. That just moves the powder into the air.

A dedicated graphite cell is the cleanest solution. Keep the abrasive work away from machines that cut aluminum or stainless, where a stray graphite particle can scratch a finished surface or contaminate a coolant sump. Shops that run both materials often partition the floor and use separate tooling.

Fire risk is low but not zero. Fine graphite dust mixed with oil mist from other operations can smolder. Keep the extraction filters clean and do not let powder pile up in corners. A weekly vacuum of the enclosure is a small habit that prevents a large problem.

• 1
  Conductive dustSettles into ways and lubricant, accelerating wear.
• 2
  ExtractionHEPA filtration on an enclosed machine is the baseline.
• 3
  SeparationKeep graphite cells away from aluminum and stainless work.

Graphite wins on large electrodes with deep ribs. The lighter weight and lower wear mean fewer electrode changes and a more consistent burn. A 300 mm electrode with 1 mm ribs is a job where copper would need multiple electrodes and careful handling; graphite can often do it in one.

Copper still wins on very fine detail and mirror finishes. Copper holds a sharper edge on tiny features, and it polishes to a lower surface roughness. For a small electrode with sub-0.3 mm detail or a cavity that needs a mirror EDM finish, copper is usually the better call.

The decision also depends on the EDM machine. Some older sinkers were set up for copper and have wear compensation tuned to it. Switching to graphite changes the spark gap and the wear ratio, so the machine parameters need retuning. That is a few hours of setup, not a rebuild, but it is not free.

For most general electrode work, graphite is the default. For fine detail, mirror finishes, or legacy machines, copper still has a place. The right answer depends on the feature size, the finish requirement and the number of cavities per electrode.

• 1
  Choose graphiteLarge electrodes, deep ribs, multiple cavities per electrode.
• 2
  Choose copperSub-0.3 mm detail, mirror EDM finish, legacy machines.
