The appeal is simple. A six-axis industrial robot already moves in X, Y, Z, A, B and C. It has a rigid Cartesian workspace of roughly 1.5-3 m reach and a payload rating from 6 kg to 500 kg. If you bolt a spindle to the flange, you get a machine that can drill, mill, deburr and chamfer on five faces without a fixture change.

The gain is not accuracy. It is reach and flexibility. A robot on a linear track can service several workstations, then swing to a seventh-axis position and machine a weld seam on a 4,000 mm frame that no 3-axis mill would touch without a special fixture. For low-volume runs, that saves fixture cost and setup time.

The cost argument is real too. A used 50 kg payload arm plus a spindle and a rotary table often costs less than a comparable 5-axis machining center. That matters when your production is 20 to 200 parts a year and the geometry changes every quarter.

But the physics does not change. Every joint in a serial arm adds compliance. The tool tip of a typical robot deflects 0.1-1 mm under a 500 N cutting load. A machining center deflects a few micrometres. That single number drives every decision that follows.

• 1
  Good fitLarge parts, light cuts, low volume, several faces in one setup.
• 2
  Bad fitTight tolerance, hardened material, high metal removal rate, high volume.

Pick the smallest spindle that will do the job. A 1.5-2.2 kW high-speed spindle at 18,000-24,000 rpm suits aluminium and plastics, where light chiploads at high rpm keep the cutting force low. A 5-7 kW spindle sounds better on paper but adds mass at the flange, and that mass amplifies deflection during acceleration.

Tooling matters as much as the spindle. Use two-flute or three-flute carbide cutters with a 6-10 mm diameter for aluminium. Keep the radial depth of cut at 5-10% of tool diameter and the axial depth at 0.5-1× diameter. These are trochoidal-style parameters, not the heavy side-milling you would run on a 50-taper machine.

Balance the tool holder. Anything spinning above 15,000 rpm should be balanced to G2.5 at the top speed. An unbalanced holder at 24,000 rpm shakes the whole arm and shows up as chatter marks on the finish.

Do not forget the second robot. In many cells the robot holds the part and the spindle sits on a fixed gantry. That flips the compliance problem: the spindle is now stiff, and the robot only has to position a lighter load. For parts under 20 kg, this layout usually beats a flange-mounted spindle.

• 1
  Aluminium 60611.5-2.2 kW spindle, 6 mm cutter, 0.05-0.1 mm/tooth feed.
• 2
  Plastics and POMSingle-flute cutter, 18,000 rpm, air blast, no coolant.
• 3
  Brass and copperThree-flute cutter, 12,000 rpm, light depth of cut.

Robot accuracy is not the same as repeatability. A typical arm repeats to ±0.05 mm but its absolute accuracy may be ±0.5 mm. You cannot cut a bracket on absolute accuracy alone. You need TCP calibration and workpiece frame calibration before every job.

Touch-probe the tool tip against a known datum and solve for the TCP offset. Repeat with the probe in at least four orientations. A good TCP calibration gets the error under 0.1 mm. If you cannot reach that number, stop and check the flange runout and the spindle mounting face.

Then calibrate the workpiece frame. Probe three points on the fixture to define the plane, then two more to lock the origin. Write that frame into the program as a work object. If the fixture moves between shifts, re-probe; do not trust the previous frame.

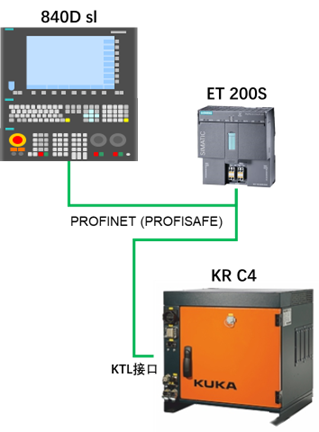

Programming is the last layer. Most robot controllers accept G-code only through a post-processor, and the post must respect joint speed limits and singularity zones. Keep the wrist as far from full extension as possible. Near the workspace boundary, a small Cartesian move can demand a large joint move, and the arm will stall or overshoot.

• 1
  TCP error targetUnder 0.1 mm after four-point calibration.
• 2
  Singularity ruleStay below 80% of maximum reach on the wrist.
• 3
  Feed overrideStart at 30% and raise only after the first part passes inspection.

A robot cell has no enclosure by default, so chip and coolant control is a design task, not an afterthought. Misting coolant is usually the right choice: it reaches the cut, uses less fluid, and does not flood the floor. Air blast alone works for plastics and cast iron.

The fixture must be stiffer than the robot. If the part vibrates in the vise, no amount of calibration will save the finish. Bolt the fixture to a granite or cast-iron table, not to a steel plate on a welded frame. Mass under the part is your friend.

Vacuum fixtures work well for thin aluminium panels. Use a 2-4 mm rubber gasket, a 0.5-0.8 bar vacuum, and a backing plate with a grid of channels. The panel must be supported everywhere the cutter passes, or it will deflect and the depth of cut will vary.

Plan the chip path. Chips that pile up under the part get re-cut and wreck the surface finish. Tilt the fixture 5-10° so chips fall away, and add a small air knife to clear the pocket between passes.

• 1
  Fixture massAt least 5× the part weight for stable milling.
• 2
  Misting pressure4-6 bar air with a 1:20 coolant-to-air ratio.
• 3
  Chip clearanceTilt 5-10° and add air knife on deep pockets.

Measure on the machine. A touch probe or a laser tool setter lets you verify the first part before you release the run. Check the critical dimensions, log them, and adjust the work object offset if the trend drifts. Without this loop, a robot cell will walk out of tolerance over a 50-part run.

Temperature matters more than most people expect. A robot arm grows 0.01-0.02 mm per degree Celsius over a 1 m reach. Warm the arm with 10-15 minutes of dry runs before the first cut, and keep the shop within ±2 °C during the run.

Now the honest part. A robot cell cannot hold ±0.005 mm. It cannot cut hardened steel at a useful rate. It cannot match a 5-axis machining center on surface finish in a deep pocket. If your drawing needs Ra 0.2-0.8 μm and a 40 HRC material, send it to a real machining center.

The right answer for most teams is a hybrid. Use the robot for roughing, deburring, drilling and chamfering, then move the part to a 3-axis or 5-axis mill for the finishing passes. That splits the work where each machine is strong.

• 1
  Robot cellRoughing, deburring, drilling, large envelope, low volume.
• 2
  CNC machining centerFinishing, tight tolerance, hard material, high volume.
• 3
  Best of bothRobot roughs, mill finishes, one fixture frame shared.
