Most drawings that ask for a trace of precision CNC work fail for one boring reason: the tolerance is smaller than the error stack the shop planned for. A ±0.005 mm callout is not difficult on a 40 mm aluminum bracket. It is difficult on a 900 mm steel weldment with three re-clamps in between.

So the first question is not which machine. It is which features carry the tight tolerance and whether they can be cut without moving the part. If a bore, a face, and a slot all sit within ±0.005 mm of each other, they should come from one setup whenever the geometry allows it.

Material behavior matters as much as the machine. Aluminum 6061 and 7075 cut and stay put. Austenitic stainless 304 and 316L move after roughing, so a rough, stress-relieve, and finish sequence is normal. Titanium TC4 (Ti-6Al-4V) and Inconel add tool wear and heat, which shows up as taper in deep pockets.

Finally, think about how the part will be measured. A bore qualified with a pin gauge, a CMM report, and an optical comparator can give three different numbers. Decide the method before cutting. We ask for that on every precision job, and it removes most late arguments.

A DFM pass takes an hour and saves days. Start with the tolerance block, then walk each tight feature back to its datum. If two datums fight each other, the drawing needs a note about which one wins, or the shop will pick one and you will not like the choice.

Check wall thickness next. Thin aluminum ribs below 0.8 mm deflect under normal clamping pressure and chatter during finishing. On plastic parts, anything under 1.0 mm needs light passes and sharp tooling. Both are doable, but they change cycle time.

Then look at depth-to-diameter ratios. A Ø6 mm hole 60 mm deep is a 10:1 ratio and needs a long-reach tool that will deflect. Either open the tolerance, add a pilot, or accept a two-step drill and ream sequence.

Last, list every surface that gets a finish. Anodizing adds 5–15 μm per side depending on the process. If a bore is ±0.005 mm and also hardcoat anodized, the coating eats the tolerance before the part ships. Mask it or machine it undersize on purpose.

Setup choice is where precision is won or lost. A 3-axis machine with a good vise holds ±0.005 mm on features reachable from one direction. Add a second face and you inherit the error of the re-clamp, typically 0.01–0.03 mm unless you indicate the part back in.

A 4-axis mill with a Ø400 mm rotary table cuts three faces in one program. That removes one re-clamp and keeps the angular relationship between faces tight. It is the right pick for shaft-like parts with flats and cross holes.

Simultaneous 5-axis is the answer when the tolerance sits on a contoured surface or an angled face that would otherwise need a custom fixture. We run 16 simultaneous 5-axis centers, and the gain is not speed. It is that the tight faces never leave the fixture.

Do not forget thermal drift. A machine that ran all night is warm; a machine started cold is not. On ±0.005 mm work, let the spindle warm up for 20–30 minutes and keep the shop temperature stable. This is unglamorous and it works.

Tool selection follows the tolerance, not the other way around. A ground carbide end mill with a 0.5–1.0 mm corner radius finishes a face flatter than a sharp-corner cutter, and it lasts longer. For a Ra 0.8–1.6 μm finish on aluminum, a two-flute polished cutter at 8,000–12,000 rpm with a light radial stepover gets there.

Roughing should leave 0.3–0.5 mm on finish faces. Less and the cutter rubs; more and the finishing pass loads up and pushes the part. On stainless and titanium, keep the radial engagement low, around 5–8% of cutter diameter, and let the tool climb.

Chatter is the most common reason a trace of precision CNC job fails inspection. The fix is usually stiffness, not speed. Shorten the tool overhang, reduce the flute length, or add a support under the part. Raising the feed per tooth a little often quiets a cut that is rubbing.

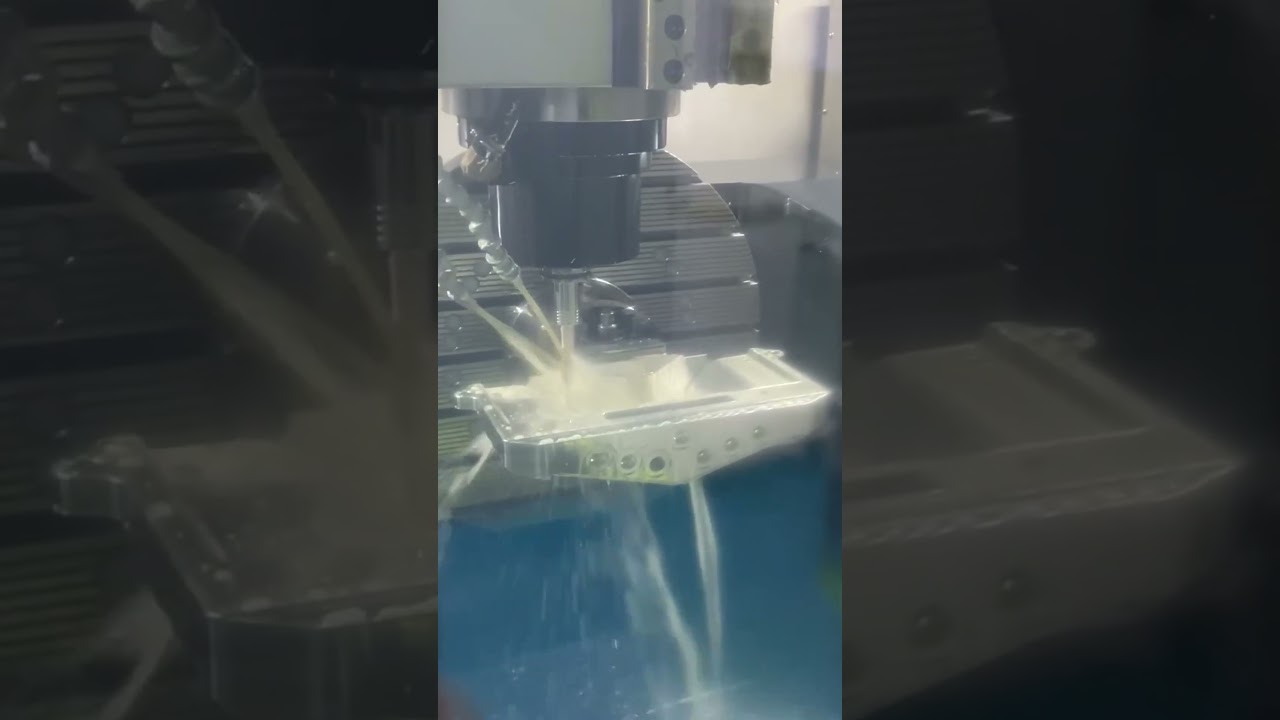

Coolant and chip evacuation matter in deep pockets. Recutting chips scratches a good surface and raises the temperature. Through-spindle coolant or air blast on aluminum, high-pressure coolant on stainless and titanium. Change tools on a schedule, not on a hunch.

On tight work, probe the stock before the first cut. A spindle probe confirms the actual position of a casting or forging within 2–5 μm, which beats trusting a saw-cut face. It also catches a bad blank before you spend an hour on it.

After roughing, probe the part again if the material moves. Aluminum 7075 and stainless 304 both relieve stress when you remove stock. Updating the work offset between roughing and finishing recovers 0.01–0.02 mm that would otherwise show up as a bowed face.

Final inspection follows the drawing, feature by feature. We inspect 100% of parts before shipment, with raw material checks, in-process monitoring, and a final report on request. Bore sizes go on a CMM, surfaces on a profilometer, and any tight slot with a gauge.

Keep the report traceable to the setup. If a dimension drifts, the offset history tells you whether the tool wore or the part moved. That record is worth more than the number itself.
