How to Prevent the Problem of Thread Cutting Deformation
Thread cutting deformation rarely comes from one source. It shows up as oval pitch diameter, torn flanks or a bell-mouthed first thread, and each symptom points to a different fix. This page is for machinists and process engineers who need to trace the cause before touching the program.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
Thread cutting deformation: symptoms, causes and what to do
Read down the first column until the defect matches what you see on the part.
| Symptom | Likely cause | Action |
|---|---|---|
| Oval pitch diameter, thread mikes disagree 90° apart | Thin-wall flexing under radial cutting force | Support the bore, take two spring passes |
| Torn or smeared flanks on one side | Cutting speed too high for the material | Drop speed 20-30%, check insert grade |
| Bell-mouthed first three threads | Workpiece pushed away by chamfer entry | Reduce chamfer feed, add a pilot support |
| Thread grows after the part cools | Heat from dry cutting, no coolant at crest | Flood coolant, measure at 20 °C |
| Pitch diameter drifts along the length | Tool wear or thermal growth of the screw | Offset wear, re-measure every 25 parts |
| Chipped crest on stainless | Built-up edge from low speed and light feed | Raise speed, increase feed per pass |
| Thread pulled out of a soft aluminium boss | Insert too sharp, no material support | Use a forming tap or a rougher insert |
Fix the movement, then trim the size
Thread cutting deformation is a stiffness and heat problem, not a programming problem. Support the wall, split the passes, cool the root and add a spring pass. Once the four-point pitch diameter spread is under 0.02 mm, a wear offset will finish the job.

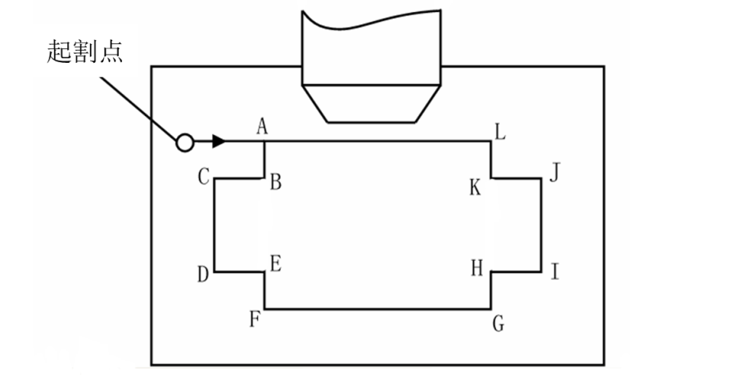

Why thread cutting deformation starts before the tool touches the part
Thread cutting removes material, and every removed chip leaves a force behind. On a 60° flank that force has a radial component. If the wall behind the thread is thin, the wall moves. The tool keeps cutting the same programmed depth, so the flank that springs away gets a shallower cut and the opposite flank gets a deeper one. The result is an oval pitch diameter, not a size error you can fix with a wear offset.
The workpiece is not the only thing that moves. Heat goes into the screw, the part and the chips. A 30 mm steel screw can grow 0.02–0.03 mm over a long run, and that growth lands directly in the pitch diameter. If you measure a hot part and accept it, the same part will read oversize after it sits on the bench for an hour.
Material choice sets the baseline. Aluminium 6061 and 7075 cut cleanly but grab a sharp insert and tear. Austenitic stainless 304 and 316L work-harden the moment the tool rubs instead of cuts. Titanium TC4 (Ti-6Al-4V) does the same at a lower threshold. In each case the fix is to keep the tool engaged and the chip thick enough to carry heat away.
- 1Radial force is the main driverIt scales with depth of cut and drops fast when you split passes.
- 2Heat moves the pitch diameterMeasure at a stable 20 °C, not straight off the machine.
- 3Thin walls amplify everythingBelow about 1.5 × thread pitch wall thickness, expect movement.

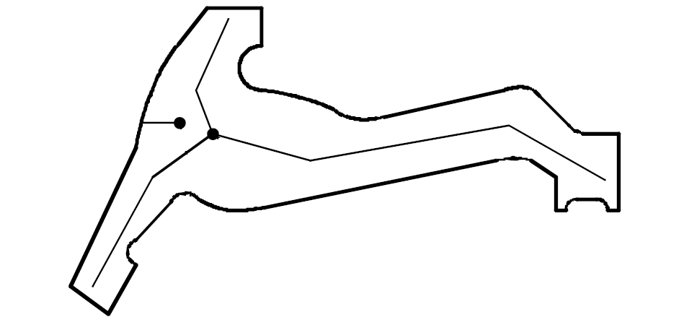

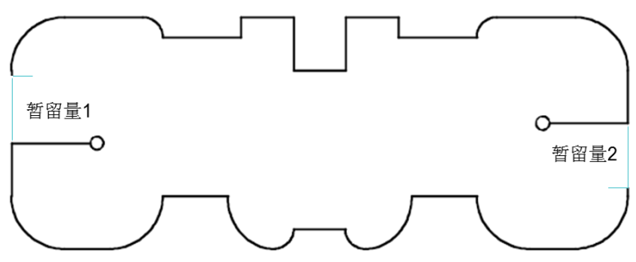

Workholding and support choices that stop the part from springing
A three-jaw chuck clamped on the outside of a thin tube is a spring. Tighten it and the bore goes triangular. Cut the thread and it comes out triangular too. Soft jaws bored to the finished diameter spread the load over a wider arc and cut that distortion by roughly half. For bores under 20 mm, a expanding mandrel or a collet is usually better than jaws.
When the thread sits at the end of a long slender shaft, the part bends away from the tool. A tailstock or a steady rest is the obvious answer, but the steady rest fingers must run on a ground band, not on the raw bar. A rotating center in the tailstock adds stiffness without adding friction heat at the tip.
For an internal thread in a deep bore, a tap will follow the drilled hole rather than the drawing. Thread milling with a single-point or multi-flute cutter gives you control over the helix and lets you enter and exit without reversing. It also removes the reversal torque that pulls a tap out of alignment.
Fixture pressure matters as much as fixture type. Over-clamping a thin flange with a strap clamp will bow the face that carries the thread. Use toe clamps or a vacuum plate, and check the flatness with a dial indicator before the first cut.
- 1Soft jaws for thin-walled round partsBore them to finished diameter, not to nominal stock.
- 2Steady rest on a ground bandNever let the fingers ride on raw, scale-covered bar.
- 3Thread mill deep boresAvoids tap drift and reversal torque.
Cutting parameters that keep thread cutting deformation inside tolerance
Threading passes should get lighter, not heavier, toward the root. A common starting split for a 1.5 mm pitch steel thread is 0.35 mm, 0.30 mm, 0.25 mm and then 0.10–0.15 mm for the remaining passes. If the last pass removes more than 0.15 mm, the flank will tear and the pitch diameter will jump.
Surface speed is material dependent. For 6061 aluminium, 150–250 m/min works with carbide. For 304 stainless, 60–90 m/min is a safer band, and 40–70 m/min for titanium TC4. Below those bands the tool rubs, work-hardens the flank and produces a chipped crest. Above them the insert edge breaks down fast.
Coolant has to reach the crest, not just the shank. High-pressure through-tool coolant at 40–70 bar clears the chip from the root and keeps the insert at a stable temperature. On aluminium, a mist or flood supply is often enough, but the flow must hit the cutting zone directly or the chip will recut.
A spring pass removes the elastic recovery that remains after the last cutting pass. Run the same programmed helix once more with zero infeed. On thin-wall parts this single pass often brings the pitch diameter within ±0.01 mm of target without touching the offset.
- 1Split passes: 0.35 / 0.30 / 0.25 / 0.10 mmKeep the final pass under 0.15 mm on steel.
- 2Speed bands: 60–90 m/min for 30440–70 m/min for titanium TC4.
- 3Through-tool coolant at 40–70 barDirect the stream at the root of the thread.
Measuring and correcting deformation after thread cutting
A go/no-go gauge tells you whether the thread fits. It does not tell you the pitch diameter. To trace deformation, use a thread mike or three-wire measurement and take readings at 0°, 90°, 180° and 270°. If the spread between the highest and lowest reading is more than 0.02 mm, the part is moving under cutting force, and the fix is in workholding, not in the offset.
Check the thread along its length, not just at the entry. A pitch diameter that grows by 0.03 mm from the first thread to the last is a sign of thermal growth or tool wear. Log the reading every 25 parts and plot it. A steady drift is wear; a step change is usually a coolant or chip problem.
Compare the pre-plate and post-plate size when the thread is coated or plated. Electroless nickel adds roughly 0.005–0.012 mm per side, which is 0.010–0.024 mm on the diameter. If the drawing calls for a 6g fit, you need to cut the thread undersize by that amount, and the amount must be confirmed with a test coupon, not estimated.
Finally, measure at a controlled temperature. Bring the part to 20 °C for at least 30 minutes. A part measured at 45 °C can read 0.02 mm larger than the same part at 20 °C on a 50 mm steel thread.
- 1Four-point mike readingA spread over 0.02 mm means the wall is flexing.
- 2Log every 25 partsSeparates tool wear from thermal drift.
- 3Allow for plating thicknessNickel adds 0.010–0.024 mm on the diameter.
Step by step: correcting thread cutting deformation on the machine
Work through these in order. Change one variable at a time and re-measure.
- 1Confirm the defect with a four-point pitch diameter readingUse a thread mike or three-wire set at 0°, 90°, 180°, 270°. Bring the part to 20 °C first. Record the spread before changing anything.
- 2Re-check workholding and supportSwitch to soft jaws bored to finished diameter, or add a steady rest on a ground band. Reduce clamp pressure and verify roundness with a dial indicator.
- 3Re-split the threading passesStart at 0.35 mm, 0.30 mm, 0.25 mm and finish with 0.10–0.15 mm passes. Never let the final pass exceed 0.15 mm on steel or stainless.
- 4Set surface speed inside the material band60–90 m/min for 304 stainless, 40–70 m/min for titanium TC4, 150–250 m/min for 6061 aluminium. Adjust in 10% steps and watch the chip color.
- 5Direct coolant at the thread rootThrough-tool at 40–70 bar for stainless and titanium. Flood or mist is acceptable for aluminium if the stream reaches the cutting edge.
- 6Add a zero-infeed spring passRepeat the final helix with no infeed. This relieves elastic recovery and typically pulls the pitch diameter back inside ±0.01 mm.
- 7Offset for wear and plating, then re-verifyApply the measured wear offset and the plating allowance. Cut three parts and re-measure at 20 °C before releasing the run.
Thread cutting deformation questions engineers ask
Can thread cutting deformation be fixed with a wear offset alone?
No. A wear offset shifts the whole thread by a fixed amount. If the pitch diameter is oval, the offset will make one axis correct and the other worse.
Fix the movement first. Support the wall, split the passes and add a spring pass. Once the four-point reading is within 0.02 mm, use the offset for the remaining size error.
Why does the first thread come out bell-mouthed?
The chamfer entry pushes the workpiece away before the full flank is engaged. The part springs back after the tool passes, so the first few threads end up with a larger pitch diameter than the rest.
Reduce the chamfer feed by 30–50%, add a pilot support close to the entry, and take a light 0.10 mm first pass to establish the helix.
Should I thread mill or tap a thin-walled part?
Thread milling is usually the safer choice below 1.5 × pitch wall thickness. A tap generates high torque and follows the drilled hole, while a thread mill lets you control the helix and enter and exit without reversing.
Tapping is still fine for thicker walls and short threads where cycle time matters more than the last 0.01 mm.
How much does heat actually move the pitch diameter?
On a 50 mm steel thread, a 25 °C rise above room temperature can add roughly 0.02 mm to the diameter. That is enough to fail a 6g fit if you measure the part hot.
Cool the part to 20 °C for 30 minutes before the final measurement, and keep coolant flowing so the temperature stays stable during the run.
Do forming taps create less deformation than cutting taps?
Forming taps displace material instead of removing it, so there is no chip to recut and the grain flow follows the thread. In ductile aluminium and low-carbon steel this often gives a stronger thread and less flank tearing.
The trade-off is higher torque and no tolerance for a misaligned hole. In hard or brittle material, a cutting tap is still the better option.
What inspection record should ship with a threaded part?
A go/no-go result plus a pitch diameter reading taken at 20 °C is the minimum. For safety or medical parts, add the four-point spread and the measurement temperature.
