A wall deflects because the cutting force pushes on a beam that is only a few tenths of a millimetre thick. The force itself is small, often 100–300 N in aluminium, but the stiffness of a 1 mm wall is a fraction of a solid block. The wall bends away from the cutter, the tool takes a lighter chip than programmed, and the wall springs back after the tooth passes.

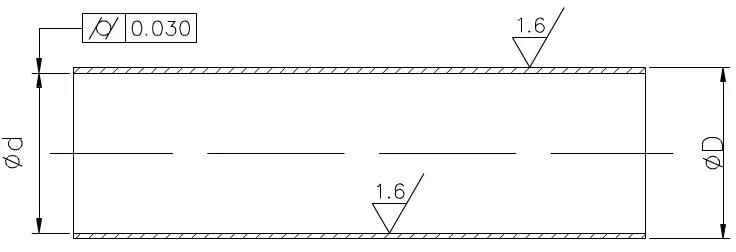

That spring-back is what produces the classic errors: an oval bore, a wall that is thick at the base and thin at the top, or a diameter that measures 0.05 mm oversize on the last pass. The part is not machined wrong. It is measured in a shape it only holds while clamped.

Heat adds a second error on top. Cutting 7075 or 304 stainless with an aggressive feed sends most of the energy into the chip, but a dull insert or a dry cut pushes heat into the wall instead. A 300 mm aluminium wall at 45 °C grows about 0.05 mm compared with 20 °C. Measure it hot and you will chase a tolerance that does not exist.

Residual stress is the third cause, and the one most often missed. Rolled plate and extruded tube arrive with internal stress. Remove 80 percent of the material on one side and the part bows. No clamping strategy fixes that. Only a stress-relief cycle between roughing and finishing does.

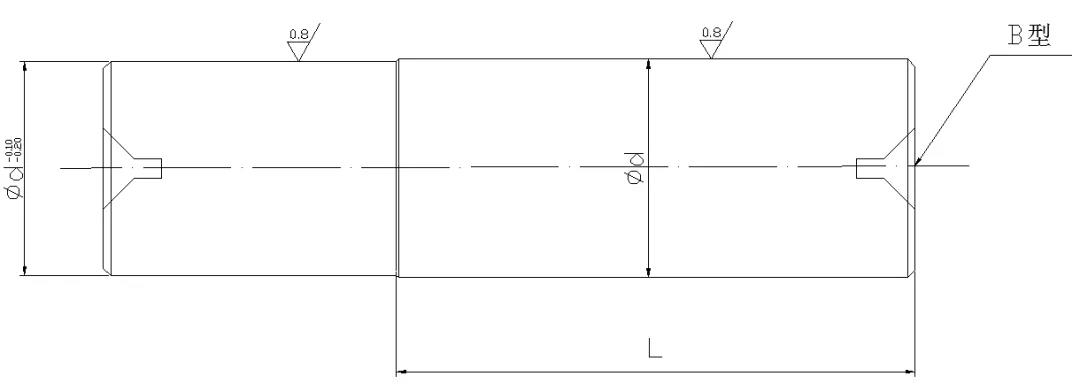

Never clamp directly on a thin wall. The clamp pressure that holds the part flat during roughing will release when you unload it, and the wall will bow back. Support the wall from the inside, or leave a sacrificial web that you cut in a later operation.

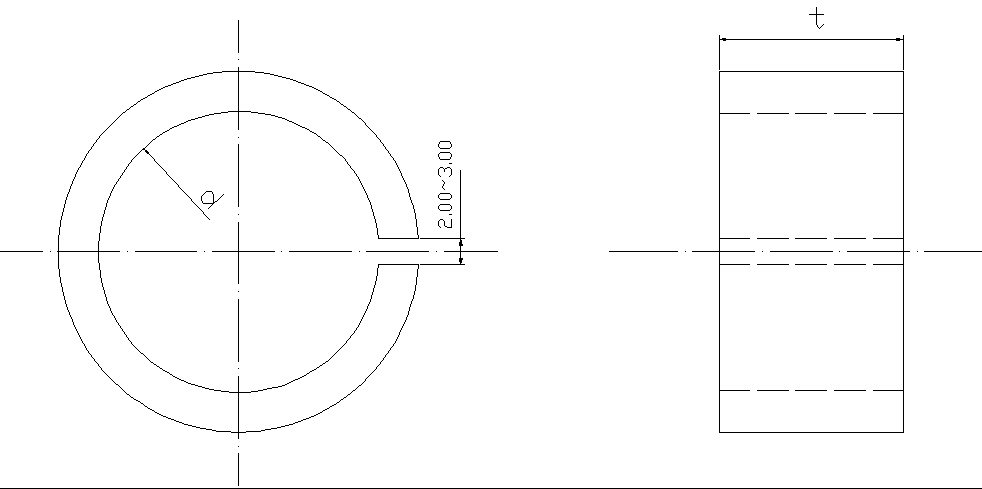

For a ring or a tube, bore soft jaws that match the finished outside diameter within 0.02 mm and grip on a thick flange instead of the wall. For a box, leave 2–3 mm of stock on the floor and hold the part on that floor with vacuum or a low-profile fixture. The floor is stiff; the wall is not.

Vacuum fixturing works well on aluminium plates from 6 mm up, but it needs a flat sealing surface at least 8 mm wide. On a 1.5 mm wall you cannot get that seal. Use a potting compound or low-melt wax instead, and cut the wax away after the finish pass.

Keep clamp force consistent between operations. If roughing used 40 bar on the vise and finishing used 25 bar, the part relaxes differently and your two setups disagree. Record the pressure on the setup sheet. That single habit removes more scrap than any toolpath change.

Climb milling is the default. In climb milling the tooth enters at maximum chip thickness and exits at zero, so the force pushes the wall toward the supported side. Conventional milling pulls the wall into the cutter and lifts it on exit, which is exactly the direction a thin wall cannot resist.

Cut the wall in multiple axial steps rather than one deep pass. A 30 mm tall wall in aluminium at 1.2 mm thickness should be taken in 6 steps of 5 mm or in a helical ramp with 3–5 mm axial depth. Radial depth of cut stays between 0.15 and 0.3 mm for the finishing pass.

Alternate the sides. Machine 0.1 mm off the left face, then 0.1 mm off the right face, and repeat. Cutting one face to final size first loads the wall asymmetrically, and the second face then cuts a wall that has already moved. Alternating keeps the load balanced and the wall straight.

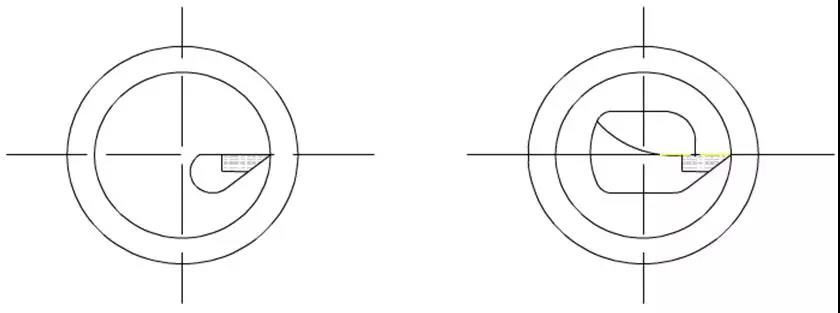

Use a trochoidal or dynamic path for the roughing. It keeps the radial engagement constant, which keeps the force constant, which keeps the deflection constant. A constant deflection is a wall you can compensate for. A varying one is not.

Leave the final 0.3–0.5 mm for a single spring pass at the same settings. A spring pass with no radial step removes the elastic rebound left by the previous pass without adding new load.

Cut lighter and faster, not slower and heavier. Many shops reduce feed when they see chatter. That is backwards. A low feed rubs the wall, work-hardens stainless, and increases the specific cutting pressure. Keep the chip load per tooth at the low end of the tool maker range but not below it: 0.03–0.06 mm per tooth for a 6 mm carbide end mill in aluminium, 0.02–0.04 mm in 304 stainless.

Spindle speed can stay high. The limiting factor on a thin wall is force, not speed. Running a 6 mm three-flute cutter at 8,000–12,000 rpm in aluminium with a 0.2 mm radial step is faster and straighter than 3,000 rpm with a 1 mm step, because total force drops with radial engagement.

Use high-pressure coolant or air blast aimed at the wall, not a flood that pools. Mist and flood both struggle to reach the bottom of a 40 mm deep wall slot. Through-spindle coolant at 40–70 bar clears the chip and takes the heat out with it. A recut chip under the wall is a guaranteed 0.03 mm dent.

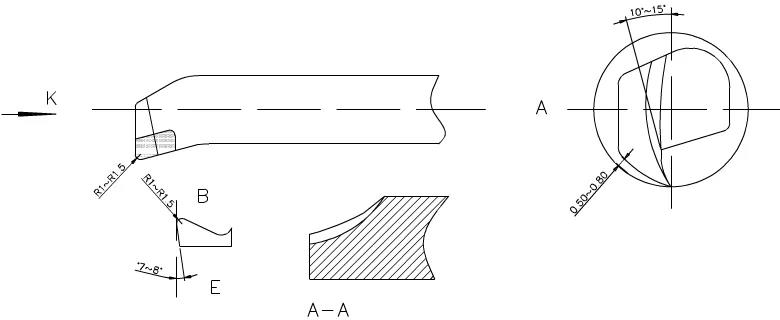

Sharp tools matter more here than anywhere else. A worn corner radius doubles the axial force and the wall moves with it. Change inserts on a fixed count, not on a visual check. For aluminium thin-wall work we log tool life in minutes of cut and swap at 60–70 percent of the rated life.

Plan a stress-relief cycle after roughing for any part where the wall is under 1.5 mm or the stock removal is over 60 percent. For 6061 aluminium, a 2 hour soak at 190–200 °C followed by slow cooling in the furnace is enough to drop most of the residual stress. For 304 or 17-4PH stainless, a 1 hour soak at 550–600 °C works, but check the drawing first because some tempers are affected.

Do not skip straight from roughing to finishing on a part that was cut from plate. Plate is rolled under load and the stress is locked in. Roughing releases one side of it. The part bows 0.1–0.3 mm over 200 mm, and every finishing pass then follows the bow.

Control the temperature in the room as well. A shop that swings from 18 °C at night to 30 °C in the afternoon moves a 300 mm aluminium part by roughly 0.06 mm before any cutter touches it. If the tolerance is ±0.005 mm, finish and inspect in the same temperature window.

In-process gauging helps on long runs. Measure one wall every 20 parts at the same point and after the same cool-down. If the reading drifts, the cause is usually tool wear or a fixture that has loosened, not the program.
