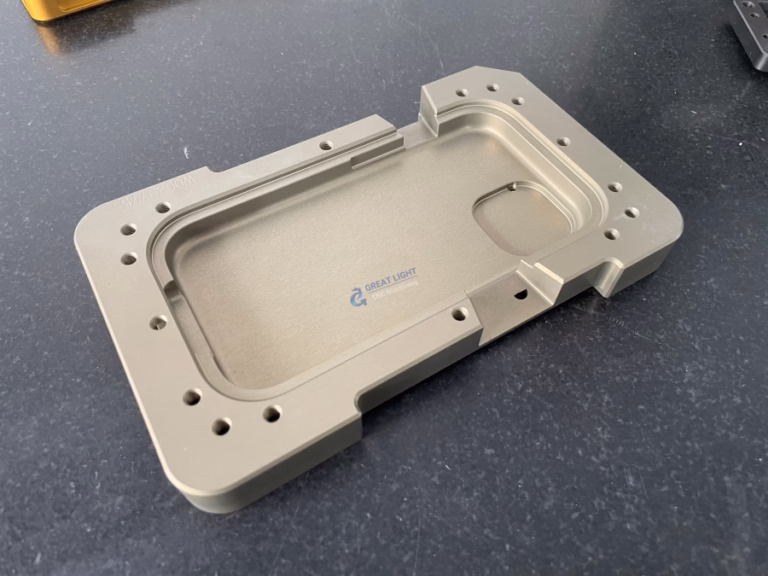

On a wood router, a pattern is a physical template the operator traces. On a metal CNC machine, the pattern is digital. It is the combination of a solid model, a CAM setup, a tool list, and a workholding plan that together define every pass of the cutter.

The starting point is a closed solid model, not a surface mesh. Send STEP or IGES files rather than STL when you can. Meshes force the CAM programmer to guess at true radii and flatness, and small tessellation errors turn into chatter marks on the finished face.

Check the model for wall thickness before anything else. Features thinner than 0.8 mm flex under cutting force, and a 1.0 mm wall on a 100 mm long rib will ring. If the design allows, thicken the wall or add a temporary rib that comes off later.

Also confirm that every critical dimension has a stated tolerance and a datum. A drawing that says 'machine to fit' gives the programmer nothing to aim at. Nominal dimensions without tolerance bands are the single most common reason a first article gets rejected.

Stock selection changes the pattern. A 6061-T6 aluminium block cuts cleanly at 2,000–3,000 rpm with a 12 mm carbide end mill. A 316L stainless blank of the same size needs roughly half that speed and a heavier feed per tooth.

Leave enough material for cleanup. A common rule is 0.5 mm on machined faces and 1.5–2.0 mm on sawn or cast faces. On castings, add more because the skin can be hard and abrasive, which wears the first cutter fast.

Match the blank to the finished envelope. A part that finishes at 180 × 120 × 40 mm needs a blank around 184 × 124 × 44 mm to allow clamping and facing. Oversize blanks waste material. Undersize blanks force the programmer to cut air or, worse, hit the vise.

Consider heat treat and stress. A 4140 blank that will be hardened after roughing should be roughed 0.3–0.5 mm oversize, then finished after treatment. Otherwise distortion shows up as an out-of-flat face that no toolpath can fix.

• 1
  Aluminium 6061-T6Good for prototypes and brackets; runs fast and holds ±0.005 mm.
• 2
  Stainless 304 / 316LExpect slower speeds, more coolant, and shorter tool life.
• 3
  Titanium Ti-6Al-4VRigid setup and high-pressure coolant are not optional.
• 4
  Plastics POM / PEEKClimb cut and use sharp tools to avoid melting or burrs.

Set the work coordinate system at a datum that exists on the finished part, not at a corner of the rough stock. If the datum is a corner of the blank, every facing pass shifts the origin and the first feature drifts.

Choose cutters by feature size. A 16 mm face mill handles large flats. A 6 mm end mill reaches most pockets. A 3 mm or 2 mm cutter is for fillets and slots, and it should run at reduced stepover to avoid deflection.

Set stepover between 40% and 70% of cutter diameter for roughing. Below 40% you add cycle time with little benefit. Above 70% the tool loads up in aluminium and the chips weld to the flutes.

Leave 0.2–0.3 mm radial stock for the finishing pass on hard metals, and 0.1–0.2 mm on aluminium. A finish pass that removes too little rubs instead of cutting, which raises surface roughness and shortens tool life.

• 1
  Rough with a large toolRemove bulk fast with a 12–16 mm cutter at 50% stepover.
• 2
  Semi-finish before finalLeave a consistent 0.2 mm shell for the finishing tool.
• 3
  Finish with a sharp small toolUse a 6 mm or 4 mm end mill for walls and floors.
• 4
  Deburr in the same setupA chamfer tool saves a second operation and a second datum.

A perfect toolpath on a loose part cuts nothing useful. For flat plates, clamp on the perimeter and support the middle. For a 200 × 150 mm plate, two edge clamps and a center support block stop the floor from drumming.

For five-sided work, a dovetail or vise-jaw fixture holds the part so four sides and the top can be cut in one setup. Our 16 simultaneous 5-axis machining centers routinely hold parts on a Ø400 mm rotary table, which keeps the datum fixed through the rotation.

Avoid clamping on a finished surface. If the second operation clamps on a face already held to ±0.005 mm, the jaw marks alone can push the part out of tolerance. Clamp on a rough pad and machine the pad off last.

Thin parts need support, not force. A 1.5 mm floor on a 6061 housing will deflect under clamping pressure. Use a vacuum fixture or a low-melt wax pot, and cut the light finishing passes last.

Run a full stock-removal simulation in the CAM package. Check for three things: tool holder collision with the fixture, rapid moves through material, and leftover stock in corners the finishing tool cannot reach.

Set the rapid plane to clear the tallest point of the stock by at least 10 mm. A rapid move that clips a clamp breaks a cutter and can scrap the part. This is the most common setup error we see on incoming programs.

Do a dry run with the spindle offset 50 mm above the part. Watch the tool path on the machine control, then single-block through the first tool. If anything looks wrong, stop. A dry run costs 20 minutes; a crash costs a fixture and a day.

If you are running a new material, cut a test coupon first. A 50 × 50 mm block of the same alloy and heat treatment will show you the real chip load, surface finish, and tool wear before the production blank goes in the vise.
