How to Improve the Finish of Rotating Surfaces

• 1
  Key takeaways
• 2
  Understand what actually creates the finish of rotating surfaces
• 3
  Pick the insert and geometry for the material, not the drawer
• 4
  Set the finishing pass parameters within a range that holds
• 5
  Kill vibration before you touch the parameters
• 6
  Measure, record and close the loop
• 7
  Step by step: setting up a finishing pass that holds Ra
• 8
  Parameter starting points by material

A turned surface is a helix. Every revolution of the workpiece, the tool advances by the feed per revolution, and the nose radius leaves a series of overlapping arcs. The height of those arcs is the theoretical roughness, and it is predictable: Ra ≈ feed² ÷ (32 × nose radius) when the tool is sharp and vibration is zero. At 0.2 mm/rev with a 0.8 mm nose radius, the math gives roughly Ra 1.6 μm. Cut the feed to 0.1 mm/rev and you drop to about Ra 0.4 μm. Nothing else changed.

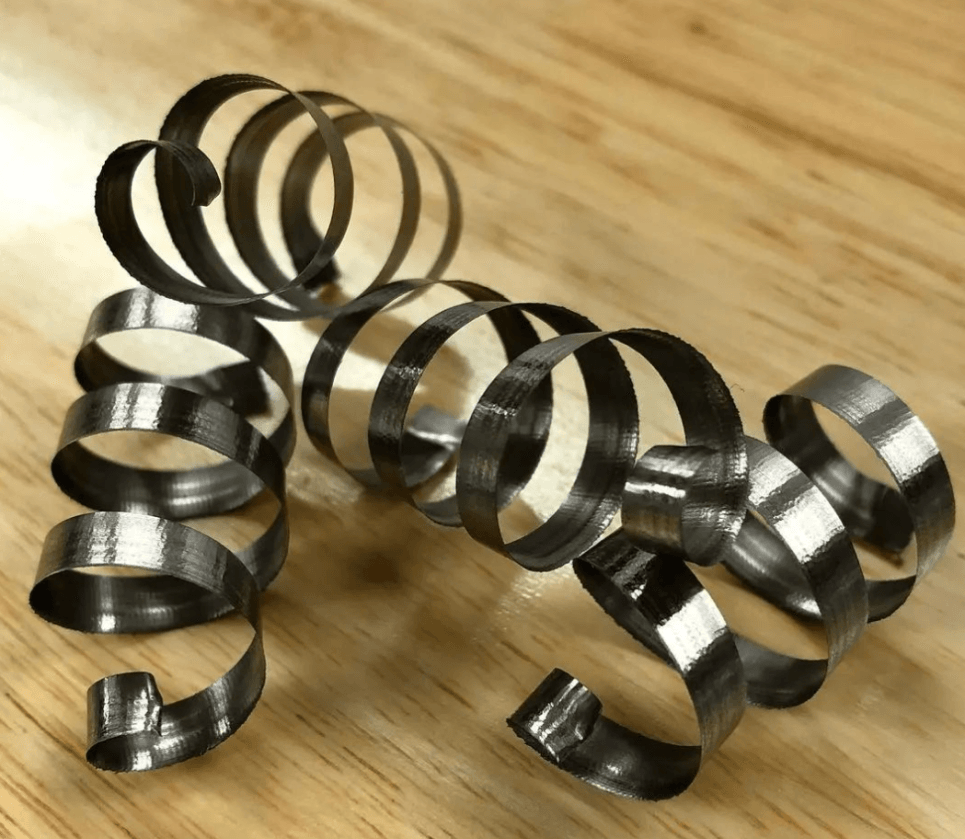

That formula explains most of what operators see on the floor. It also explains why chasing finish with spindle speed alone rarely works. Speed affects built-up edge, tool temperature and chip control, but the geometry of the groove is set by feed and nose radius. If the print calls for Ra 0.8 μm and you are running 0.25 mm/rev on a 0.4 mm radius, no amount of RPM will get you there.

Real surfaces are always rougher than the formula. Tool wear, built-up edge, chatter, material smearing and inclusions all add height. The gap between predicted and measured Ra tells you which of those is active. A 0.2 μm gap is normal on aluminium. A 1.5 μm gap points at vibration or a dull edge, not at the program.

So the first move is diagnosis, not adjustment. Measure the part, compare against the predicted value, and only then decide which lever to pull. On the parts we run in Dongguan and Singapore, this five-minute check saves more time than any parameter library.

• 1
  Theoretical Rafeed² ÷ (32 × nose radius), in mm and μm
• 2
  Typical gap0.2–0.5 μm on aluminium, 0.3–0.8 μm on steel
• 3
  Red flagMeasured Ra more than double the predicted value

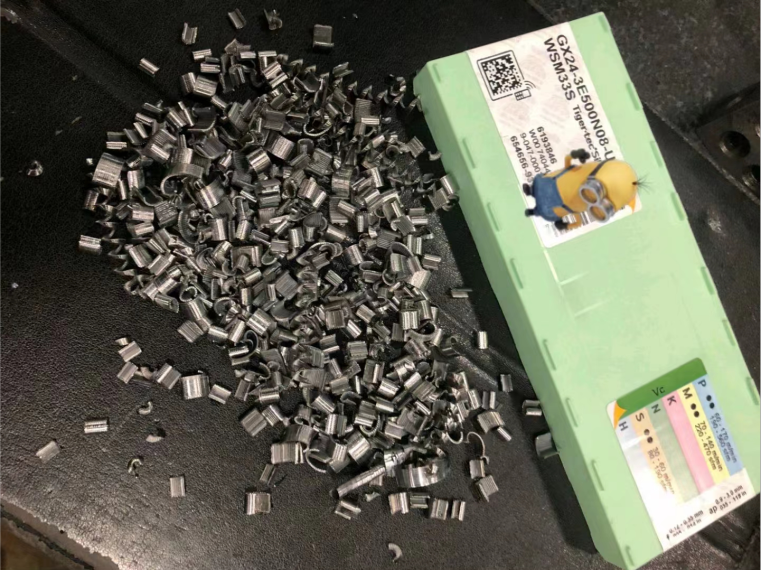

Insert choice sets your ceiling. A positive rake, sharp-edged insert with a polished top face cuts aluminium and mild steel cleanly at low cutting pressure. A negative rake insert with a strong edge survives interrupted cuts and hard steel but pushes the material instead of shearing it, and that shows up as smearing and torn surface on softer alloys.

For aluminium 6061 and 7075, we run uncoated polished inserts with a 0.4–0.8 mm nose radius at 200–400 m/min surface speed. For 304 and 316 stainless, a PVD-coated insert with a 0.4 mm radius at 120–180 m/min holds an edge long enough to finish a batch without a mid-run change. For 4140 and 4340 steel, 150–220 m/min with a 0.8 mm radius is a stable starting point.

Nose radius is a trade, not a free upgrade. A bigger radius spreads the cut and lowers Ra at the same feed, but it also raises radial cutting force and can chatter on thin walls or long overhangs. On a Ø20 mm shaft sticking 150 mm out of the chuck, a 0.4 mm radius often finishes better than a 1.2 mm radius simply because the tool pushes less.

Wiper inserts are worth knowing about. They carry a second, flatter cutting edge that wipes the groove left by the main radius, so you can hold Ra 0.8 μm at feeds that would normally give 2.5 μm. The catch is that they need a rigid setup and a stable depth of cut. On a shaky part they produce a worse surface than a standard insert.

• 1
  AluminiumUncoated polished, 0.4–0.8 mm radius, 200–400 m/min
• 2
  Stainless 304/316PVD coated, 0.4 mm radius, 120–180 m/min
• 3
  Alloy steel 4140/4340CVD or PVD, 0.8 mm radius, 150–220 m/min
• 4
  Thin walls and long overhangsSmaller radius, lower radial force

The finishing pass should remove a small, consistent amount of material. We leave 0.15–0.30 mm radial stock after roughing. Less than 0.10 mm and the edge rubs instead of cutting, which work-hardens stainless and tears aluminium. More than 0.40 mm and you are roughing again, with the cutting force and heat that come with it.

Depth of cut and feed per revolution work together. A 0.2 mm depth at 0.08–0.12 mm/rev on a 0.4 mm radius insert gives a clean, repeatable Ra 0.8 μm on most steels. If the part allows, a second spring pass at the same depth with zero additional feed offset removes the residual helix from tool deflection. It costs one pass and often buys half a micron.

Cutting speed should be high enough to avoid built-up edge and low enough to avoid notch wear. On stainless, built-up edge is the main enemy of finish; too low a surface speed lets material weld to the edge and then break off, leaving pits. On aluminium, too high a speed with the wrong coolant can produce a smeared, gummy surface.

Coolant must reach the cutting edge. High-pressure through-tool coolant at 40–70 bar clears chips from the groove and cools the edge directly. Flood coolant aimed at the chip rather than the edge does far less. On deep bores and grooving, through-tool delivery is usually the difference between Ra 0.8 μm and Ra 2.5 μm.

• 1
  Radial stock0.15–0.30 mm after roughing
• 2
  Feed per rev0.08–0.12 mm/rev with a 0.4 mm radius
• 3
  Through-tool coolant40–70 bar, aimed at the cutting edge

Chatter is the most common cause of a finish that will not clean up. It shows as a regular pattern of parallel marks spaced at the chatter frequency, and it gets worse the longer the part or the thinner the wall. No feed or speed change fixes it permanently, because the underlying stiffness has not changed.

Support is the first answer. A tailstock, steady rest or sub-spindle on a mill-turn center shortens the unsupported length and raises the natural frequency. On shafts longer than four times their diameter, we plan the support before we plan the toolpath. On thin-walled tubes, a soft-jaw bored to the finished diameter, or an expanding mandrel, does the same job from the inside.

Tool overhang is the second answer. Every millimetre the tool sticks out of the holder lowers stiffness. A 16 mm shank in a 20 mm boring bar at 4× diameter overhang will sing. At 2.5× the same bar cuts quietly. If you cannot shorten the overhang, move to a heavier bar or a damped boring bar with an internal tuned mass.

When support and overhang are already handled and the surface still shows a pattern, check the spindle and the workholding. Worn chuck jaws, a dirty taper or a loose turret repeat the same defects every revolution. Mark the part and the chuck jaw with a felt pen; if the marks line up with the jaws, the problem is clamping, not cutting.

• 1
  Support long partsTailstock or steady rest beyond 4× diameter
• 2
  Keep overhang shortUnder 3× bar diameter where possible
• 3
  Check the workholdingWorn jaws and dirty tapers repeat every rev

A finish callout is only useful if it is measured the same way every time. Handheld skidded gauges are quick but read low on short waviness. A skidless pickup on a surface profilometer gives you Ra, Rz and Rmax, and Rmax is often what the customer actually cares about because it drives sealing and fatigue. Agree on cutoff length, evaluation length and filter before the first part.

Measure at three positions along the axis: near the chuck, mid-span and near the free end. A finish that varies along the length points at deflection or support, not at the insert. A finish that varies around the circumference points at runout or a bent bar. The pattern tells you where to look next.

Record the numbers with the setup sheet: insert grade and radius, feed, speed, depth, coolant pressure and measured Ra. On a repeat order, that sheet is what makes the second batch match the first. It also gives the next machinist a starting point instead of a guess.

Report the result with the part. We ship 100% inspected parts with reports on request, and the finish data travels with the dimensional data. If a customer needs Ra 0.2–0.8 μm on a sealing surface, we inspect to that number, not to a visual standard.

• 1
  Agree the method firstCutoff, evaluation length, filter, skidless pickup
• 2
  Measure three positionsChuck end, mid-span, free end
• 3
  Record with the setupGrade, radius, feed, speed, coolant, Ra
