Understanding the electricity consumption of a CNC machine is a critical operational consideration for any manufacturing facility, directly impacting both cost structures and environmental sustainability. As a professional deeply involved in precision parts machining, I often encounter clients and peers who are surprised by the complexity behind the seemingly simple question: “How much electricity does a CNC machine use?” The answer is not a single number but a multifaceted equation influenced by machine type, size, duty cycle, material, and operational practices. Let’s delve into the details.
H2: The Core Variables: What Determines a CNC Machine’s Power Draw?
The power consumption of a CNC machine is not constant. It fluctuates based on several interconnected factors:
Machine Type and Size: A small desktop 3-axis benchtop mill consumes vastly less power than a large 5-axis gantry mill machining aerospace components. The spindle motor, axis drives, coolant pumps, and computer systems all scale with machine size.
Spindle Motor Power: This is often the largest single consumer. Spindle power ratings (e.g., 10kW, 22kW) indicate maximum potential draw, but actual usage depends on load.
Material Being Machined: Cutting hardened steel requires significantly more torque and power than milling aluminum or plastic. The cutting parameters (speed, feed, depth of cut) directly translate to electrical load.
Duty Cycle: Is the machine running at 100% spindle load for 8 hours straight, or is it in a light-duty, high-speed finishing operation? Idle time, tool changes, and setup periods also factor into the average power consumption.
Ancillary Systems: The CNC control, servo drives, chip conveyor, coolant system, mist collector, and shop lighting/VAC systems all add to the total energy footprint of the machining cell.
Machine Age and Efficiency: Modern CNC machines, especially those with energy-efficient components like regenerative drives, permanent magnet spindle motors, and smart power management systems, can be 15-30% more efficient than older models.
H3: Breaking Down Consumption by Machine Class
To provide a practical frame of reference, here’s an estimated range for common types of machines under typical operating conditions. These are average active power draw estimates during cutting operations, not peak startup or idle consumption.
| Machine Type | Typical Spindle Power Range | Estimated Average Power Draw During Cutting | Primary Use Case |
|---|---|---|---|
| Compact 3-Axis VMC | 5 – 15 kW | 3 – 10 kW | Prototyping, small precision parts, molds. |
| Standard 3/4-Axis VMC | 15 – 30 kW | 8 – 20 kW | General-purpose machining, mid-volume production. |
| Large 5-Axis Machining Center | 30 – 60 kW+ | 15 – 40 kW+ | Complex aerospace, automotive, and medical components. |
| CNC Lathe (Turning Center) | 10 – 30 kW | 6 – 18 kW | Shafts, pins, and rotational symmetrical parts. |
| Swiss-Type Lathe | 5 – 15 kW | 4 – 10 kW | High-precision, small-diameter medical and electronic components. |
Important Note: The “Estimated Average Power Draw” is often 25-50% of the spindle’s rated power during actual cutting, as optimal machining rarely requires running the spindle at its absolute maximum torque continuously.
H3: From Watts to Costs: Calculating Your Energy Bill
Understanding kilowatt-hours (kWh) is key. The formula is straightforward:
Energy Consumed (kWh) = Average Power (kW) × Time (hours)
Example Calculation:
Let’s assume a standard 5-axis CNC machining center operates for 16 hours a day, 22 days a month.
Average Cutting Power: 25 kW
Daily Energy Use: 25 kW × 16 hrs = 400 kWh
Monthly Energy Use: 400 kWh × 22 days = 8,800 kWh
If your industrial electricity rate is, for instance, $0.12 per kWh, the direct machining energy cost for this one machine would be approximately $1,056 per month. This highlights why energy efficiency is a direct contributor to cost competitiveness.
H2: Strategies for Optimizing CNC Machine Energy Efficiency
Smart manufacturers don’t just pay the bill; they actively manage consumption. Here are proven strategies:
Right-Sizing the Machine: Using a massive 50kW machine for light aluminum work is inefficient. Match the machine’s capacity to the typical workpiece.
Optimizing Cutting Parameters: Advanced CAM software can generate toolpaths that maintain consistent load, avoid unnecessary air-cutting, and use the most efficient speeds and feeds, reducing cycle time and energy use.
Investing in Modern, Efficient Equipment: Newer machines from reputable manufacturers are designed with energy savings in mind. Features like:
Regenerative Drives: Convert braking energy from the axes back into usable electricity.
Efficient IE4/IE5 Class Spindle Motors: Offer higher output with lower losses.
Automatic Power-Down Modes: Put auxiliary systems to sleep during pauses.
Proactive Maintenance: A worn spindle bearing or dull cutting tool forces the machine to work harder, drawing more power to achieve the same result. Regular maintenance ensures optimal efficiency.
Consolidating Production: Grouping similar jobs to minimize setup changes and machine idle time improves overall facility energy utilization.
H2: The GreatLight Metal Perspective: Integrating Efficiency into Precision
At GreatLight Metal Tech Co., LTD., our approach to precision parts machining encompasses not just dimensional accuracy but operational excellence. We view energy management as an integral part of our sustainable and cost-effective service model.

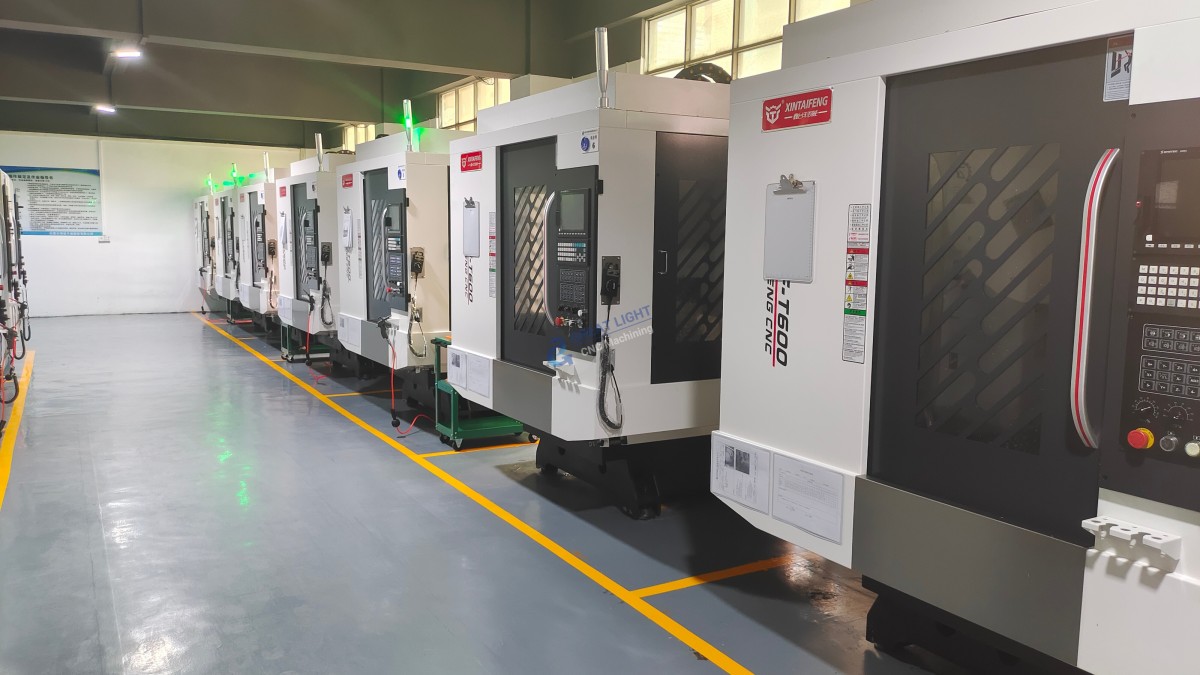

Modern Fleet: Our investment in advanced 5-axis CNC machining centers and other precision equipment is partly driven by their superior energy efficiency. These machines deliver more metal removal per kilowatt-hour.
Process Intelligence: Our engineering team optimizes programs not only for speed and precision but also for efficient power utilization, ensuring we deliver value without waste.
Holistic Facility Management: We manage ancillary systems—like centralized coolant filtration and intelligent lighting—to reduce the total energy footprint of our manufacturing process, benefits that are passed on through stable and competitive pricing.
Conclusion
So, how much electricity does a CNC machine use? It uses precisely what its task demands, but that demand can be intelligently managed. Consumption ranges from a few kilowatts for a small mill to tens of kilowatts for heavy-duty 5-axis CNC machining centers. By understanding the variables—machine type, material, and parameters—and implementing strategic efficiency measures, manufacturers can significantly control this key operational cost. In today’s competitive landscape, partnering with a manufacturer like GreatLight Metal, which prioritizes technological efficiency alongside precision, is a strategic decision that impacts both your bottom line and sustainability goals. For the most accurate assessment for your specific projects, a detailed discussion about the part geometry, material, and volume is always the best starting point.
H2: Frequently Asked Questions (FAQ)
H3: Q1: What is the biggest energy user on a CNC machine?
A: Typically, the spindle motor is the largest single consumer, especially during heavy roughing cuts. However, the collective draw of all axis servos, coolant pumps, and the CNC control system is substantial.
H3: Q2: Does a CNC machine use a lot of power when it’s idle?
A: Yes, an idling machine still consumes power for the control system, servos (holding position), and often coolant circulation. This “base load” can be 10-25% of its peak cutting load. Enabling energy-saving sleep modes can drastically reduce idle consumption.
H3: Q3: Is a 5-axis machine less energy-efficient than a 3-axis machine?
A: Not necessarily. While a 5-axis CNC machining center has more servo drives, its efficiency is in process consolidation. It can complete a complex part in one setup, eliminating the energy that would be used by multiple machines (multiple spindles, pumps, controls) and additional handling. For complex parts, it is often the more efficient solution overall.
H3: Q4: How can I estimate the energy cost for a specific machining job?
A: You would need the machine’s average power draw during the specific operations (which can sometimes be monitored via the machine controller), the total cycle time for the part, and your electricity rate. Reputable manufacturers should be able to provide cycle time estimates, which form the basis for this calculation.
H3: Q5: Are there energy efficiency certifications for CNC machines?
A: While there isn’t a universal “Energy Star” for machine tools, many European and Japanese manufacturers adhere to strict internal standards and participate in initiatives like the German “Blue Competence” campaign. Look for machines featuring components with high-efficiency (IE) ratings and built-in energy management software.
