How Does a Laser CNC Machine Work?

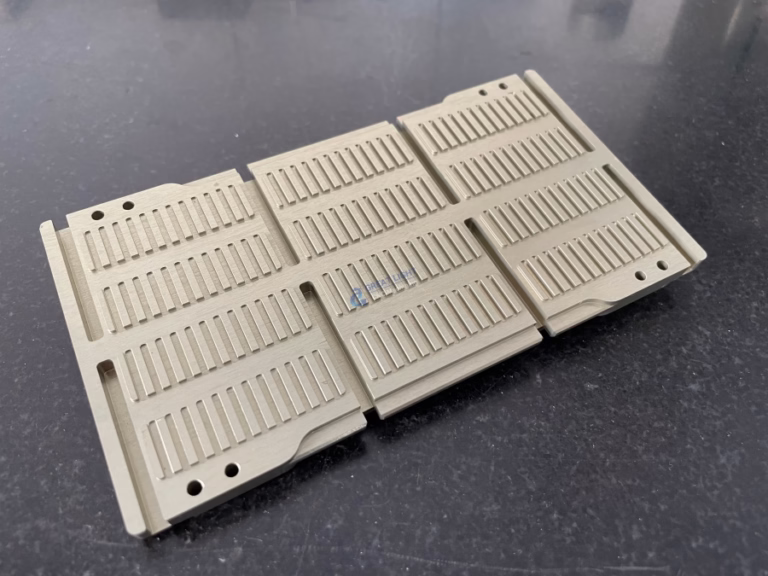

A laser CNC machine turns a CAD path into a focused beam that melts, burns, or vaporizes material along the cut line. This guide walks the beam path, the settings that matter, and the point where you should send the part to a milling center instead. Written for engineers and buyers who need to pick a process, not a sales pitch.
Key takeaways
How laser cnc machine work: the beam path
A fiber laser CNC machine starts with a pump diode stack that excites a doped glass fiber. The fiber emits light near 1,070 nm, a wavelength that mild steel, stainless, and aluminum all absorb well. Mirrors are not used in a fiber resonator, which is why the beam stays aligned even after thousands of hours.
The beam leaves the resonator through a collimator and travels to the cutting head. Inside the head, a focusing lens or a curved mirror squeezes the beam to a spot between 0.1 mm and 0.3 mm across. That spot is where the energy density gets high enough to melt steel. Everything before this point only moves light around.
A nozzle sits 0.5–1.5 mm above the sheet and blows assist gas into the cut. Oxygen feeds an exothermic reaction in mild steel and raises cutting speed. Nitrogen or compressed air keeps the edge clean on stainless and aluminum. The gas also shields the lens from spatter.
The CNC controller drives two linear axes under the sheet or a gantry above it. It reads G-code, adjusts power and feed on the fly, and keeps the focal point at a constant height with a capacitive sensor. That height loop is the difference between a clean cut and a ragged one.
- 1ResonatorFiber or CO₂ source; fiber covers metals at 1,070 nm.
- 2Cutting headCollimator, focus lens, nozzle, height sensor.
- 3Motion systemGantry or flying optics, servo-driven, 0.01 mm resolution.
- 4Controller and gasG-code execution plus O₂, N₂, or air assist.
What the controller actually controls
The controller does more than move the head. It times the laser on and off at the start and end of every contour, and it ramps power during corners so the kerf does not widen. On a 3 mm stainless sheet, a typical pierce runs at higher peak power for 0.2–0.8 s, then drops to cutting power.
Feed rate and power travel together. Cut too slow and the kerf widens, dross forms on the bottom edge, and the heat-affected zone grows. Cut too fast and the beam leaves striations angled the wrong way, or the cut fails to penetrate and the slug stays welded in place.
Focal position is the third lever. Moving the focus below the surface thickens the effective beam and helps on thick mild steel. Raising it above the surface narrows the kerf for fine features on thin sheet. Most shops keep a library of proven recipes per material and thickness.
For anything held to ±0.005 mm, laser cutting is only the first operation. The blank comes off the laser, then goes to a machining center for the critical faces.
Which parts suit laser cutting
Laser cutting earns its place on flat parts with many holes, long contours, or nested layouts. Bracket plates, sensor housings, heat shields, gaskets, and enclosure panels all come off the bed in one pass with no tooling cost. Changing the design means changing the program, not the fixturing.
Sheet thickness sets the practical ceiling. Fiber lasers cut 1 mm stainless at several meters per minute. At 12 mm mild steel, speed drops sharply and the edge shows a rougher, slightly tapered profile. Beyond that, plasma, waterjet, or milling usually cost less per good part.
Material matters as much as thickness. Aluminum reflects and conducts heat, so it needs higher power and clean optics. Copper and brass reflect even more at 1,070 nm and are slow on a fiber machine. Titanium cuts cleanly with nitrogen but needs a controlled atmosphere to avoid oxidation.
Very small holes are a known limit. A hole much smaller than the sheet thickness tends to come out tapered or undersized. If the drawing calls for a Ø1 mm hole in 3 mm steel, plan to drill it after cutting.
Where laser cutting stops and milling starts
A laser removes material along a line. It cannot plunge into the middle of a plate and leave a pocket floor. If your part needs a 6 mm deep pocket, a counterbore, a tapped hole, or a face milled flat to Ra 0.8 μm, that is machining work.
Tolerance is the second dividing line. Laser positioning holds roughly ±0.05 mm to ±0.1 mm on thin sheet in a good shop. When a drawing calls for ±0.005 mm, the laser produces the blank and a 3-axis or 5-axis mill finishes the datum faces and bores.
Edge condition matters too. A laser-cut edge carries a thin oxide layer and a small heat-affected zone. For a welded bracket that is fine. For a sealing face or a bearing bore, that layer has to be removed, which means a finishing pass anyway.
Thick plate with tight corner radii is another mismatch. The kerf radius is fixed by spot size, so a sharp internal corner is impossible. Milling with a small end mill gets you there.
Step by step: from file to finished blank
- 11. Check the DXF for cuttable geometrySend a flat DXF or DWG at 1:1. Confirm no line is thinner than the kerf (0.1–0.3 mm) and no internal corner radius is smaller than half the kerf. Fix open contours before nesting; they cause the head to stop mid-path.
- 22. Pick material grade and thicknessState the grade, not just the family. 304 and 316 cut differently, and 6061 aluminum behaves unlike 5052. Give thickness in millimeters with the tolerance you need, for example 3.0 mm ±0.1 mm.
- 33. Choose the assist gasOxygen for mild steel above 3 mm where speed matters. Nitrogen for stainless, aluminum, and any edge that will be welded or anodized. Compressed air only for thin sheet where edge chemistry is not critical.
- 44. Set pierce and lead-inPierce on scrap or in the slug, not on the finished contour. Use a lead-in arc of 1–3 mm so the pierce crater never touches the part edge. On 6 mm stainless, expect a pierce time near 1 s.
- 55. Dial power, feed, and focusStart from the shop recipe for that grade and thickness, then adjust. If dross hangs on the bottom, raise power slightly or slow the feed by 5 percent. If striations lean forward, speed up.
- 66. Control the heat-affected zoneKeep the nozzle clean and the lens free of spatter. On thin sheet, run nitrogen at 10–14 bar to blow molten metal clear instead of letting it re-solidify on the edge.
- 77. Inspect and route to finishingCheck kerf width, dross, and hole size on the first part. Then send the blank to deburring, tumbling, or a machining center if the drawing has tight tolerances or 3D features.
Laser cutting vs. CNC milling: which fits the part
Use this as a first filter before you request a quote.
| Criterion | Laser cutting | CNC milling |
|---|---|---|
| Geometry | Flat profiles, holes, contours | Pockets, threads, 3D surfaces |
| Typical tolerance | ±0.05 to ±0.1 mm on thin sheet | ±0.005 mm achievable |
| Sheet thickness | 0.5–12 mm practical | Any size up to 4,000 mm |
| Edge finish | Oxide layer, needs deburring | Ra 0.8–1.6 μm as machined |
| Internal corners | Limited by kerf radius | Sharp corners with small end mills |
| Tooling cost | None, program only | Fixtures and cutters needed |
| Best volume | One-off to 10,000+ parts | One-off to 10,000+ parts |
Pick the process before you pick the shop
If the part is flat, under 12 mm, and needs no pockets or threads, laser cutting plus deburring is the fast route. If it needs ±0.005 mm, a pocket floor, or a sealing face, plan a milling operation after the cut. Send both the DXF and the STEP file so the shop can quote the full sequence in one pass.
Common questions
Can one machine cut and mill the same part?
Not in one setup on a standard laser bed. A laser head removes material along a line and cannot create a pocket floor or a thread.
The usual route is a laser-cut blank followed by a milling operation on a 3-axis or 5-axis center. That combination keeps the nesting benefit of the laser and the tolerance of the mill.
How thick can a fiber laser cut before quality drops?
Mild steel cuts cleanly to roughly 12 mm, stainless to about 10 mm, and aluminum to about 8 mm on a typical fiber machine.
Past those numbers the edge shows more taper and dross, and the cut speed drops enough that milling or waterjet becomes the better economic choice.
What causes dross on the bottom edge?
Low gas pressure, a focus point set too high, or a feed rate that is too slow for the power. The molten metal does not get blown out before it freezes.
Raise the assist gas pressure in small steps, then adjust focus downward by 0.2–0.5 mm. Change one variable at a time so you know which one fixed it.
Can laser cutting hold ±0.005 mm?
No. Positioning and kerf variation put practical laser cutting at roughly ±0.05 to ±0.1 mm on thin sheet.
When a drawing specifies ±0.005 mm, plan a machining pass after cutting for the datum faces, bores, and any mating surface.
Does laser cutting change the material properties?
Yes, along a narrow band at the cut edge. The heat-affected zone is usually a few hundredths of a millimeter deep and carries a thin oxide layer.
For welded brackets this is normally acceptable. For fatigue-critical or sealing surfaces, remove that layer with a machining pass or a controlled finishing operation.
Which file format should I send?
A flat DXF or DWG at 1:1 scale with closed contours. Add a STEP file if the part also needs milling, so the shop can plan both operations from one model.
Include the material grade, thickness, tolerance callouts, and any finish requirement in the same request.
Send your drawing and get a process plan
Upload a DXF or STEP file and our engineers return a quotation with a free DFM analysis within 12 hours. Uploads stay confidential, and an NDA is available on request.
