Horizontal Linear Machining Center: How It Cuts, and When to Use It
This page explains what a horizontal linear machining center actually does: how the spindle, linear axes, and rotary table move together to cut long prismatic parts in fewer setups. Written for design engineers and manufacturing engineers who have to decide whether a part belongs on this machine or on a vertical VMC.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
What the horizontal layout changes

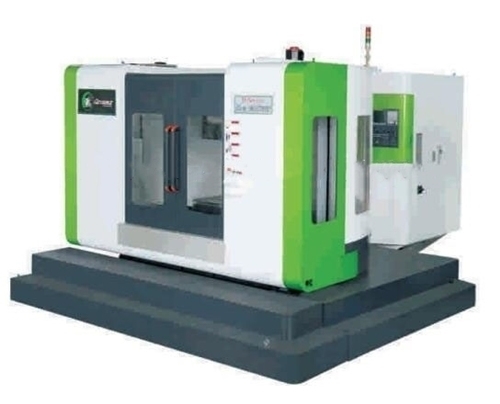

A horizontal linear machining center holds the spindle parallel to the floor and the workpiece on a table that travels along recirculating linear guideways. That one geometric decision drives everything else. On a vertical machine, gravity pulls chips back onto the freshly cut face. On a horizontal machine, chips fall clear of the part. For aluminum, brass, and plastics this is a small convenience. For 4140 steel, titanium, or deep pockets, it removes a whole class of problems.
The linear guideways matter as much as the spindle orientation. Box ways are stiff and damp vibration well, but they wear unevenly and lose accuracy as the machine ages. Linear guideways carry the same load on rolling elements, run at higher rapid rates, and hold positioning repeatability longer. On a horizontal machine the table usually moves in X and Z while the column moves in Y, so the mass sitting on the guideways is predictable and the servo tuning stays stable across the stroke.
Because the spindle is horizontal, the tool approaches the part from the side or from the end of a long workpiece. That is the practical difference for a 1,200 mm aluminum frame or a 900 mm pump housing: you can machine the datum face, the bolt pattern, and the side bores without flipping the part. Every flip costs setup time and adds stack-up error.
None of this makes the horizontal layout universally better. It changes which problems are easy and which are awkward. The rest of this page is about that trade, with numbers you can check against your own part.
Note that this is a machine layout question, not a control question. A horizontal linear machining center can run 3-axis, 4-axis, or simultaneous 5-axis work; the axis count is a separate decision from the orientation.
How the spindle, table, and rotary table work together
Think of the machine as three stacked motions. The spindle rotates the tool. The linear axes position the tool along X, Y, and Z. A rotary table, often Ø400 mm, indexes the part around the vertical axis so four faces of a cube can be reached without a re-fixture. Add a tilting head or a second rotary axis and you have simultaneous 5-axis motion.
When the rotary table turns 90° and the machine then bores a side face, the accuracy of the part depends on the table index accuracy, not on the linear axes. This is why horizontal machines are often specified for parts with bores on several faces: the relationship between those faces is set once by the table and never re-established by hand.
A horizontal linear machining center with a pallet changer turns that geometry into throughput. While one pallet is being cut, the operator loads the next part on the second pallet. The spindle never waits for a load. On a long part with four machined faces, this can be the difference between one shift and two.
The linear axes also change your fixturing options, and not always for the better. A tombstone fixture on a horizontal machine lets you mount four or six parts on different faces. Each face is machined at a different rotary position. That is efficient for small parts in volume. For a single large part, the tombstone is dead weight and the fixture cost is hard to justify.
Positioning accuracy on this class of machine is usually quoted at ±0.005 mm with a fine finish of Ra 0.2–0.8 μm when the tool and material cooperate. Those numbers describe the machine, not your part. Wall thickness, tool reach, and clamping all move the real result.
Why chips fall away, and why that matters for deep cuts
Chip evacuation is a cutting-mechanics issue, not a housekeeping issue. When a chip is recut, it work-hardens. Stainless 316 is the classic case: a recut chip raises cutting temperature and the next pass cuts harder material. Horizontal orientation lets gravity and coolant flow do the work, so recutting drops sharply in deep pockets and long bores.
Tool life follows. In 17-4PH and 4140, a horizontal machine running the same speeds and feeds as a vertical machine often shows longer insert life purely because the chip leaves the cut zone. We treat this as a starting hypothesis and confirm it on a test cut, not as a promise.
Thermal stability is the second effect. Chips sitting on the part hold heat near the cutting zone and cause local growth. On a long part, that growth shows up as taper over 800 mm or more. Clearing chips keeps the part closer to the coolant temperature, which makes in-process probing more repeatable.
The horizontal layout also shortens tool reach in many operations. Boring a side face from the side is a shorter, stiffer setup than reaching over the top on a vertical machine. Less overhang means less deflection, which is often the real source of a bore that comes out oversize at the bottom.
Coolant handling needs attention. Horizontal machines flood the cutting zone easily, but they also need correct chip conveyors and tank sizing. If the conveyor cannot keep up, the chips recirculate in the tank and the whole advantage disappears.
Which parts belong on a horizontal machine
Long prismatic parts are the clear fit. A housing 900–1,200 mm long with bores on two opposite faces, a flat mounting face, and a bolt pattern is close to ideal. The table travel covers the length, the spindle reaches the side faces, and the rotary table indexes the second face without a manual flip.
Box-shaped parts with bores on four sides are the second fit. The rotary table does the indexing. If the bores are co-axial or have tight position tolerance to each other, doing them in one setup removes the fixture stack-up that a vertical machine would introduce.
Small high-volume parts on a tombstone fixture are the third fit, but only when volume justifies the fixture. At 10,000+ parts, a tombstone pays for itself. At 50 parts, it does not.
Parts that do not fit: thin flat plates that need face milling only, parts whose critical features are all on one top face, and single prototypes with no repeat geometry. A 3-axis vertical machine will be faster to set up and cheaper to run for those. The horizontal advantage is real, but it is not free.
One more filter: part weight. A heavy casting on a horizontal table is easy to load because the table is at a comfortable height and the part sits down onto it. A heavy part that must be flipped on a vertical machine is a rigging job. That ergonomics point shows up in cycle cost more often than people expect.
Where the horizontal layout runs into trouble
Reach is the first limit. A horizontal spindle cannot easily machine a deep vertical pocket in the middle of a wide plate. The tool comes in from the side, so features whose only access is from directly above need a different setup or a different machine.
Fixturing cost is the second. A tombstone or a multi-face fixture is a real expense. It is justified when the part repeats; it is a loss on a one-off. That is why a horizontal linear machining center tends to be paired with production quantities rather than prototype work.
Floor space and foundation are the third. A machine with 4,000 mm of travel needs room for the stroke plus the enclosure, and the foundation has to hold the level over time. A machine that goes out of level does not hold ±0.005 mm, no matter what the spec sheet says.
Chip and coolant management is the fourth. The layout makes chip removal easier for the part but harder for the machine. Conveyors, tank volume, and coolant filtration need to be sized for the material. Cast iron dust and aluminum fines behave differently in the same tank.
Finally, thermal drift over a long run. A horizontal machine cutting a 1,200 mm part for six hours will grow in the spindle and in the ballscrews. In-process probing and a warm-up routine control this. Without them, the tenth part will not match the first.
How we plan a horizontal job before quoting
We start from the drawing and the datum scheme, not from the machine list. Which faces carry the functional tolerances? Which faces are only cosmetic? If the functional faces can all be reached from two rotary positions, the job is a strong fit for a horizontal linear machining center. If they are scattered across six directions with no repeat, it is not.
Then we look at the stock. A casting, a forging, and a billet plate behave differently in the first cut. A casting with 2 mm of stock moves less than a billet plate with 6 mm. That changes the roughing strategy and the number of finishing passes, and it changes the fixture.
Then tool reach. If a bore is 300 mm deep and 40 mm in diameter, the length-to-diameter ratio drives the choice of boring bar and the risk of taper. On a horizontal machine we can often bore from both ends and meet in the middle, which a vertical machine cannot do as easily.
Only after that do we pick the machine and quote the cycle. A quotation built on the part geometry is worth more to you than a price built on a machine hourly rate. Our quotation and free DFM analysis come back within 12 hours, with production able to start within 24 hours once the design is fixed.
For parts that ship in 3–5 days, the horizontal route is usually chosen because the setup count drops, not because the spindle is faster.
Horizontal linear machining center or vertical VMC?
Match the machine to the part geometry and the batch size.
| Criterion | Horizontal linear | Vertical VMC | When it decides the job |
|---|---|---|---|
| Part length | 900–4,000 mm | Usually under 1,000 mm | Long housings go horizontal |
| Faces to machine | 3–4 sides in one setup | 1–2 sides typical | Multi-face parts go horizontal |
| Chip evacuation | Chips fall clear | Chips sit on the part | Deep pockets favor horizontal |
| Setup count | Often one | Often two or more | Stack-up error favors horizontal |
| Small flat plate | Wasteful | Efficient | Flat plates stay on a VMC |
| Single prototype | Slow to set up | Fast to set up | One-offs stay on a VMC |
| High volume, small parts | Tombstone fixture pays off | Needs more fixtures | Volume favors horizontal |
| Fixture cost | Higher | Lower | Low quantity favors a VMC |
The short version
If your part is long, has bores on three or four faces, and will repeat, a horizontal linear machining center will cut it in fewer setups than any vertical machine. If it is a flat plate, a one-face part, or a single prototype, a vertical VMC will be cheaper and faster. Pick by geometry and quantity, not by machine class.
Questions engineers ask
Can a horizontal linear machining center hold ±0.005 mm on a 1,000 mm part?
The machine can position to that level, and we quote ±0.005 mm as our general tolerance. On a long part the limiting factors are usually thermal growth and fixture rigidity, not the linear axes.
In-process probing and a spindle warm-up routine are what keep the tenth part matching the first. If a drawing calls for a tighter tolerance than ±0.005 mm over a long span, that is a conversation to have before the job is quoted, not after.
Is a horizontal machine always faster than a vertical one?
No. It is faster when the part needs three or four faces machined and the alternative is two or three setups on a vertical machine. The saving comes from setup count, not from cutting speed.
For a part that is machined on one face only, a vertical machine is faster to set up and just as productive. The horizontal advantage disappears completely in that case.
What materials run well on this layout?
Aluminum grades such as 6061, 7075, and 6082, stainless 303, 304, 316L, and 17-4PH, and steels like 4140 and 4340 all run well. Titanium TC4 and Inconel also benefit from the chip evacuation.
Plastics such as POM, PEEK, and ABS run cleanly because chips fall away and do not melt against the part. The layout is friendly to almost any machinable material; the limits come from the part geometry, not the material list.
Do I need a 5-axis horizontal machine for a 4-face part?
Not necessarily. A 4-axis horizontal machine with a Ø400 mm rotary table can index the part to four positions and machine each face. That is usually enough when the faces are planar or have bores normal to the table.
Simultaneous 5-axis is needed when the feature is not normal to any index position, such as a compound-angle port or a contoured surface. Adding the fifth axis costs cycle time and setup complexity, so we only use it when the geometry demands it.
How does the quote handle fixture cost on a horizontal job?
We look at quantity first. Above a few thousand parts, a tombstone or multi-face fixture is normally built and the cost is spread across the run. For low quantity, we quote a simpler fixture or recommend a vertical machine instead.
There is no minimum order quantity for our machining work, from one prototype to 10,000+ part runs, so the fixture recommendation follows the actual quantity rather than a policy.
How is chip evacuation handled on long bores?
Through-spindle coolant and a correctly sized conveyor do most of the work. On a deep bore we often program a peck cycle with a retract so the chip clears before the next pass.
Boring from both ends is another option when the geometry allows it. Meeting in the middle keeps the length-to-diameter ratio in a range where the bar stays stiff and the bore stays round.
