High-Volume Small Parts Anodizing: How Red Color Holds on 10,000+ Runs

• 1
  Key takeaways
• 2
  Why red anodizing behaves differently on small parts
• 3
  Where high-volume small parts anodizing stops working
• 4
  Racking, dye control, and inspection on a 10,000-piece run
• 5
  What this means for your drawing and your supplier
• 6
  Which anodizing route fits your small part

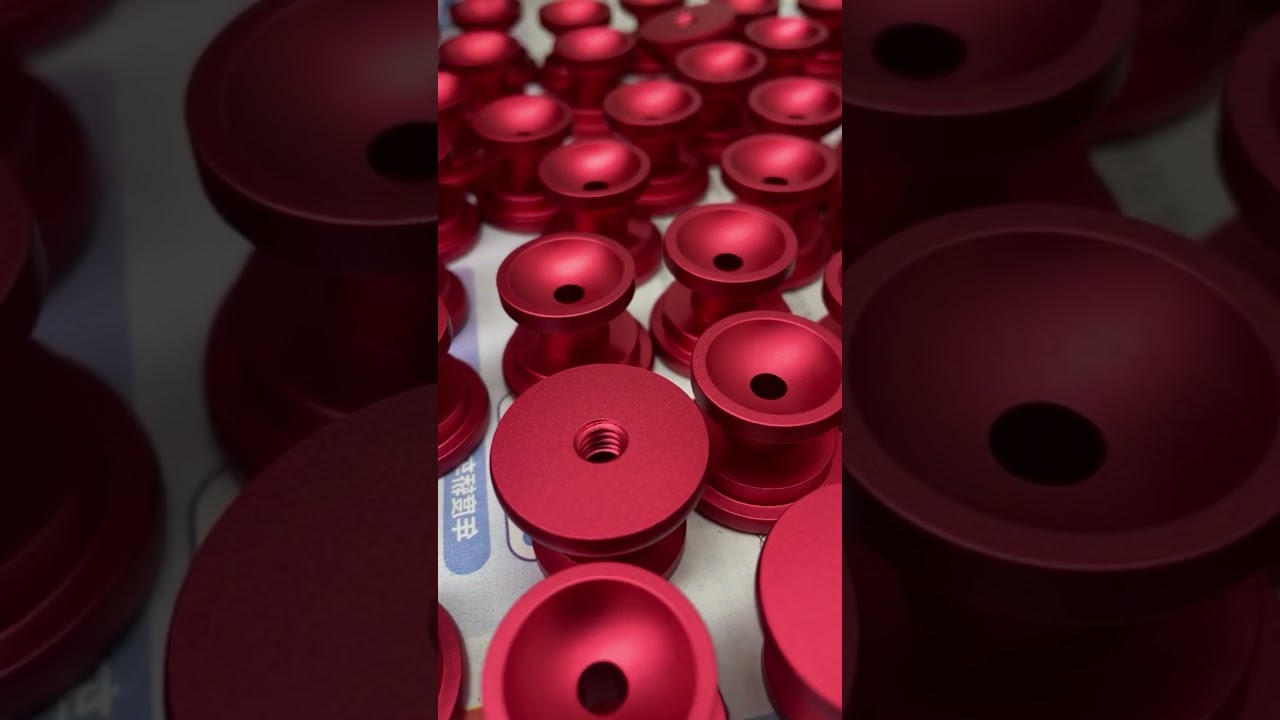

Anodizing is not a coating that sits on top of aluminum. A sulfuric acid bath at roughly 15–20 °C drives current through the part, and the surface converts into aluminum oxide. That oxide layer grows with pores, and those pores are what accept dye. Red dye molecules are larger than yellow or clear dye, so they need a slightly deeper, more open pore structure to reach full saturation. On small parts, the total anode area is small, which means the same rectifier current density lands on a much tighter surface.

Edge effects explain most color complaints. Current density concentrates at corners, threads, and machined edges. A 15 mm bushing has proportionally far more edge length than a 150 mm housing. Those edges anodize thicker and dye darker, so a batch can look blotchy under a light box even though every part passed dimensional inspection. We see this most on parts under 30 mm with sharp corners and no radius.

Alloy choice matters just as much. 6061-T6 and 7075 take red dye differently because of their copper and zinc content. 6061 usually gives the cleanest red. 7075 tends toward a duller, slightly brownish red at the same thickness. 2024 is worse, because its copper content creates an uneven oxide that grabs dye irregularly. If a drawing specifies red on 2024, expect color variation that no racking change will fully fix.

Quantity amplifies all three effects. The first twenty parts come off the rack looking good. By part 3,000, the bath chemistry has drifted, dye concentration has dropped, and temperature has crept up. Without titration and dye top-up at fixed intervals, the last parts in a 10,000-piece order will not match the first.

• 1
  Pore size drives color depthDeeper pores hold more red dye before sealing.
• 2
  Edges always run darkerCurrent density is highest at sharp corners.
• 3
  6061 gives the cleanest red7075 and 2024 shift the hue toward brown.
• 4
  Bath drift is cumulativeColor moves as dye depletes across the run.

There is a size floor. Below roughly 5 mm in the smallest dimension, handling becomes the limiting factor rather than the anodizing itself. Parts get lost in racks, tweezers scratch the fresh oxide, and per-part labor climbs. Tumbling or barrel anodizing can process very small parts in bulk, but barrel contact produces random bright spots where parts touch each other. For decorative red, that is usually unacceptable.

Thickness has a practical window. Type II sulfuric anodizing on decorative red typically runs 8–15 μm for good color saturation. Push to 20–25 μm and the red turns deeper but also darker and less consistent between parts. Past 25 μm you are in hardcoat territory, and hardcoat does not take red dye well at all. Hardcoat pores are smaller and denser, so the dye sits near the surface and fades under UV.

Sharp internal corners are the other hard boundary. If a pocket corner has no radius, the oxide there will be thin, and dye uptake will be light. That light corner shows against an otherwise even red face. Adding a 0.5 mm corner radius during CNC machining costs almost nothing and removes the problem before it reaches the anodizing line. This is why we push DFM feedback on color-critical small parts before the first chip is cut.

Color matching across separate orders is a boundary nobody can fully remove. Dye lots vary. If you need two shipments six months apart to match, keep a physical master sample and ask for it to be used as the reference. Even then, expect a Delta E shift that a trained eye can see side by side, though not across a room.

• 1
  Below 5 mm, handling dominatesBarrel anodizing avoids loss but adds contact marks.
• 2
  8–15 μm is the red sweet spotThicker layers darken and de-saturate the color.
• 3
  Hardcoat and red do not mixDense pores reject dye and fade under UV.
• 4
  Keep a master sampleIt is the only reliable cross-order color reference.

Racking is the single biggest lever on color consistency. Titanium racks with spring contacts hold better than aluminum racks, and they do not anodize themselves, so current flows only into the parts. Contact points must sit on a non-cosmetic face. On a small bracket, that might be the inside of a mounting hole. On a threaded part, it might be the thread root. If every face is cosmetic, the part is not a good candidate for decorative red anodizing.

Parts per rack matter too. Loading racks too densely starves the inner parts of current, so they come out lighter. Loading too sparsely wastes bath capacity and slows the run. There is a sweet spot that depends on part geometry, and it should be fixed and recorded once, then repeated for every batch. We record rack loading patterns so a repeat order anodizes the same way.

Dye concentration and pH need active control, not a once-a-shift check. Red dye depletes as parts absorb it. In a long run, we titrate at fixed intervals and top up to a target concentration. Bath temperature is held at 15–20 °C for Type II. If temperature rises, the oxide gets softer and more porous, and the red reads slightly pink. pH drift in the dye tank shifts hue as well, usually toward orange.

Inspection has to happen against a controlled light source. Two inspectors under different lighting will disagree about a red match. We use a fixed D65 light box for color checks, plus a thickness gauge on a witness coupon from each rack. Any rack that falls outside the color tolerance is stripped and re-anodized, not shipped with a note.

• 1
  Titanium racks over aluminumThey carry current without anodizing themselves.
• 2
  Fixed rack loading, recordedRepeats the current path on every batch.
• 3
  Titrate dye at set intervalsDo not wait for a visual shift to react.
• 4
  D65 light box for colorRemoves inspector-to-inspector disagreement.

If a drawing calls out red anodizing with no thickness band, the shop will pick something, and the color you get depends on that choice. Specify the thickness. Type II red at 10 μm and Type II red at 25 μm are visibly different colors on the same alloy. Put the band on the drawing and note the reference standard you are matching against.

Call out which faces are cosmetic. Anodizing shops rack by contact, and every contact leaves a witness mark. If the drawing marks two faces as cosmetic and leaves the rest open, racking becomes straightforward. If every face is cosmetic, the shop has to use small contact points and accept lower yield, which shows up in the price.

Add corner radii where color is critical. A 0.3–0.5 mm radius on pocket corners and edges evens out the current density. It also helps the machined finish, because a radiused corner is easier to reach with a small cutter than a sharp internal corner. Two problems solved by one drawing change.

Finally, ask how the shop controls dye. If the answer is a visual check once per shift, a 10,000-piece red run will drift. Ask about titration intervals, bath temperature control, and whether they keep a master sample. Those three answers tell you more about color consistency than any finish sample card.

• 1
  Specify the thickness band8–15 μm for decorative red on 6061.
• 2
  Mark cosmetic facesRacking marks are unavoidable on contact faces.
• 3
  Add 0.3–0.5 mm radiiEvens current density at corners.
• 4
  Ask about dye titrationIt predicts batch-to-batch consistency.
