High Efficiency Milling Technology for the Internal Mixer Rotor Body
The internal mixer rotor body is a long, twisted, deep-pocket part. Manual grinding gets it close, but it cannot hold a wall or repeat a spiral. Here we explain what high efficiency milling technology changes on this part, which tool paths and parameters carry the load, and where the process still needs a hand.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Why the rotor body resists ordinary milling

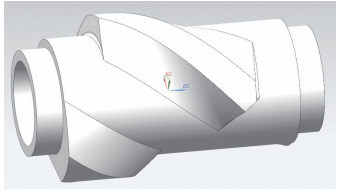

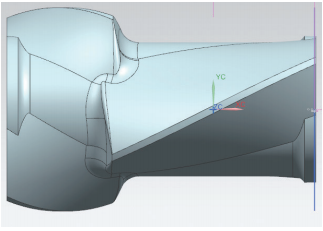

An internal mixer rotor body is a forged or cast blank that carries two or four helical wings around a tapered core. The wings wrap 180° to 270° of the body, and the gap between them is a deep, narrowing pocket. On a GE mesh rotor the two bodies must interleave, so the wing profile, the helix angle and the pocket floor all sit inside a tight volume. Geometry is not decorative here. It sets the mixing gap.
The practical problem is tool reach. The pocket floor can sit 90 mm or more below the wing crest, and the flank leans back under the crest. A three-axis cutter with a short gauge length simply cannot reach the floor without the holder colliding with the opposite wing. Operators compensate by using long tools, which deflect, or by leaving stock and grinding it later.
Grinding is slow and it is a manual skill. A grinder removes maybe 0.05–0.15 mm per pass on hardened rotor steel, and the operator has to re-dress the wheel to follow the helix. Two rotors ground by two people will not match each other. That mismatch shows up later as uneven shear in the mixer chamber.
So the target is not just faster metal removal. The target is a machined surface that already sits inside tolerance, so grinding becomes a light finishing step or disappears. High efficiency milling technology for the internal mixer rotor body is the route to that result.
How high efficiency milling technology removes material
High efficiency milling technology is built on a simple trade: shallow radial engagement, deep axial cut, high feed per tooth. Instead of burying a 20 mm cutter sideways, the cutter engages the wall at 5–10% of its diameter. Chip thinning then lets the feed per tooth rise, often to 0.15–0.3 mm on a 16 mm tool. The chip carries heat away, and the cutting edge spends less time in the cut.
The benefit on a rotor body is thermal and mechanical. Deep pockets trap heat. A conventional path that plunges and side-cuts the floor pushes heat into the part, and the thin wing crest moves. Trochoidal and dynamic paths keep the radial load low, so the cutter does not push the crest sideways. The wing stays where the model says it is.
Tool life follows the same logic. A coated carbide end mill running at 8% radial engagement in 4140 at 28–32 HRC cuts far longer than the same tool taking a full-width pass. Fewer tool changes matter on a cycle that already runs for hours.
This is where the name can mislead. High efficiency milling is not a spindle speed setting. It is a matched set of radial engagement, axial depth, feed per tooth and tool projection. Change one and the others need to move with it.
What the machine and the setup have to provide

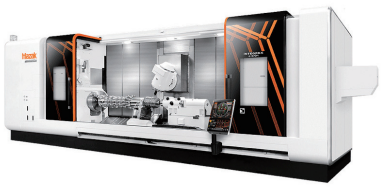

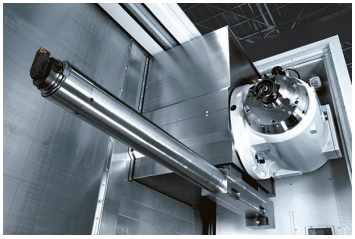

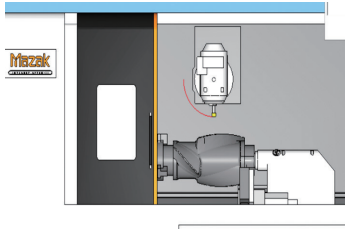

A rotor body is a long part. GreatLight runs up to 4,000 mm of travel on the large machines and holds ±0.005 mm where the geometry allows. For a rotor body the useful number is usually the rotary table, not the linear travel. A Ø400 mm table with a tailstock lets the part rotate while the tool follows the helix.

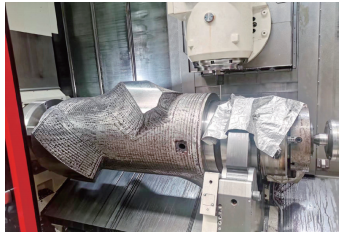

Simultaneous 5-axis motion is what turns a helical wing into one continuous pass. Indexed 3+2 work is fine for the pocket floor and the end faces. The flank and the crest, where the helix twists, want simultaneous motion. GreatLight operates 16 simultaneous 5-axis machining centers, and this is the class of work they are set up for.
Rigidity is the other half. A rotor body blank can weigh several hundred kilograms. It needs a fixture that supports the underside of the wings, not just the two journals. If the wing overhangs unsupported, the finishing pass will cut a spring pass: the cutter loads, the wing deflects, and the surface comes out with a wave.
Setup also decides how many times you re-fixture. Each re-clamp resets the datum. On a part with a 0.05 mm mixing gap, two setups with a 0.02 mm datum shift eat most of the budget. One setup with the part on a trunnion is worth the extra fixture design time.
Blank condition and material drive the parameters
Most rotor bodies are 4140, 4340 or a similar Cr-Mo steel, sometimes 4130 for smaller mixers. In the annealed state, 28–32 HRC, high efficiency paths run comfortably. At 38–42 HRC the same parameters will chatter on a long tool, so feed per tooth drops and the tool grade changes to a harder coating.
Cast blanks behave differently. A casting has a skin and hard spots, and the first pass interrupts the cut. Interrupted cuts punish a light radial engagement, because the edge exits and re-enters thousands of times. On castings we take a conservative first pass, then step up once the skin is gone.
Stainless grades such as 17-4PH work-harden under the cut. If the tool dwells in one spot, the surface hardens and the next pass skims over it. Dynamic paths help here because the cutter keeps moving and does not rub.
Aluminium and copper alloys are not typical rotor body materials, but mixer accessories often are. The same geometry rules apply, only the speeds change. The material list on the shop floor runs from 6061 and 7075 through 303, 304, 17-4PH, and into Inconel when a customer needs a wear-resistant liner.
Where the process stops paying off
High efficiency milling is not always the cheaper route. On a short, open rotor with a shallow pocket, a conventional 3-axis pass plus a light grind can cost less. Tool path programming for simultaneous 5-axis takes time, and the fixture design adds more. That overhead only pays back when the part is long, the pocket is deep, or the tolerance is tight.
Tool projection sets a hard limit. If the pocket floor sits more than about 4× the cutter diameter below the crest, the tool will deflect regardless of the path. Options are a larger cutter with a relieved neck, a tapered tool, or accepting a grinding step.
Thin wing crests are the other limit. A crest under 6 mm thick at the tip will move under cutting load. We support it from behind or reduce the finishing load, but there is a point where the part design, not the process, is the constraint.
Finally, high efficiency milling does not fix a bad blank. If a forging is out of tolerance or has scale deep enough to hide cracks, machining will only expose the problem later. Incoming inspection is part of the process, not a separate department.

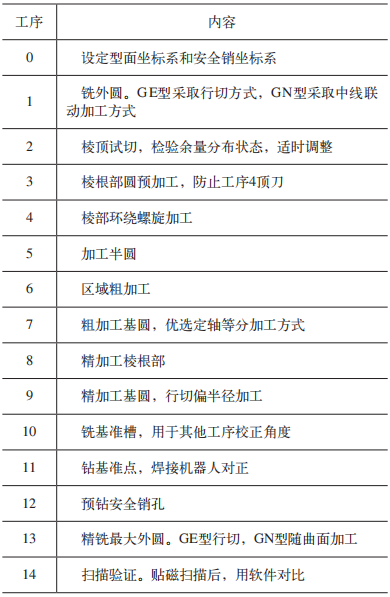

A practical sequence for a GE mesh rotor body
Parameters are starting points, not guarantees. They depend on blank condition, hardness and tool grade.

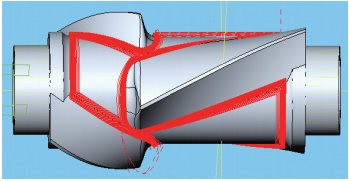

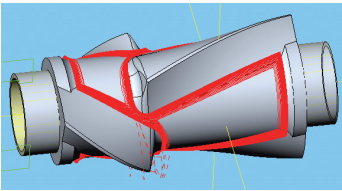

- 1Rough the blank in trochoidal passesUse a 16–20 mm coated carbide end mill at 6–10% radial engagement, 1.5–2× D axial depth, 0.15–0.25 mm feed per tooth. Leave 1.0–1.5 mm on the flanks and 0.5 mm on the floor.
- 2Stress-relieve before finishingIf the blank is forged, a stress relief between roughing and finishing reduces movement during the final passes. Skip this and the wing may creep 0.03–0.08 mm.

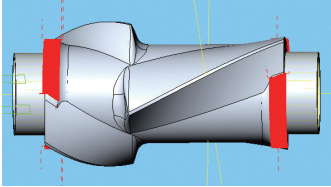

- 3Semi-finish the pocket floor3+2 indexed passes with a 12 mm end mill at 0.3 mm stepover. The floor is the reference for the mixing gap, so measure it before finishing the flank.

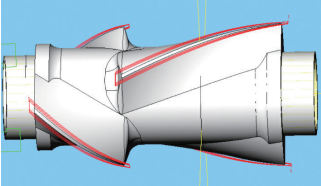

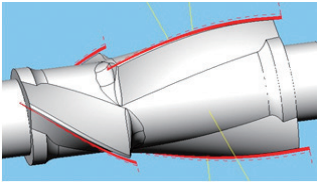

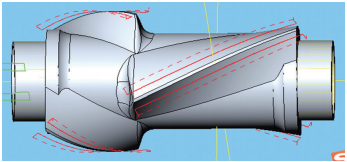

- 4Finish the helical flank in 5-axisUse a barrel or tapered tool on simultaneous paths. Radial engagement stays under 8%, and the tool axis tilts to keep the contact point off the tip.

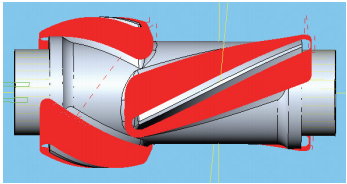

- 5Finish the crest and the root filletA 6–10 mm ball or bull nose cutter, stepover 0.1–0.2 mm, feed 0.05–0.12 mm per tooth. The root fillet is the fatigue-critical zone. Do not leave a visible cusp there.

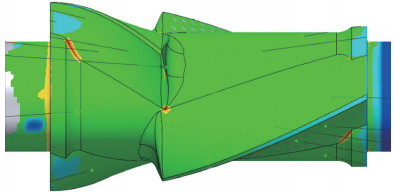

- 6Measure, then decide on grindingInspect the wing profile and the mixing gap. If the profile is inside ±0.02 mm and Ra 0.8–1.6 μm is acceptable, grinding can be reduced or dropped.
High efficiency milling versus manual grinding versus 3-axis milling
Pick by geometry and by what the next operation can tolerate.
| Approach | Best for | Limits | Result on the rotor body |
|---|---|---|---|
| 3-axis milling | Flat floors, end faces, journals | Cannot reach under the wing crest | Leaves stock on the flank for grinding |
| High efficiency 5-axis milling | Helical flanks, deep narrowing pockets | Needs rigid fixture and one good setup | Profile held near ±0.02 mm, Ra 0.8–1.6 μm |
| Manual grinding | Small corrections after machining | Operator-dependent, slow, heat into the part | Two rotors may not match each other |
| EDM or wire cut | Sharp internal corners, hard material | Slow on a part this size, limited depth | Used for local features, not the whole body |
| Casting to near net shape | High volume, simple wing profiles | Tolerance too loose for a tight mixing gap | Machining still needed on flanks and floors |
The verdict
If your rotor body is a long helical part with a tight mixing gap, machine it in one 5-axis setup with high efficiency paths and treat grinding as a check, not a step. If it is short, open and loose on tolerance, keep the simple route and spend the money on inspection instead.
Questions engineers ask before quoting
Can a rotor body be machined in one setup?
For most two-wing and four-wing bodies, yes, if the machine has a trunnion and a tailstock and the part is under the table's swing.
Parts that exceed the travel need a second setup. In that case the fixture should reference off a machined datum, not the raw blank, and the datum shift should be measured before the finishing pass.
What surface finish is realistic on the helical flank?
Ra 0.8–1.6 μm is normal for a finished flank with a barrel or bull nose tool on a stable setup.
Ra 0.2–0.8 μm is possible on the floor and on the journals. The flank is harder because the tool contact point changes continuously along the helix.
How much stock should be left for grinding?
If the plan includes grinding, leave 0.15–0.30 mm on the flank and 0.05–0.10 mm on the floor.
If the plan is to machine to size, leave 0.5 mm for semi-finishing and take the last 0.1 mm in the finishing pass with a fresh edge.
Does high efficiency milling work on hardened rotor steel?
Up to roughly 42 HRC with coated carbide and a rigid setup, yes, at reduced feed per tooth.
Above that, either anneal before machining or plan for a hard-milling or grinding operation. Forced parameters on hard steel break edges and scrap the finish.
How do you control the mixing gap between two rotors?
Both bodies are machined from the same model and measured on the same machine, so the gap is a stack of two measured profiles rather than a hand fit.

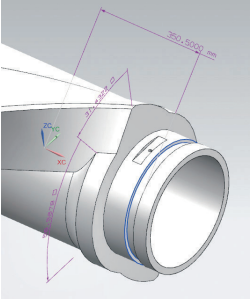

The critical dimensions are the wing crest position and the helix angle. We report both, and we can hold the pair together if the customer ships both blanks in one order.
What inspection data comes with the parts?
Raw material check, in-process monitoring and a final inspection before shipment. Reports are available on request.
For rotor bodies the useful report shows the wing profile, the helix angle and the floor depth at defined stations along the axis.
