Metal AM Process Science

Heat Treatment in 3D Printing

Metal printing leaves a part full of internal stress and unstable phases. Heat treatment in 3D printing fixes that with a controlled thermal cycle. This page explains what each cycle does to the microstructure, which alloys respond, and where the process stops working.

HIP + solution + aging±0.005 mm post-HT machining100% inspection before shipment

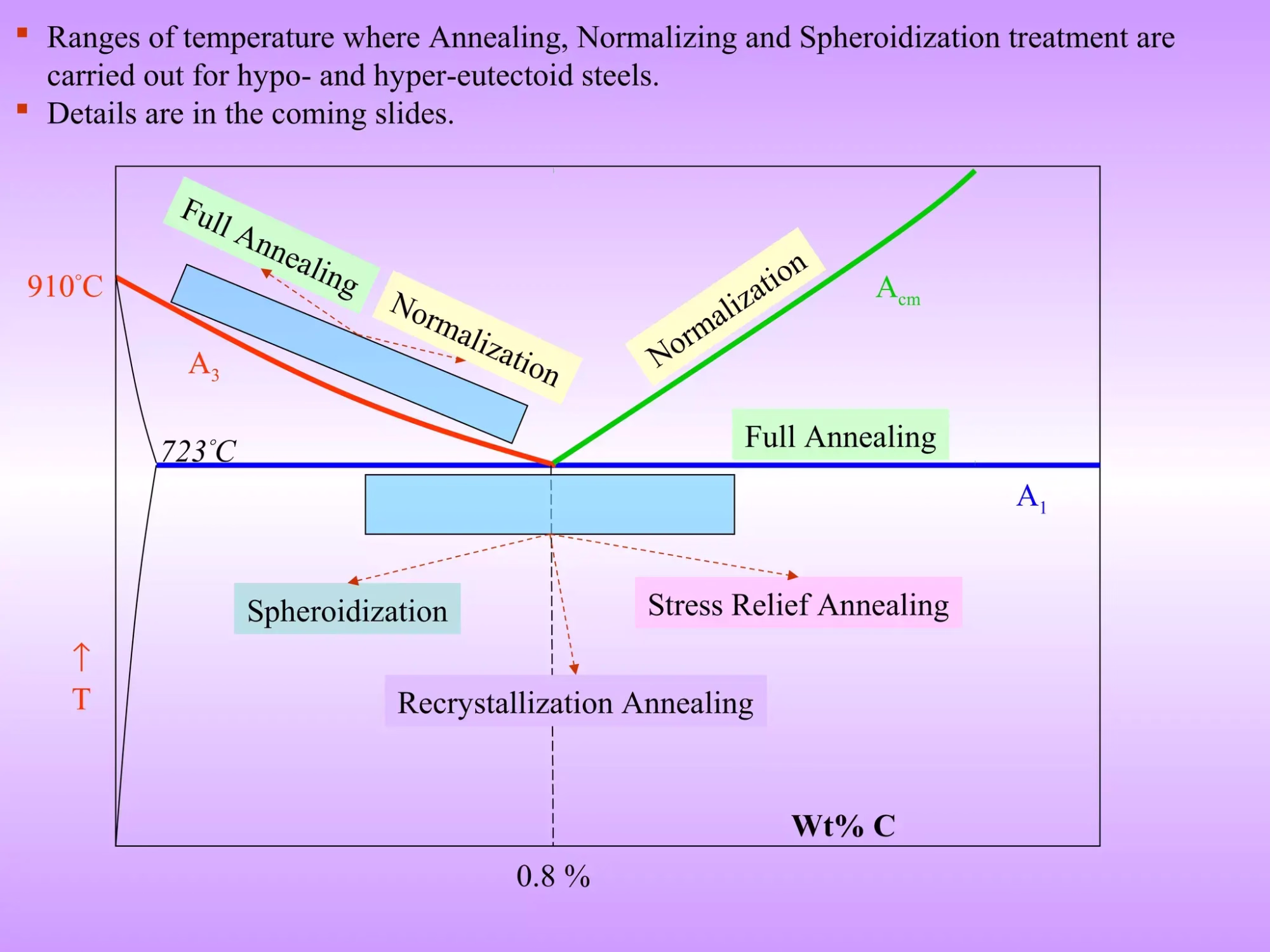

Heat treatment in 3D printing: a printed metal part entering a controlled furnace cycle
Mechanism

Why printed metal needs a thermal cycle

Laser powder bed fusion and electron beam melting build a part by melting thin layers of powder. Each pass heats and cools a small volume in milliseconds. The result is a microstructure nothing like a cast or wrought bar: fine cellular dendrites, metastable phases, and a stress field locked into the part before it ever leaves the build plate.

Residual stress comes from the thermal gradient. The top layer contracts as it cools while the solid metal below resists that contraction. Stress accumulates with height and with section thickness. Cut a printed bracket off its supports without stress relief and it can bow 0.3–0.8 mm across a 100 mm span. That is a geometry problem, not a tolerance problem, and no amount of finishing fixes it.

Heat treatment in 3D printing is the step that resets this. Heating the part into a range where atoms can move lets dislocations rearrange, relieves the locked stress, and lets the intended phase form. Cooling rate then decides what you keep: slow furnace cooling gives a soft, ductile structure, while controlled faster cooling plus aging gives strength.

The cycle is specific to the alloy. Ti-6Al-4V wants a different profile from 17-4PH, and AlSi10Mg is different again. Applying a generic cycle from a handbook for wrought material usually misses the target, because the starting microstructure is not wrought.

  • 1
    Build direction mattersStress runs along the build axis, so test coupons should be oriented the same way as the part.
  • 2
    Support removal timingStress relief is normally done with supports still attached, so the part cannot distort while it is weak.
  • 3
    Not a porosity fixA furnace cycle redistributes stress. It does not close gas pores or lack-of-fusion defects.
Cycles

Stress relief, HIP, solution treatment and aging

Stress relief is the first cycle and the cheapest. For Ti-6Al-4V, typical practice is 2 hours at 600–650 °C in vacuum or argon, then slow cooling. It removes most residual stress without changing the phase balance much. The part stays hard and strong, so it still machines and holds its shape during support removal.

Hot isostatic pressing goes further. The part sits in a vessel at roughly 900–1,000 °C and 100–150 MPa of argon. Pressure and temperature together collapse internal pores by diffusion and creep. For fatigue-critical parts such as medical implants or aerospace brackets, HIP is often the only way to reach the density a wrought part gives you. It is a slow, batch process and it costs accordingly.

Solution treatment and aging is the strength cycle for precipitation-hardening alloys. 17-4PH is solution treated around 1,040 °C, then aged at 480–620 °C depending on the strength and ductility balance you want. The aging temperature is a trade: the low end gives higher hardness and lower elongation, the high end reverses that.

Aluminium behaves differently. AlSi10Mg stress relieves at a low 200–300 °C because the alloy melts near 570 °C and the silicon network coarsens fast if you overheat. Above roughly 300 °C, the fine cellular structure breaks down and ductility drops. This is why aluminium printed parts are often left as-built when strength matters more than dimensional stability.

  • 1
    Ti-6Al-4VStress relief 600–650 °C / 2 h; HIP near 920–950 °C at 100 MPa.
  • 2
    17-4PHSolution 1,040 °C, then age 480–620 °C; hardness depends on age temperature.
  • 3
    AlSi10MgKeep below about 300 °C or the cellular network coarsens.
  • 4
    Inconel 718Solution plus double aging; grain growth is the main risk if overheated.
Effects

What changes after the furnace: hardness, ductility and dimensions

The most measurable change is hardness. As-built Ti-6Al-4V typically runs 33–38 HRC because the martensitic alpha-prime phase is hard and brittle. A proper stress relief plus aging drops that into the 30–36 HRC band with far better elongation. The part becomes less likely to crack at a support stump.

Ductility moves in the opposite direction from strength. A solution-treated and aged 17-4PH can reach high hardness, but elongation may fall to single digits. If the part sees bending or impact, the lower aging temperature is the wrong choice even though the databook looks better.

Dimensions move too. Thermal expansion during heating and contraction during cooling are elastic and mostly recover, but stress relief itself releases elastic strain. A printed part can shrink 0.1–0.3 % during the cycle, unevenly if the section thickness varies. Machining after heat treatment is the standard answer: the part is stable, and the final cut holds ±0.005 mm.

Surface finish does not improve. If anything, high-temperature vacuum cycles can slightly roughen a surface through evaporation of alloying elements. Expect to machine or tumble after treatment if the drawing calls for Ra 0.8–1.6 μm.

  • 1
    HardnessAs-built Ti-6Al-4V 33–38 HRC falls to a more usable 30–36 HRC.
  • 2
    ShrinkagePlan 0.1–0.3 % dimensional shift and cut to size afterwards.
  • 3
    FinishFurnace cycles do not smooth surfaces; plan a finishing operation.
Planning

Where heat treatment sits in the production route

The sequence is not optional and not interchangeable. Print, then stress relieve with supports on, then remove supports, then HIP if the application needs it, then solution and age, then machine the critical features. Moving a step changes the outcome more than tuning the furnace by 20 °C.

Machining after heat treatment is what makes printed parts usable as functional hardware. A printed housing that has been aged and then faced, bored and tapped on a 5-axis center behaves like a machined part at the interfaces, because those interfaces were machined. The printed core only carries the geometry that would be expensive to cut.

For prototypes under about 150 mm, many teams skip HIP and go straight to stress relief plus finish machining. The cost saving is real and the fatigue penalty often does not matter for a bracket that sees static load. For a rotating component or an implant, skipping HIP is a decision you should be able to defend with data.

One practical constraint: furnace size. A vacuum furnace that fits a 250 mm cube part is common. A 500 mm part needs a bigger hot zone, longer soak, and more careful fixturing to avoid sag at temperature. Parts above roughly 400 mm are usually stress relieved in a supporting fixture or ceramic setter.

  • 1
    Do not machine before stress reliefThe part will move after the cycle and the tolerance is lost.
  • 2
    Fixture at temperatureThin walls can sag above 600 °C; support them or accept distortion.
  • 3
    Record the cycleFurnace chart with time, temperature and atmosphere belongs in the inspection pack.
Limits

Failure modes and where the process stops working

Distortion is the most common complaint. It almost always traces back to one of three causes: stress relief skipped or done at too low a temperature, supports removed before the cycle, or a soak time too short for the section thickness. A 40 mm thick section needs more than the 2 hours that works for a 10 mm wall.

Over-aging is the second. Hold 17-4PH at 620 °C for too long and hardness falls below the drawing with no way to recover except a full re-solution treatment, which risks more distortion. Furnace controllers drift, so the thermocouple position matters as much as the setpoint.

Contamination is subtle and expensive. Residual powder, cutting fluid or handling oils burn into the surface in a vacuum furnace and leave a discolored layer that has to be machined away. Parts should be cleaned and, for titanium, handled with clean gloves because oxygen and nitrogen pick-up embrittles the surface.

Heat treatment cannot fix a bad build. Lack-of-fusion defects from low laser energy density or wrong hatch spacing stay as sharp internal notches. HIP may close some of them, but it does not restore the local chemistry. When the defect is process-driven, the fix is in the printer parameters, not the furnace.

  • 1
    Section thicknessScale soak time with the thickest section, not the part envelope.
  • 2
    Thermocouple placementA load thermocouple beats a furnace-wall one for thick parts.
  • 3
    CleanlinessPowder residue and oils bake on; clean before the cycle.
Selection

Cycle selection by alloy and application

Use this as a starting point, not a specification. Confirm with the alloy supplier and the application's fatigue requirement.

Alloy / processTypical cycleMain effectWhen it is the wrong call
Ti-6Al-4V, SLM600–650 °C / 2 h, vacuumRelieves stress, keeps strengthFatigue-critical parts: add HIP
Ti-6Al-4V, SLM + HIP920–950 °C, 100 MPa argonCloses internal porosityCost-sensitive static brackets
17-4PH, SLM1,040 °C solution, age 480–620 °CPrecipitation hardeningParts needing high elongation
AlSi10Mg, SLM200–300 °C stress relief onlyKeeps cellular structure intactAbove 300 °C: ductility drops
Inconel 718, SLMSolution + double ageCreep and fatigue strengthIf grain growth is not controlled
EBM Ti-6Al-4VOften used as-builtHot build already relieves stressTight tolerances still need machining
Any alloy, fatigue partStress relief, HIP, machineStable geometry plus densityWhen lead time is the only driver

Which route to take

If the part sees fatigue, pressure or human implantation, print it, stress relieve it, HIP it, age it, then machine the critical features. If it is a static bracket or a fit-check prototype, stress relief plus finish machining is enough and you save the HIP cycle. Choose HIP for density; choose machining after heat treatment for tolerance. Do not try to trade one for the other.

FAQs

Heat treatment in 3D printing: common questions

Can a printed part be heat treated and then machined to tolerance?

Yes, and that is the usual route for functional parts. Stress relief and aging release elastic strain, so the part moves 0.1–0.3 % before it is stable. Machine after the last thermal cycle and the final cut holds ±0.005 mm on critical features.

Machining before heat treatment usually wastes the setup, because the part distorts in the furnace and the tolerance is gone.

Does heat treatment remove porosity in printed metal?

A plain stress relief cycle does not. It rearranges stress and phases but leaves gas pores and lack-of-fusion defects in place.

Hot isostatic pressing at roughly 900–1,000 °C and 100–150 MPa closes internal porosity by diffusion and creep. It is a separate, slower and more expensive step, and it does not fix contamination or wrong chemistry.

Why do aluminium printed parts often skip full heat treatment?

AlSi10Mg has a fine cellular silicon network that gives it useful strength as-built. Above roughly 300 °C that network coarsens and ductility falls, so a high-temperature solution treatment usually makes the part worse, not better.

Low-temperature stress relief at 200–300 °C is common when dimensional stability matters. If strength matters more, many teams leave aluminium as-built and machine the interfaces.

How much does the part shrink during the cycle?

Expect 0.1–0.3 % linear shrinkage from stress relief alone, and more if the part has thick sections next to thin ones because the release is uneven.

The shrink is not a material constant, it depends on the stress state left by the build. That is why the drawing should specify a post-treatment machining allowance rather than a single shrink factor.

Can heat treatment replace CNC machining for printed parts?

No. Heat treatment changes the inside of the part; it does not create a flat face, a bore tolerance or a thread. Printed surfaces stay rough after a furnace cycle.

The practical combination is printed geometry for the complex core and CNC for the sealing faces, bores, threads and any feature held to ±0.005 mm.

What documentation should come with a heat-treated printed part?

Ask for the furnace chart: time, temperature, atmosphere and cooling method, plus the thermocouple location. For HIP, the pressure and hold time belong on the certificate.

For regulated work, the material certificate and the heat lot number should travel with the part so the cycle can be traced back.
