5 Axis CNC Machining Custom Fast: What Actually Decides the Speed

• 1
  What "Custom" and "Fast" Really Mean in 5 Axis Work
• 2
  Why Fewer Setups Beat Faster Feeds
• 3
  Where Fast 5 Axis Stops Being the Right Choice
• 4
  The Process Chain Behind a Fast Turnaround
• 5
  Inspection Is Where Fast Orders Usually Fail
• 6
  When 5 Axis Custom Machining Pays Off, and When It Does Not

Custom, in 5 axis terms, means geometry that a 3 axis machine cannot reach in one setup: undercuts, compound angles, contoured pockets, ports drilled at odd angles to the main bore. The part is usually a housing, a manifold, a bracket or a joint body where several features must stay aligned to each other. Fast means the total calendar time from file upload to a box on your dock, not the number of spindle hours.

Those two words interact. A part with six faces worth of features might run in 40 minutes of cut time, yet take two weeks if it needs six separate setups on a 3 axis mill. Move it to a simultaneous 5 axis center and the same part may leave the machine in two setups. The cutting time barely changes. The handling time collapses.

So when a shop quotes a fast lead time, ask what it is counting. If the answer is spindle hours plus shipping, the quote is incomplete. Setup, fixturing, first-article inspection and finishing all sit inside the same clock, and any one of them can add days.

• 1
  ReachFeatures a 3 axis setup cannot touch without re-fixturing
• 2
  AlignmentTolerances that link features across different faces
• 3
  CountCalendar days from file to shipped box, not cut minutes

Every setup introduces a new datum. Each time an operator unclamps a part, blows chips off the fixture and dials it back in, error enters the stack. On a bracket with five true positions, four setups can accumulate enough variation to push a ±0.05 mm callout out of tolerance even when the machine itself holds ±0.005 mm.

Simultaneous 5 axis removes most of that stack. The tool tilts and the table rotates, so the same datum survives from the first face to the last. You get one coordinate frame, one thermal history, one inspection baseline. That is where the accuracy gain comes from, not from a higher spindle rpm.

It also changes how you fixture. A dovetail block or a self-centering vise on a Ø400 mm rotary table holds the blank once. The part never leaves the tombstone. Deep pockets machine from above with a short, stiff tool, then the table tilts to reach the side walls with the same tool. Short tools chatter less, so you can push feed rates without losing Ra 0.8–1.6 μm on the walls.

The trade-off is programming. A simultaneous toolpath takes longer to generate and longer to verify than a set of 3 axis operations. That is why a shop that runs one CAM seat and one shift cannot offer genuine fast turnaround, no matter how good the machine is.

• 1
  Datum countOne frame beats four; error does not stack
• 2
  Tool stiffnessShort tools allow higher feed with the same finish
• 3
  Programming loadSimultaneous paths need CAM capacity, not just iron

Five axis is not free. Hourly rates run higher than 3 axis because the machine costs more and the programmer takes longer. For a flat plate with holes on one face, a 3 axis mill with a simple vise will be cheaper and just as fast. Sending that part to a 5 axis center adds cost without adding capability.

There is also a size ceiling. A 4,000 mm long frame or a part that needs a 4,000 × 400 × 150 mm envelope is a different class of work from a Ø400 mm rotary table part. Shops that list 5 axis capability sometimes mean a compact 500 × 500 × 450 mm machine, not a large gantry. Match the part envelope to the actual travels before you promise a customer a date.

Thin walls are the third boundary. A 0.8 mm wall in aluminium will deflect under clamping force and under cutting force. No amount of axis count fixes that. You need light finishing passes, sharp tooling and often a support material or a soft jaw that matches the wall profile.

• 1
  Simple prismatic parts3 axis is cheaper and equally quick
• 2
  Very large framesCheck the real travel, not the brochure claim
• 3
  Thin walls under 1 mmFixture and pass strategy matter more than axis count

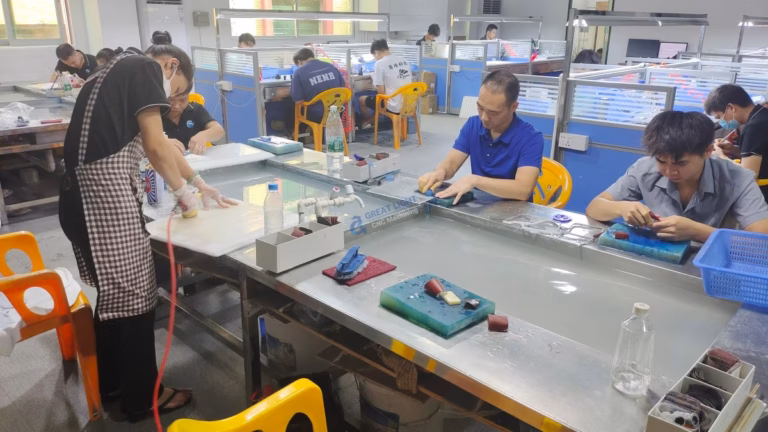

Speed lives in the chain, not in one operation. After machining, a custom part usually needs deburring, anodizing or plating, laser marking, and a dimensional report. If any of those steps is subcontracted, the job leaves the building and the clock keeps running while it sits in someone else's queue.

Keeping the chain under one roof is the single biggest lever on calendar time. A shop that machines, finishes and inspects in the same plant can move a batch straight from the mill to the anodizing line to the CMM without a truck ride in between. Nothing gets lost, and nothing waits for a pickup.

Inspection belongs in that chain too, not at the end of it. In-process checks after semi-finishing catch a drifting dimension before the finish passes lock it in. That is cheaper than scrapping a finished, anodized part. A final report on request closes the loop for the customer's quality file.

Material supply is the last link. Standard aluminium and stainless grades are usually on the shelf. Titanium, Inconel and some copper alloys are not, so confirm stock before you commit to a date rather than after.

• 1
  One roofMachining, finishing and inspection in the same plant
• 2
  In-process checksCatch drift before finishing locks it in
• 3
  Material stockConfirm the grade before the date is promised

A part can be machined on schedule and still ship late because nobody measured it in time. On a complex 5 axis job, a full first-article layout on a CMM can take hours. If the shop only measures after the whole batch is finished, one bad setup wastes the batch, not one part.

The workable pattern is staged measurement. Check the critical features after the first article, then spot-check the true positions that drive assembly as the run continues. Features that only affect appearance can wait for final inspection. This keeps the CMM from becoming the bottleneck without lowering the standard.

Thermal drift matters on tight work. A machine that has been running all morning is warmer than one that just started, and the part grows with it. On ±0.005 mm callouts, that difference is real. Shops that hold those tolerances either run lights-out on stable temperature or measure and compensate. Ask which one yours does.

Finally, define what the report has to contain before the job starts. A single number on a certificate is not a layout. If your customer needs true position, profile and surface finish recorded per feature, say so at quote time.

• 1
  Staged CMMFirst article, then spot checks during the run
• 2
  Thermal stateWarm machines move; compensation is not optional
• 3
  Report scopeAgree on which features get recorded
