Reveal the Precision Charm of Five-Axis CNC Machine Tools
This page explains what actually happens inside a five-axis machine, why two extra rotary axes change tolerances and setup count, and where the process stops paying off. Written for engineers and buyers who need to judge a part before they quote it.
Reveal the precision charm: what the fourth and fifth axes add
A three-axis mill moves the tool in X, Y and Z. The workpiece stays still. The moment you need a hole on a side face, someone has to stop the spindle, loosen the vise, rotate the part, indicate it back in, and start again. Each of those re-clamps adds a setup, and each setup adds its own error stack.

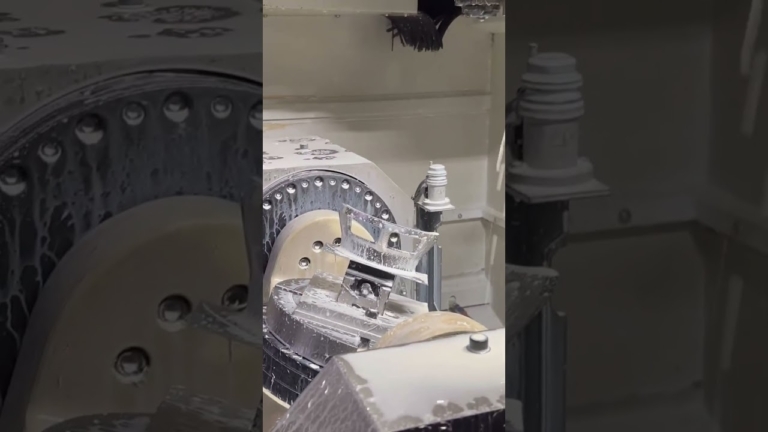

A five-axis machine adds two rotary axes to that stack. On a trunnion machine the table tilts and rotates. On a swivel-head machine the spindle tilts instead. Either way the tool can approach the part from an almost continuous range of directions rather than three fixed ones. The cut still happens with a rotating tool, so the geometry of the cutting edge never changes.
The practical result is fewer setups. A housing with bores on four faces and a compound angle boss can come off one machine in one clamping. Positional five-axis stops at discrete angles and machines each face in turn. Simultaneous five-axis keeps all five axes moving together, which is what you need for a contoured blade or a port with a curved centerline.
Positional work is the cheaper half of the family. The rotary axes index, lock, and the cut behaves like a three-axis cut on a tilted plane. Simultaneous work costs more because the post-processor has to solve the kinematics for every block, and the machine has to hold accuracy while two axes are moving under load.
Where the tolerance budget goes
Five-axis geometry stacks errors differently from three-axis geometry. The rotary axes sit between the tool and the workpiece, so any angular error is multiplied by the distance from the rotary center to the cutting edge. A 0.001° error on a part 200 mm from the table center becomes roughly 0.0035 mm of linear error before you even measure the part.
That distance is why part placement matters. Clamp the part near the rotary center and the multiplier is small. Clamp it at the edge of a Ø400 mm table and the same angular error grows. On our five-axis centers we hold ±0.005 mm (±0.0002 in) on features that stay inside a normal work envelope, and we inspect 100% of parts before shipment.
Thermal drift is the second large term. The spindle, the rotary motors and the linear guides all heat up during a long cycle. A machine that holds ±0.005 mm at 09:00 may drift past that by mid-afternoon if the shop is not temperature-stable. Roughing heavy stock on the same machine right before finishing makes this worse.
Tool length adds a third term. A long reach tool deflects under cutting force, and on a tilted cut the deflection direction changes with the tilt angle. Short, stiff tools cut more accurately on five-axis work than long ones, even when both are nominally the same diameter.
Reading a part for five-axis suitability
Start with the number of faces that carry toleranced features. If the answer is one, a three-axis machine will usually be cheaper and just as accurate. If it is three or more, and the features have to be in a tight relationship to each other, five-axis starts to win on stack-up alone.
Next look at the feature orientation. Holes and pockets at compound angles, or a bore whose axis is not square to any face, are the classic five-axis case. So are ports and channels with curved centerlines, where the tool has to stay normal to a surface that keeps turning.
Then check the tool access. A deep cavity with a narrow opening may leave no room for a tilted holder, so the fifth axis cannot reach it. Undercuts that need a lollipop cutter on a tilted approach are reachable, but only if the holder clears the wall. This is where a DFM review saves a scrapped part.
Finally, weigh the quantity. One prototype with five setups is slow and risky. Two hundred parts with five setups is a staffing problem. Five-axis collapses that into one setup, and the setup cost stops scaling with the part count. Below roughly ten parts the math is closer than people expect.
Three-axis, positional five-axis, or simultaneous five-axis
Match the machine to the part geometry, not to the brochure.
| Part signal | 3-axis | Positional 5-axis | Simultaneous 5-axis |
|---|---|---|---|
| Toleranced features on one face | Best fit | Works, more setups than needed | Overkill |
| Features on 3+ related faces | Slow, stack-up risk | Good fit | Good fit |
| Compound-angle holes and bosses | Needs fixtures | Good fit | Good fit |
| Curved centerline ports and channels | Not practical | Limited | Best fit |
| Thin walls with one-sided access | Deflection risk | Deflection risk | Better tool orientation |
| Deep cavity, narrow opening | Reachable | Reachable if holder clears | Holder clearance is the limit |
| 1–10 parts | Cheapest | Middle | Setup time dominates |
| 200+ parts | Fixture cost adds up | Good fit | Best fit |
The verdict
If your toleranced features sit on one face, stay on three-axis and spend the money on fixtures. If they sit on three or more related faces, or the centerline is curved, use five-axis. Choose positional indexing when faces are flat and angles are fixed; choose simultaneous only when the tool has to stay normal to a surface that moves.
Questions engineers ask next
Does five-axis always give a better surface finish?
No. Finish comes from the tool, the stepover, the spindle speed and the rigidity of the setup, not from the axis count. A rigid three-axis cut with a sharp tool can beat a five-axis cut on a long, flexing tool.
What five-axis does give you is the ability to keep a ball nose tool normal to a curved surface, which avoids the uneven stepover you get when a tilted tool sweeps a contour. That shows up as a more even Ra on sculpted surfaces, not automatically a lower one.
How do you check a five-axis part before cutting metal?
We run a DFM analysis and return it with the quotation, usually within 12 hours. That review looks at tool access, holder clearance at the extreme tilt angles, wall thickness and the datum scheme.
Machine simulation comes next. The post-processor output is verified against the model so the rotary axes are checked for over-travel and collision before the first blank is loaded.
What part size can you actually run?
Our five-axis work covers a range of envelopes, from compact machines around 500 × 500 × 450 mm up to a 4,000 × 400 × 150 mm travel for long parts. Table size and part weight limit what the rotary axes can index accurately.
A part that fits the envelope but sits far from the rotary center will lose accuracy. Send the model and we will tell you where it should sit on the table.
Can five-axis machining hold ±0.005 mm on every feature?
Not on every feature. The ±0.005 mm (±0.0002 in) figure applies to features within a normal work envelope on a temperature-stable machine. Features far from the rotary center, or cut with a long tool, will carry a larger uncertainty.
We inspect 100% of parts before shipment and can supply inspection reports on request, so you can see which features were measured and how.
Do I need an NDA before sending drawings?
Uploads are handled as secure and confidential. An NDA is available on request if your program requires one before files are shared.
For early-stage work we can also quote from a simplified model with critical dimensions, so the full drawing never leaves your side until the order is placed.
When is five-axis the wrong answer?
When the part is a simple prismatic block with one toleranced face, when the quantity is one and the geometry is easy to fixture, or when the feature is a deep bore that no tilted holder can enter.
In those cases a three-axis machine with a good fixture is faster and cheaper, and the accuracy is easier to control because there are fewer error terms in the chain.
