Essential Knowledge Points About Cutting Tools in Machining Centers

• 1
  Tool Geometry Decides What the Feature Can Be
• 2
  Coatings Change Heat Flow, Not Just Hardness
• 3
  Runout at the Holder Costs You the Tolerance
• 4
  Wear Is a Signal, Not a Surprise
• 5
  Speeds, Feeds, and the Limits of the Process
• 6
  Matching Tool Type to Feature and Material

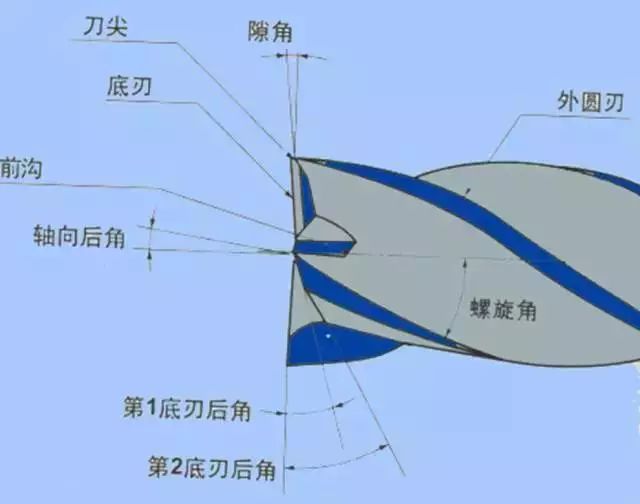

The cutting edge is the last link in the stiffness chain that starts at the machine bed. A machining center can hold ±0.005 mm on a good day, but only if the tool is rigid enough to survive the cut. Geometry sets that limit before the CNC program ever runs. Pick the wrong nose radius and no amount of feed tuning will recover the corner.

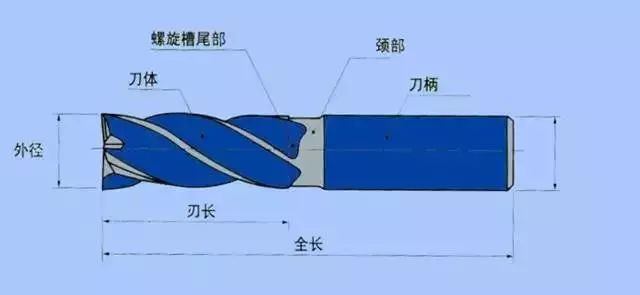

Flat bottom end mills cut square shoulders and floors. Use them when the drawing shows a 90° internal corner and the depth is less than one diameter. Corner radius end mills, often called R-angle tools, put a controlled fillet at the bottom. They cost less than a ball tool and leave a stronger corner. A 0.5 mm corner radius on a 6 mm cutter is common for aluminum housings that will see vibration.

Ball end mills are the only practical way to cut a true 3D contour, such as a mold cavity or a turbine blade root. The trade-off is that the effective cutting diameter shrinks as the tool tips over. A Ø6 mm ball tool at 15° tilt may only engage 1.5 mm of material. Feed rates must be recalculated from the actual engagement, not the nominal diameter.

Indexable tools use replaceable inserts. They shine on roughing, where a 12 mm solid carbide tool costs more than a box of inserts. On finishing passes below Ra 0.8 μm, a solid carbide tool with a ground edge still wins. Mixing the two in one setup is fine, but keep separate offsets for each tool so the wear does not compound.

• 1
  Flat bottomSquare shoulders, floors, shallow pockets
• 2
  Corner radiusStronger internal corners, less chatter
• 3
  Ball nose3D contours, deep ribs, mold work
• 4
  IndexableHeavy roughing, large diameters

A coating is a thermal barrier and a friction layer. It keeps heat in the chip instead of letting it soak into the workpiece and the tool body. That matters most on stainless and titanium, where heat builds at the edge and work-hardening starts within microns of the cut. An uncoated tool on 316L will fail fast even at conservative speeds.

TiAlN, often called AlTiN when the aluminum content is higher, works for steel and stainless. It tolerates the 800–900 °C range at the edge. Use it for 4140, 17-4PH, and Inconel. Do not run it on aluminum. The aluminum sticks to the coating and builds a built-up edge that chips the flutes.

DLC and uncoated polished carbide are the right call for aluminum, copper, and brass. The low friction keeps chips from welding to the edge. A polished flute also evacuates chips faster. On a deep pocket in 6061, this is the difference between a clean floor and a recut chip that tears the surface.

For hardened steel above 45 HRC, consider a TiSiN or AlCrN coating. These hold hardness at higher temperatures. On plastics and composites, an uncoated or diamond-coated tool is often better because a standard coating can react with the resin. Check the material data sheet before you assume one coating covers the whole job.

• 1
  AlTiN / TiAlNSteel, stainless, titanium, high heat
• 2
  DLC / polishedAluminum, copper, brass, low friction
• 3
  AlCrN / TiSiNHardened steel above 45 HRC
• 4
  Uncoated / diamondPlastics, composites, graphite

A tool is only as round as the holder that spins it. Total indicated runout measured at 3× diameter should stay under 0.010 mm for finishing. Above that, one flute does most of the cutting, the edge wears unevenly, and the hole drifts out of size. The machine may still be accurate. The holder is the problem.

Hydraulic and shrink-fit holders give the lowest runout, often under 0.003 mm. They also damp vibration better than a collet. Use them on small end mills below Ø6 mm and on any finishing pass that has to hold a tight bore. The trade-off is cost and setup time. Shrink-fit needs a heating station, and each tool change takes longer.

Collet chucks are the workhorse for general milling. They are fast to change and cheap per pocket. Keep the collet clean and replace it when it starts to mark the shank. A worn collet can add 0.02 mm of runout on its own. That is four times the tolerance budget on a precision bore.

Side-lock holders are for roughing only. The set screw pushes the tool off center. That is acceptable when you are removing 3 mm of stock, but never for a reamer or a finishing cutter. If a bore comes out tapered or oversized, check the holder before you touch the speeds and feeds.

• 1
  Hydraulic / shrink-fitUnder 0.003 mm runout, best for finishing
• 2
  Collet chuckGeneral milling, fast changes
• 3
  Side-lockRoughing only, not for reamers

Every cutting edge wears. The question is whether it wears in a way you can predict. Flank wear is normal. It grows slowly and shows as a bright band on the relief face. When the band reaches 0.2–0.3 mm, change the tool. Past that, the cutting force rises fast and the surface finish drops.

Crater wear appears on the rake face, behind the chip. It comes from heat and diffusion on steel and stainless. A crater that gets deep enough will weaken the edge and cause a sudden fracture. If you see a dark, scooped area under the chip, reduce surface speed or move to a more heat-resistant coating.

Chipping is mechanical, not thermal. It happens when the edge hits a hard spot, a interrupted cut, or a chip that recuts. Small chips at the corner are common on castings with hard skin. Increase the feed per tooth slightly to get under the skin, or take a lighter first pass. Do not slow the spindle down. That makes it worse.

Built-up edge is a soft, welded lump of workpiece on the edge. It looks like a dull gray cap. It breaks off and takes carbide with it. On aluminum, the fix is a sharper, more polished tool and a faster spindle. On stainless, it usually means the feed is too light and the edge is rubbing instead of cutting.

• 1
  Flank wearNormal, change at 0.2–0.3 mm
• 2
  Crater wearHeat-driven, reduce surface speed
• 3
  ChippingMechanical, increase feed per tooth
• 4
  Built-up edgeLight feed, sharpen or polish

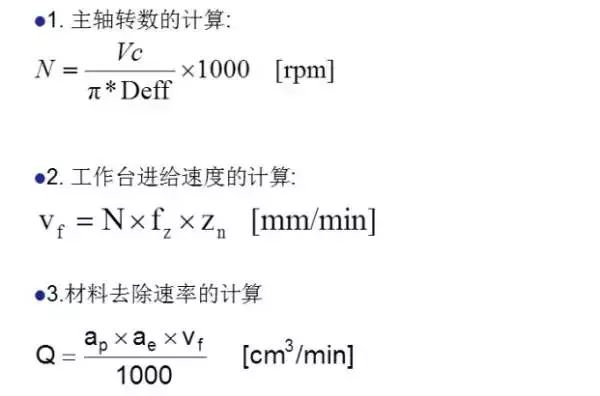

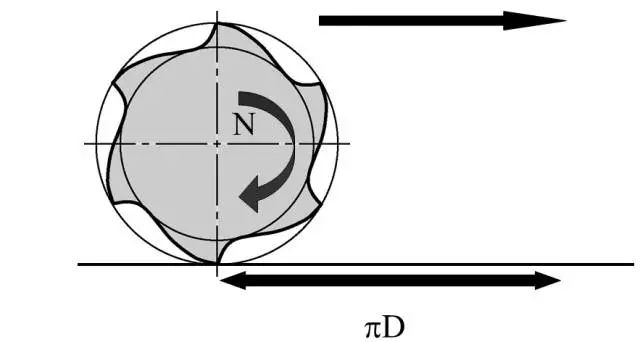

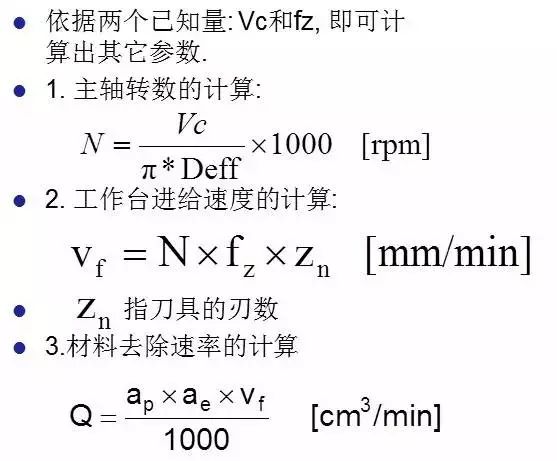

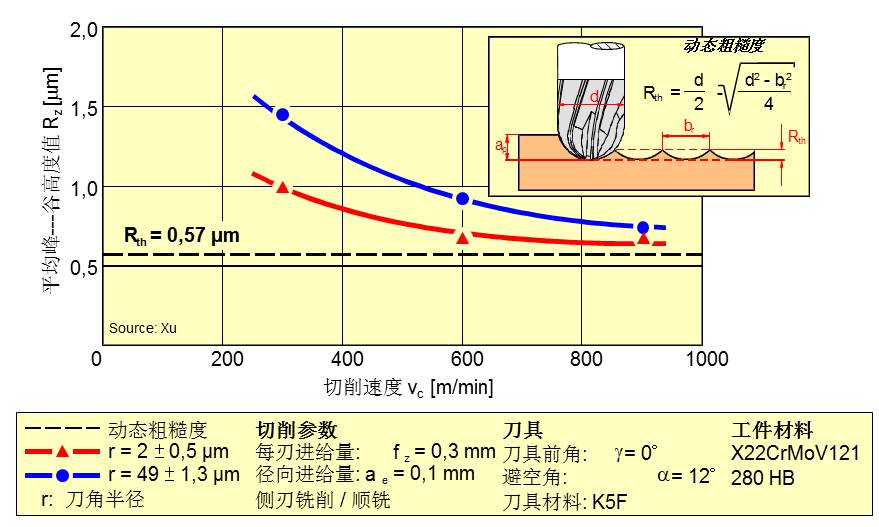

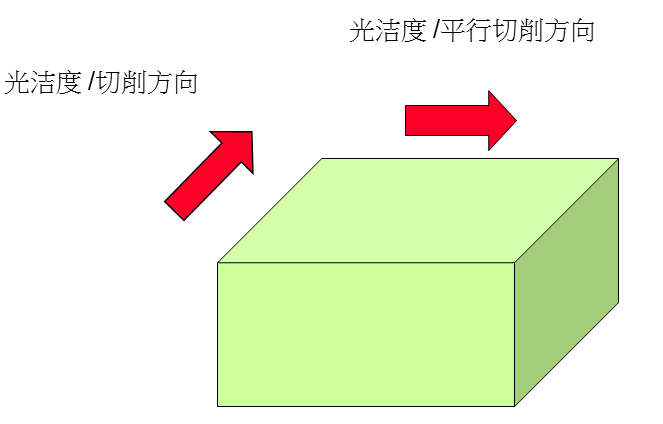

Speeds and feeds are not a single number. They are a window bounded by tool life on one side and surface finish on the other. For 6061 aluminum, a 6 mm three-flute carbide tool can run at 300–500 m/min surface speed with 0.05–0.10 mm feed per tooth. For 316L stainless, drop to 80–120 m/min. For Ti-6Al-4V, 40–60 m/min. These are starting points, not guarantees.

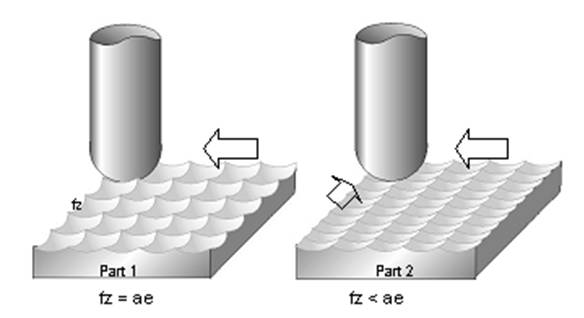

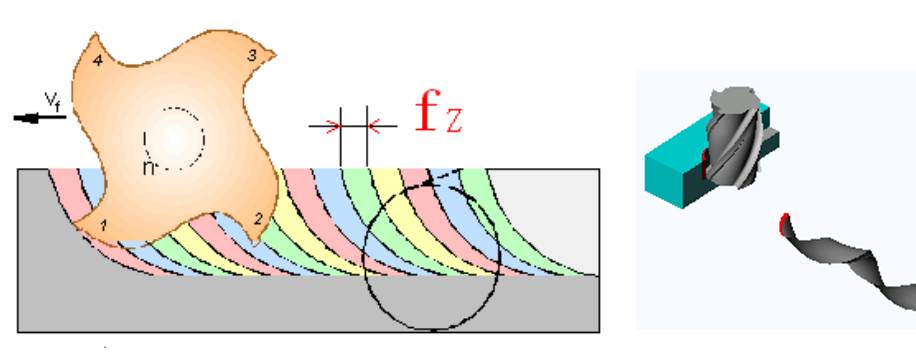

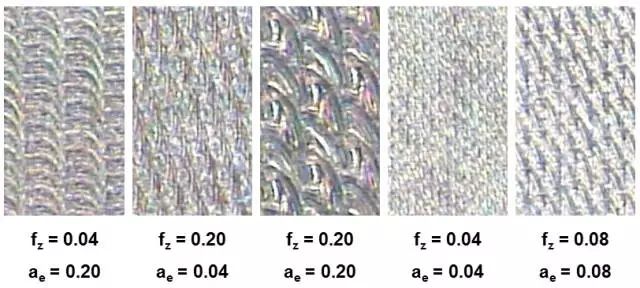

Chip thinning matters on light radial cuts. If the radial engagement is below 25% of the diameter, the actual chip is thinner than the feed per tooth suggests. Increase the feed to keep the edge cutting rather than rubbing. Rubbing generates heat and work-hardens the surface. On stainless, that hardened layer can be 0.05 mm deep and will destroy the next tool.

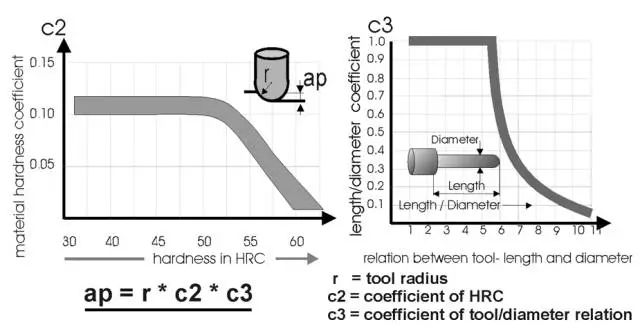

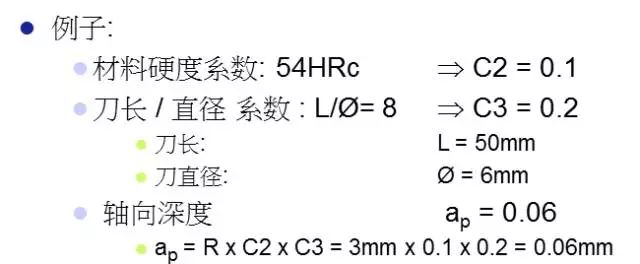

Depth of cut should follow the tool. A 6 mm end mill can take 0.5×D axial and 0.3×D radial in a stable setup. A 12 mm tool may only take 0.3×D axial if the holder is long. If the tool squeals, reduce radial engagement first, then axial. Reducing spindle speed alone usually just moves the chatter to a different frequency.

Coolant choice is part of the window. Through-spindle coolant clears chips from deep pockets and cools the edge. Flood coolant works for open cuts. On titanium, high-pressure coolant is almost mandatory because the chip carries most of the heat. On cast iron, dry cutting with air blast is often cleaner because the chips are dry and easy to recover.

• 1
  Aluminum 6061300–500 m/min, 0.05–0.10 mm/tooth
• 2
  Stainless 316L80–120 m/min, watch work-hardening
• 3
  Titanium Ti-6Al-4V40–60 m/min, high-pressure coolant
• 4
  Cast ironDry or air blast, recover chips
