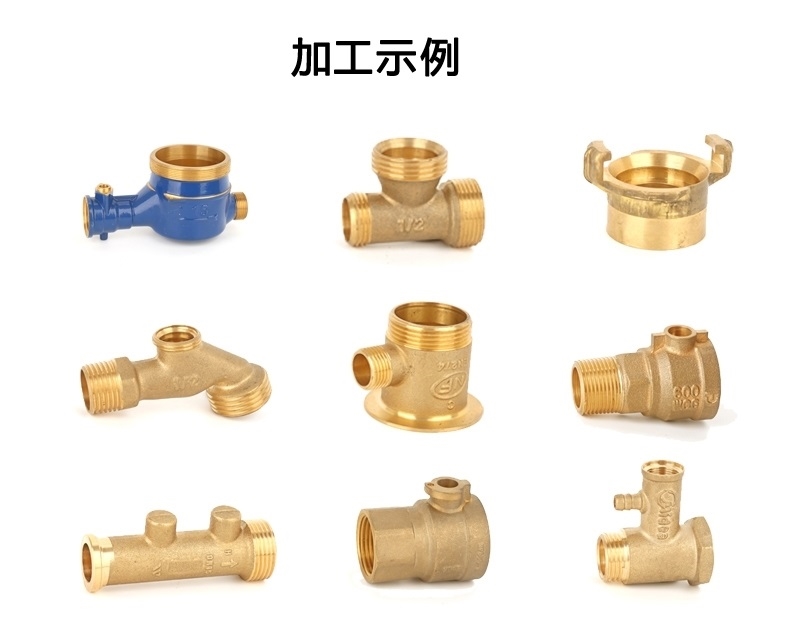

Treating aluminum aluminum pipes means cutting tube stock into finished parts: faced ends, cross-holes, slots, threads, and sometimes a turned profile. The workpiece is hollow, so the cutting forces have somewhere to push. A 6061-T6 tube with a 1.5 mm wall will spring back several hundredths of a millimeter after the tool passes, and the part measures wrong even though the toolpath was right.

Most tube work runs on a 3-axis mill with a rotary table, a 4-axis mill, or a mill-turn center. Long tubes go on the mill with the axis along X. Short bushings and threaded ends go on the lathe. The choice depends on the length-to-diameter ratio, not on the alloy.

Three things drive the method: how the tube is held, how the cut is sequenced, and how much heat reaches the wall. Get those right and the rest is standard aluminum cutting. Get them wrong and you will chase dimensions all day.

Tolerances on tube work are tighter than they look. A Ø40 mm tube with a 1 mm wall moves roughly 20 times more under the same radial load than a solid Ø40 mm bar. That single ratio explains most of the scrap in this job type.

A three-jaw chuck on a thin tube will ovalize it. The jaws push the wall into a triangle, the cut is round, and the part relaxes back into a triangle when you unclamp. Use a collet, a soft jaw bored to the actual tube OD, or a expanding mandrel inside the bore. For tubes under 1.5 mm wall, a mandrel is not optional.

Support the free end. On tubes longer than four diameters, bring in a tailstock, a steady rest, or a support block with a bored hole. Without it the tube rings at 2,000–3,000 rpm and the surface turns into a chatter pattern that no finishing pass will remove.

Clamping pressure matters as much as clamp type. A hydraulic or pneumatic vise with a pressure regulator lets you set a repeatable force. Aim for the lowest pressure that keeps the part from shifting. Too much pressure is the most common cause of out-of-round bores.

Fill the bore when the wall is very thin or the part is short and open. Low-melt wax, a machined plug, or a close-fitting aluminum slug all work. The filler does not need to be precise. It only needs to stop the wall from collapsing under the jaw load.

Start with the ends. Face and square both ends first, because every later measurement references them. Cut the tube 0.5–1.0 mm long, face to length, and chamfer the bore and OD in the same setup. Trying to hold a slot to a sawn end is a losing fight.

Then do the primary bore or turned profile. If the part needs an internal step, turn it before drilling any cross-hole, so the wall still has full stiffness. A cross-hole removes material from the weakest section and makes the tube easy to crush in the vise from that point on.

Cross-holes and slots come last. Drill them with a stub or jobber drill at 60–90 m/min surface speed and 0.08–0.15 mm/rev feed, pecking every 1×D. Back the bore with a plug at the drill exit. Exit burrs inside a tube are hard to reach and hard to deburr without a second setup.

Threads go on the outside where possible. A tube with a 1.5 mm wall does not have enough material for a strong internal thread. If the design calls for one, plan a thicker wall at that section or a welded boss.

For 6061 and 6082 tube, run carbide at 200–350 m/min surface speed and 0.10–0.20 mm/tooth feed. Radial depth of cut stays at 5–10% of the cutter diameter on thin walls, even though the same cutter would take 30–50% in a solid block. Axial depth can stay deep. This is the trade that keeps the tube from deflecting.

Use sharp, polished-flute tooling. Aluminum builds up on a dull edge, and a built-up edge cuts oversize and leaves a torn finish. Two-flute end mills clear chips well in a slot. Three-flute cutters are stronger for side milling but need good chip evacuation.

Coolant: flood or high-pressure air with a mist. Dry cutting of a thin tube is risky because the wall expands faster than the rest of the part, and the last pass takes a heavier cut than planned. Keep the part below roughly 80 °C at the cutting zone.

The practical wall limit is about 0.8 mm for a Ø40 mm tube on a supported setup. Below that, the part becomes a spring, and you need a filler or a redesign. If the drawing calls for a 0.5 mm wall over a long span, ask whether a machined rib or a thicker end section is acceptable.
