EDM machining technology removes material by spark erosion. A tool electrode and the workpiece sit a few hundredths of a millimeter apart in a dielectric fluid, usually deionized water for wire EDM and hydrocarbon oil for sinker EDM. The gap is small enough that a controlled voltage pulse breaks the dielectric down and a plasma channel forms. Temperature inside that channel reaches several thousand degrees Celsius for a few microseconds.

That heat melts and partly vaporizes a tiny volume of metal on both the workpiece and the electrode. When the pulse ends, the plasma collapses, the molten pool is flushed away by the dielectric, and a small crater remains. Thousands of pulses per second carve the cavity. Nothing touches the part, so hardness barely matters. A 60 HRC die steel cuts about as easily as annealed 1018.

The discharge only works on conductive material. Plastics, ceramics and most composites cannot be machined this way without a conductive coating or an assist electrode. That single limitation shapes where the process fits and where it does not.

The dielectric does two jobs at once. It insulates the gap so the next spark forms at the closest point, and it carries the debris out. Poor flushing is the most common cause of unstable cutting, arcs and burnt corners.

Wire EDM feeds a thin brass or coated wire through the workpiece like a band saw with no teeth. The wire never touches the part. Standard wire runs 0.20–0.30 mm, and fine wire down to 0.05 mm cuts narrow slots and small radii. Because the wire is continuous, the cut is a through-profile: you can make punches, dies, extrusion openings and gear forms, but not a blind pocket.

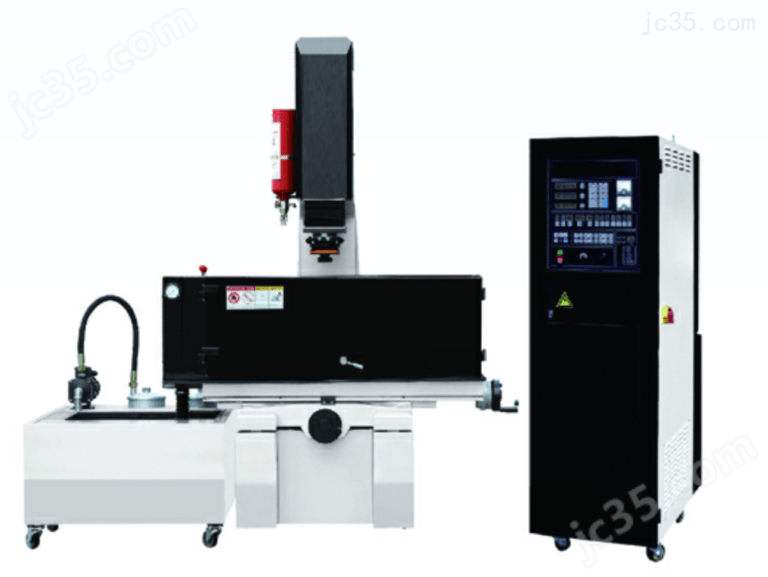

Sinker EDM, also called ram or die-sinking EDM, burns a shaped electrode into the workpiece. The electrode is usually graphite or copper, machined slightly smaller than the finished cavity to allow for the spark gap and a small side clearance. This is the process for blind pockets, sharp internal corners, ribs and the deep cavities in injection molds that no end mill can reach.

Small-hole EDM drills start holes from 0.3 mm upward through hardened material, including angled entries and curved walls. It is often the first operation before wire EDM, because the wire needs a start hole to thread.

All three share the same physics and the same trade: no cutting force, no tool wear from mechanical contact, but slow removal rates compared with milling. Roughing with EDM is expensive. Using it for the last 0.2 mm is usually the smart play.

The molten metal that is not flushed away resolidifies on the cut surface. This is the recast layer, sometimes called the white layer. It is hard, brittle and metallurgically different from the base metal. Thickness depends on the energy per pulse: roughing passes can leave 10–30 μm, while a fine finishing pass with low energy leaves only a few micrometers.

Cracks can start in a heavy recast layer, and it can spall under fatigue or thermal cycling. For mold cavities and aerospace brackets that see load cycles, a multi-pass strategy matters more than the final number on a surface roughness gauge. Rough at high energy, then step down through two or three trim passes.

Surface finish follows the same logic. Coarser pulse energy gives a matte surface around Ra 3.2 μm. Successive trim passes reach Ra 0.8–1.6 μm as standard, and fine finishing can reach Ra 0.2–0.8 μm on the cut face. Each step adds time, so define the finish you actually need before cutting.

The heat-affected zone extends below the recast layer. On tool steels it can reach 20–50 μm with altered hardness. If the part will be polished or coated afterward, leave stock and plan a stress-relief step after heavy roughing.

EDM holds about ±0.005 mm on a stable machine with good flushing and temperature control. The wire diameter, spark gap and machine positioning all feed into that number. As the cut deepens, debris removal gets harder and accuracy drifts, so tall parts need more skim passes and slower feed.

Corner radius is set by the wire plus the gap. A 0.25 mm wire cannot produce a true 0.05 mm internal corner. If your drawing calls for a sharp inside corner, either accept a radius or plan a sinker operation with a sharp electrode corner.

Taper cutting is a wire EDM strength. Many machines cut 15–30° of taper over a limited height, which handles draft angles on mold cores and die relief in one setup. Check the taper range against your part height before assuming it fits.

Taper and tall cuts fight each other. A 30° taper on a 100 mm tall block is a different proposition from the same angle on 20 mm stock. Tell the shop your height when you ask about taper.

EDM is billed by machine hours, and machine hours scale with the volume of metal you remove. A cavity that milling could rough in 20 minutes may take hours on a sinker. That is why the usual answer is to mill everything you can reach, then EDM only the corners, deep ribs and hardened features that no cutter can touch.

Electrode cost is the second driver on sinker work. Each electrode wears and needs replacement or redressing, and complex cavities may need several electrodes at different undersizes for roughing and finishing. A part with deep, fine ribs can need more electrode fabrication time than cut time.

Wire EDM has no shaped tooling, so setup is mostly fixturing and threading the start hole. That makes one-off and low-volume work economical. Ten thousand identical small profiles are usually cheaper punched or laser cut.

Flushing, fixturing and workholding all show up as time. Thin plates need support, and tall parts need stable flushing. Ask for a DFM review before quoting; a small drawing change often removes most of the EDM time.
