Why the classification of CNC machine tools follows the tool path first

The most useful way to sort machine tools is by the path the cutting tool follows relative to the part. Everything else, including frame size, spindle power and price, is downstream of that choice. A machine that only moves to a fixed coordinate set cannot cut a curved profile, no matter how rigid its column is.

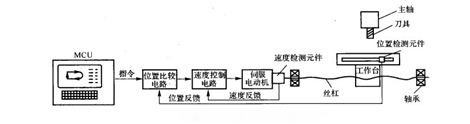

Three control families cover almost every metal-cutting machine on a shop floor. Point control machines drive the tool to a position and let it work there, with no coordinated motion between moves. Straight-line control machines cut parallel to one axis at a time. Contour control machines move two or more axes together so the tool follows an arbitrary curve.

The distinction matters commercially. A contour machine costs more because its control must interpolate, its drives must stay synchronized and its ball screws must be ground rather than rolled. If your feature set is holes and faces, that extra capability sits idle.

One caution: the label on the control does not guarantee the machine behaves that way. A contour-capable mill can be run in point mode, and a point machine with an indexing table can look contour-like on a print. Judge by the features on the drawing, not the badge on the door.

1
Point controlDrilling, tapping, spot facing. Tool moves between fixed positions only.
2
Straight-line controlFacing, slotting, step milling parallel to a single axis.
3

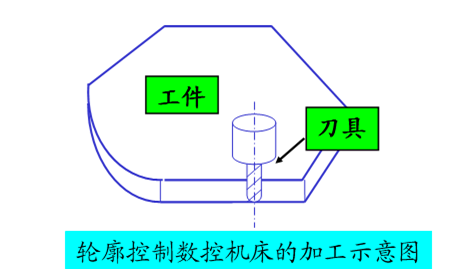

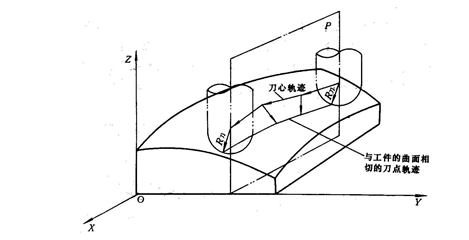

Contour controlPockets, radii, tapers, 3D surfaces. Two or more axes interpolate together.

Structure

Sorting by structural type: how the frame decides part size

The second useful axis is structural family. A vertical machining center holds the spindle vertically and the work on a horizontal table, which gives good operator access and simple fixturing. A horizontal machining center turns the spindle sideways, so chips fall away from the cut and the tool can reach four faces of a cube in one setup.

Turning centers rotate the work instead of the tool. The part spins on a main spindle while a turret carries static or live tools. This family owns anything with rotational symmetry: shafts, bushings, valve bodies, connector shells. If the part has a dominant axis of rotation, turning is usually the cheaper route.

Mill-turn centers merge the two. They carry a spindle that indexes and rotates, plus a turret with live tooling, so a part can be turned, then milled and drilled without leaving the chuck. The tradeoff is reach: a mill-turn spindle is shorter and less rigid than a dedicated mill spindle, so deep pockets and long end mills belong elsewhere.

Frame construction also sets the accuracy ceiling. Cast iron bases damp vibration better than welded steel, which is why grinding and fine boring tend to live on heavy cast frames. Light gantry frames move fast but deflect under cutting load. Neither is better in the abstract; the question is whether you are buying speed or dimensional stability.

1
Vertical machining centerOpen access, simple fixtures, best for plate work and single-face features.
2
Horizontal machining centerChips fall clear, multi-face work in one setup, higher fixture cost.
3
Turning centerRotational parts, fast cycle times, live tooling for cross features.
4
Mill-turn centerTurn and mill in one chuck, shorter spindle reach than a dedicated mill.

Axis count

What each added axis actually buys you

A three-axis machine moves the part in X and Y and the spindle in Z. Every new face costs a new setup or a new fixture. Setup is where tolerance stacks up: each re-clamp adds its own locating error, and a part with features on four sides can easily lose 0.03 mm before any cutter touches it.

A fourth axis adds rotation about X, usually a rotary table. It does not interpolate with the other axes in most shop work; it indexes to an angle, locks, and then the machine cuts. That is enough for cross holes, side slots and radial patterns. It removes setups without demanding a new control strategy.

A fifth axis adds rotation about Y, giving a trunnion or swivel head. Indexed five-axis work tilts the part to reach an angled face and then cuts with three axes. Simultaneous five-axis work keeps all five moving at once, which is what lets a ball nose cutter stay normal to a sculpted surface.

Simultaneous motion is a different animal. The control has to solve kinematics in real time, and any error in the rotary pivot distance shows up as a surface mismatch. That is why simultaneous five-axis parts should be designed with generous radii and why thin walls on a five-axis part need light finishing passes.

1
3-axisCheapest per feature if the part is flat and features sit on one or two faces.
2
4-axisRemoves side setups. Watch rotary backlash on older tables.
3
5-axis indexedReaches angled features without re-fixturing. Good for prismatic work.
4
5-axis simultaneousOnly route for true 3D surfaces and undercut geometry.

Boundaries

Where classification breaks down in practice

Classification schemes are clean on paper and messy on the floor. A five-axis machine cutting a flat plate is a three-axis machine for that job. A three-axis machine with a tilting vise is doing indexed work without a rotary axis on the control. The label describes capability, not the operation.

Size limits cut across every category. Our largest frame travels 4,000 × 400 × 150 mm, which suits long extrusions and rails but restricts what the Z axis can reach. A 750 × 1,150 × 550 mm frame holds bigger prismatic parts but cannot swing a large turning diameter. Matching the envelope to the part is the first filter, before axis count even matters.

Material changes the answer too. Aluminium 6061 and 7075 cut fast and tolerate light fixturing. Stainless 316 and 17-4PH work harden, so a light finishing pass on a flexible setup will rub instead of cut. Titanium TC4 and Inconel need lower surface speed and more rigidity, which pushes the choice toward heavier frames.

The honest rule: pick the smallest machine that reaches every feature in one or two setups. Extra axes cost money in programming time and inspection, and they only pay back when they remove a setup that would otherwise introduce error.

1
Capability is not the same as useA five-axis machine running flat work is a three-axis machine that day.
2
Envelope firstConfirm X, Y and Z travel against the part before discussing axes.
3
Material mattersWork-hardening alloys punish light setups and slow finishing passes.

Cost logic

Reading a quote: why the same part prices differently by machine class

Two shops can quote the same bracket 40% apart without either being wrong. The difference usually sits in the machine class they plan to use and the number of setups. Three setups on a three-axis mill cost more in labor and inspection than one setup on a five-axis machine, even though the five-axis hourly rate is higher.

Programming effort moves the other way. A simple three-axis program might take an hour; a simultaneous five-axis program with collision checks can take a full day. For one prototype, the programming cost dominates and three-axis wins. For a 10,000-part run, the per-part setup saving dominates and five-axis wins.

Inspection is the hidden line item. Every additional setup creates a new datum, and someone has to verify the relationship between old and new datums. On a part held to ±0.005 mm, that verification can cost more than the cutting.

Ask what machine class the quote assumes and how many setups it plans. If the answer does not match the feature list, the price is not comparable to the next quote.

1
Few setups, higher rateFive-axis hours cost more but replace several three-axis setups.
2
Low volume, less programmingPrototype quantities usually favor simpler machine classes.
3
High volume, fewer setupsMulti-axis pays back once setup and inspection are amortized.

Selection

Five steps to pick a machine class from a drawing

Work through these in order. Most mismatches come from skipping step 1 or step 3.

1
Mark every feature directionList the faces and angles that carry machined features. Count how many directions the tool must approach from.
2
Measure the envelopeNote the largest X, Y and Z extents. Compare against frame travels such as 4,000 × 400 × 150 mm or 750 × 1,150 × 550 mm before anything else.
3
Check for curved profilesIf any wall is a free-form curve or a tangent blend, contour control is required. Straight walls and radii can often run on 3-axis.
4
Count the setupsTwo setups or fewer usually favors 3-axis or 4-axis. Three or more on a prismatic part points to indexed 5-axis.
5
Tighten the toleranceBelow ±0.01 mm across multiple faces, prefer fewer setups and a heavier frame. Confirm with a first-article report.

Quick reference

Classification of CNC machine tools by axis count and what each class holds

Axis count is the practical shorthand on a quote form. Use the tolerance and size columns as a first filter, then confirm against the drawing.

Axis class	Typical features	Practical tolerance	Part size sweet spot
3-axis	Flat faces, pockets, through holes, straight walls	±0.01 mm on a rigid setup	Up to 4,000 mm on large-travel frames
4-axis	Same as 3-axis plus indexed side features, one rotary table	±0.01 mm, watching rotary backlash	Cylindrical or boxy parts, Ø400 mm rotary table
5-axis indexed	Angled holes, compound faces, fewer setups	±0.01 mm with a rigid trunnion	Prismatic parts with features on five sides
5-axis simultaneous	Sculpted surfaces, impellers, organic geometry	±0.005 mm achievable on a good machine	Small to medium, tight radii and thin walls
Mill-turn	Turned body plus milled features in one chuck	±0.005 mm to ±0.01 mm	Rotational parts under about 300 mm diameter

The short version

If the part is flat and features sit on one or two faces, use a three-axis machine and spend the savings on inspection. If features spread across four or more faces, or the surface is sculpted, move to five-axis and accept the higher hourly rate. There is no middle ground worth paying for on simple work.
