Complex CNC Machining: How to Pick a Supplier Who Can Actually Hold the Part

• 1
  Key takeaways
• 2
  Which machining route fits your part
• 3
  Tolerance: what ±0.005 mm really applies to
• 4
  Setup count: the hidden accuracy cost
• 5
  Material and feature limits that change the route
• 6
  Certifications: match them to the industry, not the brochure
• 7
  MOQ, lead time and how the shop quotes
• 8
  When complex CNC machining is the wrong answer
• 9
  How to run the RFQ so the quote is real

Every shop lists a tolerance number. The useful question is which features that number covers. We hold ±0.005 mm (±0.0002 in) on critical features, but not on every dimension on a 400 mm frame. A blanket tolerance callout on the drawing forces the shop to either over-machine every surface or quietly interpret the drawing its own way.

Mark the critical dimensions. Two or three per part is normal. Put general tolerances in the title block at ISO 2768-m or -f, and mark the rest with a profile callout only where assembly needs it. This keeps cycle time down and makes the inspection report readable.

Surface finish follows the same logic. Ra 0.8–1.6 μm is a normal machined finish. Ra 0.2–0.8 μm needs a finishing pass or a separate process. If a bearing bore needs Ra 0.4 μm, say so on the bore only. Asking for it everywhere can double the price.

One more thing: tolerance and size interact. A ±0.005 mm bore in a 20 mm part is routine on a mill-turn center. The same callout on a 1,200 mm part depends on thermal drift during the cut. When in doubt, let the shop tell you which dimensions they cannot hold before they quote.

• 1
  Mark critical dimensionsLimit them to the features that touch mating parts.
• 2
  Use general tolerances elsewhereISO 2768-m is a reasonable default for non-critical geometry.
• 3
  Specify finish per surfaceRa 0.8–1.6 μm general, Ra 0.2–0.8 μm only where it matters.

Each time a part moves from one fixture to another, the datum shifts a little. That shift is small, but it stacks. On a part with five machined faces, a 3-axis shop runs five setups, and the true position between the first face and the last one carries all five errors.

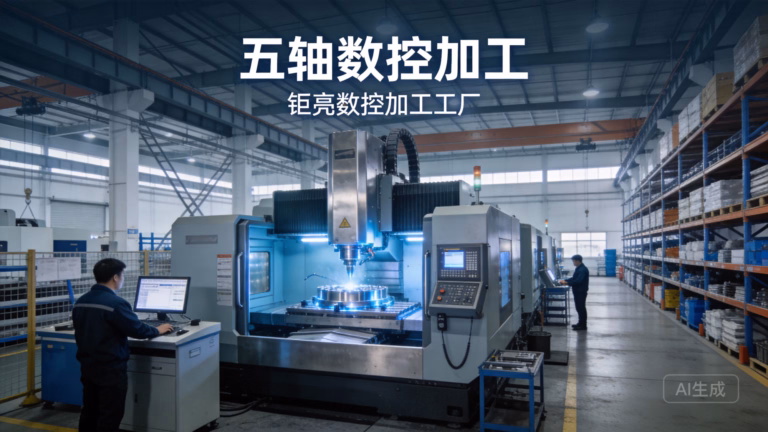

Simultaneous 5-axis work removes most of that. The part stays in one fixture while the tool approaches from any direction. We run 16 simultaneous 5-axis machining centers, plus 12 four-axis mills, 27 three-axis machines and 16 mill-turn centers. That mix matters because not every part should go on a 5-axis machine.

A round fitting with a few cross holes is faster on a mill-turn center, where turning and milling happen in one chucking. A long, flat frame is better on a 3-axis machine with 4,000 mm of travel, because the table is rigid and the fixturing is simple. Putting that frame on a 5-axis machine adds cost without adding accuracy.

Ask the shop how many setups the quote assumes. Three setups on a part you expected in one is a signal that they are planning to chase the tolerance instead of holding it.

• 1
  One setup beats fiveFewer datum transfers means less stack-up on true position.
• 2
  Match machine to geometryRound parts on mill-turn, long frames on 3-axis, 5-face work on 5-axis.
• 3
  Ask for the setup countIt should be in the quote or the DFM note.

Material choice moves the cut parameters, and sometimes the process. Aluminum 6061 and 7075 cut cleanly at high spindle speeds. 316L stainless work-hardens if the feed is too light, so a shop that has not run it before will burn through cutters and still miss the finish. Inconel and Ti-6Al-4V need low cutting speeds, rigid setups and a toolpath that keeps the cutter engaged.

We machine aluminum grades 6061, 2024, 5052, 5083, 6063, 6082, 7075 and ADC12; stainless 303, 304, 316, 316L, 420, 430, 431, 440C and 17-4PH; steel 1018, 1045, 4130, 4140, 4340, A36 and tool steel; copper and brass including C101, C110, C36000 and beryllium copper; titanium TA1, TA2, TC4, plus Inconel and magnesium AZ31B / AZ91D. Plastics run from ABS and POM to PEEK and carbon fiber.

Geometry sets limits too. A pocket deeper than 6× its cutter diameter needs a long-reach tool, and that tool deflects. A wall thinner than 1.5 mm on a tall part will move when the clamps come off. A hole at 8× diameter needs peck drilling or gun drilling, not a standard drill cycle.

None of these features make a part impossible. They change the number of operations, the tooling, and sometimes the machine. Flag them in the RFQ so the shop prices the real part.

• 1
  Freeform surfacesBall-end finishing on 5-axis; expect longer cycle time.
• 2
  Deep pocketsOver 6× cutter diameter, plan for long-reach tools and reduced feed.
• 3
  Thin wallsUnder 1.5 mm, expect stress relief and light finishing passes.

Certifications are not a score. They are a fit question. A general industrial enclosure does fine with ISO 9001:2015. A part that goes into a car or EV platform usually needs IATF 16949:2016, because the customer's quality system requires it upstream. A surgical instrument or implant housing usually needs ISO 13485:2016. If your drawings and models leave your building, ISO 27001:2022 covers how they are stored and who can open them.

GreatLight holds all four. That is useful when one supplier makes parts across two product lines, but it does not replace the audit question. Ask what the certificate covers: which plant, which processes, and when it was last audited.

For regulated work, ask for the inspection record format up front. We inspect 100% of parts before shipment, with raw material checks, in-process monitoring and a final inspection, and reports are available on request. If your quality team needs a first article report with the actual measured values, say so at the quoting stage, not after the parts ship.

Also ask where the parts are made. We run three wholly-owned plants, with manufacturing in Dongguan, China and a factory in Singapore at No.3 Joo Koon Circle, Singapore 629032. Origin can matter for tariff and for audit trail.

• 1
  Industrial machineryISO 9001:2015 is normally enough.
• 2
  Automotive / EVIATF 16949:2016 plus PPAP-style documentation.
• 3
  Medical devicesISO 13485:2016 and traceable inspection records.
• 4
  IP-sensitive designsISO 27001:2022 and a signed NDA.

Minimum order quantity is where complex parts usually stall. We take no minimum order quantity, from one prototype to 10,000+ part runs. That matters for complex geometry, because the first part is where the risk lives. Machining one piece proves the setup, the datum and the toolpath before anyone commits to a run.

Lead time claims deserve a follow-up question. We quote and return a free DFM analysis within 12 hours, can start production within 24 hours, and ship parts in 3–5 days. Those numbers describe a normal complex part with standard material in stock. A part that needs a custom casting, a heat-treat cycle or a specialty titanium grade will take longer, and the quote should say so.

Read the quote for what is missing. A price with no setup count, no inspection plan and no note on which features are difficult is a price for a different part. A useful quote names the two or three features that drive cost and asks you whether the tolerance on them is real.

Payment terms, shipping method and whether finishing is included should all be on the same document. If anodizing or plating is priced separately, check whether the finish house is inside or outside the supplier's quality system. Outside finishing is where a good machined part often loses its dimensions.

• 1
  No MOQOne piece is a valid order; volume runs are quoted separately.
• 2
  12-hour quote windowIncludes a free DFM analysis on the drawing and model.
• 3
  Check finishing scopeConfirm whether anodizing, plating and laser marking are in or out.

A good shop tells you when to walk away. If the annual volume is above roughly 10,000 pieces and the geometry is not changing, die casting plus CNC finishing usually costs less per part than machining from solid. We offer both, so the choice is not about what we prefer.

If the part is a flat bracket with ±0.05 mm tolerances and no 3D pockets, sheet metal fabrication is faster and cheaper. Sheet metal holds thickness and profile well, but it will not give you a machined bore or a sculpted rib.

If the part is a hollow shell with internal channels and a wall under 1.0 mm, machining from a billet removes a lot of material and risks distortion. Depending on the material, vacuum casting or 3D printing may be the better first step for a fit check, with CNC for the final functional version.

And if the design has not settled, do not tool up. Rapid prototyping exists for that stage. We run prototypes on the same machines and datums as production parts, so the first article is a real preview, not a different process that has to be translated later.

The pattern is simple. Complex CNC machining wins when geometry is intricate, quantities are low to medium, tolerance is tight, or the design may still change. It loses when the part is simple, flat, or high volume with a frozen design.

• 1
  High volume, frozen designConsider die casting with CNC finishing.
• 2
  Flat, 2D geometrySheet metal fabrication is usually cheaper.
• 3
  Very thin shellsCheck vacuum casting or 3D printing before committing to machining.
