CNC Machining of Small Aluminum Parts: Where the Limits Really Are

• 1
  Why cnc machining of small aluminum parts behaves differently at the cutter
• 2
  Cutting force, tool runout, and the deflection budget
• 3
  Workholding options for parts too small to clamp
• 4
  Which small features are practical, and which are not
• 5
  Alloy choice and thermal growth in small parts
• 6
  Small aluminum feature checklist: practical limits

Scale changes the physics. A 2 mm end mill has a fraction of the stiffness of a 12 mm tool, so the same cutting force bends it far more. Aluminum 6061 cuts easily, which tempts operators to push feed. On a small tool that feed turns into deflection before it turns into a chip.

Heat is the second constraint. Aluminum conducts heat about five times faster than steel, so most of the cutting heat leaves with the chip. What stays behind sits in a small part with very little mass to absorb it. A 0.5 g bracket can grow 10–15 μm from a 20 °C rise, which is already two or three tolerance bands.

There is no way around this by spinning faster. Above roughly 15,000 rpm on a small tool, tip speed climbs while the tool body stays weak. Vibration takes over, and the surface shows it. Feed per tooth and radial engagement are the knobs that matter, not rpm alone.

A small tool only tolerates a small side load. On a 3 mm carbide end mill with 30 mm of stickout, a 0.05 mm radial deflection is realistic; on a 1 mm tool the same load bends it several times further. That is why finishing passes on tiny features are cut light and often.

Runout eats the budget first. A 10 μm runout on a two-flute cutter means one flute does most of the work. The heavy flute wears, the light flute rubs, and both push the part sideways. Checking runout with a dial indicator before a finishing pass costs a minute and saves a scrapped batch.

Tool length is the quiet variable. Every extra 10 mm of gauge length cuts stiffness sharply. Where the geometry allows, a stub-length tool in a shrink-fit holder beats a long tool in a collet holder, even at the same diameter and coating.

Rigidity on the part side matters just as much. A thin floor or a slender rib deflects under the same load that bends the tool, and the error shows up as a taper or a bowed wall.

Vises and toe clamps apply point loads. On a 15 mm part those loads can distort the blank before the first cut, so the finished part springs back out of tolerance once it is released. Soft jaws machined to the blank profile spread the load and repeat within 0.02 mm.

For very small runs, a machined pocket in a sacrificial plate works well. The part sits in the pocket with a light press fit or a vacuum pull, and the cutter reaches three sides. Leave 0.2–0.3 mm of sacrificial material under the floor and remove it in a second op.

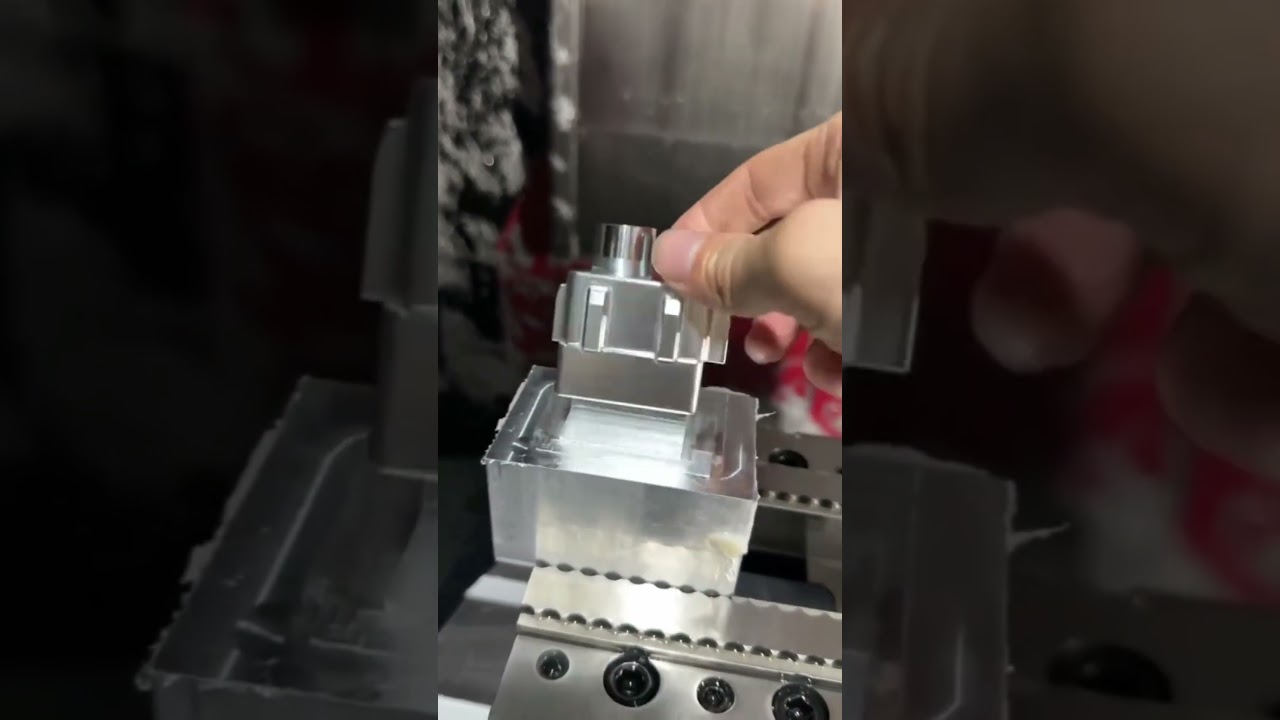

Five-axis workholding helps because the part can be reached from more directions without re-clamping. On 16 simultaneous five-axis centers we can finish several faces in one setup, which removes the stack-up error that comes from moving a small part between fixtures.

Adhesive mounting is a real option for flat, thin plates. Cyanoacrylate on a lapped fixture holds well enough for light finishing passes and releases with heat. It is not a method for heavy roughing.

Holes are the easiest small feature. A depth-to-diameter ratio up to 4× is routine in aluminum with through-tool coolant; beyond 8× the drill wanders and chip evacuation becomes the limit. Pecking helps, but it costs cycle time and adds tool wear.

Thin walls are the hard case. As a rule, an unsupported wall of 1 mm or more in 6061 machines cleanly to ±0.05 mm. Below 0.5 mm, wall height becomes the controlling number: a 0.3 mm wall that is 0.5 mm tall is workable, the same wall at 10 mm tall is not.

Sharp internal corners are the third case. A 1 mm corner radius needs a tool smaller than 2 mm to clear it, which brings back the deflection problem. If the corner is not functional, opening it to 1.5 mm or 2 mm removes most of the risk.

Micro threads and slots follow the same logic. A M1.6 thread in 7075 is cut every day. A M0.8 thread is possible but needs a dedicated tap holder and a very stable setup, and it rarely survives anodizing without gauging.

6061-T6 is the default for small aluminum parts. It machines cleanly, holds a good finish, and anodizes predictably. 2024 cuts faster and is stronger, but it is less corrosion resistant and more prone to distortion in thin sections.

7075-T6 gives the highest strength of the common alloys and holds a crisp edge, which suits small structural brackets. It is also less forgiving: the same thin wall that survives in 6061 may crack or bow in 7075 because the material is harder and springier.

Thermal growth deserves a number, not a feeling. Aluminum expands about 23 μm per meter per °C. A 50 mm long part, held 5 °C above the gauge temperature, is 5.7 μm longer. On a ±0.005 mm callout that is the whole tolerance, so measure at the same temperature you machined at.

Coolant choice matters less than coolant delivery. Flood coolant at 6–8 bar keeps the part near room temperature and clears chips from small pockets. Mist cooling leaves pockets dry and hot, which is where size drift starts.
