An impeller is a rotating disc or hub with blades arranged around it. As it spins, the blades accelerate the fluid outward (centrifugal) or push it along the axis (axial). Pressure and flow come from that acceleration, not from the blades squeezing anything. A mixed-flow design sits between the two, and it is the hardest to machine because no single tool orientation reaches the whole passage.

The cutting problem follows from that shape. Energy transfer is highest where the blade is longest and the passage is widest. To reach that region, the tool shank has to enter through a gap that narrows toward the hub. On a closed impeller the shroud caps the passage, so the tool enters through the eye or a side slot with limited tilt. That is the single largest driver of cycle time and cost.

When engineers ask about CNC machining of impeller parts, the real question is usually tool access. Two impellers with the same outer diameter and the same blade count can sit at completely different price points because one has an open back and the other has a full shroud. Before quoting, we look at the smallest passage width, the blade wrap angle, and the fillet radius at the blade root. Those three numbers predict most of the difficulty.

A practical rule: if the smallest passage is narrower than four times the tool diameter, deflection and chatter become the limiting factor, not the machine. Tool stick-out grows, radial force bends the cutter, and the wall finish degrades. At that point we either split the part into a machined hub plus brazed or bolted blades, or switch the whole geometry to 5-axis with a tapered tool.

• 1
  CentrifugalFlow leaves radially. Common in pumps, blowers and compressors.
• 2
  AxialFlow moves along the shaft. Common in fans and propellers.
• 3
  Mixed flowDirection changes through the passage. Hardest to reach.
• 4
  Closed vs openA shroud raises efficiency and raises machining difficulty.

A 3-axis machine moves the tool in X, Y and Z while the part stays still. That works when every surface is reachable from one direction. An open impeller with straight radial blades often qualifies. Once the blade twists, the tool has to tilt to keep the flank in contact, and a 3-axis machine cannot tilt.

On a 4-axis machine the part rotates about one axis, usually A or B. This handles blades with a constant lead, which is why many axial fan impellers cut well in 4 axes. The limit appears when the blade angle changes along its length. The tool then gouges the pressure side or leaves stock on the suction side, and the operator has to add a second setup.

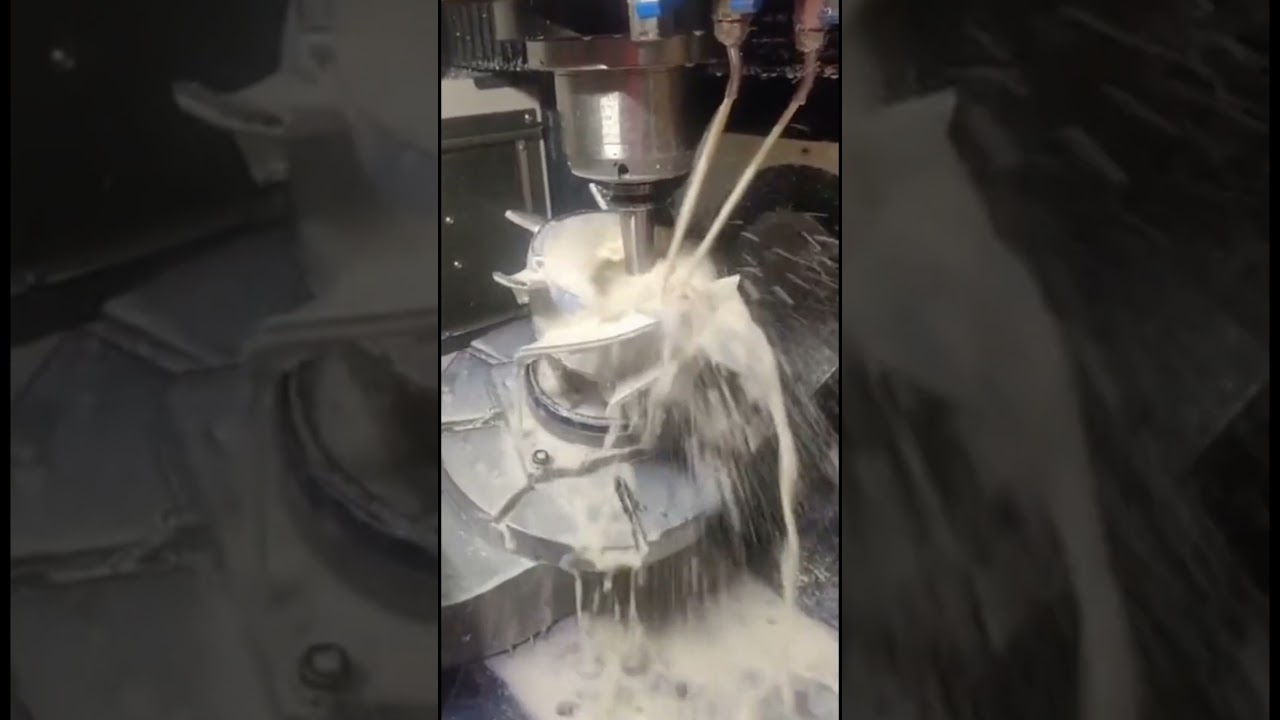

A simultaneous 5-axis center moves two rotary axes at the same time as the linear axes. The tool stays normal to the surface through the whole pass, so blade flanks, root fillets and shroud fillets are cut in one continuous operation. This matters for two reasons. First, it removes the mismatch that appears when two setups meet on a curved surface. Second, it lets the programmer use a short, stiff tool with a large taper, which controls chatter in deep passages.

Our shop runs 16 simultaneous 5-axis machining centers, 16 mill-turn centers, 12 four-axis mills and 27 three-axis machines. For impeller work, the choice is not prestige. A simple open fan wheel goes on a 3-axis or 4-axis machine because it is faster and cheaper there. A closed compressor rotor goes on 5-axis because nothing else reaches the shroud fillet.

• 1
  3-axisOpen, straight or lightly twisted blades. Lowest cost.
• 2
  4-axisConstant-lead blades, axial fans, some pump impellers.
• 3
  5-axis simultaneousTwisted blades, shrouded passages, mixed flow.
• 4
  Mill-turnImpellers with an integral shaft, hub bore and threads.

Impellers are thin in the blades and thick in the hub, so clamping force has to go where the metal is stiff. We hold on the hub bore, an integral shaft, or a sacrificial boss that is cut off at the end. Gripping a blade edge is a mistake: the blade springs back when the vise opens and the part never measures true again.

The sequence follows the stiffness. Rough the hub and the outer profile first, leaving 0.5–1.0 mm of stock on the flow surfaces. Stress-relieve if the blank is a forging or a heavily hogged billet. Then semi-finish, then finish the blades from the shroud side inward so the tool exits into open air rather than into a wall. Bore and balance features come last, because they define the rotation axis everything else is measured against.

Stock removal is generous. A Ø200 mm aluminium impeller can start as a 12 kg billet and finish at 2 kg. Aluminium 6061, 7075 and 2024 cut fast but move when material is removed unevenly, so we alternate sides of the hub to keep the part from bowing. Stainless 17-4PH and titanium TC4 (Ti-6Al-4V) cut slower and work-harden, so we keep the radial engagement constant and never let the tool rub.

For titanium and Inconel, heat is the enemy. A dull edge raises the local temperature, the surface hardens, and the next pass breaks the insert. We change tools on a fixed time or a fixed number of passes rather than waiting for a wear land, and we keep coolant on the cut for the whole pass.

• 1
  Hold on the hubNever clamp a blade. Bore, shaft or sacrificial boss only.
• 2
  Leave stock0.5–1.0 mm on flow surfaces after roughing.
• 3
  Finish inwardTool exits into open air at the shroud.
• 4
  Bore lastThe rotation axis defines every other measurement.

Not every dimension on an impeller deserves the same tolerance. The bore and the mounting face set the rotation axis, so they get the tightest callout. Blade thickness and passage width can be looser, because a small deviation there changes efficiency by a fraction of a percent rather than causing vibration. The blade root fillet sits between the two: it is a fatigue feature, so its radius and surface condition matter more than its nominal size.

Our standard achievable tolerance is ±0.005 mm (±0.0002 in) on critical features. On an impeller that usually applies to the bore, the shaft journal and the axial locating face. Blade profiles typically run ±0.05 mm, which is well inside what most hydraulic designs need. If a drawing calls ±0.01 mm on a 1.5 mm blade tip, we push back, because the tool pressure alone moves the tip more than that.

Surface finish on the flow path is the other lever. As-machined surfaces land at Ra 1.6–3.2 μm. High-quality finishing reaches Ra 0.8–1.6 μm, and fine finishing reaches Ra 0.2–0.8 μm where the specification is strict. For most water and air impellers, Ra 0.8–1.6 μm on the blades and shroud is the point where friction loss stops being the dominant inefficiency. Going finer adds polishing time without a measurable gain in head or flow.

Balance is not a separate operation bolted onto the end. It is designed in. We keep the blade pattern symmetric, leave a balance ring or hub land with extra material, and trim that material on a balancing machine. Adding washers or set screws to fix balance is a repair, not a process. A machined part that needs field correction usually has a fixturing or sequencing error upstream.

• 1
  Bore and faceTightest callout. Sets the rotation axis.
• 2
  Blade profileTypically ±0.05 mm, driven by hydraulics not fit.
• 3
  Root filletFatigue feature. Radius and finish over nominal size.
• 4
  BalanceSymmetric pattern plus a trim land on the hub.

An impeller that measures well on a CMM can still vibrate. Geometry and dynamics are two different checks. On the bench we confirm bore diameter, shaft concentricity, blade thickness at three stations along the span, and passage width at the narrowest point. On the balancer we confirm the residual unbalance at the service speed or the specified balance grade.

The three failure modes we see most often are chatter marks on the shroud fillet, a blade tip that is thin on one side, and a bore that is true to itself but not true to the blade pattern. Chatter marks come from long tool stick-out or a worn insert. Uneven blade tips come from a fixture that let the part move between passes. A true bore with a bad pattern comes from indexing the part in a second setup without re-dating to the rotation axis.

All of these are detectable before shipment. Raw material certificates are checked on arrival, in-process dimensions are monitored during the run, and every part gets a final inspection. Inspection reports are available on request, and for aerospace and medical work we hold the dimensional record with the job.

One boundary worth stating. If the design has a blade thinner than about 0.8 mm at the tip and a wrap angle above 90 degrees, machining may not be the right process at all. Casting, additive manufacturing or a built-up assembly of a machined hub plus separately formed blades can be cheaper and stiffer. We will say so rather than quote a job we expect to scrap.

• 1
  Chatter on filletTool stick-out too long, or worn edge.
• 2
  Thin blade tipPart moved in the fixture between passes.
• 3
  Pattern off the boreSecond setup not re-dated to rotation axis.
• 4
  Hard boundaryBlades under 0.8 mm at the tip may not suit machining.
