CNC Machining of a Customized Cylinder Head for Automotive Tuning

A cylinder head is where airflow, compression and heat all meet, so a customized cylinder head for automotive tuning only works when the port, chamber and deck are cut to one plan. This page explains the cutting sequence, the tolerances that matter, and the cases where machining a head is the wrong move.

Get Instant Quote Talk to an Engineer

±0.005 mm toleranceRa 0.8–1.6 μm finish16 5-axis centersNo minimum order

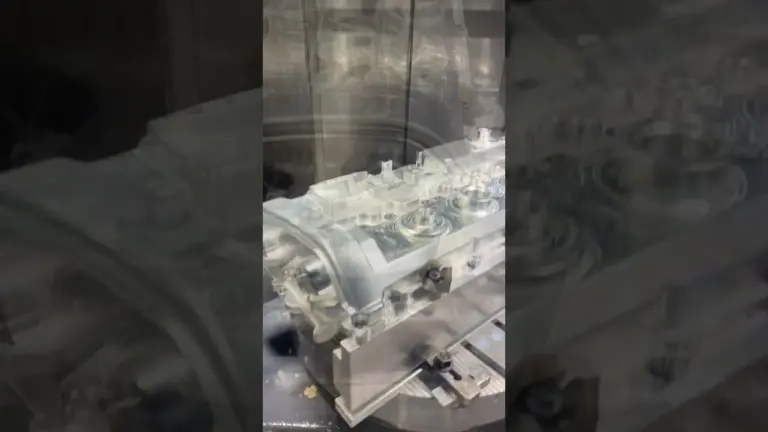

5-axis CNC machining of a customized cylinder head for automotive tuning

On this page

What a customized cylinder head for automotive tuning actually changes

A production head is a compromise. The casting is designed for a range of engines, a range of fuels and a manufacturing cost target. Ports are left rough on purpose, the bowl behind the valve is often larger than the flow needs, and the chamber volume is whatever the mold produced that shift. Tuning removes some of that compromise.

CNC machining changes three things at once. It changes the shape of the port, the volume of the combustion chamber, and the flatness of the deck. Change any one of them and the other two move with it. Cut the deck 0.5 mm to raise compression and the chamber shrinks, the valve sits closer to the piston, and the cam timing shifts by a degree or two.

That coupling is why a head is a system, not a list of operations. A port that flows well on a flow bench can still lose power if the short-side radius is too tight or the valve seat is sunk too deep. A chamber that measures 42 cc on one runner and 42.6 cc on the next will make one cylinder run lean.

So the first question is not which cutter to use. It is what the engine has to do: road use, track use, boost, or a naturally aspirated build with a narrow power band. The answer sets the material removal budget before any toolpath is written.

1
Port shapeCross-section, short-side radius and bowl blend drive flow more than raw size.
2
Chamber volumeMeasured in cc per runner; a spread above 0.5 cc between cylinders is a problem.
3
Deck flatnessSets head gasket sealing and how evenly the head clamps to the block.

Material

Aluminum or cast iron: pick the blank before the toolpath

Most tuning heads are aluminum. Common castings are close to 6061 in behavior, and a few aftermarket heads are cut from 6061-T6 or 7075 billet. Aluminum cuts fast, but it moves. A head that is 500 mm long can shift 0.02–0.05 mm after a heavy deck cut releases internal stress, so a roughing pass followed by a stress-relief pause and a finishing pass is normal practice.

Cast iron heads are heavier and slower to cut. Tool life drops, spindle load rises, and the finishing pass needs a different insert geometry. The reward is stiffness: cast iron holds a thin deck and a narrow valve bridge without flexing, which matters on high-boost diesel and older pushrod engines.

Billet heads are a different animal. There is no casting draft, no core shift and no sand inclusion, so wall thickness can be thinner and the port can be modeled exactly. The cost is stock removal. A billet head can start as a 40 kg block and finish near 12 kg, which is hours of roughing before any port work begins.

If the casting is unknown, we check it first. A hardness check and a quick scan of the deck and port walls tell us whether the head is worth machining or whether core shift will break through a port wall halfway through the job.

1
AluminumFast to cut, needs a stress-relief pause after heavy stock removal.
2
Cast ironSlower and harder on tools, but stiffer under boost.
3
BilletExact geometry, high stock removal, higher cost per head.

Process

How the cuts are sequenced on a 5-axis machine

Setup comes first. The head is located on the deck and the cam bore, because those two surfaces define the engine's geometry. If the fixture references the rocker cover rail instead, every downstream dimension inherits that error. On a 5-axis center with a Ø400 mm rotary table, the head can be repositioned without losing the datum.

Roughing removes the bulk of the material with a 12–16 mm end mill, leaving 0.3–0.5 mm of stock on the port walls and chamber roof. The goal here is predictable load, not a pretty surface. A constant-engagement toolpath keeps the cutter in the material instead of hammering the entry corner, which is where most chatter marks come from.

Semi-finishing brings walls to 0.1–0.15 mm. This is where the port shape is really set. The short-side radius is blended into the bowl, the valve guide boss is profiled, and the throat is opened to roughly 85–90 percent of valve diameter for a street head. Going wider than that helps top-end flow and hurts low-lift velocity.

Finishing runs at 0.02–0.05 mm stepover for the chamber and bowl, then a separate pass for the deck. We hold ±0.005 mm on the deck and critical bores, and a Ra 0.8–1.6 μm finish inside the ports. A mirror finish in the intake port is not the target. A light texture keeps fuel from separating out of the air stream on a port-injected engine.

The seat and guide work comes last, after the chamber is cut. Cutting seats first and then removing material around them lets the seat distort. On a 4-valve head with 16 seats, that is 16 chances to lose concentricity.

1
Rough12–16 mm cutter, 0.3–0.5 mm stock left.
2
Semi-finish0.1–0.15 mm stock, port shape and throat set here.
3
Finish0.02–0.05 mm stepover, deck at ±0.005 mm.
4
Seat and guideCut after the chamber so the seats do not distort.

Judgment

Which head build fits which engine goal

Pick the row that matches the engine, not the row that sounds fastest.

Build goal	Material	Port target	Where it fails
Street, pump fuel	Aluminum casting	Clean up, stock throat size	Big ports kill low-lift torque
Track, naturally aspirated	Aluminum casting	Raised roof, 88% throat	Needs supporting cam and intake
Boost, 1.5 bar and up	Cast iron or thick aluminum	Wide bowl, mild port size	Thin decks crack under heat
Billet race head	7075 or 6061-T6	Modeled port, no core shift	Cost and roughing time
Vintage pushrod rebuild	Cast iron	Seat and guide restoration	Little material left to remove

When to machine a head, and when to leave it alone

If the engine has a known airflow limit and the casting is sound, machine the head: port, chamber and deck as one plan. If the casting has core shift, cracks between the seats, or a deck already cut twice, replace the head instead of chasing it with a cutter.
