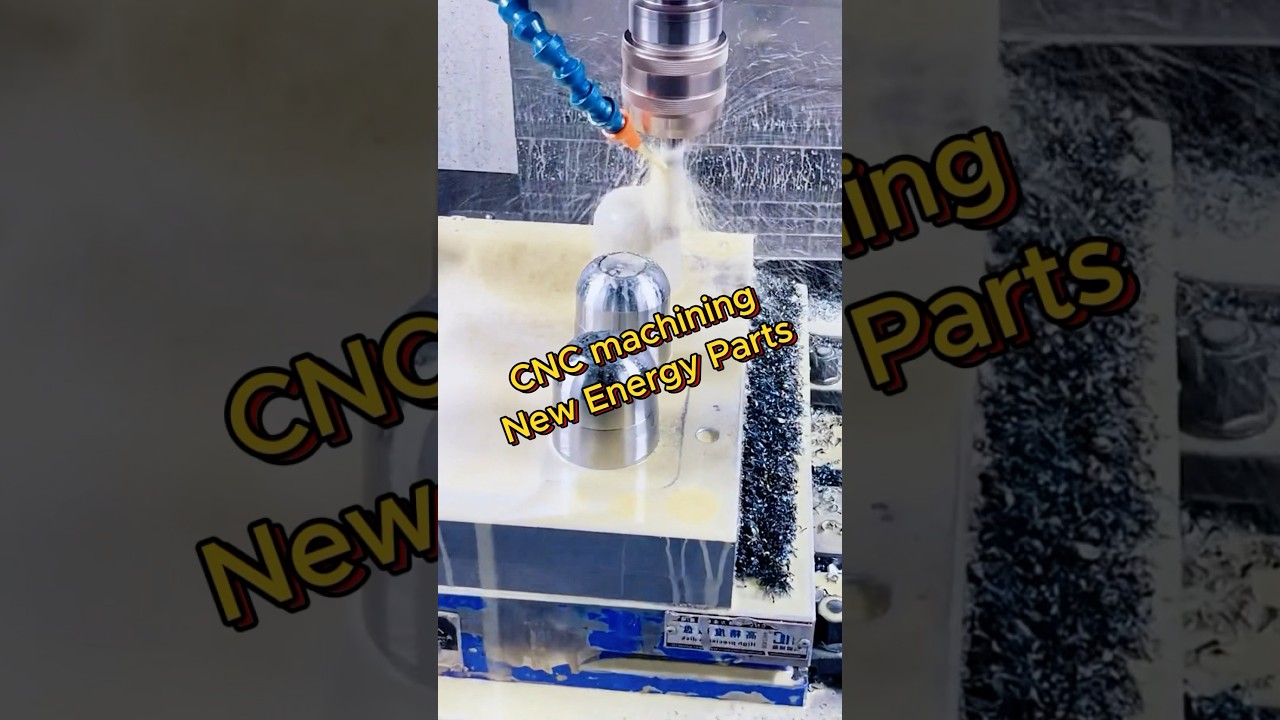

In new energy hardware, the machined content sits around the energy path rather than inside the cell. Busbars, module end plates, cold plates, inverter housings, terminal blocks, sensor brackets, pump bodies and charging connectors all start as bar, plate or extrusion and get cut on a mill or a lathe.

These parts share one trait. They are electrical, thermal and structural at the same time. A busbar carry current, sinks heat into a cold plate and holds position under vibration. That is why the drawing usually carries both a flatness callout and a plating note.

The material list is narrow. Aluminium 6061-T6 covers most cold plates and housings, 6082 shows up where stiffness matters, and C11000 copper or C36000 brass handles the high-current contacts. Stainless 304 and 316L appear in pump and connector bodies.

Anything inside the sealed cell, such as the cathode foil or the separator, is a different process. Machining starts at the module and pack level.

Contact resistance is the enemy in a high-current joint. Two mating surfaces touch only at their high spots, so current crowds into a small area and heats it. A machined face with Ra 0.8–1.6 μm gives a much larger true contact area than an as-cast or as-rolled surface, which spreads the current and drops the joint temperature.

Flatness works the same way on a cold plate. A plate that is dished by 0.2 mm leaves an air gap under the thermal pad. Air conducts heat roughly a thousand times worse than aluminium, so the gap becomes a hot spot right above a cell. Machining the seating face flat within 0.05 mm closes that gap.

Around the housing, machining sets the position of the seal groove and the bolt pattern. If the groove depth varies, the gasket compresses unevenly and the enclosure leaks on a water spray test. A consistent groove floor is easier to hold on a CNC than on a casting that is only cleaned up.

Dimensions also stack. A hole pattern held to ±0.05 mm true position lets the assembly line drop in a connector without reaming. Loosen it to ±0.3 mm and every unit needs hand fitting, which is where cycle time and scrap come from.

Not every dimension deserves a tight tolerance. Putting ±0.005 mm on a mounting bracket adds cost and inspection time for no benefit. The value is in knowing which features carry the function.

Tight tolerances belong on bearing bores, shaft journals, seal grooves, spigot fits and busbar hole patterns. These are the interfaces that control position, sealing or current transfer. A bearing bore at Ø40 H7 with a ground finish keeps the shaft from walking under load. A seal groove held to ±0.02 mm in depth keeps gasket compression predictable.

General envelope dimensions and clearance holes can sit at ±0.1 mm or looser. Non-critical outer profiles often run at ±0.2 mm. That difference can cut cycle time and inspection load substantially across a 10,000-part run.

Surface finish follows the same logic. Sliding and sealing faces need Ra 0.2–0.8 μm. A housing exterior only needs Ra 1.6–3.2 μm, and bead blasting will cover it anyway.

A cold plate is mostly a flat part with a milled channel, ports and a bolt pattern. It usually fits on a 3-axis machine with a 750 × 1,150 × 550 mm travel envelope, done in two setups. Adding a fourth axis lets you cut the side ports in the same cycle, which removes one re-fixturing step and the position error that comes with it.

Five-axis work earns its place on two shapes. The first is a housing with angled faces or compound holes that would otherwise need three or four fixtures. The second is a part with a deep, contoured pocket where a short, rigid tool has to reach in at an angle. With 16 simultaneous 5-axis centers and a Ø400 mm rotary table, the setup count drops and the true position of related holes improves.

Mill-turn centers handle the cylindrical side of the family: pump shafts, connector shells, threaded bosses and motor housings that need both a turned bore and cross-drilled ports. Cutting both features in one chucking keeps the bore and the port concentric.

Pick the smallest machine that fits the part. A 4,000 mm bed is for long structural extrusions. A bracket that fits in a 500 × 500 × 450 mm envelope will be cheaper and faster on a compact machine.

Machining is a slow, subtractive route and it wastes material. For a simple cover with no tight interface, a die casting or a sheet metal part with a stamped hole pattern will be cheaper per unit once the tooling is paid off. If your annual volume is high and the geometry is simple, casting plus a light finish cut usually wins.

Thin-wall geometry is another limit. A 1.0 mm aluminium wall will chatter and spring under cutting force. If the design needs walls under 1.5 mm across a long span, expect multiple light passes, extra fixtures and a longer cycle. Sometimes a casting with a machined interface is the better split.

Long, deep bores are a problem too. A bore deeper than about six times its diameter needs a special boring bar, and the tool deflects. If the bore is a fluid passage rather than a bearing seat, casting or additive may hold the shape better.

Finally, hardness. Parts above roughly 45 HRC are better ground than milled. Machining still works for the pre-grind blank, but the finishing pass belongs on a grinder.

A single good part proves nothing. The question is whether part 8,000 matches the sample you approved. That comes down to three things: fixture repeatability, tool wear tracking and closed-loop inspection.

Soft jaws machined to the part profile locate on a known surface every cycle. Hard stops and dowel pins do the same on a plate fixture. When a fixture depends on an operator tap, position drifts across a run.

Tool wear shows first as a size trend, not a sudden failure. Recording the wear offset every 50 parts lets the machine compensate before the part leaves the band. Aluminium cuts clean until the edge rounds, then the finish drops and the size creeps.

Inspection closes the loop. At GreatLight, every part gets a raw material check, in-process monitoring and a final inspection before shipment, with reports on request. That is how a 99.99% qualification rate is held rather than claimed.

Material batch matters too. Two heats of 6061-T6 can machine differently. Keeping the heat number with the job makes it possible to trace a size shift back to its cause.

Copper busbars are usually silver or nickel plated. Silver gives the lowest contact resistance but tarnishes, so it needs a controlled storage and assembly window. Electroless nickel is harder and more stable, with slightly higher resistance. Either way the plating thickness has to be counted in the hole size, or the bolt will not fit.

Aluminium housings normally get anodizing. Clear anodizing adds corrosion protection and a hard, non-conductive surface. Hardcoat anodizing gives a thicker oxide for wear surfaces, but it is brittle and it changes the dimension by roughly half the coating thickness per side. Mask any grounding pad.

Conductive anodizing exists for parts that need both corrosion protection and electrical continuity. It is worth specifying only where the drawing actually calls for a ground path.

Laser marking handles traceability. Keep the character height at 1.5 mm or above so the mark stays legible after plating or blasting. Smaller text fills in and becomes unreadable.
