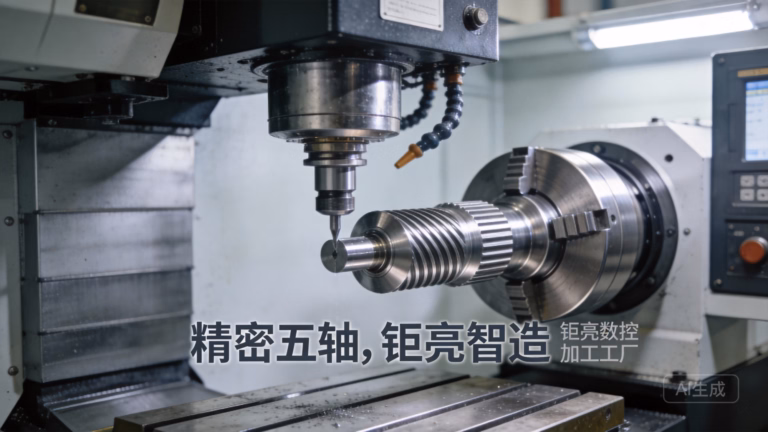

Repair work on a machining center splits into three layers. The mechanical layer covers spindle, ball screws, linear guides, turret and tool changer. The control layer covers drives, encoders, parameters and servo tuning. The metrology layer proves the machine is back inside its working envelope. A supplier that only handles the first layer will fix the symptom you called about and leave the cause in place.

Ask which layer the quote includes. Many service calls end at the mechanical fix because nobody measured the geometry afterwards. Two weeks later the operator reports taper in a bore, and the argument starts. If the quote lists a final accuracy check with numbers, that argument mostly disappears.

The third layer also protects you during audits. Automotive and medical buyers increasingly ask for evidence that production equipment was maintained inside specification. A repair record with measured values is far easier to show than a work order that says 'repaired and tested'.

• 1
  MechanicalSpindle, ball screws, guides, turret, tool changer, way surfaces.
• 2
  ControlDrives, encoders, parameters, servo tuning, backlash compensation.
• 3
  MetrologyGeometry check, repeatability check, report with measured values.

A repair service is easiest to judge when you arrive with symptoms rather than a diagnosis. Write down what the machine does: taper in a bored hole, chatter at a specific spindle speed, drift on the Z axis after a warm-up cycle, a tool changer that faults once per shift. Each symptom points to a different scope, and a supplier who asks for these details is doing real troubleshooting.

Taper over the length of a bore usually comes back to spindle axis alignment or leveling. If the taper changes when the machine is warm, suspect thermal growth in the spindle or a headstock that needs re-leveling. Chatter at one speed band often comes from bearing preload or a loose tool holder interface, not from the program.

Position drift after warm-up points to ball screw preload, guide preload or a coupling that has started to slip. Faults that appear once per shift on the tool changer are usually mechanical, not electrical. Ask the supplier how they separate these causes before they quote, because that is where the real cost sits.

• 1
  Taper in a boreSpindle alignment, leveling, thermal growth.
• 2
  Chatter in one speed bandBearing preload, tool holder interface, drawbar force.
• 3
  Drift after warm-upBall screw preload, guide preload, coupling slip.
• 4
  Intermittent tool change faultCam wear, alignment, sensor position, not always the PLC.

A repair quote without numbers is hard to accept or reject. Ask for three figures per axis: positioning repeatability, squareness between axes, and spindle runout at the gauge line. Repeatability is the one that decides whether your parts stay in tolerance across a shift, so treat it as the primary acceptance number.

For a typical vertical machining center, a reasonable post-repair target is repeatability inside 0.005 mm on the linear axes and spindle runout under 0.005 mm at the gauge line, measured after a warm-up cycle. Squareness between X and Y on a 300 mm square should sit inside 0.010 mm for general milling work. Tighter numbers are possible but the cost and downtime rise quickly.

State the measurement method too. Runout measured on a clean taper with a calibrated test bar is a different number from runout measured on a loaded tool holder. If the quote does not name the method, the acceptance test can drift during the argument. Write the method, the instrument and the warm-up condition into the scope.

For machines that cut to ±0.005 mm or better, a repair is not finished until a test cut confirms the geometry. A test cut with a known material and a known tool path will show taper, roundness and surface finish in one pass. It costs a few hours and settles the question.

• 1
  RepeatabilityInside 0.005 mm on linear axes, measured after warm-up.
• 2
  Spindle runoutUnder 0.005 mm at the gauge line with a calibrated test bar.
• 3
  SquarenessInside 0.010 mm over a 300 mm square for general milling.
• 4
  Test cutRequired when the part tolerance is ±0.005 mm or tighter.

Some repair jobs are really rebuild jobs. A ball screw with worn raceways will not hold preload just because the nut was tightened. A spindle with a scored taper will not hold runout just because new bearings went in. In these cases the honest answer is replacement or regrinding, and a supplier who says so early is worth keeping.

On the other side, plenty of parts get replaced too early. Guide rails with light fretting can often be re-preloaded. Way surfaces can be scraped and re-fitted. Turret cams can be re-timed. Replacement is faster and simpler to quote, so there is a commercial pull toward it. Ask what can be reworked and what genuinely has to be replaced.

If you operate older machines where spares are slow or expensive, a supplier who can machine replacement brackets, shims, fixtures and special fasteners is useful. That is a machining capability question, not a repair question, but it decides how long the machine sits idle.

• 1
  ReplaceScored spindle taper, worn ball screw raceways, cracked castings.
• 2
  ReworkGuide preload, scraped ways, turret cam timing, shim fitting.
• 3
  Machine in-houseBrackets, shims, fixtures, special fasteners for older machines.

Certifications tell you how a supplier controls its process. ISO 9001:2015 covers general quality management. IATF 16949:2016 adds automotive process discipline. ISO 13485:2016 adds medical device traceability. ISO 27001:2022 covers information security, which matters if the repair involves your drawings, programs or machine parameters.

Ask how repair records are kept and how long they are retained. A useful record includes the as-found measurements, the work performed, the parts replaced, the as-left measurements and the instrument calibration status. That pack is what an auditor accepts when the question is whether a machine was inside specification during a production window.

Confidentiality is often overlooked. Machine parameters, tool libraries and part programs carry real process knowledge. If the repair involves opening your control or reading your programs, an NDA should be in place before the technician arrives. Secure upload channels matter as well if drawings are shared for replacement parts.

• 1
  ISO 9001:2015Baseline process control and corrective action handling.
• 2
  IATF 16949:2016Automotive process discipline and traceability.
• 3
  ISO 13485:2016Medical device traceability and validation habits.
• 4
  ISO 27001:2022Information security for drawings, programs and parameters.

Two quotes for the same repair can differ by a factor of three because they cover different scopes. Put both on one page and align the line items: diagnosis, teardown, parts, machining or regrinding, reassembly, alignment, test cut, report, travel. A quote that is silent on the test cut and the report is not cheaper, it is smaller.

Downtime usually costs more than the repair. Ask how many days the machine is out of production, and whether the work happens on site or in the supplier's shop. On-site work reduces transport risk but depends on the equipment the technician brings. Off-site work gives access to a metrology room and grinding capacity, but adds packing and transport.

Finally, ask what happens if the machine fails the acceptance test. A supplier who states a rework policy in the quote is easier to work with than one who leaves it to the phone call. This single clause tells you more about the supplier than any brochure.

• 1
  Align line itemsSame scope, same items, side by side before you compare price.
• 2
  Count downtimeDays out of production often outweigh the repair invoice.
• 3
  On site vs off siteOn-site is faster; off-site brings metrology and grinding capacity.
• 4
  Rework clauseWritten policy if the acceptance test is not met.
