  What the CNC gantry horizontal axis structure actually buys you
• 2
  How material removal actually happens at the wheel
• 3
  Flatness, parallelism, and where the errors come from
• 4
  Which parts belong on a rotary table grinder
• 5
  When to grind, when to mill, when to turn

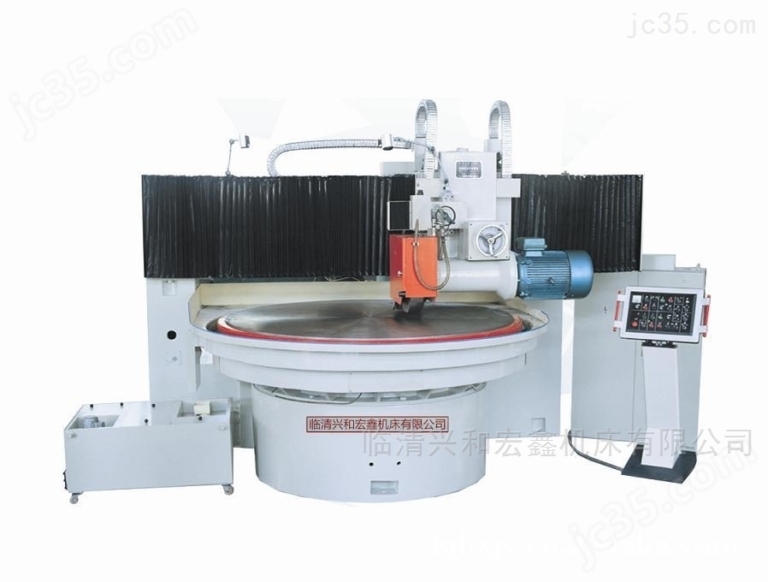

The gantry frame on this machine class exists for one reason: to keep the wheel head from moving when the cutting force pushes back. Two columns carry a cross rail, and the wheel head rides that rail. The table below is short and wide, so the workpiece sits close to the columns instead of hanging off the end of a cantilever. That geometry resists deflection in a way a knee mill cannot.

Grinding forces are small compared with milling, often under 200 N in a light pass. Small forces matter here because they let the structure stay stiff without becoming massive. A rigid frame translates into depth-of-cut repeatability, and depth-of-cut repeatability is what sets your flatness number. If the frame flexes 2 μm under load, no amount of wheel dressing will recover that 2 μm on the part.

The horizontal axis in the name refers to the wheel spindle orientation, not the table travel. The spindle sits parallel to the work surface and feeds across it, which produces the characteristic scratch pattern you see on ground plates. Rotary table versions add a second motion: the table turns while the wheel head strokes, so a ring-shaped or disc-shaped part can be ground in one continuous pass instead of multiple setups.

Why does that matter for a shop? Fewer setups means fewer chances to introduce a datum error. On a rectangular plate you might grind one face, flip it, and grind the other. On a round flange, the rotary table lets you grind the face and then index to grind a shoulder without unclamping. Each unclamp-reclamp cycle is a place where a chip or a burr can ruin your parallelism.

• 1
  Gantry columnsCarry the cross rail and wheel head, resisting cutting force
• 2
  Short, wide tableKeeps the workpiece close to the stiffest part of the frame
• 3
  Horizontal spindleWheel face runs parallel to the work surface
• 4
  Rotary table optionAdds continuous rotation for round and disc-shaped parts

Grinding removes material with thousands of tiny cutting edges, not one big tooth. Each abrasive grain on the wheel takes a chip a few micrometers deep. The cumulative effect is a smooth surface, but the mechanism is closer to scratching than to slicing. That is why wheel selection matters more than feed rate on a surface grinder.

Grain size controls the scratch depth, which controls the achievable finish. A coarse wheel cuts fast and leaves a rougher surface. A fine wheel produces a smoother finish but loads up sooner and generates more heat. On hardened tool steel you want a softer grade so the grains break down and expose fresh edges before they glaze.

Heat is the limiting factor. Nearly all the energy of grinding goes into the contact zone, and if coolant cannot reach the arc of contact, you get burn. Burn shows up as a discolored patch, but the damage runs deeper: below the visible temper color there is a layer of untempered martensite that can crack later. A ground part that passes a visual check can still fail in service.

Depth of cut per pass is usually kept between 0.005 mm and 0.02 mm for finishing, with roughing passes up to 0.05 mm on softer steels. Going deeper does not just risk burn. It also increases wheel wear, which changes the effective diameter and throws off your size control. On our machines we keep a dressing schedule tied to material removed, not to clock time.

• 1
  Abrasive grain sizeSets scratch depth and therefore surface finish
• 2
  Wheel gradeSofter grades self-sharpen, harder grades hold form longer
• 3
  Coolant reachMust flood the contact arc or burn becomes likely
• 4
  Dressing intervalTrack by cubic millimeters removed, not by hours

Three error sources dominate on this machine type. The first is thermal growth. A spindle running for two hours is not the same length as a cold spindle. On a long stroke, that growth tilts the wheel head slightly and shows up as a taper across the part. Warm-up passes exist to burn off that drift before the first good cut.

The second is table sag. Every table deflects under its own weight plus the workpiece. On a short table the sag is negligible, but on a 4,000 mm stroke the middle of the table drops more than the ends. A grinder that holds 5 μm flatness on a 300 mm part may only hold 15 μm on a 3,000 mm part unless the table is supported along its full length.

The third is wheel wear. As the wheel wears, its effective diameter shrinks. On a CNC machine with no in-process size feedback, that wear translates directly into a size drift across a batch. The fix is either frequent dressing or a wheel that holds form, and which one you choose depends on how tight your tolerance is and how many parts are in the run.

For most jobs we quote ±0.005 mm on ground surfaces and inspect 100% before shipment. That number is not a property of the machine alone. It is a property of the machine plus the setup, the warm-up routine, and the inspection method. A part that measures flat on a surface plate at 20 °C may not measure flat in a 35 °C inspection room.

• 1
  Thermal driftSpindle growth tilts the head over a long stroke
• 2
  Table sagWorst in the middle of a long travel
• 3
  Wheel wearShrinks effective diameter and drifts size across a batch
• 4
  Inspection temperatureSteel moves about 11 μm per meter per 10 °C

This machine earns its place on parts that are flat and round at the same time, or flat and very large. Think valve bodies, pump housings, bearing races, seal faces, and tooling plates. Any part where the functional surface is a face rather than a bore is a candidate. So is any part where two faces must stay parallel to within a few micrometers.

Hardened material is the other driver. Once a part is past 45 HRC, milling becomes slow and tool life collapses. Grinding is the only economical way to hit both the tolerance and the finish. That is why die plates, mold inserts, and cutting tool blanks end up on a grinder rather than a machining center.

The rotary table specifically suits parts that are circular or that can be fixtured in a circular array. A Ø400 mm table handles most pump and valve components. If your part is larger than the table but still round, you either index it in segments or move to a machine with a larger table. We do not force a part onto a table it does not fit.

What does not belong here? Deep pockets, sharp internal corners, cross-holes, and anything with a tight radius in the floor of a cavity. Grinding wheels are round. They cannot cut a square corner, and they cannot reach into a pocket narrower than the wheel. Those features need milling, EDM, or a combination process where the grinder only touches the functional face.

• 1
  Seal faces and bearing racesFlat and round, tight parallelism, often hardened
• 2
  Valve and pump bodiesCircular geometry suits the rotary table
• 3
  Die and mold platesHardened steel that milling cannot finish economically
• 4
  Deep pockets and sharp cornersNot suitable; route to milling or EDM
