Chongqing Machine Tool Shield in Sheet Metal: Corrosion Resistance by Design

A machine tool shield rarely sees one clean environment. On a lathe it is splashed with water-miscible coolant at 8–10% concentration, then buried in cast iron fines. On a mill it gets a mist of way oil and a stream of aluminum chips at 60–80 °C. At shift end, some shops hit the whole enclosure with an alkaline cleaner.

Each of those attacks differently. Water-miscible coolant carries bacteria and chloride; once it pools in a joint and stops moving, it turns acidic within days. Chips abrade the coating on contact and then hold moisture against the base metal. Alkaline washdown strips cheap conversion coatings and attacks aluminum oxide layers that were doing their job fine before.

The practical takeaway: corrosion usually starts at a low point where fluid stands still, not on a flat panel in the open. Design for drainage and the alloy debate gets much smaller. Ignore drainage and even 316 will pit in a year.

• 1
  Standing fluidAny horizontal surface without a drain or slope will pit.
• 2
  Chip pile-upChips hold coolant against the surface for hours.
• 3
  Alkaline cleanersStrip anodize and some conversion coatings over time.

Cold rolled steel is the default for structural guards because it is cheap, stiff, and easy to form. It has no corrosion resistance of its own, so it lives or dies by its coating. Use it indoors, dry, and far from coolant. Powder coat at 60–80 μm will hold up for years in that role.

Stainless 304 covers most machine tool shields that see regular coolant contact. It resists the chloride levels found in typical water-miscible fluids and survives alkaline washdown. The catch is galling during forming and a tendency to work-harden, so bend radii need to be generous relative to thickness.

Stainless 316L is the choice when coolant is chloride-rich, when parts are washed with chlorine-based sanitizers, or when the shield sits near a salt-spray test requirement. It costs more and machines slower. We recommend it only when the environment actually calls for it, not as a default upgrade.

• 1
  Cold rolled steelDry indoor guards, coating carries the whole load.
• 2
  Stainless 304Standard coolant and washdown exposure.
• 3
  Stainless 316LChloride-rich coolant, salt spray, aggressive sanitation.
• 4
  Aluminum 5052 / 6061Lightweight sliding covers, anodize for mild exposure.

A tight bend stretches the outer surface and thins it. On coated steel, that thinning cracks the powder coat along the bend line, and that crack is where rust starts. Keep the inside bend radius at 1× thickness or more for cold rolled steel, and 1.5× or more for 304. For 316L, go to 2× if the part will see chloride.

Grain direction is the second lever. Bending across the rolling direction gives a cleaner bend and less risk of orange peel in the coating. Bending with the grain in a tight radius invites micro-cracks that you cannot see until the part has been in service for six months.

Laser-cut edges on stainless carry a heat-affected zone and a thin oxide layer. It is not a corrosion problem by itself, but it changes how the edge accepts passivation. We deburr and, where specified, passivate after forming so the cut edges behave like the rest of the panel.

• 1
  Cold rolled steelInside radius ≥ 1× thickness.
• 2
  Stainless 304Inside radius ≥ 1.5× thickness.
• 3
  Stainless 316LInside radius ≥ 2× in chloride service.
• 4
  Aluminum 5052Inside radius ≥ 1× thickness, annealed temper preferred.

A continuous weld on a stainless shield is a controlled joint. A stitch weld with a gap is a crevice, and crevices are where oxygen stays low and chloride concentrates. For 316L shields exposed to coolant, we prefer full welds, ground flush, then passivated. It costs more time but removes the failure point.

Where welding is not practical, a formed lap joint with a sealed edge works. The sealant has to tolerate the fluid, not just water. Many generic silicone sealants swell in water-miscible coolant. We ask what the customer runs and match the sealant to it.

Drainage is the cheapest corrosion control available. A 2° slope toward a 6 mm drain hole, placed at the lowest corner, keeps fluid from pooling. On sliding covers, add a drip lip so runoff leaves the shield instead of running onto the way surface below.

• 1
  Full weldBest for stainless in coolant service.
• 2
  Stitch weldOnly where the joint stays dry.
• 3
  Lap joint + sealantMatch sealant to the actual coolant chemistry.
• 4
  Drain hole6 mm minimum, at the true low point.

Powder coating gives the thickest barrier at the lowest cost, and it hides minor surface marks. It is also brittle at tight bends and, once chipped, it lets rust creep under the film from the chip edge. For cold rolled steel guards indoors, that trade is fine. In coolant service, we would rather not rely on it.

Hardcoat anodize on aluminum builds a 25–50 μm oxide that is dense and abrasion resistant. It handles mild coolant exposure well. It does not handle strong alkali, so alkaline washdown will attack it. Conductive anodize exists if the shield needs a ground path, but it sacrifices some corrosion resistance.

Passivation is not a coating. On stainless, it removes free iron from the surface and lets the natural chromium oxide reform evenly. It adds no thickness and cannot chip. That is why we specify passivation rather than paint for 316L shields in chloride-rich service.

• 1
  Powder coatThick barrier, brittle at bends, creeps under chips.
• 2
  Hardcoat anodizeGood abrasion resistance, attacked by alkali.
• 3
  PassivationNo film to chip, best for stainless in chlorides.
• 4
  Electroless nickelUniform on complex shapes, higher cost.

Sheet metal shields are thin, stiff in plane, and cheap to form. They are poor at absorbing impact and poor at sealing against fine mist. If a shield has to stop a 5 kg workpiece that comes loose, sheet metal will deform. Use a machined or cast housing instead, or add a sacrificial bumper.

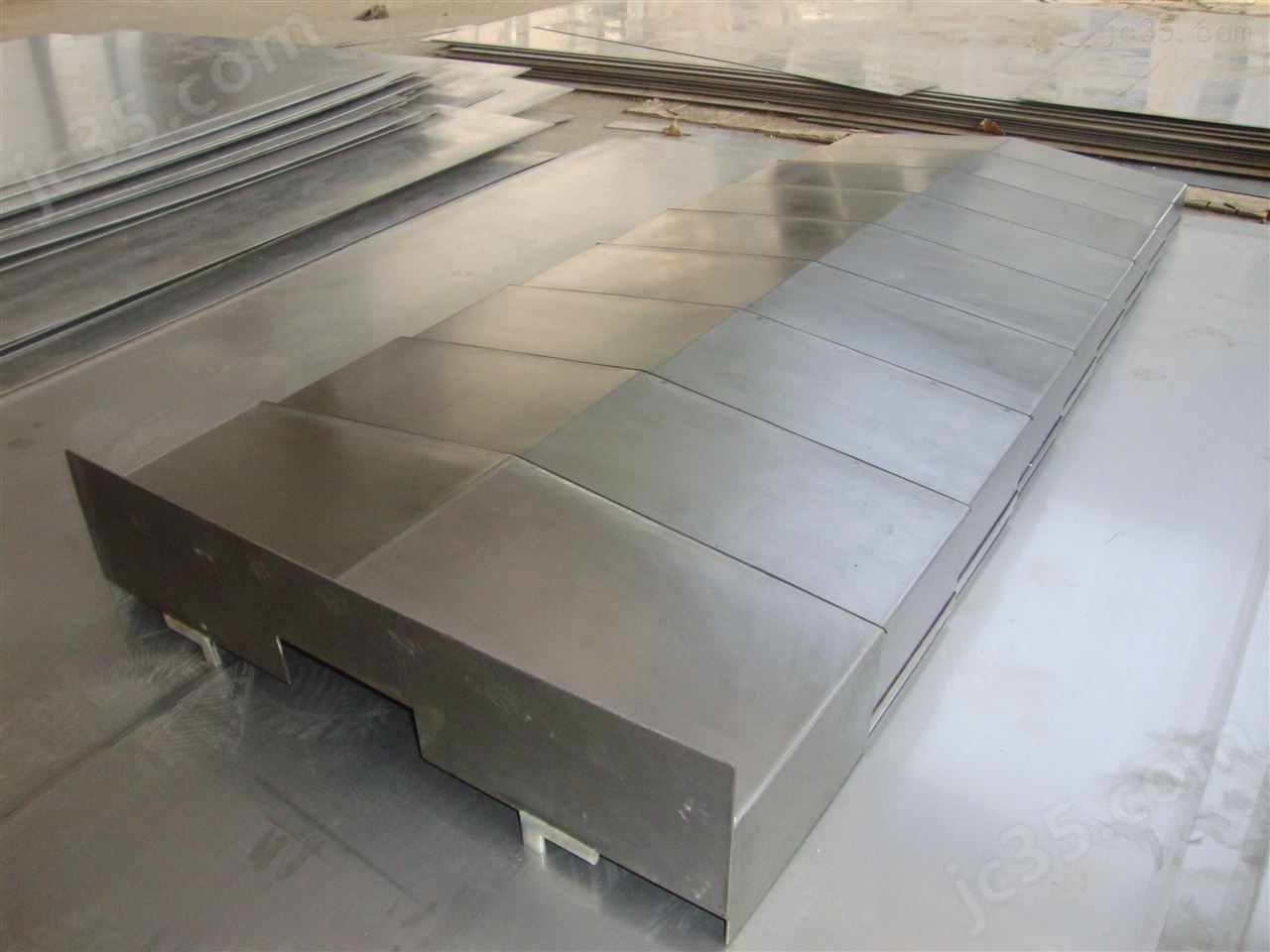

Sliding covers that telescope need tight clearances and low friction. Sheet metal works if the sections are guided on machined rails, but the rails carry the precision and the shield carries the protection. Expect the shield to be a wear item with a defined replacement interval.

For very large enclosures, the stiffness of a single formed panel drops quickly with span. Adding a rolled edge or a shallow rib restores rigidity without adding thickness. Above roughly 1,200 mm of unsupported span, plan for a rib or a mid-support.

• 1
  Impact loadsUse cast or machined housings, not sheet.
• 2
  Fine mist sealingSheet metal alone will not seal; add gaskets or bellows.
• 3
  Long unsupported spansRib or support above about 1,200 mm.
