China Overcomes Cutting Machine and Cutting Tool Limits

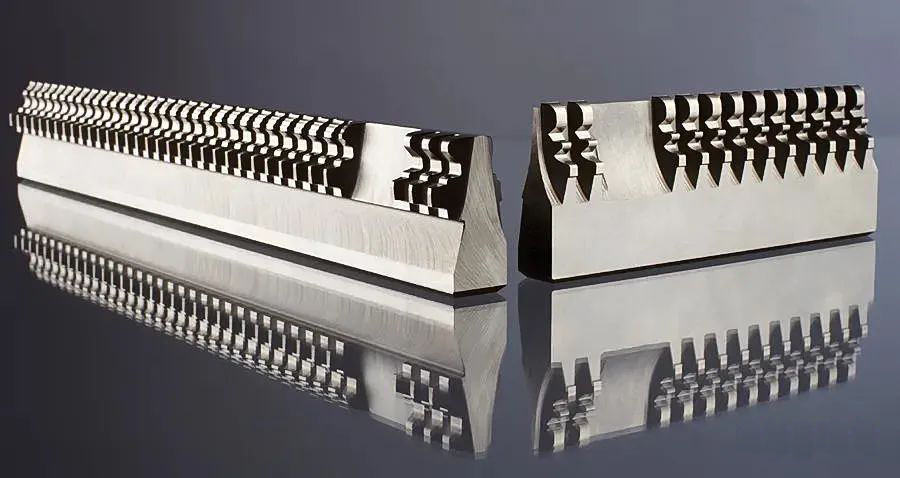

For a long time the hard part of metal cutting was not the cast iron base. It was the spindle, the tool holder interface, and the cutting edge itself. A machine can be geometrically accurate and still fail on a titanium bracket because the tool chatters at 8,000 rpm or the coating breaks down after 12 minutes. That is where the real gap sat, and that is what changed.

Chinese tool makers worked on three things in sequence: ultra-fine grain carbide, grinding consistency on the flute, and coating adhesion. Each one is boring on its own. Together they moved a 12 mm solid carbide end mill from a disposable item to something you can run a full shift on, in 6061 and in harder stainless.

For a buyer in Europe or North America, the practical question is not who makes the tool. It is whether the shop cutting your part has the spindle, the holder and the process discipline to hold the tolerance you put on the drawing. That is what we check before quoting.

• 1
  Tool sideFiner carbide grain and tighter flute grinding reduce edge chipping on interrupted cuts.
• 2
  Machine sideHigher spindle speed and better thermal stability let small tools run at their designed feed.
• 3
  Process sideRigid setup, correct runout and chip evacuation matter more than the tool brand on the box.

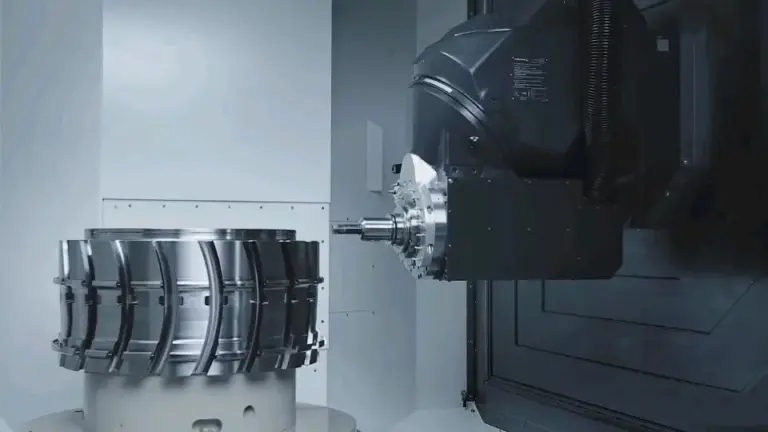

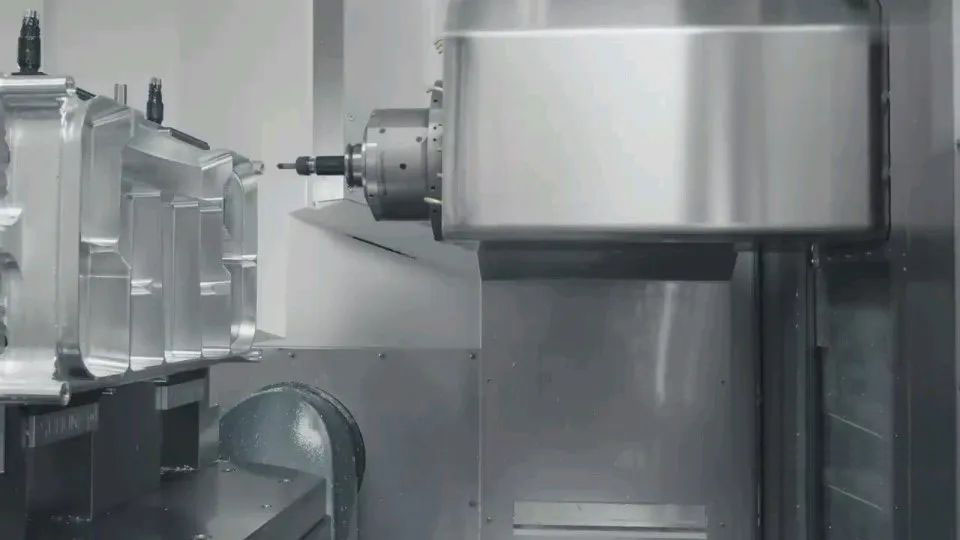

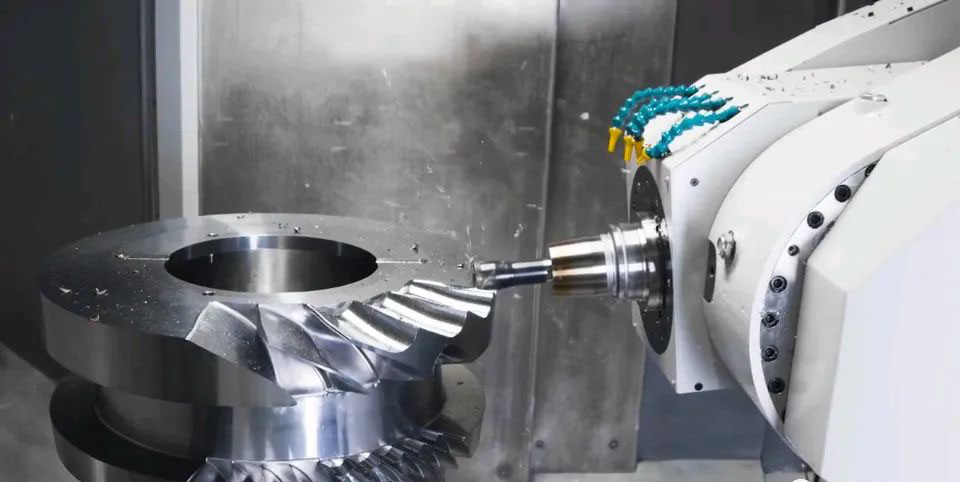

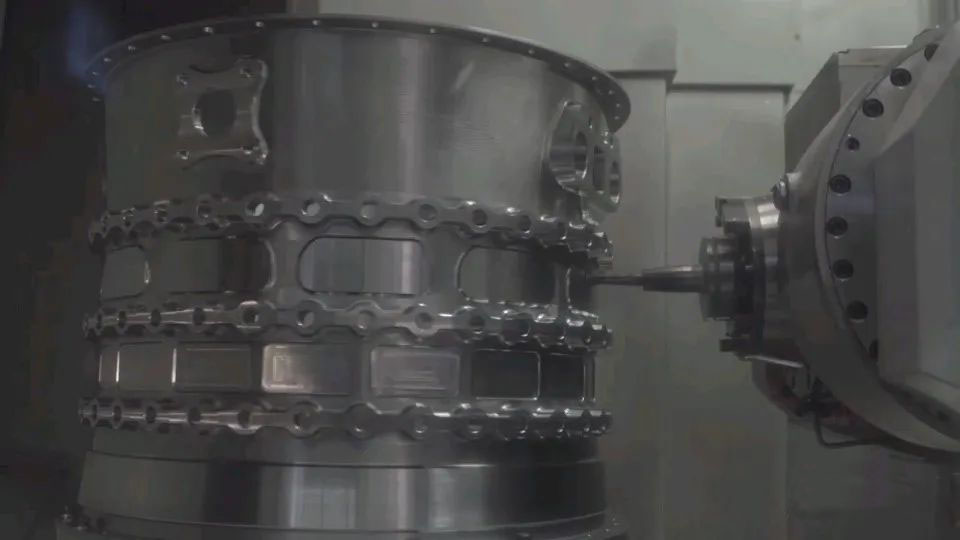

A 5-axis simultaneous center earns its cost on parts with compound angles, deep pockets reachable from one side, or features that would need three separate fixtures on a 3-axis mill. On a simple flat plate with drilled holes, it adds nothing except setup time you still pay for. We keep 16 simultaneous 5-axis machining centers, 12 four-axis mills and 27 three-axis machines for exactly this reason: the cheap machine is the one that fits the geometry.

Travel size is the next gate. Our largest platforms run to a 4,000 mm maximum processing size with a 4,000 × 400 × 150 mm envelope, which covers long extrusion profiles and long shafts. The medium group sits at 750 × 1,150 × 550 mm and 600 × 600 × 600 mm for typical housings and brackets. Compact work goes on 500 × 500 × 450 mm and 500 × 310 × 200 mm tables. A Ø400 mm rotary table handles parts that need continuous rotation.

Then comes the material. Aluminium 6061 and 7075 cut fast and forgive a lot. Titanium TC4 (Ti-6Al-4V) and Inconel do not. They generate heat in a narrow band at the edge, work-harden if the feed is too light, and punish any runout in the holder. If your part is Inconel and thin-walled, the answer is often a slower spindle with a stiffer holder, not a faster one.

Plastics are their own case. PEEK and carbon fibre need sharp, uncoated or diamond-coated edges and high rake angles. Re-cutting chips will scratch a cosmetic surface faster than any tool wear will.

• 1
  3-axisFlat plates, simple pockets, drilled and tapped holes. Lowest cost per part.
• 2
  4-axisCylindrical parts, slots around a diameter, multiple faces in one setup.
• 3
  5-axisCompound angles, undercuts, deep cavities, tight true-position callouts.
• 4
  Mill-turnShafts and fittings that would otherwise need two machines and two fixtures.

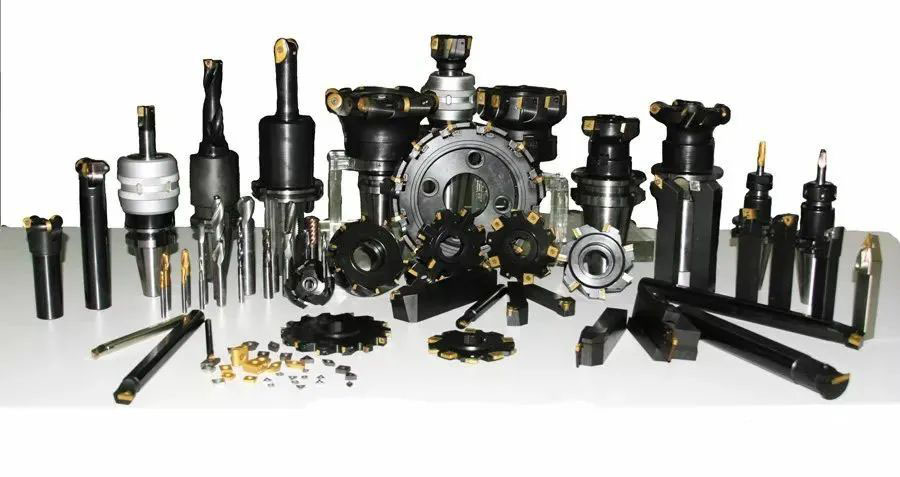

Coating choice follows the material and the heat. AlTiN and TiAlN hold up in dry or minimum-quantity lubrication cuts in steel and stainless, because the aluminium oxide layer that forms at the edge slows diffusion wear. For aluminium, an uncoated polished flute or a DLC coating keeps built-up edge away. Titanium sits in the middle: AlTiN works, but only with enough coolant pressure and a feed heavy enough to stay out of the work-hardening zone.

Geometry decides chip evacuation. A variable helix and unequal flute spacing break the harmonic that causes chatter, which matters on thin walls and long reach. A high rake angle lowers cutting force in soft material but weakens the edge, so it is a poor fit for hard steel or interrupted cuts. There is no universal tool.

Runout is the quiet killer. A holder with 0.02 mm of runout spreads the load onto one flute. That flute wears first, the cutting force goes up, and the surface finish drops before you can hear a change. We check tool runout at setup and again after any holder change, and we log the offset.

Coolant strategy is part of the tool decision, not an afterthought. Through-spindle high-pressure coolant clears chips from deep pockets and cools the edge where it matters. On a 6 mm tool working 40 mm deep, flood coolant alone is not enough.

• 1
  AluminiumUncoated polished or DLC. High rake, sharp edge, high spindle speed.
• 2
  Steel and stainlessAlTiN or TiAlN. Moderate rake, strong edge, watch built-up edge.
• 3
  Titanium and InconelAlTiN with high-pressure coolant. Heavy feed, never rub the surface.

Tolerance and tool wear fight each other. A tool that has cut for two hours is not the tool that was measured at setup, so the process has to absorb that drift. On tight work we run a warm-up cycle, measure the first article, and then monitor dimensions in-process rather than trusting the offset to hold for the whole run.

Our working tolerance is ±0.005 mm (±0.0002 in) on features that call for it. That is not a claim about every surface on every part. It applies to the datums and critical features the drawing controls, on machines that are thermally stable and with tool paths that keep radial engagement predictable.

Surface finish follows the same logic. Ra 0.2–0.8 μm is achievable on a dedicated finishing pass with a fresh edge and a rigid setup. Ra 0.8–1.6 μm is a normal production finish. Ra 1.6–3.2 μm is as-machined and usually enough for a bracket that will be painted.

Inspection closes the loop. We check raw material on receipt, monitor dimensions in process, and inspect 100% of parts before shipment, with reports available on request. Historical qualification rate across the plants runs at 99.99%. If a feature is out of band, we catch it before it leaves the building, not after your assembly line stops.

• 1
  First articleMeasured and recorded before the run is released.
• 2
  In-processDimensions checked as the tool wears, offsets adjusted.
• 3
  Final100% inspection before shipment, reports on request.

Tooling improvements lowered the cost of cutting hard material, but they did not remove the physics. Titanium still cuts slower than aluminium. A deep pocket still needs a long tool that deflects. If a quote comes back far below the others for a Ti-6Al-4V housing, the process behind it is probably wrong somewhere.

The useful signal is not the country on the label. It is whether the supplier can tell you which machine will run your part, which tool will cut it, and how they will measure the critical features. We keep three wholly-owned plants covering 7,600 m² with 150 technicians and 127 high-precision CNC machines in Dongguan, plus a Singapore factory at No.3 Joo Koon Circle. That footprint lets us move work between machines when a part needs a specific spindle.

For prototypes and small runs there is no minimum order quantity. We run from one prototype to 10,000+ part runs, with quotation and free DFM analysis within 12 hours and production able to start within 24 hours. Parts typically ship in 3–5 days. Every upload is secure and confidential, and an NDA is available on request.

If your drawing has a feature you are not sure is machinable, send it before you order. A DFM note at quote stage is cheaper than a rework loop later.

• 1
  Ask which machineA named platform and spindle tells you the setup, and the cost.
• 2
  Ask which toolGeometry and coating choice reveals whether the process suits the material.
• 3
  Ask how it is measuredInspection method decides whether the tolerance is real or assumed.
