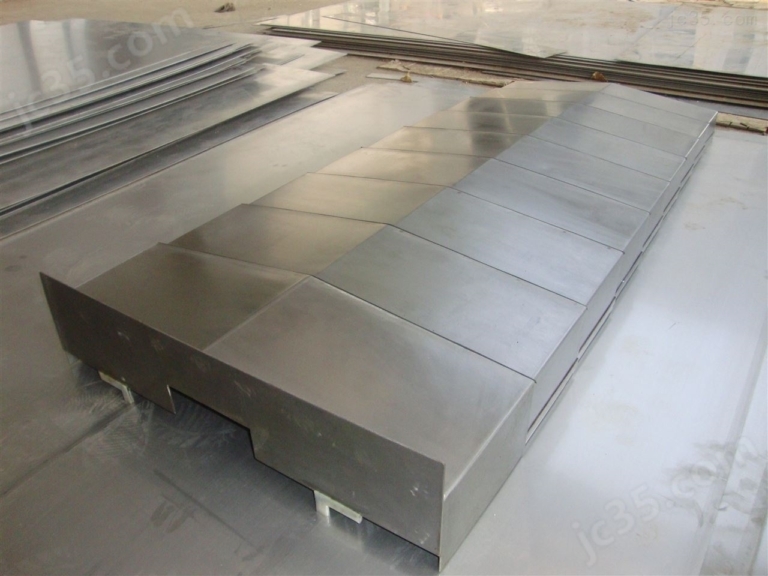

Basic Functions and Design Requirements of Steel Plate Protective Covers
A steel plate protective cover keeps chips, coolant, and hands away from moving parts. This guide is for design engineers who need to specify one: what it has to do, how thick the plate should be, and where machining beats bending. Read it before you release the drawing.

What a cover has to do before anything else
Four functions decide the whole design. Get them wrong and no amount of finish work saves the part.
The four basic functions of a steel plate cover
Any steel plate protective cover earns its place on the machine by doing four jobs. First, it stops chips and swarf from reaching ways, ballscrews, and sensors. Second, it keeps coolant mist off surfaces that corrode, and it collects the fluid so it can drain back to the tank instead of pooling on the floor. Third, it blocks hands and loose clothing from moving parts during operation. Fourth, on electrical cabinets and laser enclosures it adds a layer against heat and stray radiation.
The basic functions design requirements come down to one question: which of those four jobs is the critical one for this machine? A cover over a lathe bed is mostly a chip and coolant problem. A cover over an operator station is a safety and visibility problem, and the guard has to let you see through or past it. Write down the ranking before you pick a plate thickness, because the ranking drives everything downstream.
There is no universal cover. A 2 mm bent panel is fine for a splash guard on a manual mill. Put the same panel over a 12,000 rpm spindle with a broken tool event and it will deflect, rattle, and eventually crack at the weld toe. Decide the worst load case first, then size for it.
- 1ContainmentCatch chips, swarf, and broken tool fragments inside the work zone.
- 2Fluid controlRoute coolant and mist away from sensitive surfaces and back to the tank.
- 3Personnel protectionSeparate operators from moving axes, hot parts, and pinch points.
- 4Environmental shieldingReduce heat, light, or radiation reaching adjacent equipment.
Design requirements: stiffness, clearance, and mounting
Stiffness is the first real design requirement. A cover that flexes under chip impact will drum against the machine frame and throw fasteners loose. Two things control stiffness: plate thickness and the distance between support points. Doubling the thickness is rarely the cheap answer. Adding a formed rib, a hemmed edge, or a break in the span usually costs less and cuts vibration more.
Clearance matters just as much. Leave 5–10 mm between the cover and any moving axis so thermal growth and chip buildup do not turn the cover into a scraper. On rails and ballscrews, that gap also gives swarf somewhere to fall instead of being dragged into the bearing. If the machine runs hard for hours, check the warm clearance, not the cold one.
Mounting is where most covers fail in the field. Use slotted holes or oversized clearance holes so the panel can move with the frame. A cover bolted tight at four corners on a frame that expands will bow in the middle. Fastener choice follows the environment: stainless or plated hardware near coolant, serrated flange bolts where vibration is constant, and a thread-locking compound on anything that sees more than 2,000 rpm nearby.
Drainage is easy to forget. Any horizontal surface on the cover becomes a puddle. Give flat areas a 2–3° slope toward a drain hole, and put the hole at the lowest corner in the installed position, not the as-machined position. A 10 mm drain hole with a chamfered edge clears most chip sizes without letting fingers through.
- 1Minimum gap5–10 mm to any moving axis, measured hot.
- 2Span ruleAdd a rib once an unsupported span passes roughly 20× the plate thickness.
- 3Hole typeSlots or clearance holes, never a tight fit at every corner.
- 4Drainage2–3° slope to a chamfered 10 mm drain hole at the low corner.
Plate thickness guide by application
Starting points for mild steel sheet and plate. Adjust for span, impact energy, and whether the cover carries any load.
| Application | Typical thickness | Best process | Watch out for |
|---|---|---|---|
| Splash guard, manual machine | 1.5–2 mm | Sheet metal, bent | Rattles if span is long |
| Chip cover over linear rails | 2–3 mm | Sheet metal + ribs | Swarf drag into the bearing |
| Enclosure panel, CNC lathe | 3–4 mm | Laser cut, formed | Coolant pooling on flat tops |
| Impact guard, tool breakage zone | 6–10 mm | CNC machined plate | Weld toe cracking under shock |
| Precision mounting bracket | 10–20 mm | CNC milling | Flatness after stress relief |
| Heavy machine base cover | 20–40 mm | CNC milling + grinding | Distortion from weld heat |
Choosing steel and surface treatment
Mild steel is the default because it is cheap, weldable, and stiff enough. Grade 1018 machines cleanly and bends well, which makes it the right pick for formed covers and machined brackets on the same drawing. Grade 1045 gives more wear resistance where the cover rubs against chips or a mating surface, but it warps more under weld heat and needs a stress relief before final machining if flatness matters.
When weight has to come down or the cover sees real impact, 4130 or 4140 lets you use a thinner section for the same stiffness. That trade only pays off if the shop can machine and heat-treat the alloy correctly. For covers that see constant moisture, 304 or 316 stainless removes the coating problem entirely. It costs more and machines slower, but a stainless cover on a wash-down machine will outlast three painted mild steel ones.
Coating choice follows the environment, not the drawing template. Powder coating gives the thickest, most chip-resistant finish for enclosures and holds up to repeated cleaning. Black oxide suits machined covers where you need tight tolerances to survive and only light corrosion protection. Electroless nickel is the pick where coolant chemistry is aggressive or where the cover is also a wear surface. Zinc plating is fine for indoor brackets but will not survive a coolant flood for long.
Do not coat a mating face that sets a tolerance. Mask the mounting pads before finishing, or machine them after coating. A 60 μm powder layer on a face that locates a bracket will move the bracket 60 μm.
- 11018Formed covers and machined brackets, easy to weld and machine.
- 21045 / 4140Wear surfaces and higher-stiffness sections; stress relief needed.
- 3304 / 316Wash-down and food or medical environments, no coating required.
When to machine a cover instead of bending one
Bending wins on flat panels with simple bends and loose tolerances. A press brake can turn out a splash guard in minutes, and the tooling cost is near zero. Once the cover needs pockets, tapped holes on a bolt circle, a sealing groove, or a face flat within 0.05 mm, bending stops being competitive because you add a second op and a fixture.
CNC machining wins when the cover is also a structural part. Mounting brackets with bearing bores, covers that double as heat sinks, and guards with a machined register all belong on a mill. The same setup can hold ±0.005 mm on hole position, which matters when the cover bolts to a machined frame and the holes have to line up first time.
A hybrid approach is often the cheapest route. Laser cut and form the panel, then machine only the critical pads and holes in a second op on a 3-axis mill. That keeps the large formed area cheap and puts precision only where it is needed. On parts up to 4,000 mm long, a gantry mill can handle the machined features after forming without re-fixturing the whole panel.
One caution on welded covers. Welding pulls the plate and leaves residual stress that shows up as distortion after machining. If the cover is welded and then machined, plan a stress relief between the two steps. If it is machined from solid, no stress relief is needed for most cover sizes, and the flatness you measure on the mill is the flatness you ship.
- 1Bend onlyFlat panels, simple bends, tolerances looser than ±0.5 mm.
- 2Machine onlyPockets, bores, sealing grooves, flatness under 0.05 mm.
- 3HybridLaser cut and form, then machine the critical features.
Questions engineers ask before releasing the drawing
How do I decide between 2 mm and 4 mm plate?
Start with the span, not the thickness. Measure the longest unsupported distance between mounting points. If that span is more than roughly 20 times the plate thickness, either add a rib or go thicker.
Then check the impact case. A cover near a tool breakage zone needs enough thickness to absorb a fragment without permanent deformation. A splash guard far from the cut does not.
Should the cover be welded or machined from solid?
Weld it if the shape is mostly flat or gently formed and tolerances are loose. Machine from solid if the cover carries bores, registers, or sealing faces, or if flatness under 0.05 mm is required.
Welded covers that get machined afterward need a stress relief step between welding and finishing, or the plate will move after the last cut.
What surface finish should I call out?
For a painted enclosure, as-machined at Ra 1.6–3.2 μm is enough because the coating hides the tool marks. For a machined cover with a visible face, Ra 0.8–1.6 μm reads as a clean satin surface.
Only call for Ra 0.2–0.8 μm on faces that seal, slide, or mate. A fine finish on a non-functional surface adds cost with no benefit.
How do I keep a cover from rattling loose?
Use slotted or oversized clearance holes so the panel can move with the frame instead of fighting it. Add a serrated flange bolt or a thread-locking compound at any fastener within 2,000 rpm of a spindle.
If the cover still drums, the problem is usually span, not fastener torque. Break the span with a rib or a stiffening hem.
Can you machine a cover from a single plate up to 4,000 mm?
Yes. Our largest travel is 4,000 × 400 × 150 mm on a gantry mill, with 16 simultaneous 5-axis centers for covers that need angled features in one setup.
For long covers, tell us the installed orientation so we can plan the fixturing and check flatness in the same position the part will see on the machine.
What do you need to quote a cover?
Send a 2D drawing or a 3D model with material, thickness, tolerances, and finish. Mark which faces are functional and which are cosmetic.
We return a quotation and a free DFM analysis within 12 hours. No minimum order quantity, so a single prototype is fine. NDA available on request.
