3D Printed Swords: 20 Epic 3D Printed Models

The 20 models below are grouped by geometry, not by franchise. A sidesword, a katana and a fantasy greatsword are different printing problems even if they look similar on screen. The source model matters less than the cross-section you are asking the printer to build.

Flat, wide blades are the easiest. Thin, round blades are the hardest. Between those two extremes sit hollow print-in-place blades, multi-part hilts, and decorative wall pieces that are really just large signs shaped like weapons.

Each group lists the typical wall thickness, the failure mode you should expect, and whether hardware or post-processing is usually required. When a hilt needs real load capacity, we machine it instead of printing it.

• 1

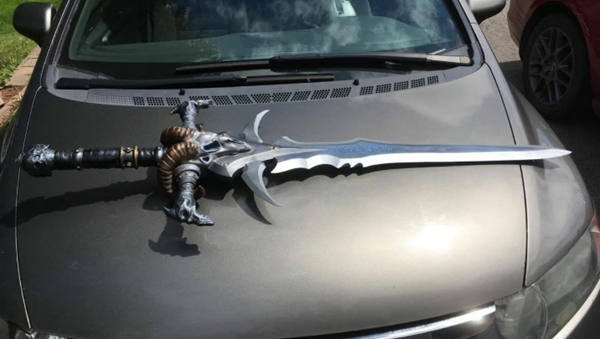

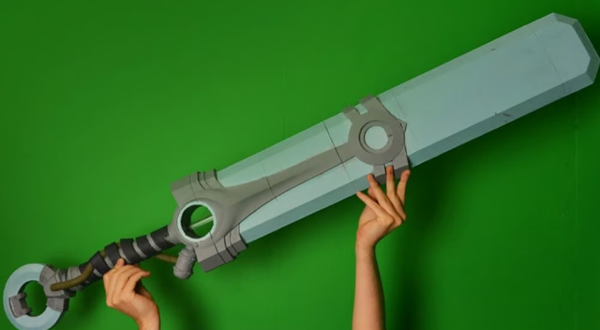

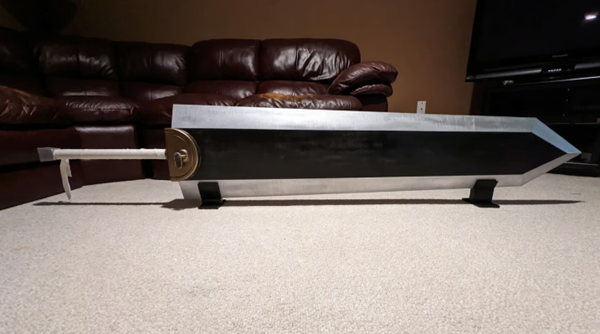

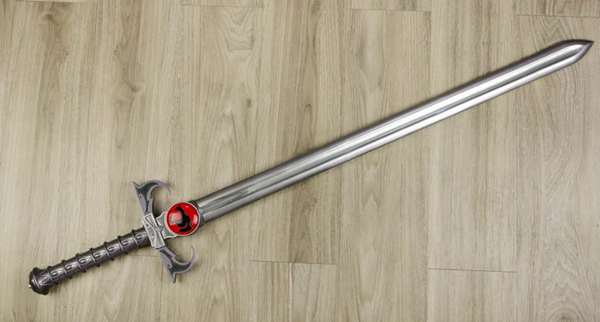

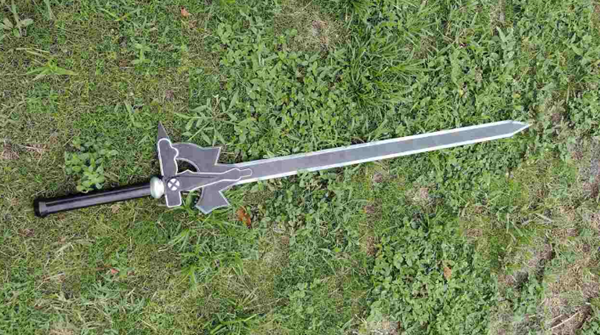

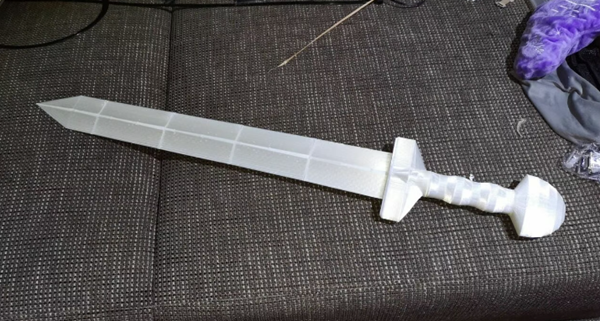

  Flat display bladesGreatswords, buster swords, wall-hangers. Print on the flat side, 2.0–3.0 mm walls.
• 2

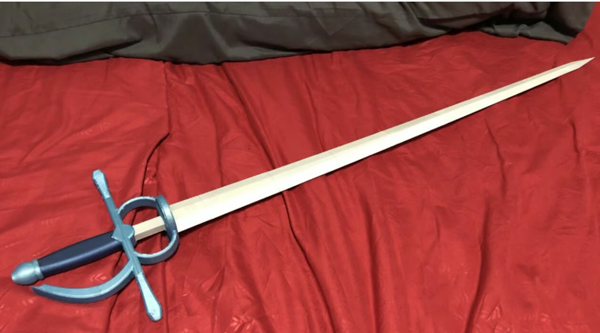

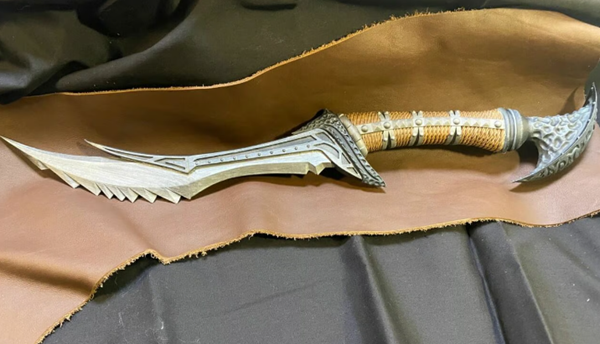

  Curved single-hand bladesKatana, saber, rapier. Split lengthwise or print vertically with supports.
• 3
  Print-in-place mechanismsFolding and telescoping swords. Clearance tolerance decides success.
• 4

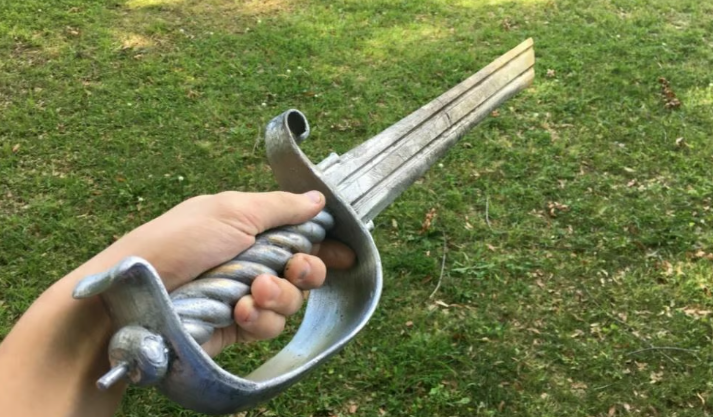

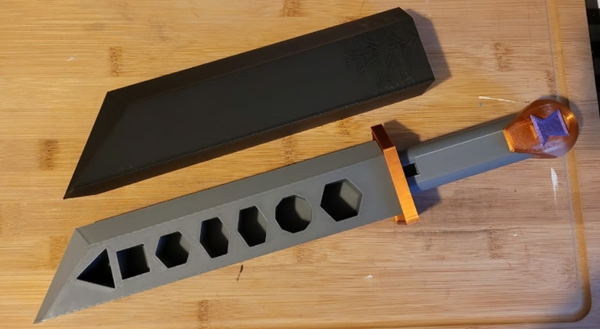

  Multi-part hiltsGuard, grip, pommel. Alignment pins or a threaded rod tie them together.
• 5

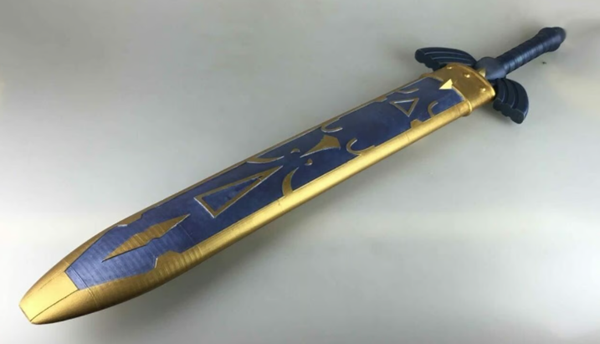

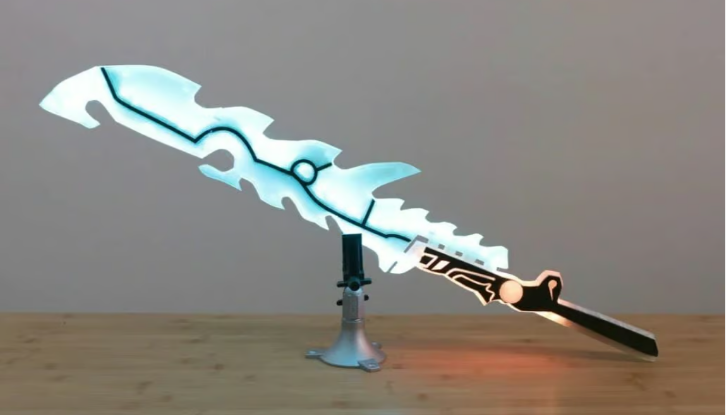

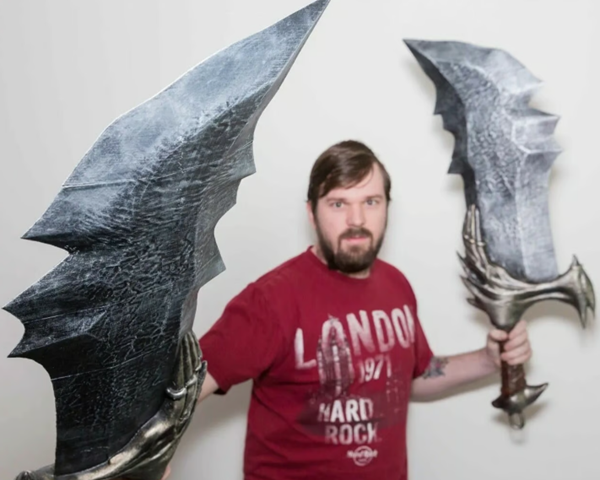

  Wall art and replica propsLarge, hollow, light. Cosplay and display rather than handling.

Sword models fail in predictable ways. A blade snaps at a layer line, a hilt cracks where the tang enters the grip, or a long blade warps off the plate. Each has a process answer, and none of them is a slicer preset you can copy without thinking.

Blade strength comes from wall count more than infill. Three perimeters at 0.4 mm nozzle diameter gives a 1.2 mm shell, which is the minimum we would trust for a handled prop. Infill at 15–25 percent with a cubic pattern is enough for the core; 100 percent infill adds weight and print time without adding much bending strength.

Orientation is the bigger lever. Printed vertically, layer lines run across the blade, so a sideways hit splits layers. Printed flat with the blade lying down, layer lines run along the length and bend rather than delaminate. For a curved blade that cannot lie flat, split it at the spine and join the halves.

Layer height is a surface finish choice, not a strength choice. At 0.12 mm the layer lines nearly disappear after sanding. At 0.28 mm you print faster but spend more time filling. For a prop that will be painted and handled, 0.16–0.20 mm is the practical middle.

• 1
  Minimum shell1.2 mm (three perimeters at 0.4 mm) for any handled blade.
• 2
  Layer directionKeep layer lines parallel to the blade length, never across it.
• 3
  Tang transitionFillet the blade-to-tang corner; sharp inside corners crack first.
• 4
  Large flat bladesAdd a brim and slow the first layer to stop corner lift.

PLA is the default for display pieces. It prints clean, takes sanding and paint well, and holds fine detail. It is also brittle. A PLA blade dropped on a hard floor at room temperature can crack at a layer line, especially if it was printed vertically.

PETG trades a little stiffness for toughness. It flexes before it breaks, which suits handled props and folding mechanisms. It strings more and sands worse, so plan for a rougher surface unless you are painting it.

For thin rapiers and any blade under 2 mm thick, resin gives a cleaner and stiffer part with no layer-line weakness across the blade. The trade-off is brittleness under impact and a longer post-processing cycle. Mixing the two is common: resin blade, FDM grip and guard.

Nylon and carbon-fiber-filled filaments add stiffness and impact resistance, but they need higher nozzle temperatures and dry storage. They are worth it when the sword is a functional tool or a moving mechanism rather than a display piece.

• 1
  PLABest detail and finish. Brittle under impact. Display and cosplay.
• 2
  PETGTougher, slightly flexible. Good for handled props and joints.
• 3
  ResinSharp detail, thin blades, no layer weakness. Handle with care.
• 4
  Nylon / CF-filledStiff and impact-resistant. Needs hot end and dry filament.

Most multi-part swords are glued, and most glue joints fail because the mating faces are printed, not machined. Layer texture gives you a poor bond line. Sand the joint faces flat on a granite plate or a sheet of glass with 220 grit before gluing. Two flat faces with cyanoacrylate or two-part epoxy will hold far better than two textured ones.

Alignment matters more than adhesive strength. Add printed pins, or drill 3 mm holes and insert steel dowels through the joint. That converts a peel load into a shear load, which is the direction the joint is strongest.

The tang is where a sword actually breaks. In a printed hilt, the tang is a printed extension of the blade, and it takes the full bending moment of the blade. A 1.2 mm shell is not enough there. Increase the shell to 2.0–2.5 mm near the guard, add a fillet, and if the model allows it, run a metal rod through the grip and into the pommel.

Finishing is straightforward. Sand 220, then 400, then 800 on visible surfaces. Two coats of filler primer fill remaining layer lines. Metallic paint over a gloss black base reads as steel better than a metallic paint over bare plastic. For a machined aluminum guard or pommel, anodizing gives a durable finish that paint cannot match.

• 1
  Flatten jointsSand mating faces on a flat plate before gluing.
• 2
  Add shear pinsPrinted pins or 3 mm steel dowels across every glue joint.
• 3
  Thicken the tang2.0–2.5 mm shell at the blade-to-guard transition.
• 4
  Paint orderPrimer, gloss black base, then metallic topcoat.

Printed hilts are fine for display. They are not fine when the sword is a training tool, a stage weapon that gets thrown, or a mechanism that cycles thousands of times. The failure point is almost always the same: the guard or the pommel.

A machined guard solves three problems at once. It adds real mass where the hand grips, it takes a threaded rod or a pin without cracking, and it can be anodized or black-oxidized so it does not look like plastic. We machine guards and pommels from 6061-T6 aluminum, 304 stainless, or brass depending on the target weight and finish.

Typical work is small. A guard is often under 150 mm across, which fits a 3-axis or 4-axis mill with a Ø400 mm rotary table for the curved surfaces. A one-off guard or pommel can be machined to ±0.005 mm on critical fits, and the print holds the decorative detail. The two processes complement each other rather than compete.

If you have a model with a load-bearing hilt, send the STEP or STL file. We quote and return a DFM analysis within 12 hours, and production can start within 24 hours once drawings are confirmed.

• 1
  Guard and pommelAluminum, stainless or brass; anodized or black oxide.
• 2
  Grip coreTurned tube with a bore sized to your threaded rod.
• 3
  Blade root insertMachined socket that spreads bending load into the guard.
