PVC used for wire duct covers is usually a rigid or semi-rigid compound with flame retardants and impact modifiers. Unfilled grades shrink roughly 0.2–0.6% from mold dimension to room-temperature part. The exact number depends on filler type, wall thickness, melt temperature, and how fast the cavity packs. A mold cut to nominal part size will produce covers that are short in the flow direction and slightly different across the flow direction.

That directional difference matters on a long cover. A 1,000 mm cover at 0.5% shrinkage loses about 5 mm if the cavity is not oversized. If the gate is at one end, the material freezes progressively and the far end sees less packing pressure. The far end shrinks more. The result is a taper in the latch spacing that only shows up when covers are stacked or when they are fitted to a duct run.

So the cavity is not a scaled copy of the drawing. We apply different shrink factors along flow and transverse to flow, and we often add a small taper allowance at the far end. The numbers come from a mold-flow pass plus a short trial run, not from a table. A first trial of 20–50 shots is usually enough to dial in the correction before the tool is hardened.

• 1
  Measure shrinkage on the real compoundAsk the resin supplier for shrinkage data at the intended wall thickness, then confirm with a trial.
• 2
  Split the factor by directionFlow direction and transverse direction rarely shrink at the same rate in a long, gated part.
• 3
  Leave room to correctCut steel on the low side first; it is easier to remove material than to add it back.

A wire duct cover is not a simple plate. It usually has a living hinge along one edge and snap-lock features along the other, so it can be opened and closed without tools. Both features are undercuts. The hinge needs a thin, controlled section that flexes without cracking. The latch needs a hook that engages and releases thousands of times without losing holding force.

Those undercuts cannot be molded with a straight pull. The tool needs side actions: slides, lifters, or angled pins that move before ejection. The alignment of those moving components is what determines whether the cover flashes at the parting line. If a slide sits 0.03 mm off, every cycle produces a thin fin along the latch edge. Assemblers then trim it by hand, and the holding force drops.

The design also has to survive the mold. A latch hook with a sharp internal corner concentrates stress, and PVC is notch-sensitive. We add a radius at the base of the hook, usually 0.3–0.5 mm, and we keep the flexing section uniform in thickness. A hinge that varies from 0.8 mm to 1.1 mm will crack at the thin spot after a few hundred open-close cycles.

• 1
  Radius the latch rootA 0.3–0.5 mm radius removes the notch that starts a crack.
• 2
  Keep hinge thickness uniformVariation of more than 0.1 mm across the hinge creates a failure point.
• 3
  Match slide timing to ejectionSlides must clear the undercut before the ejector pushes the part.

Most covers run 1.5–2.0 mm wall thickness to keep weight and material cost down while staying flexible. Filling a long, narrow section at that thickness is a pressure problem. The melt front loses heat to the cold cavity wall, viscosity rises, and the flow front can stall before it reaches the far end. Short shots are the visible symptom; short shots are also the easiest defect to misdiagnose as a machine problem.

The runner and gate design has to deliver melt to the far end before it freezes. A fan gate or a multi-drop hot runner spreads the flow and reduces the distance each front travels. Gate location also sets weld-line position. On a transparent cover, a weld line in the viewing window is a reject. We place gates so weld lines land under a rib or behind an opaque latch, not across the clear area.

Venting is the other half. Air trapped ahead of the melt front compresses, heats, and burns the PVC. Burn marks on clear PVC cannot be polished out. Vent channels are machined shallow, sometimes 0.02 mm deep, and they must run to the cavity edge without interruption. A vent that is too deep flashes; a vent that is blocked does nothing. We cut vents in the last 15–20% of the fill path where the air actually collects.

• 1
  Balance the runnerMulti-cavity tools need equal fill pressure or cavities shrink at different rates.
• 2
  Keep vents shallow0.02 mm is typical for PVC; deeper vents flash and still trap air.
• 3
  Move weld lines out of the windowA weld line across clear PVC is a cosmetic reject that cannot be reworked.

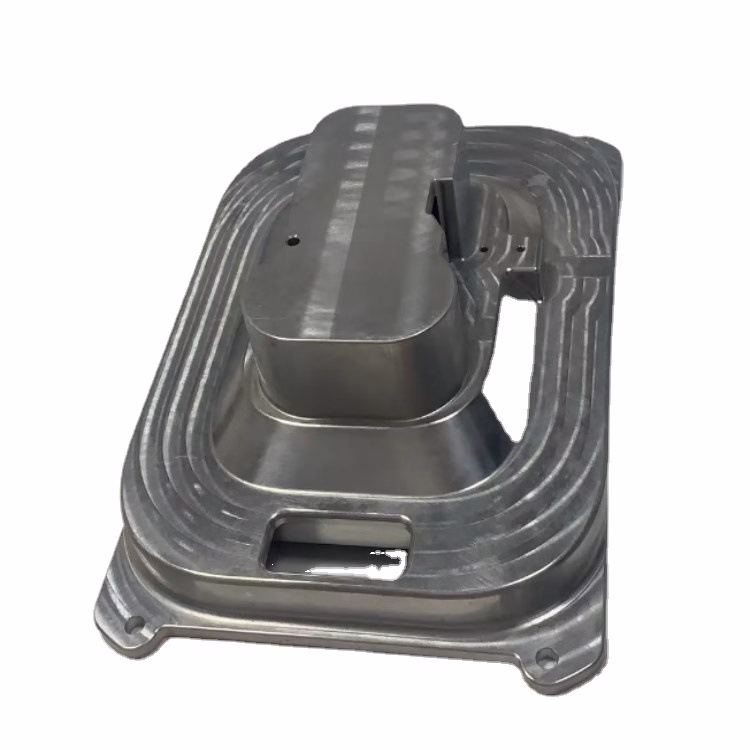

The cavity block, the slides, and the latch inserts are machined to different tolerances. The cavity profile can tolerate a few hundredths of a millimeter. The slide-to-cavity fit and the latch insert geometry cannot. That is where 5-axis milling earns its place: it cuts angled latch faces and deep rib pockets in one setup, so the relationship between features stays fixed instead of being rebuilt across three fixtures.

For sharp internal corners and narrow vent slots, milling reaches a limit. EDM and wire EDM cut the latch hook, the hinge root radius, and vent channels that are too narrow for a cutter. Wire EDM also produces the square, straight edges needed where two slides meet. The trade-off is time and surface finish: EDM leaves a recast layer that has to be removed before polishing.

Polishing is not cosmetic here. A transparent cover shows every scratch and every polishing direction. The cavity surface is brought to Ra 0.2–0.8 μm in the window area and Ra 0.8–1.6 μm elsewhere. Polishing has to follow the flow direction, and it has to stop short of the parting line so the latch edge stays crisp. Conformal cooling, built by additive manufacturing into cores with deep ribs, shortens cycle time and reduces the warp that comes from uneven cooling.

• 1
  5-axis for latch geometryOne setup holds the angle between latch face and hinge root.
• 2
  Wire EDM for vents and slidesNarrow slots and square edges that milling cannot reach.
• 3
  Polish with the flowRandom polish marks show through clear PVC under inspection light.

Warp is the defect that tooling engineers argue about most. A long cover cools faster at the edges than in the middle, and faster on the cavity side than on the core side. The part curls toward the hot side. If the cooling lines are far apart or follow a simple straight path, the cover comes out with a bow that shows up as a gap when it is snapped onto a duct.

Conformal cooling helps where the core has deep ribs. A machined straight line cannot follow a rib that is 40 mm deep and 3 mm wide. An additively built core can place cooling within 8–12 mm of the rib surface, which shortens cycle time and reduces the temperature difference across the part. It costs more up front. For a cover with long ribs and a tight flatness requirement, it usually pays back in scrap reduction.

Not every warp is a tooling problem. Gate location, pack pressure, and ejection temperature all move the part. We have seen covers bow because the ejector pins pushed on a hot, thin section. The fix was a slower ejection and a larger pin pad, not a new cavity. It helps to separate the causes before cutting steel: flow analysis first, then trial shots, then measure.

• 1
  Cool the rib coresDeep ribs without cooling hold heat and pull the part out of flat.
• 2
  Check ejection before blaming the cavityHot, thin sections deform under ejector force.
• 3
  Measure flatness on the ductA cover that looks flat on a bench may gap when snapped in place.
