Four numbers decide most of the difference between different metal materials on a machine: hardness, thermal conductivity, ductility, and the tendency to work harden. Hardness sets your cutting speed. Thermal conductivity decides how much heat leaves with the chip instead of soaking into the tool and the part. Ductility decides whether you get a clean chip or a smear. Work hardening decides whether the second pass cuts or rubs.

Take aluminum and stainless as an example. 6061-T6 runs at 300–600 m/min surface speed and pulls heat away fast, so the part stays cool and holds ±0.005 mm without much fuss. 316L runs an order of magnitude slower, keeps heat in the cut, and hardens the moment a tool rubs instead of cuts. Same geometry, same machine, different process window.

That is why a quote for the same shape can differ by a factor of two or three across materials. It is not the stock price alone. It is the number of passes, the tool wear, the coolant strategy, and the inspection time the material forces on us.

One more number matters and it is easy to forget: modulus. Steel sits near 200 GPa, aluminum near 69 GPa, magnesium near 45 GPa. A thin aluminum wall deflects about three times as much as the same steel wall under the same load. If the feature is a thin rib or a long bore, the material choice has already decided your tolerance before the first cut.

• 1
  HardnessSets surface speed and tool grade.
• 2
  Thermal conductivityDecides where the heat goes.
• 3
  DuctilityDecides chip formation and burr size.
• 4
  ModulusDecides deflection on thin walls.

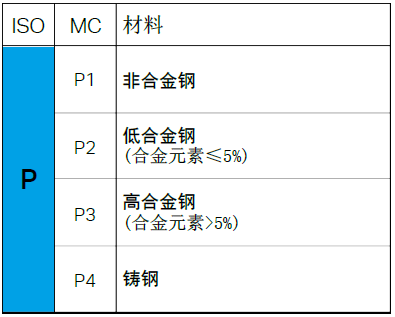

Carbon steel is mostly iron plus carbon and manganese, and it cuts cleanly. 1018 is the general-purpose low-carbon choice for shafts, brackets, and fixture plates. 1045 adds carbon for wear resistance and responds to heat treatment. 4130 and 4140 bring chromium and molybdenum for higher strength at the same section, and 4140 pre-hardened at 28–32 HRC is a common mold and shaft material. Cut these at 180–220 m/min with coated carbide and you get good tool life.

Stainless steel adds at least 10.5% chromium, and that chromium is what makes it different. It forms a passive oxide layer that resists rust, and it also makes the material sticky and prone to work hardening. 303 is the free-machining grade, with sulfur added to break chips, and it is the right call when corrosion resistance is moderate and cycle time matters. 304 and 316L resist corrosion better but cut worse. 17-4PH gives you high strength after aging, around 40 HRC, and is common in aerospace and medical parts.

The practical rule: if you need corrosion resistance, use stainless and budget more time. If you need strength and the part gets painted or plated, carbon steel is cheaper and faster. Do not switch to 304 to save a plating step unless the part truly sees moisture.

One trap with stainless is the finishing pass. A light pass that rubs instead of cuts raises surface hardness and wears the insert fast. Keep the feed per tooth up, use plenty of coolant, and never dwell in the cut.

• 1
  1018 vs 4140Pick 1018 for form, 4140 for strength.
• 2
  303 vs 304303 machines better, 304 resists better.
• 3
  17-4PHMachine in the annealed state, then age.
• 4
  CoolantFlood, not mist, on stainless.

Aluminum is the default for machined housings, brackets, heat sinks, and prototype frames. 6061-T6 is the workhorse: weldable, cheap, and stable at ±0.005 mm. 7075-T6 is roughly twice the strength of 6061 and machines nearly as well, which makes it the choice for aerospace brackets and high-load fixtures. 2024 has better fatigue behavior but worse corrosion resistance. 6082 behaves like 6061 for European stock. Surface speed runs 300–600 m/min with carbide, and the material moves heat out of the cut so fast that you can often hold tight tolerance without special cooling.

The failure mode with aluminum is not the cut, it is the fixturing. Thin walls deflect, and a part that mics fine on the machine can spring out of tolerance once unclamped. Rough, stress-relieve if the geometry is thin, then finish with light radial engagement. For cosmetic parts, note that 7075 anodizes to a darker, less uniform color than 6061.

Magnesium AZ31B and AZ91D are the lightest structural option, about 35% lighter than aluminum. They cut extremely well at high speed and leave a fine chip. They also burn. Fine magnesium chips ignite easily, so chips must be cleared continuously and never allowed to accumulate dry near the spindle. That single safety requirement is why magnesium stays a specialist choice.

If weight is the driver and the part is not exposed to salt or heat, aluminum does the job at lower cost. Reach for magnesium only when the grams really matter and your shop has the chip handling in place.

• 1
  6061-T6Default for general machined parts.
• 2
  7075-T6Higher strength, common in aerospace.
• 3
  Thin wallsRough, relieve, then finish light.
• 4
  Magnesium chipsClear continuously; fire risk.

C110 copper is the electrical and thermal reference, with conductivity near 100% IACS. It is also gummy. A sharp, high-rake tool and a generous feed keep the chip from smearing, and you should avoid dwelling because copper work hardens slightly and burrs grow quickly. Expect to deburr more than you would on brass. Bus bars, RF cavities, and heat spreaders are typical parts.

Brass C36000 is the opposite experience. Leaded brass breaks chips into small flakes, holds a mirror finish, and machines faster than almost any metal here. It is the right choice for fittings, valves, connectors, and small precision parts where conductivity is secondary. C27400 and C28000 are lower-lead alternatives; they cut a little worse but meet stricter material restrictions.

Beryllium copper is a special case. It gives high strength plus good conductivity, which is why it appears in spring contacts and mold inserts. It also carries a serious health hazard. Beryllium-bearing dust must be controlled with coolant and proper extraction. Many shops will only run it wet, and some decline it entirely.

The selection line is simple. If the part carries current or moves heat, start with copper. If it is a fitting or a small mechanism and finish matters, brass is faster and cheaper.

• 1
  C110 copperBest conductivity, gummy to cut.
• 2
  C36000 brassBest machinability, free-cutting.
• 3
  Beryllium copperStrong and conductive, strict dust control.
• 4
  BurrsBudget deburring time on pure copper.

Titanium Ti-6Al-4V (TC4) has roughly the strength of 4140 steel at about 57% of the density, and it keeps that strength to 400 °C. That combination is why it dominates aerospace brackets, medical implants, and high-end motorsport parts. It is also the hardest common material to machine. Thermal conductivity is low, around 7 W/m·K, so heat stays at the cutting edge. The material galls, and a dull tool rubs and hardens the surface.

Cut titanium at 30–60 m/min with uncoated or AlTiN carbide, high pressure coolant, and a rigid setup. Never stop the feed while the tool is in the cut. Climb milling and a sharp edge matter more here than on any other metal on this page. Expect tool life measured in minutes on roughing, not hours.

Nickel alloys such as Inconel push further in the same direction. They hold strength at 700 °C and above, which suits exhaust and turbine hardware, and they work harden aggressively. Speeds drop to 20–40 m/min and the process becomes a coolant and rigidity exercise.

The trade-off is clear. Choose titanium when strength-to-weight or biocompatibility is the requirement, and accept the cost. If corrosion resistance is the only reason you are considering it, 316L or 17-4PH will usually do the job for less.

• 1
  Ti-6Al-4VCut at 30–60 m/min, flood coolant.
• 2
  Never dwellKeep feed constant through the cut.
• 3
  ToolingSharp uncoated or AlTiN carbide.
• 4
  Inconel20–40 m/min, rigidity first.
