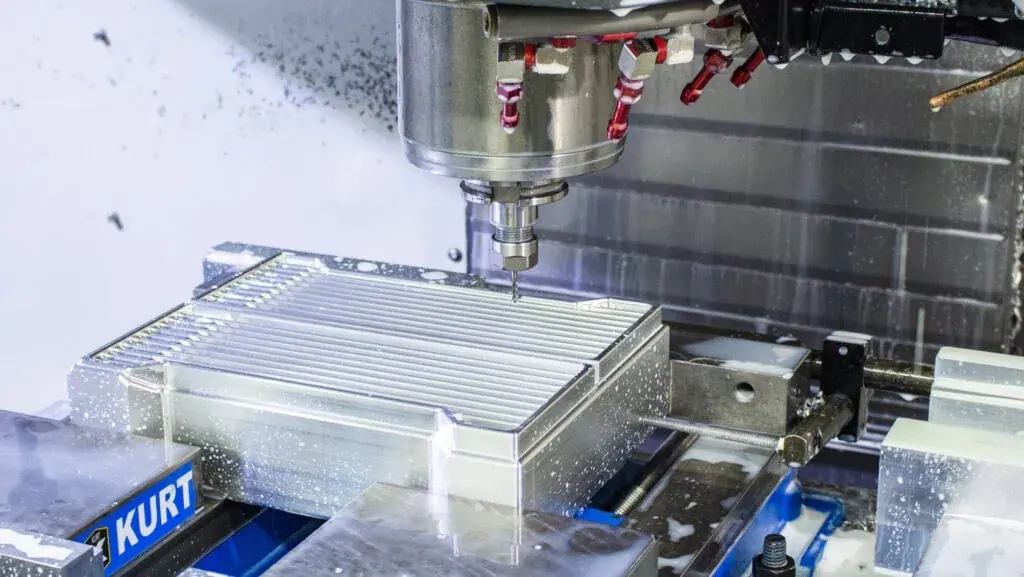

The published spec sheet is not the limit. Every machine tool carries an accuracy figure quoted under ideal conditions: a warm room, a light finishing cut, a rigid setup, and a fresh tool. The real limit of a process is what it can repeat on a Monday morning and again on a Friday afternoon, on a part that is actually hard to hold.

Four physical factors decide that number. Machine stiffness sets how far the tool pushes away from the workpiece under load. Thermal growth moves the spindle and the part relative to each other as the machine warms. Tool wear changes the effective cutting edge radius and the forces it generates. Fixturing decides whether the part sits where the program thinks it sits.

Software sits on top of all four. Modern CAM can generate smooth five-axis toolpaths and compensate for cutter geometry, but no toolpath can cancel a part that rings like a bell or a vise that lifts the workpiece 0.03 mm when it clamps. When we quote ±0.005 mm, we are quoting the result of controlling those four factors together.

That is why two shops with similar machine lists can land on very different capability. The limit is a system property, not a spindle property.

• 1
  Rigidity firstShort tool holders, minimal overhang, and a supported workpiece.
• 2
  Thermal controlWarm-up cycles and consistent coolant temperature matter more than the spec.
• 3
  Tool strategyPlan the wear window against the tolerance band, not against the clock.
• 4
  Fixture repeatabilityIf the clamp moves the part, every downstream measurement is noise.

On aluminum and mild steel parts with good access, ±0.005 mm (±0.0002 in) is achievable and repeatable across a production run. It is a working number, not a showroom number. The same callout on a thin wall, a long slender shaft, or a deep pocket becomes a different problem, because the part itself moves during the cut.

Surface finish follows the same logic. Ra 0.8–1.6 μm is a normal machined finish on most metals. Ra 0.2–0.8 μm is reachable on a dedicated finishing pass with a sharp tool and a stable setup, but it costs cycle time. Ra 1.6–3.2 μm is the as-machined range where a roughing-and-finishing strategy is enough.

Geometry sets a hard floor that no tolerance callout can override. A square internal corner cannot be cut with a round tool, so the smallest internal radius equals the tool radius. Deep pockets need a tool long enough to reach the bottom, and a long tool deflects. When the depth-to-diameter ratio climbs past roughly 4:1, expect to slow down and to add a semi-finishing pass.

Feature size matters too. Holes below about Ø1 mm start to break tools often enough that they change the cost structure. Slots narrower than the smallest available cutter simply cannot be milled, and EDM or laser becomes the honest answer.

• 1
  Achievable±0.005 mm on rigid, well-supported metal parts.
• 2
  ConditionalThin walls and long shafts need relaxed tolerances or extra operations.
• 3
  Not millableSharp internal corners and blind features narrower than the cutter.
• 4
  Better elsewhereMicro-holes and hardened material above roughly 45 HRC.

Size and axis count are separate limits, and buyers often mix them up. A three-axis machine moves the tool in X, Y, and Z only. It handles flat plates, blocks, and parts with features reachable from one direction. It is fast to program, easy to fixture, and usually the cheapest way to make a simple part.

A four-axis machine adds a rotary table, so the part turns while the tool stays put. That covers cylindrical work, cross-drilling, and multi-face features in one setup. A five-axis machine adds a second rotary axis and lets the tool approach from almost any direction. The practical gain is not the extra axes themselves. It is that features on five sides can be cut without re-fixturing, which removes stack-up error from each re-clamp.

Envelope limits are real and concrete. Our largest travel is 4,000 × 400 × 150 mm for long, narrow parts. Medium frames run 750 × 1,150 × 550 mm and 600 × 600 × 600 mm. Compact cells cover 500 × 500 × 450 mm and 500 × 310 × 200 mm, with a Ø400 mm rotary table for round work. A part larger than the biggest frame does not become possible by writing a cleverer program.

Pick the axis count from the geometry, not from the marketing. If three faces need work and the part has a natural datum, four-axis is often enough. If five faces need tight positional relationships, five-axis saves setups and holds those relationships better.

• 1
  3-axisPlates and blocks, features from one direction.
• 2
  4-axisCylindrical and cross-feature work in one setup.
• 3
  5-axisFive-sided parts where re-clamping error is the enemy.
• 4
  EnvelopeCheck travel before anything else; it is a hard stop.

Tool life is the least visible limit and often the one that decides whether a job ships on tolerance. A coated carbide end mill in aluminum can run for hours in a stable cut. The same tool in titanium or Inconel may need a fraction of that before the edge dulls enough to push dimensions out of band. Heat stays in the cut in titanium, so the edge degrades faster and the part moves more.

Vibration, usually called chatter, is the other quiet failure. It shows up as a poor finish first, then as a size error. It comes from a tool that is too long for its diameter, a workpiece that is not supported, or a spindle speed that hits a natural frequency of the setup. The fix is usually mechanical: shorten the overhang, add a support, change the speed. Turning the feed down alone rarely solves it.

Material hardness sets a ceiling on what cutting tools can do economically. Steels up to roughly 45 HRC machine well with carbide. Above that, cutting forces rise, tool life drops, and grinding or EDM becomes the better route. Soft and gummy materials bring their own problem: aluminum and copper alloys can build up on the edge, which changes the effective geometry and the finish.

In-process monitoring helps here. Watching spindle load and feed drive current during a run catches a dulling tool before it spoils a batch. That is not predictive maintenance hype. It is a load meter and a rule about when to change the insert.

• 1
  AluminumLong tool life, high speeds, watch for built-up edge.
• 2
  Titanium and InconelShort tool life, heat in the cut, plan for more changes.
• 3
  Hardened steelAbove roughly 45 HRC, consider grinding or EDM.
• 4
  Chatter fixShorten overhang or add support before touching feed.

Two trends push the boundary outward without changing the physics of cutting. The first is hybrid additive–subtractive manufacturing, where a near-net shape is built up and then finish machined on the same platform. That helps with internal channels and conformal cooling geometry that a cutter cannot reach from outside. The machining pass still decides the final tolerance.

The second is software. CAM tools now convert three-axis toolpaths into five-axis strategies, keep the tool axis smooth, and simulate the whole setup before a chip is cut. That shortens programming time and reduces the number of prove-out runs. It does not raise the accuracy ceiling. It removes wasted cycles on the way there.

The honest engineering reading is that these advances widen the range of parts that are practical to machine. They do not turn a flexible part into a rigid one. If a feature cannot be reached, supported, or measured, no amount of new technology makes it a good machining candidate.

For most production work, the biggest real-world gains still come from setup discipline: fewer re-clamps, better workholding, and measuring the part the way it will be used.

• 1
  Hybrid buildsGood for internal channels that no cutter reaches.
• 2
  CAM simulationFewer prove-out runs, same accuracy ceiling.
• 3
  Setup disciplineUsually the largest available gain on real parts.
