Inserts in CNC Turning: What P01, P25 and P40 Actually Mean

• 1
  P01 vs P10 vs P25 vs P40
• 2
  Which Grade for Which Job
• 3
  What the P in P01 and P40 Stands For
• 4
  How the Grade Changes Your Cutting Data
• 5
  Does the Same Rule Apply to Milling?
• 6
  Coating and Edge Geometry Matter as Much as the Number
• 7
  Reading Insert Failure to Confirm Your Choice

The letter P is one of six ISO material groups. P means steel. M covers stainless steel, K covers cast iron, N covers non-ferrous metals like aluminium and brass, S covers high-temperature alloys and titanium, and H covers hardened material above roughly 45 HRC. When you open a tool catalog and see a blue chip on the insert box, that insert was developed for steel. Inserts in CNC turning get sorted this way because the failure mode changes with the workpiece, not with the machine.

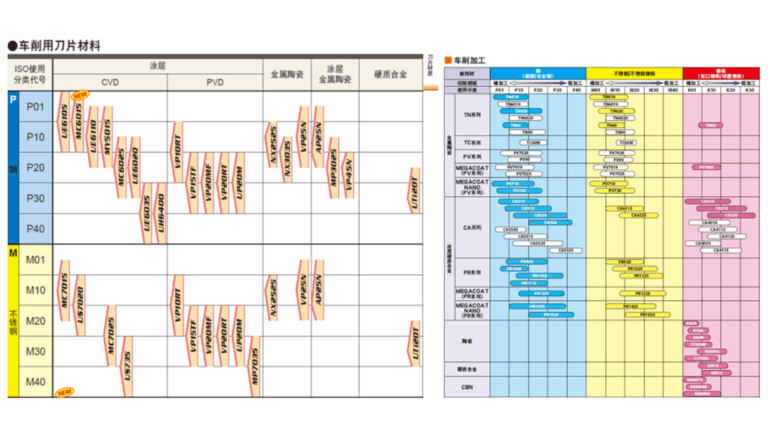

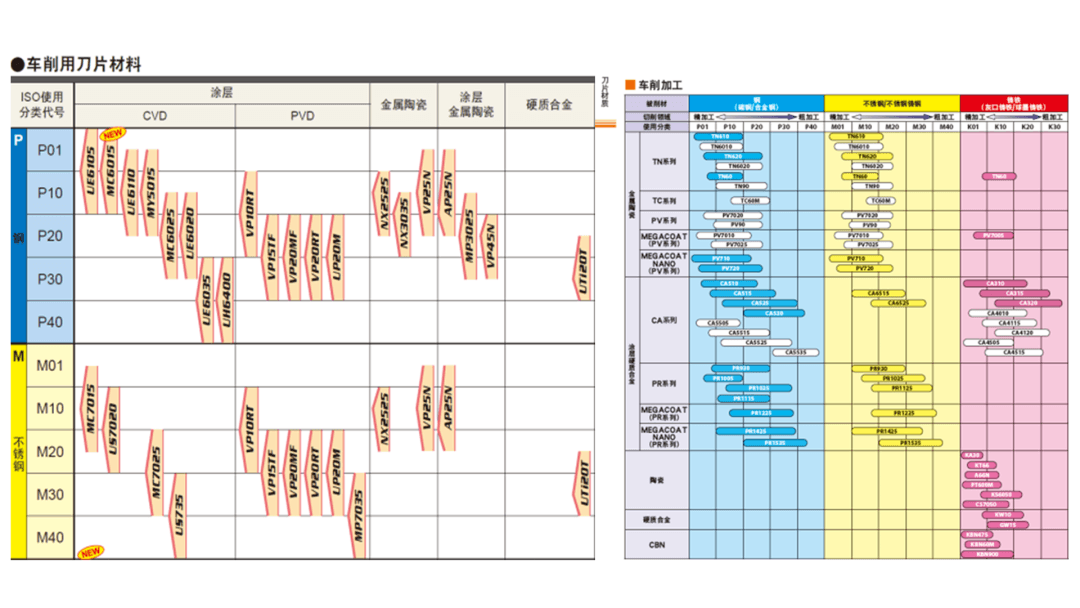

The number after the letter is a position on a hardness-to-toughness scale. P01 sits at the hard end. P40 sits at the tough end. That single number tells you how the carbide was sintered and how thick the coating is. Hard grades resist crater wear and keep a sharp edge at high speed, but they chip if the cut is interrupted. Tough grades bend before they break, but the edge dulls faster and pushes heat into the part.

• 1
  P01–P15Hard, wear-resistant, thin or no coating, for stable finishing passes
• 2
  P20–P35The working middle of the range, coated, handles most shop work
• 3
  P40 and aboveThick coating, cobalt-rich substrate, for shock and scale

A harder grade runs faster. That sounds like free productivity, and on a rigid lathe turning a clean 1045 shaft it often is. The catch is that hardness buys wear resistance by giving up edge strength. Push a P01 insert into a part with a welded seam or an interrupted cut and the corner will break out within a few parts. The tool did not fail because it was cheap. It failed because the grade was wrong for the load.

A tougher grade runs slower but survives shock. P40 inserts in CNC turning are the usual answer for castings with sand scale, forgings with a hard skin, or bar stock with a saw-cut end that hammers the insert once per revolution. You lose maybe 40 percent of your surface speed. What you gain is predictable edge life instead of random breakage.

The middle of the range exists for a reason. If your shop turns a mix of steel grades on one machine and you do not want to swap insert boxes every job, a P25 coated grade is the compromise. It will not win a speed test against P10, and it will not survive the worst interrupted cut that a P40 handles. It covers about 80 percent of steel turning work without drama.

Mostly yes, with one shift. In turning, the insert is in cut continuously, so heat builds in one spot on the edge. In milling, each tooth enters and exits the cut, so the edge sees thermal cycling and mechanical shock more often. That pushes the practical choice one or two steps toward the tough end. A P25 grade that runs all day in a turning center may behave like a P35 job in a milling cutter on the same steel.

Radial and axial engagement matter more than the grade label in milling. A 10 mm depth of cut at 50 percent radial engagement loads the insert differently than a 2 mm depth at full width. If you are running a light finishing pass with a small stepover, a harder grade is fine. If you are slotting or ramping into a corner, choose toughness first and adjust speed after.

The same logic applies on our 5-axis and mill-turn equipment. On a mill-turn center, a part may be turned on one face and milled on another in the same setup. Rather than stocking two grades, we often run a P25 or P35 coated insert for both operations and tune the speed per feature. It is a small compromise that saves tool changes and keeps the process repeatable.

• 1
  TurningContinuous cut, heat concentrated, hard grades last
• 2
  MillingInterrupted by nature, bias one step tougher
• 3
  Mill-turnOne mid-range grade for both, adjust speed per feature

Two inserts can both say P25 and behave nothing alike. The substrate is only half the story. A CVD coating is thick and heat-resistant, good for turning at higher speed where the chip carries heat away. A PVD coating is thinner and sharper, better for milling and for small-diameter work where a keen edge matters more than coating thickness. Read the coating line before you read the grade line.

Edge geometry changes the effective toughness too. A honed edge resists chipping and suits roughing and interrupted cuts. A sharp, ground edge cuts cleaner and lowers cutting force, which helps on thin walls and small parts. If a P25 insert chips on your job, the fix may not be a tougher grade. It may be an edge hone, a different rake angle, or a small change in lead angle.

Chipbreaker width is the third variable. A narrow chipbreaker for light finishing will not control a heavy roughing chip, and a wide roughing breaker will rub on a 0.3 mm finishing pass. Match the breaker to your depth of cut and feed, then pick the grade. Doing it in the other order is how shops end up blaming the grade for a geometry problem.

Look at the worn insert before you change the grade. Crater wear on the rake face, a smooth dished pit, means heat and diffusion. That points to a harder grade or a lower speed. Flank wear, a bright band on the clearance face, is normal and expected. Uniform flank wear after a full tool life means your grade is right and you can push speed slightly.

Chipping and micro-breakage on the nose point the other way. The grade is too hard for the load, or the setup is not rigid enough. Before buying a tougher insert, check tool overhang, holder condition and whether the part is ringing. A 4× diameter boring bar will chip a P10 insert no matter how good the carbide is.

Plastic deformation, where the nose edge sags under heat, is a sign the grade is too soft for the speed you ran. That is common when a P40 insert is used for finishing. Thermal cracks running perpendicular to the edge come from milling with no coolant or intermittent coolant. In that case the grade is fine and the coolant strategy is not.
