Maintenance of Automatic Machine Tool Chip Conveyors

• 1
  Key takeaways
• 2
  What automatic machine tool chip conveyors actually do
• 3
  Where automatic machine tool chip conveyors wear first
• 4
  Why automatic machine tool chip conveyors jam
• 5
  A practical inspection routine
• 6
  When to repair and when to replace
• 7
  Conveyor type by chip and volume

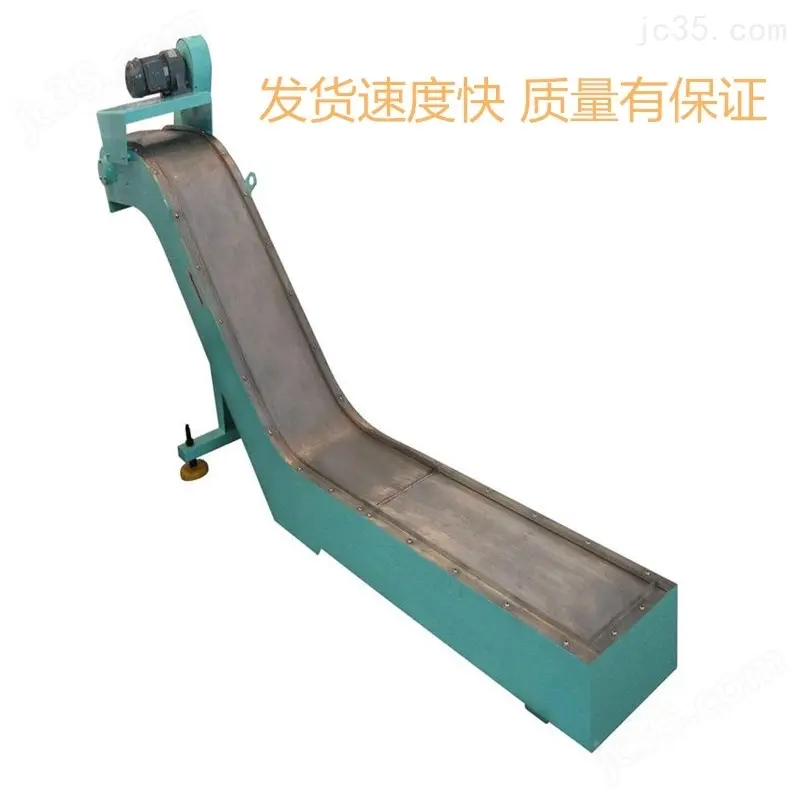

A chip conveyor is a material handling device bolted to the machine base. It collects chips and coolant at the outlet chute and moves the solids out of the cutting zone. The coolant returns to the tank through a filter screen or a settling section. If the conveyor stops, the machine stops, because chips back up into the working area within minutes.

Three designs cover most CNC machine tools. Hinged-belt conveyors use overlapping steel plates on a chain loop. Scraper conveyors drag a flat bar chain through a trough. Screw conveyors turn an auger inside a tube or U-channel. Each design handles a different chip shape and volume.

The load is never constant. A roughing pass on 4140 steel produces heavy, sharp chips at high volume. A finishing pass on aluminium produces light, fluffy chips that float on coolant. A conveyor sized for one condition will struggle with the other. That mismatch is the root of most premature wear.

Maintenance starts with understanding this load pattern. A conveyor that jams every Friday afternoon is not a random failure. It is a design or sizing boundary being crossed at a predictable point in the production cycle.

• 1
  Hinged-beltBest for mixed steel and cast iron chips, medium to high volume.
• 2
  ScraperBest for fine, short chips and high coolant flow; less tolerant of long stringers.
• 3
  ScrewBest for small machines and low volume; prone to wrapping on stringy chips.

Chain and sprocket are the primary wear pair. The chain stretches as pin and bushing surfaces wear. Once pitch elongation passes about 2% of nominal pitch, the chain no longer sits correctly in the sprocket teeth. Load shifts to fewer teeth, and wear accelerates on both parts.

Hinge plates and pins wear at the knuckle. Each plate pivots slightly as it passes over the sprocket. Abrasive chips work into that joint and act like lapping compound. The result is a loose belt that sags, rides high on the sprocket, and eventually jumps teeth under load.

Wear strips and guide rails take the sliding load. They are sacrificial by design. When they thin past about half their original thickness, the belt drops and the side clearance opens. Chips then fall into the return path and recirculate.

The drive unit is often overlooked. A gearmotor running hot or a torque limiter that trips repeatedly is a symptom, not a cause. Check chain tension and belt drag before replacing the motor.

• 1
  Chain pitchMeasure over 10 links. Replace when elongation exceeds 2% of nominal pitch.
• 2
  Sprocket teethLook for hooked or sharpened profiles. A worn sprocket wears a new chain fast.
• 3
  Hinge jointsCheck for side play and missing pins. Loose joints let chips pass through.
• 4
  Wear stripsReplace at 50% thickness loss to keep belt alignment.

Most jams are chip shape problems, not conveyor problems. Long stringy chips from low-carbon steel wrap around the screw or bridge across the hinged belt. They catch on a hinge pin and build a nest. Once the nest is large enough, the belt stalls or the torque limiter trips.

Fine chips cause a different failure. Cast iron dust and aluminium fines pack into the hinge gaps and the trough corners. They mix with coolant to form a paste. That paste hardens overnight and locks the belt at startup. This is why the first shift finds a conveyor that ran fine at the end of the previous shift.

Coolant condition matters more than most maintenance schedules admit. Low coolant level increases drag on the belt and reduces chip flushing. Dirty coolant carries more fines into the hinge joints. A conveyor fed with clean, full coolant at the right concentration jams far less often.

Installation alignment is the other hidden cause. If the conveyor is not level or the discharge chute is too narrow, chips back up at the outlet. The belt keeps pushing against a growing pile. The motor current climbs, the chain stretches, and the failure looks like a drive problem.

• 1
  Stringy chipsUse a chip breaker or change insert geometry to shorten them.
• 2
  Fine packingAdd a fine screen and flush the trough at each shift change.
• 3
  Coolant levelKeep the tank at the marked level; top up before the shift, not during.
• 4
  Discharge chuteCheck for buildup and clear it before it reaches the belt.

Daily checks take two minutes. Look at the discharge chute for buildup. Listen to the drive for a change in pitch. Check the coolant level and look at the chip pile shape. A sudden change in chip size or wetness tells you the cutting process changed before the conveyor complains.

Weekly checks take ten minutes. Open the inspection cover and look at the belt tension. A hinged belt should have a small amount of sag on the return side, not a tight drum. Check the wear strips for visible thinning. Clean the return path and remove any packed fines.

Monthly checks take an hour. Measure chain pitch over ten links and compare with the nominal value. Inspect sprocket teeth for hooking. Check hinge joint play with the belt stopped. Grease the drive bearings and check the gearbox oil level. Record every measurement so you can see the trend.

Annual service is a planned shutdown item. Replace wear strips, inspect the frame for cracks, and check the drive coupling. If chain elongation has passed 2%, replace the chain and sprockets as a set. Replacing only one part wears both faster.

• 1
  DailyChute buildup, drive sound, coolant level, chip appearance.
• 2
  WeeklyBelt tension, wear strip thickness, return path cleaning.
• 3
  MonthlyChain pitch, sprocket teeth, hinge play, lubrication.
• 4
  AnnualWear strips, frame inspection, chain and sprocket replacement if worn.

The decision comes down to frame condition and part cost. If the frame is straight and the trough is not worn through, a rebuild is usually the better choice. Chain, sprockets, wear strips, and hinge pins are all replaceable. A rebuild restores the original geometry and costs less than a new unit.

Replace the whole conveyor when the frame is cracked, the trough is worn through, or the drive mount is deformed. Welding a cracked frame on a chip conveyor rarely holds because the vibration and load continue. A new unit with the correct chip handling design solves the problem at the source.

Consider the chip type before rebuilding. If the same conveyor has jammed repeatedly on the same part family, a rebuild will not fix it. The unit may be the wrong type or the wrong size for the job. In that case, changing to a hinged-belt or scraper design is the real fix.

Keep one spare chain and sprocket set on the shelf. For a machine running two shifts, a conveyor failure costs far more in downtime than the parts. A planned rebuild during a scheduled maintenance window avoids the unplanned stop.

• 1
  RebuildFrame sound, trough intact, wear limited to chain and strips.
• 2
  ReplaceCracked frame, worn-through trough, or repeated jams on the same job.
• 3
  Re-typeWrong conveyor for the chip shape; change to hinged-belt or scraper.
