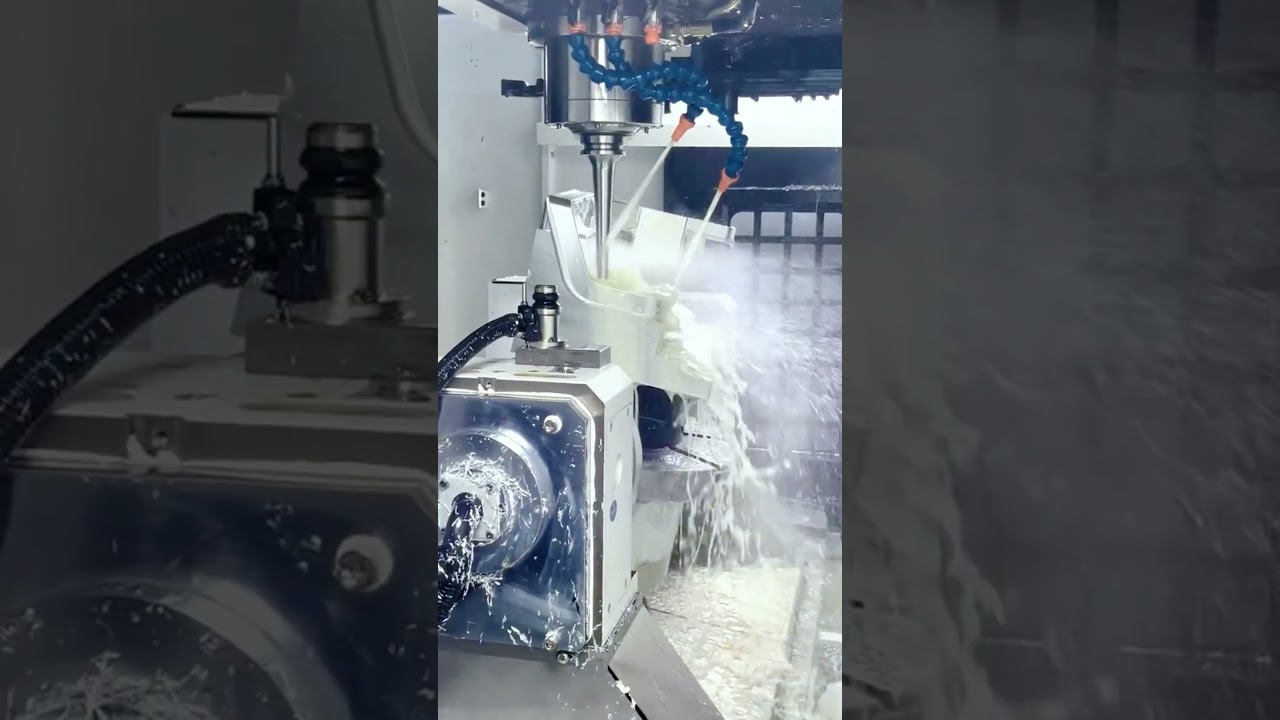

A clip of a 5-axis CNC machining process tells you about the machine, the fixture, and the operator's habits. It cannot tell you the measured tolerance of that part. Cameras lie by omission: a smooth-looking pass can still be 0.03 mm out on a bore that needs ±0.005 mm. Treat the video as evidence of method, not of result.

The useful part is the middle of the clip. Watch the first 20 seconds for how the blank is clamped, then watch a full pocket cycle. If the tool enters at an angle and the cutter axis stays tilted through the corner, you are watching true simultaneous 5-axis motion. If the table indexes between cuts and then the tool goes straight down, that is 3+2 positioning, which is fine but is a different process with different strengths.

Both methods have a place. Simultaneous motion suits contoured surfaces, impeller blades, and deep angled pockets. Indexed 3+2 suits prismatic parts with holes on several faces, because the tool stays rigid and the cycle is easier to verify. When you watch 5-axis CNC machining process footage, identify which one is running before you judge the numbers.

One more limit. Video never shows the inspection report, the material certificate, or the second shift. Ask for those separately. A supplier with a clean process and a documented inspection routine is worth more than a supplier with a beautiful reel and no paperwork.

• 1
  Simultaneous 5-axisAll axes move together. Best for contoured and sculpted geometry.
• 2
  3+2 indexedTable tilts, then locks. Best for prismatic parts with multi-face holes.
• 3
  Probe cyclesAutomated touch probing confirms position before and after the cut.

Start with the fixture. On a simultaneous 5-axis cut, the part rotates under the tool, so the clamp has to hold the blank without sitting in the toolpath. Watch for low-profile vises, dovetail blocks, or a tombstone. If the part is gripped only on a thin web, the cutter will push it and the wall thickness will taper from top to bottom.

Tool reach comes next. A Ø6 mm end mill in a shrink-fit holder might reach 60 mm below the holder nose. Beyond that, deflection climbs fast. In the video, look at how much of the flute is engaged and how far the holder nose sits from the surface. A long, skinny tool taking a heavy radial cut is a warning sign, not a show of force.

For deep cavities, a tapered tool or a necked cutter keeps the shank rigid while the tip reaches. That is a common trick on mold inserts and aerospace brackets. If you see a straight long tool doing the same job, expect chatter marks and a shorter tool life.

Fixtures also set your datum. Parts held on a dovetail then cut in one pass keep a single datum across many features. Parts flipped between operations do not. When you watch 5-axis CNC machining process footage, count how many times the part leaves the table. Zero is the goal.

• 1
  Low-profile clampingKeeps the fixture below the toolpath on rotating parts.
• 2
  Dovetail or tombstoneRigid grip that survives a full simultaneous pass.
• 3
  Necked or tapered toolsReach depth without losing shank stiffness.
• 4
  Single datumFewer flips means less stacked positional error.

You do not need the G-code to sanity-check a cut. Count the passes across a pocket and estimate the stepover. On aluminium, a Ø10 mm three-flute cutter at 12,000 rpm and 3,000 mm/min with a 1 mm stepover is a typical light finishing pass. On 17-4PH stainless, the same cutter might run at 2,500 rpm and 400 mm/min. Speed differences of that size are visible on screen.

Chip color is a rough guide. Aluminium chips should be bright and dry. If they look wet and stringy, the feed is too low or the coolant is doing the cutting. Stainless chips should break into short comma shapes. Long, tangled birds-nests mean the feed per tooth is too low, which rubs the edge instead of cutting it.

Coolant strategy matters more on 5-axis than on a 3-axis mill because the tool orientation changes. Through-spindle coolant keeps the jet at the cut regardless of tilt. Flood coolant often misses the contact zone once the part rotates 45 degrees or more. If the video shows a flood nozzle spraying air into the cavity, expect heat buildup on the flank.

None of this replaces the program. It does tell you whether the shop has tuned the process for the material or is running one generic recipe on everything.

• 1
  Aluminium finishingØ10 mm 3-flute, 12,000 rpm, 3,000 mm/min, 1 mm stepover.
• 2
  Stainless roughingØ10 mm 4-flute, 2,500 rpm, 400 mm/min, deeper radial cut.
• 3
  Through-spindle coolantKeeps the jet on the contact point through any tilt.

A 5-axis machine can hold ±0.005 mm on a good day, but that figure depends on the feature. A bore produced by circular interpolation is easier to hold than a long, thin wall that springs back after the cut. Positional tolerance across a 300 mm part is harder again, because thermal drift and rotary axis backlash both enter the stack.

Surface finish follows the same logic. Ra 0.8–1.6 μm is a normal as-machined result on aluminium and mild steel with a sharp cutter. Ra 0.2–0.8 μm needs a finishing pass with a small stepover, a fresh edge, and stable workholding. If the video shows one heavy pass and the part comes out mirror-bright, be suspicious: either the material is very free-cutting or the lighting is doing the work.

Wall thickness is the silent killer. Below about 1 mm on aluminium, the cutter pushes the wall and you get a taper or a rippled surface. On thin titanium webs, chatter is almost guaranteed without a support or a stepped finishing strategy. Watch the clip for any sign of a support block or a stepped pass on thin sections.

The honest answer is that a video shows intent, and the inspection report shows result. Ask for the report on the same part number. Raw material check, in-process monitoring, and final inspection are the three stages that matter, and GreatLight inspects 100% of parts before shipment with reports on request.

• 1
  Bore vs wallInterpolated bores hold tighter than thin unsupported walls.
• 2
  Finish rangeRa 0.8–1.6 μm as-machined; Ra 0.2–0.8 μm needs a finishing pass.
• 3
  Thin wallsUnder 1 mm on aluminium, expect taper without support.
