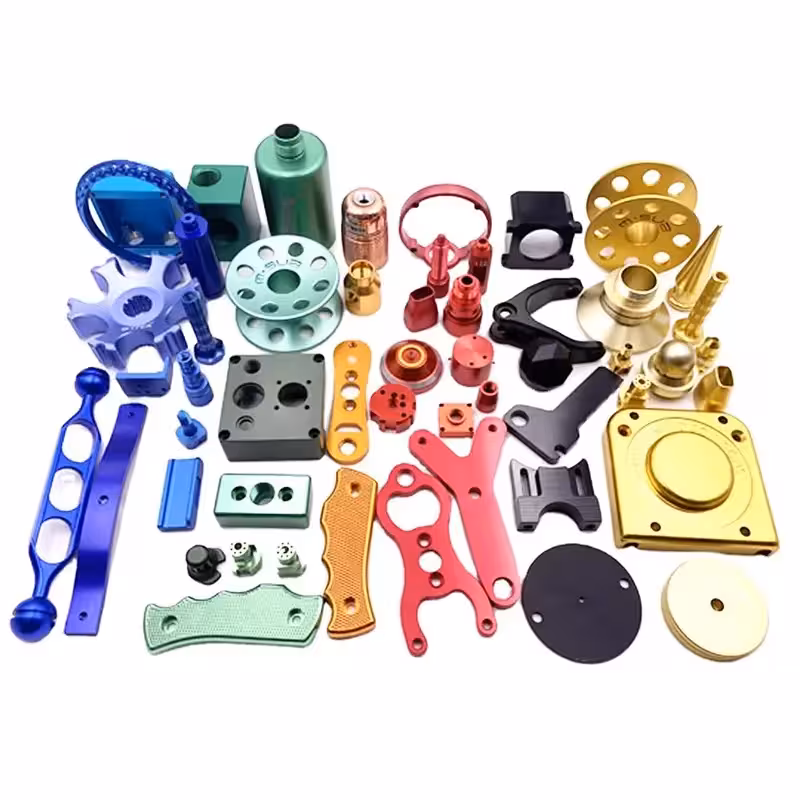

Subtractive machining removes material from a solid block until the remaining shape matches the CAD model. A rotating cutter follows a path generated by CAM software, and the machine's controller moves each axis to within a few microns of the commanded position. That is the whole idea. Everything else is bookkeeping: which tool, which speed, which order of operations.

A prototype is not a small production run. It is a part whose geometry is still moving. The goal is to answer a question: does this bracket fit, does this housing seal, does this hinge survive 10,000 cycles. Because the design may change next week, the machining strategy should maximize learning per dollar, not minimize unit cost.

That distinction changes real decisions. On a production part, you optimize cycle time and tool life. On a prototype, you often accept a slower toolpath to avoid a custom fixture, and you cut the features that are still uncertain first so a change does not scrap the whole block. Prototypes are cheap only if they are fast to re-cut.

The practical tolerance floor for machined metal is around ±0.005 mm on critical features, and surface finish between Ra 0.2 μm and Ra 3.2 μm depending on the process and material. Holding tighter than ±0.005 mm across a full part is possible but usually not worth it on a first article.

The design stage produces a 3D model, but the machinist needs more than geometry. They need datum surfaces that a vise or fixture can actually grip, and they need to know which faces are functional. A model with no flat clamping face forces a soft-jaw fixture, which adds setup time and introduces a second alignment error.

CAM software converts the model into cutter paths. The programmer picks tool diameter, stepover, stepdown, spindle speed and feed rate. For aluminum 6061 on a 3-axis mill, a 10 mm carbide end mill might run at 8,000 rpm with a 0.5 mm stepover for finishing. The same cutter in 316 stainless runs far slower, often under 2,000 rpm, because the material work-hardens.

Tool access drives more rework than tolerance does. A pocket with a 3 mm internal corner cannot be cut by a 10 mm cutter; the programmer either uses a smaller tool with a longer reach or asks the designer to add a relief. On a 5-axis machine, the tool can tilt to reach undercuts, but the setup is more complex and the quote reflects it.

This is where prototype CNC machining earns its keep. Once the toolpath is proven, re-cutting a revised design is a software change plus a new block of stock. No new mold, no new die. The cost of a design change stays low, which is the entire point of prototyping.

• 1
  Give the CAM programmer datumsFlat faces and clear edges reduce fixture cost and alignment error.
• 2
  Check internal corner radiiMinimum corner radius should be at least half the cutter diameter you can afford.
• 3
  Flag functional surfacesTolerances should sit on the faces that mate, not on every face.

Material selection on a prototype is usually about matching the production intent closely enough that the test means something. If the final part will be 6061-T6 aluminum, cutting the prototype in ABS tells you about fit but nothing about stiffness. If the final part is 316L stainless, a 6061 prototype will deflect differently under load.

Stock form matters as much as alloy. Plate is stable and easy to fixture. Bar stock suits turned parts. Castings and forgings introduce internal stresses that can move a thin wall after machining, so a prototype cut from billet may hold tolerance better than the eventual production casting. That gap is worth knowing before you commit to a process.

Some materials are poor prototype choices. Titanium Ti-6Al-4V and Inconel cut slowly and wear tools, so a prototype in these alloys can cost several times the same geometry in steel. Magnesium AZ31B and AZ91D machine quickly but require chip handling care. Engineering plastics like PEEK hold tolerance well; PP and HDPE flex and are hard to measure accurately.

The right question is not which material is best. It is which material answers the question you are asking. Fit checks tolerate softer, cheaper stock. Fatigue and thermal tests usually do not.

Deep internal channels are the clearest limit. A conformal cooling channel that snakes inside a mold insert cannot be cut by a rotating tool. Additive processes build that geometry directly. If the prototype exists to prove flow or thermal behavior of internal passages, machining is the wrong route.

Very thin, tall walls are the second limit. A 0.5 mm wall at 50 mm tall will chatter under cutting force no matter how sharp the tool. The practical floor for a stable wall is roughly 1 mm in aluminum and 1.5 mm in stainless, depending on height-to-thickness ratio. Below that, expect to support the wall or change the design.

Surface texture is the third. Machining leaves tool marks. If the part must look like a molded or cast surface, you need secondary finishing: bead blasting, tumbling, or polishing. Those steps add time and can round edges you wanted sharp.

None of these are reasons to avoid machining. They are reasons to decide early. A part that needs internal channels and a machined mating face is often best split into two pieces, machined and printed separately, then joined.

• 1
  UndercutsReachable on 5-axis or with a custom tool, not on a 3-axis setup.
• 2
  Hardened tool steelMachine in the annealed state, then heat treat and grind.
• 3
  Mirror finishesRa below 0.2 μm needs polishing after machining, not just a finer cutter.

The biggest cost item is rarely the material. It is setup and programming. A part that fits in one vise setup on a 3-axis machine costs far less than the same part requiring four setups on a 5-axis center. Designing for fewer setups is the single most effective cost lever a designer controls.

Tolerance is the second lever. Tightening a non-functional dimension from ±0.1 mm to ±0.01 mm adds inspection time and can force a slower finishing pass. Only critical features should carry tight tolerance, and they should be flagged on the drawing so the machinist knows where to spend time.

Surface finish follows the same logic. An as-machined finish of Ra 1.6–3.2 μm is standard. Pushing to Ra 0.2–0.8 μm requires a finishing pass with a smaller stepover and often a different tool, which can double the cycle time on that face.

Risk concentrates in the unknown. A geometry the shop has cut before carries little risk. A first-time geometry with thin walls, deep pockets and tight position tolerance carries a lot. Sending a DFM review before cutting is how that risk gets found on screen instead of in metal.
