UAE uses 3D printing technology to reconstruct a patient's eye socket

In 2022 a patient in Ras Al Khaimah lost vision after a punch shattered the orbital floor. Surgeons rebuilt the socket with a patient-specific implant, and UAE uses 3D printing technology to shape it. This page explains how that workflow runs, where it holds tolerance, and when a machined part is the better choice.

Patient-specific implantsCT to STL workflow±0.005 mm machiningISO 13485
UAE uses 3D printing technology to reconstruct a patient's eye socket, machined implant prototype
Background

What happened in the UAE case

In March 2022 a restaurant owner in Ras Al Khaimah was punched during an argument with a customer. The blow fractured the orbital floor and damaged the eye. Vision was lost. The surgical team chose a patient-specific implant rather than a stock orbital plate, and UAE uses 3D printing technology to produce that implant from the patient's own scan data.

The report matters less for the headline than for the process. A stock titanium mesh is bent by hand in the operating room. A printed implant arrives already shaped to one specific socket. That shift removes the guesswork from the fit, and it changes what the engineer upstream has to deliver.

This page is written for engineers and procurement teams who source medical hardware, not for surgeons. The question we answer is practical: what does the digital chain from CT scan to finished implant actually look like, and where does each manufacturing process belong?

We machine medical implants and instruments in Dongguan and Singapore. Some parts leave our floor as printed polymer, some as 5-axis milled titanium. The split is not brand loyalty. It follows geometry, load, and sterilization.

Mechanism

How the eye socket is printed and fitted

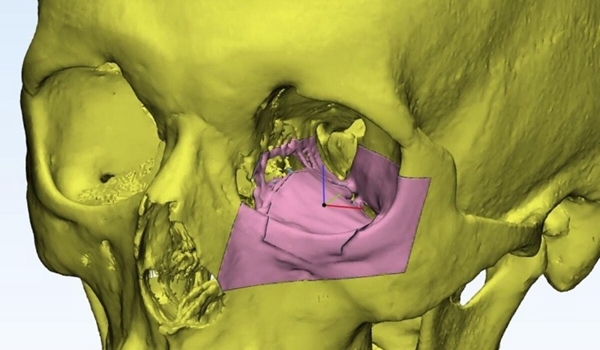

The chain starts with a CT scan of the skull at thin slice spacing, typically 0.5 to 1.0 mm. Bone and soft tissue are separated by Hounsfield threshold. The result is a surface mesh, usually exported as STL, and the mesh quality decides everything downstream. A noisy scan produces a noisy implant.

Segmentation is the slow part. An engineer or a trained technician traces the orbital floor, the medial wall, and the rim on each slice. This step takes hours, not minutes. Software can assist, but a human still checks the orbit shape against the mirrored healthy side.

The mirroring trick is common. The unaffected orbit is reflected across the midline and used as a template for the damaged side. That works when the injury is one-sided and the patient has normal anatomy on the other side. It fails with bilateral trauma or congenital defects.

Once the shape is approved, the file is prepared for the chosen process. Printing builds the part additively, layer by layer. Milling cuts it from a solid block. Both consume the same STL, but they respect different rules about wall thickness, undercuts, and surface finish.

Process choice

When printing is the right call, and when it is not

Printing wins on organic geometry. An orbital floor is a thin, curved, asymmetric shell that sits behind the eyeball. There is no good way to reach that shape with a straight end mill. Printing builds it without tool access constraints, and it can add porous lattice at the bone interface to encourage tissue ingrowth.

Printing also wins on speed for a single unit. No fixture, no stock preparation, no toolpath. A titanium or PEEK implant can be built in a day or two. For a trauma case where the patient is waiting, that lead time matters more than unit cost.

Printing loses on tolerance and on load. As-built metal printing typically lands around ±0.1 mm before finishing, and the surface is rough, often Ra 10 μm or worse. A weight-bearing fixation plate that must mate with screws at ±0.005 mm will need post-machining anyway.

Printing also loses on material density control. Porosity, unmelted powder, and residual stress are real risks in laser powder bed fusion. For a thin orbital implant these are manageable. For a 4,000 mm structural part, they are not.

  • 1
    Choose printingCurved shells, lattice structures, one-off custom geometry, no tool access.
  • 2
    Choose CNC millingFlat plates, screw holes, tight tolerances, known material properties.
  • 3
    Choose bothPrint the near-net shape, then 5-axis finish the mating surfaces.
Engineering

Tolerance, material, and what the implant has to survive

An orbital implant is not a load-bearing part in the sense a hip stem is. It holds soft tissue in place and restores volume. But it does see the pressure of the eye and the pull of the extraocular muscles, and it must not migrate. Fixation screws are usually 1.5 to 2.0 mm diameter, which means the screw holes need real positional accuracy.

That is where we split the work. The shell geometry comes off the printer. The screw holes and the seating surface are finished on a 5-axis machining center to ±0.005 mm. The rotary table at Ø400 mm lets us reach the underside of a curved plate without re-fixturing.

Material choice follows the same logic. Titanium Ti-6Al-4V (TC4) is standard for permanent implants because of its biocompatibility and its modulus, which is closer to bone than stainless steel. PEEK is used when imaging follow-up matters, since it is radiolucent. Both machine cleanly and both can be printed.

Surface finish is not cosmetic here. A rough surface traps bacteria and can cause tissue irritation. We target Ra 0.8–1.6 μm on tissue-contacting faces, and Ra 0.2–0.8 μm where a smooth glide is needed. Bead blasting and polishing get us there after machining.

Quality

Scan data, QC, and the paperwork that follows the part

The scan-to-part chain introduces error at every handoff. CT resolution, segmentation judgment, mesh smoothing, print shrinkage, and finishing stock removal all add up. A well-run workflow keeps the total inside 0.2 to 0.3 mm for a printed orbital shell, and inside 0.05 mm for the machined features.

Verification is not optional. We inspect 100% of parts before shipment, with raw material check, in-process monitoring, and final inspection. For implant work that means dimensional reports against the approved CAD, and material certificates that trace back to the mill lot.

Confidentiality matters more than most buyers expect. Patient scan data is protected health information. Uploads to our system are secure and confidential, and we sign an NDA on request before any file moves.

Our quality system is certified to ISO 9001:2015, IATF 16949:2016, ISO 13485:2016, and ISO 27001:2022. ISO 13485 is the one that matters for medical devices. It covers design, production, installation, and servicing, and it is what a hospital procurement team will ask for first.

Decision table

Printed implant vs machined implant: which fits the case

Compare by geometry, tolerance, lead time, and cost model.

Criterion3D printing5-axis CNC machining
Best geometryCurved shells, lattices, undercutsPlates, blocks, prismatic features
As-built toleranceAround ±0.1 mm±0.005 mm
Typical surfaceRa 10 μm or rougherRa 0.2–1.6 μm
Tool accessNot requiredRequired; undercuts need 5-axis
Lead time, one unit1–2 days3–5 days after programming
Cost at quantity 1Low setup, higher unitHigher setup, lower unit
Cost at 10,000+Slower per part unless moldedStrong; no minimum order quantity
Material densityPorosity and residual stress riskWrought stock, predictable

The verdict on printed orbital implants

If the part is a thin, curved, patient-specific shell, print it. If it is a flat fixation plate with screw holes that must land within ±0.005 mm, machine it. For most orbital reconstructions the answer is both, with printing for the shell and 5-axis finishing for every mating surface.

FAQs

Questions engineers ask about printed eye socket implants

What scan resolution is good enough for an orbital implant?

Slice spacing of 0.5 to 1.0 mm is the working range. Thinner slices improve the orbital floor detail but increase file size and segmentation time.

Below 0.5 mm the gain is small for this anatomy. The bigger error source is usually segmentation, not scan pitch.

Can a printed titanium implant be sterilized normally?

Yes. Ti-6Al-4V and commercially pure titanium tolerate autoclave cycles, gamma, and ethylene oxide. The concern is trapped powder in lattice structures.

Any internal channels need a validated powder removal step before packaging. That is a process control issue, not a material issue.

Why not print the whole implant including screw holes?

You can, but the holes will land around ±0.1 mm as-built. Screw holes for 1.5 mm fixation screws need tighter position control to avoid cross-threading or bone damage.

Drilling them after printing on a 5-axis machine costs little and removes the risk.

What is the difference between PEEK and titanium for this application?

Titanium is stronger and has a long clinical history. PEEK is radiolucent, so follow-up imaging shows less scatter around the orbit.

PEEK also has a lower modulus, which reduces stress shielding at the bone interface. Both are printed and machined at our facility.

How does the digital workflow handle the healthy side of the face?

The unaffected orbit is mirrored across the midline in CAD and used as the reference surface. The engineer then adjusts for any natural asymmetry.

This mirroring approach does not work for bilateral injuries. Those cases need a statistical shape model or a hand-built design.

What documentation ships with a machined medical implant?

Dimensional inspection reports against the approved CAD, material certificates traceable to the mill lot, and process records for any finishing step.

Reports are issued on request. We hold ISO 13485:2016 for medical device quality management.

Send us the scan and the drawing

Upload a CT-derived STL or a 2D drawing. We return a quotation and a free DFM analysis within 12 hours, and production can start within 24 hours.

12-hour quote100% inspectionNDA on requestNo minimum order quantity
