What matters before you download anything

Modeling and slicing are two different jobsTinkercad, Fusion 360, Blender, FreeCAD and OpenSCAD build geometry. Cura and PrusaSlicer turn a mesh into toolpaths. You need one of each.

Mesh formats cap your accuracySTL and 3MF store triangles. Fine features below the mesh tolerance get rounded off before the slicer ever sees them.

Layer lines set the surface, not the softwareA 0.2 mm layer leaves a step you can feel. Slicer settings change the size of that step, not whether it exists.

Free tools are for form, not for fitsPrinting proves a shape. When a bore has to sit at Ø10 H7 or a face has to be flat, the workflow changes.

Licenses change without warningFree tiers get re-scoped. Keep a copy of your exports, not just the project file, and check the terms before a deadline week.

Tool comparison

The 7 tools at a glance

Roles and limits for free 3d printing software for beginners.

Tool	Main job	Good first part	Watch out for
Tinkercad	Browser modeling	Simple brackets, jigs	10 MB import limit; no STEP
Fusion 360 Personal	Parametric CAD	Parts with real dimensions	Non-commercial license terms
Blender	Mesh and sculpt	Organic shapes, art parts	Not dimension-driven; steep start
FreeCAD	Parametric CAD	Engineer-owned models	Interface takes a week to learn
OpenSCAD	Code-driven CAD	Repeatable families of parts	No mouse editing of the model
Ultimaker Cura	Slicing	FDM parts on many printers	Profile sprawl across versions
PrusaSlicer	Slicing	FDM parts with fine control	Many settings; easy to mis-set flow

Modeling tools

Free 3D printing software for beginners: the modeling layer

Five of the seven tools build geometry. Tinkercad is the fastest way in. You drag primitives, combine them, and export an STL from a browser tab. No install, no GPU. It is genuinely useful for a fixture plate, a standoff block, or a spacer you need this afternoon. Its ceiling is low: the file import limit cuts off large STEP files, and there is no real constraint system, so a 60 mm hole stays 60 mm only because you typed it that way.

Fusion 360 for Personal Use is the natural next step. Sketches, dimensions, extrudes, fillets, and an assembly tree that behaves. You can drive a model from a parameter table, which is what separates a one-off print from a design you can revise. The personal license is not a commercial license. Read the terms before you use it on a product you intend to sell.

Blender and FreeCAD sit at opposite ends. Blender is a mesh and sculpt tool that produces beautiful organic surfaces and no reliable dimensions. FreeCAD is the reverse: a parametric modeler with real constraints, a demanding interface, and a habit of rewarding patience. If your part has to fit something else, Blender is the wrong starting point.

1
Pick by deliverableArt part, pick Blender. Fitting part, pick a parametric tool.
2
Pick by revision countIf you expect three revisions, use parameters from day one.
3
Export earlySave STEP and STL together. STEP survives a tool change.

Slicing tools

Cura and PrusaSlicer: the slicing layer

Ultimaker Cura and PrusaSlicer take a mesh and produce G-code. Cura wins on printer coverage: a large profile library, a readable settings tree, and a preview that shows the actual toolpath. For a beginner, the useful habit is to change one variable at a time. Layer height, wall count, infill, and temperature. Print a 20 mm calibration cube at 0.2 mm layers, then at 0.12 mm, and compare the walls with your fingers.

PrusaSlicer exposes more of the machine. You can set extrusion width, pressure advance behavior, and per-feature speeds. That control is worth having once you know what you are tuning. It is also easy to break a print by changing three settings at once. Keep a written record of the profile that worked, with the material and the nozzle size, because a saved profile is only valid for that combination.

Neither slicer fixes a bad mesh. Non-manifold edges, flipped normals, and zero-thickness walls pass through the slicer and show up as missing layers or gaps on the bed. Repair the mesh in the modeling tool or a mesh repair step before slicing.

1
Nozzle sets the floorA 0.4 mm nozzle will not give you a clean 0.2 mm wall.
2
Layer height sets the finish0.12 mm layers look better and take roughly twice as long.
3
Dry filament firstWet PETG pops and strings no matter what the slicer says.

Where it breaks

Where free 3d printing software for beginners stops being enough

The first wall is dimensional. A desktop FDM printer holds roughly ±0.2 mm on a good day, and ±0.5 mm is common on a hobby machine. That is fine for a housing that hides a board. It is not fine for a bearing seat, a dowel pin hole, or a mating face that has to sit flush. Layer lines also create anisotropic strength: a part loaded across the layer direction is weaker than the same part loaded along it.

The second wall is the license. Free tiers get re-scoped. A feature you relied on can move behind a paywall, and older installers stop being supported. If a customer deliverable depends on that feature, you now own a schedule problem. Keep exports in neutral formats, keep a vendor-independent copy of the geometry, and do not let a project file live only inside one free tool.

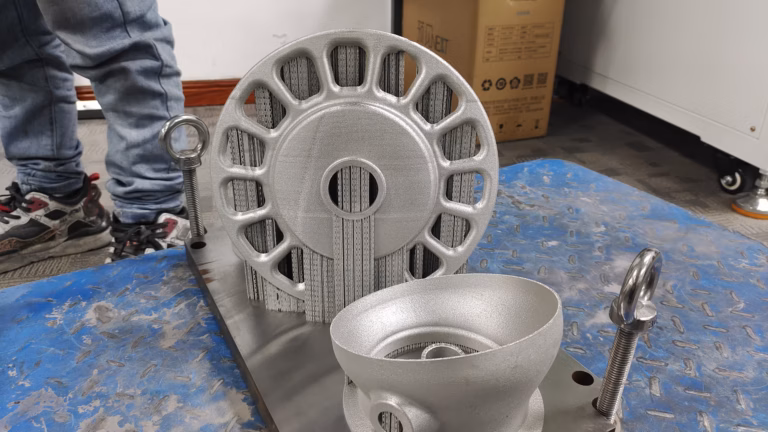

The third wall is material and process. Filament and resin cover a narrow slice of engineering plastics. There is no reliable way to print 6061-T6, 17-4PH, or TC4 (Ti-6Al-4V) on a desktop machine. When the part needs metal, a tight bore, or a certified surface finish, the file has to leave the free workflow and go to a machining quote.

1
TolerancePrint for form. Machine for fits and interfaces.
2
AnisotropyLayer direction changes strength; keep load along layers.
3
MaterialAluminium, stainless, and titanium are outside the desktop print box.
4
TraceabilityCertified jobs need inspection records, not a slicer profile.

Handoff

Getting from a beginner model to a machined part

When a printed prototype has proven the shape, the usual next step is a machined version in the final material. The geometry you built in a free modeler is often enough to start. A STEP file exported from Fusion 360, FreeCAD, or OpenSCAD carries real surfaces and dimensions, unlike an STL. Send that, plus the critical dimensions, and a shop can quote from it.

At GreatLight we run 127 high-precision CNC machines across three wholly-owned plants, including 16 simultaneous 5-axis machining centers and a Ø400 mm rotary table. Tolerance is held to ±0.005 mm (±0.0002 in) where the drawing calls for it, with surface finish from Ra 0.2–0.8 μm on a fine requirement to Ra 1.6–3.2 μm as-machined. Maximum processing size is 4,000 mm, so the large frames and long rails that no desktop printer can make are in range.

Quotation and a free DFM analysis come back within 12 hours, production can start within 24 hours, and parts ship in 3–5 days. There is no minimum order quantity, from one prototype to 10,000+ part runs. Materials cover 6061, 7075, 304, 316L, 17-4PH, 4140, TC4, Inconel, and engineering plastics from POM to PEEK. Finishes include anodizing, plating, powder coating, bead blasting, and laser marking.

Certifications are ISO 9001:2015, IATF 16949:2016, ISO 13485:2016, and ISO 27001:2022. Every order is inspected 100% before shipment, with raw material checks, in-process monitoring, and a final report on request. Uploads stay confidential and an NDA is available.

1
Send STEP, not STLSTEP keeps the surfaces a machinist can offset and fixture.
2
Mark critical dimsFlag the bore, the seat, and the datum faces on the drawing.
3
Say the quantityOne part and 500 parts get different processes and fixtures.

Workflow

Step by step: a beginner print that tells you something

Run this once with any of the free tools above. It takes an afternoon and answers the tolerance question for your own machine.

1
Model a test block with three featuresOne Ø10 mm through hole, one 20 × 20 mm pocket 3 mm deep, one 40 mm flat face. Keep it under 50 × 50 × 20 mm so it prints in about an hour.
2
Export both STL and STEPSet the mesh tolerance to 0.01 mm so the hole is round rather than faceted. Keep the STEP file for the machined version later.
3
Slice at two layer heightsStart with 0.2 mm layers, 3 walls, 25% infill, 210 °C nozzle for PLA. Then slice the same part at 0.12 mm. Note the time difference.
4
Print and measure the hole firstMeasure the hole with a pin gauge or calipers. Expect it to come out 0.1–0.3 mm undersize. That is normal, not a slicer bug.
5
Check flatness on the 40 mm facePut it on a surface plate or a straight edge. Warping shows up at the corners first. A brim or an enclosure reduces it.
6
Write down what changedRecord material, nozzle, layer height, and measured result. Two or three of these records are worth more than any settings forum.
7
Decide the next step from the numbersIf the hole is more than 0.3 mm off or the face rocks, that feature belongs on a machined part, not a printed one.

FAQs

Questions engineers ask next

Can I sell parts designed in free 3D printing software for beginners?

It depends on the license, not the tool. Some free tiers allow commercial use, some do not, and some restrict revenue above a threshold. Read the current terms for the exact version you installed.

The geometry itself is yours. Keep a STEP export so the design is not locked to one vendor's file format.

Is an STL file enough for a CNC quote?

It can be, for simple prismatic parts, but a mesh loses the exact surface definition. A shop has to rebuild or fit surfaces, which adds risk.

Send STEP or IGES plus a drawing with the critical dimensions and tolerances. That is the fastest route to an accurate quote.

What tolerance should I expect from a desktop FDM printer?

Around ±0.2 mm on a well-tuned machine, and closer to ±0.5 mm on a hobby printer that has not been calibrated. Shrinkage, flow, and backlash all contribute.

For holes, expect the printed diameter to run undersize and plan a drill or ream step if the fit matters.

When should I switch from printing to CNC machining?

Switch when the part has a mating interface, a press fit, a bearing seat, or a flatness callout. Also switch when the material has to be metal.

A useful rule: if the print failed the hole or flatness check in the test block above, that feature is a machining feature.

Do free slicers work with any printer?

Cura has the widest printer library, and PrusaSlicer can be configured for most open FDM machines. Both let you define a custom machine.

Closed systems sometimes need the vendor's own slicer for calibration. Check before you buy a machine to save on software.

How do I keep my design confidential when I send it out?

Ask for an NDA before you upload, and send only the files needed for the quote.

GreatLight treats uploads as secure and confidential and provides an NDA on request.
