Fine Bore Tool Treatment Technology on CNC Machining Centers
A boring bar with a dial looks simple until the hole comes out 0.02 mm off after a tool change. This page explains what actually moves the cutting edge on a fine bore tool: thread pitch, slide clearance and the locking screw. Written for process engineers and programmers who have to hold a bore tolerance on a machining center, not on a lathe.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
Why a fine bore tool behaves differently from a lathe boring bar
On a lathe the part turns and the bar stays still, so the operator can watch the insert and nudge the cross slide. On a machining center the spindle turns and the fine bore tool travels along the Z axis. Nobody can touch the bar mid-cut. Diameter has to be set before the tool enters the bore, and every adjustment has to be repeatable from outside the machine.

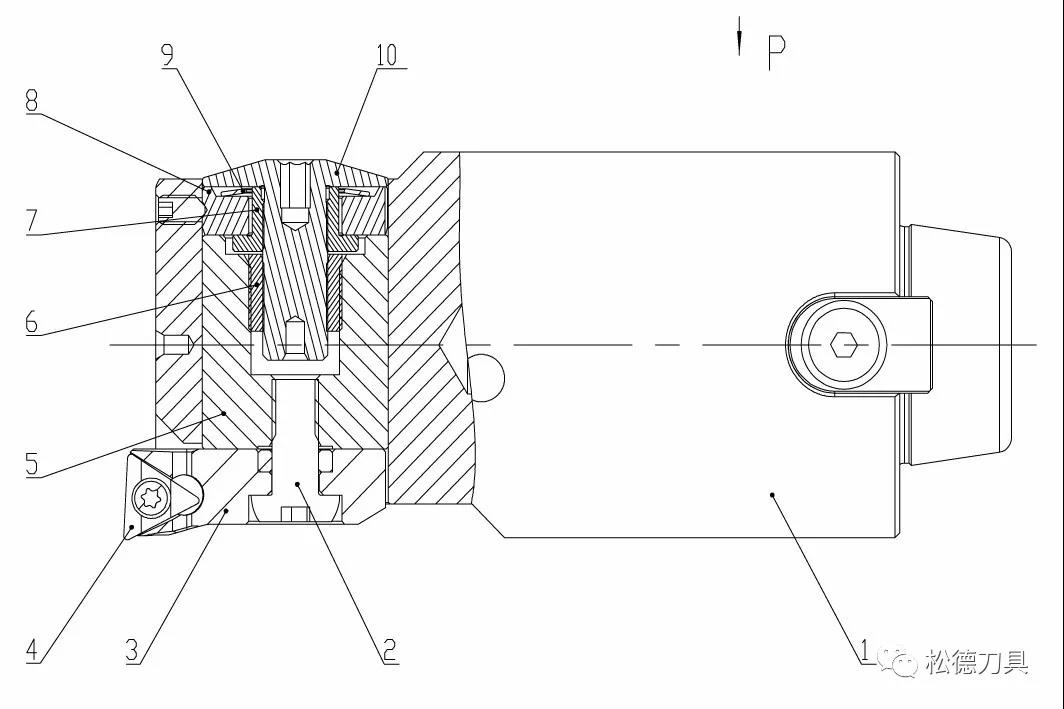

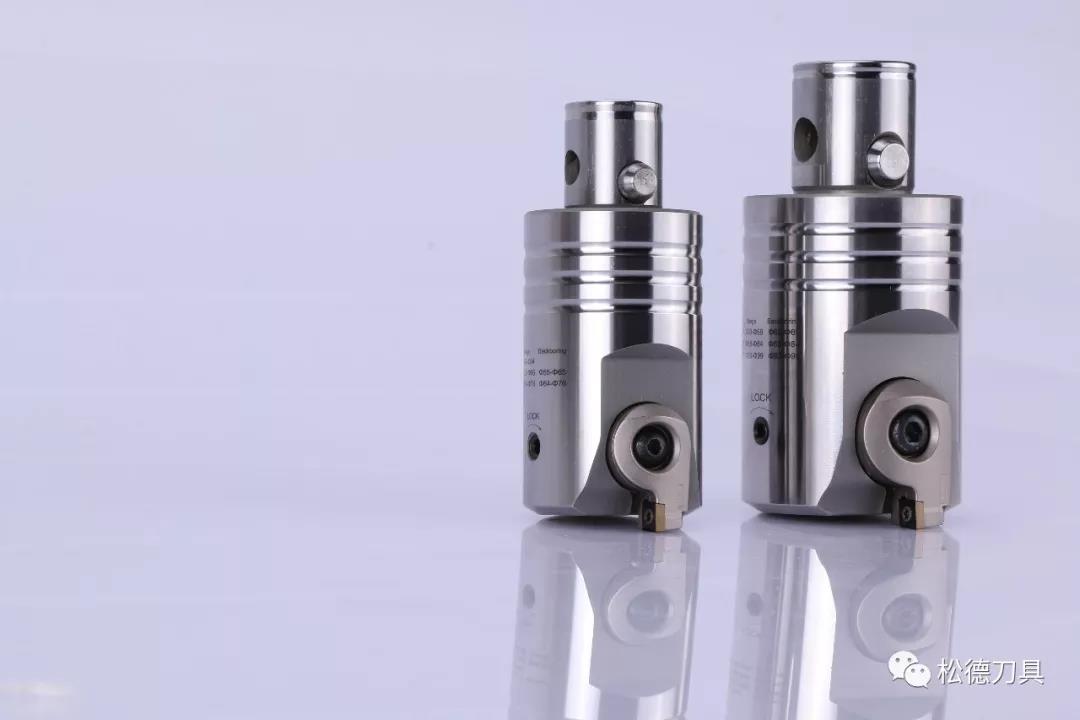

That single difference explains most of the design. A fine bore tool carries its own diameter adjustment mechanism inside the head: a graduated dial, a threaded push rod and a sliding insert holder. When you turn the dial, the insert holder slides radially by a fixed amount per graduation. The dial is the only interface between the operator's hand and the cutting edge, so its accuracy becomes the accuracy of the hole.
Typical commercial heads are graduated at 0.01 mm per line on diameter, and the good ones hold that value within a few percent over the full travel. The head does not cut metal by itself; it transfers a small, controlled radial displacement into a rigid bar clamped in a 40 taper or HSK holder. Everything in that chain adds error, and the chain is short enough that you can actually calculate it.
Fine boring is not roughing. A fine bore tool is meant for the last 0.2–0.5 mm of stock on a bore that already has a true axis. If you try to take 2 mm radial stock with a 0.01 mm dial head, the bar deflects, the insert chips and the dial reading means nothing.
Dial resolution: what the thread pitch really controls

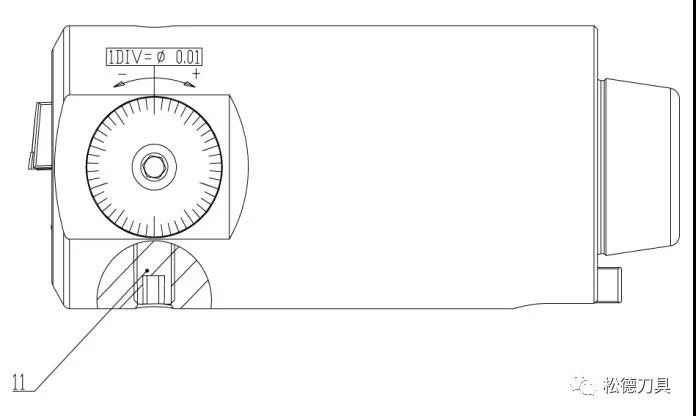

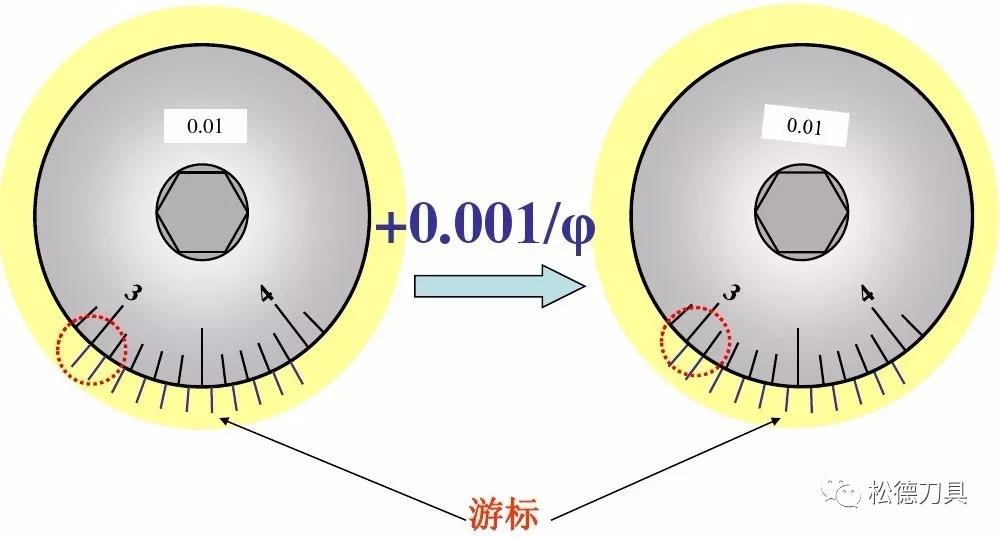

Inside the head, the adjustment comes from an internal thread driving a mating external thread. One full turn of the dial moves the insert holder by exactly one thread pitch, and the dial is divided into graduations across that turn. If the thread pitch is 0.5 mm and the dial has 50 lines, one line equals 0.01 mm of radial movement.
That number is radial, not diametral, but boring heads are normally marked on diameter so the operator can compare the dial directly with the micrometer reading of the bore. Check which convention your head uses before you trust it. A 0.01 mm line that is actually radial will double your correction and you will chase the bore back and forth for an hour.
Thread quality sets the ceiling. A rolled thread with a loose fit class has backlash between the flanks, so the first dial movement after a direction change is partly lost. Better heads use ground threads with a close fit and a spring or preload element that keeps one flank in contact. That is why two heads with identical pitch and graduation can behave very differently after 200 adjustments.
Temperature matters less than people assume, but cleanliness matters a lot. Chips and dried coolant inside the thread stack up as a false zero. Wipe the dial area and blow out the head before you set a critical bore, and re-check the zero after the first part.
Slide clearance and the locking screw
The insert holder slides in a dovetail or a ground slot. That fit has to be tight enough to keep the cutting edge from tilting, yet loose enough to move when you turn the dial. Every fine bore tool sits somewhere on that compromise, and the clamping screw is what freezes the position after adjustment.
Two fits matter. First, the sliding fit between insert holder and body: too loose and the edge deflects under cutting force, producing a tapered or bell-mouthed bore. Second, the contact between locking screw and holder: a pointed screw pressing on a soft surface will indent it, and the next adjustment will jump. Flat pads, brass tips or clamp plates spread the load.
The test is simple. Set the head to a diameter, lock it, and measure with a micrometer over the insert tip before and after locking. On a healthy head the reading does not move. If locking shifts the edge by 0.005 mm or more, the screw is pushing the holder sideways and no dial value will save the bore.
Repeatability is the real specification. A head that adjusts to the right size once is not useful; a head that returns to the same size after ten adjustments is. Ask for the adjustment repeatability figure, not just the resolution.
Interfaces, stems and why modularity decides your setup time

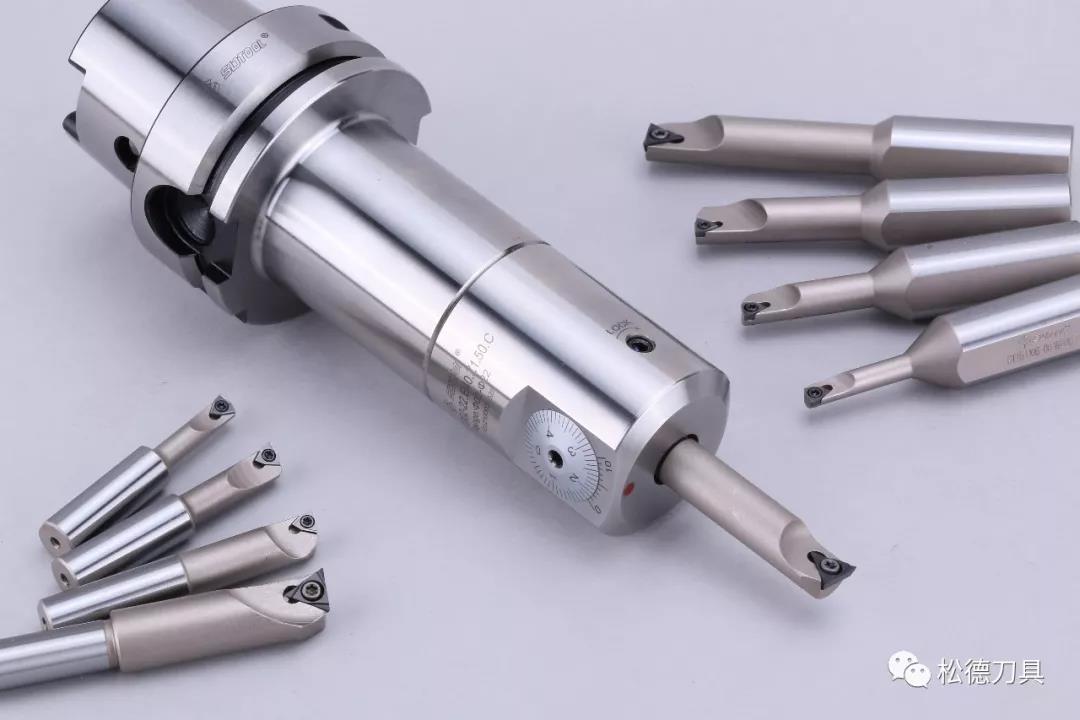

A modular fine bore tool is a set: head, reduction sleeve, stem and clamping unit. The same stem often serves both rough and fine heads of the same interface size, so a shop can buy one set of stems and swap only the head. That is the practical reason modular systems dominate machining centers.

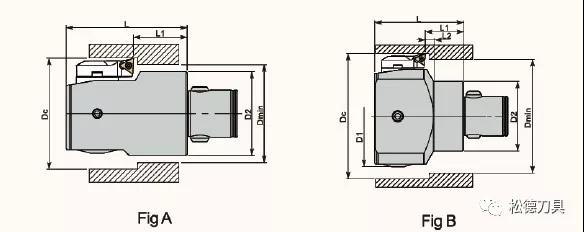

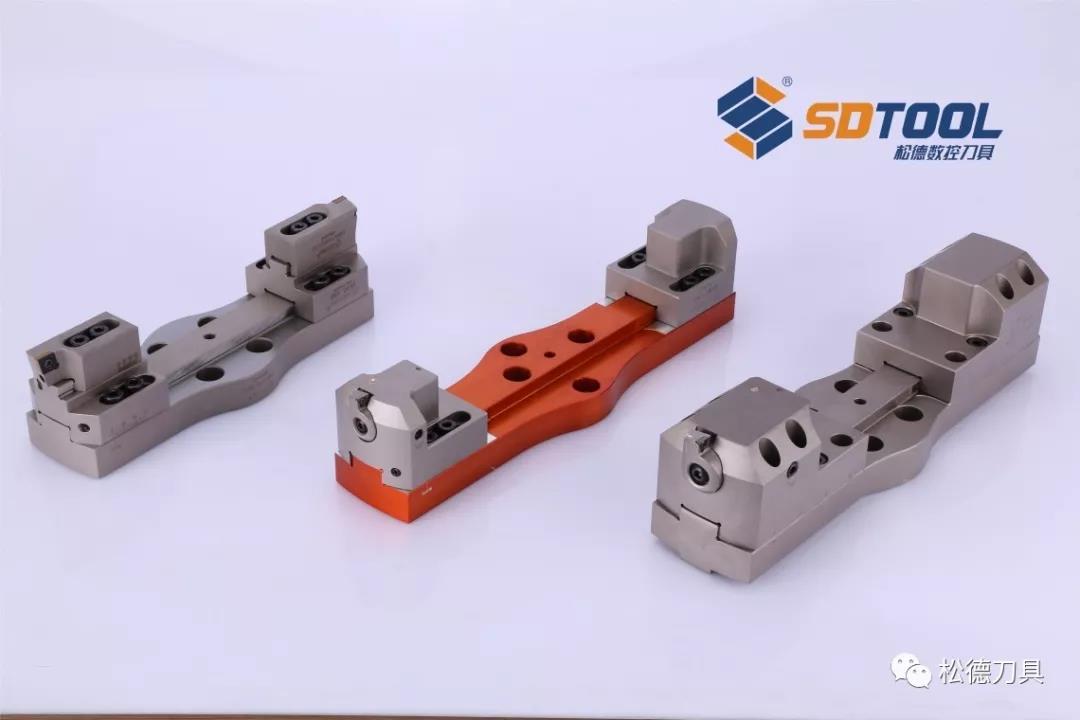

Two interface families appear most often. The smaller family, usually called E-type, covers the Ø20–Ø212 mm class and is common on 40 taper machines. The larger K-type family takes bigger heads and heavier cutting loads, and it is what you see on large horizontal boring mills. They are not interchangeable, and adapters between them cost rigidity.
Each head specification normally ships with several insert holder styles, often listed as type A, B and C. They differ in approach angle and clearance, which decides whether the head can reach the bottom of a blind bore or only open through-bores. Pick the holder before you pick the head; a holder that cannot enter the bore makes the whole set useless.
Stem length is a rigidity decision, not a convenience decision. Every 4:1 increase in overhang roughly cuts the static stiffness of the assembly. If a bore is 300 mm deep and Ø40 mm, expect to take several light passes, and expect the dial correction to be less predictable than on a short bore.
Fine bore tool ranges and where each one fits
Match the head to bore diameter, interface and stock removal.

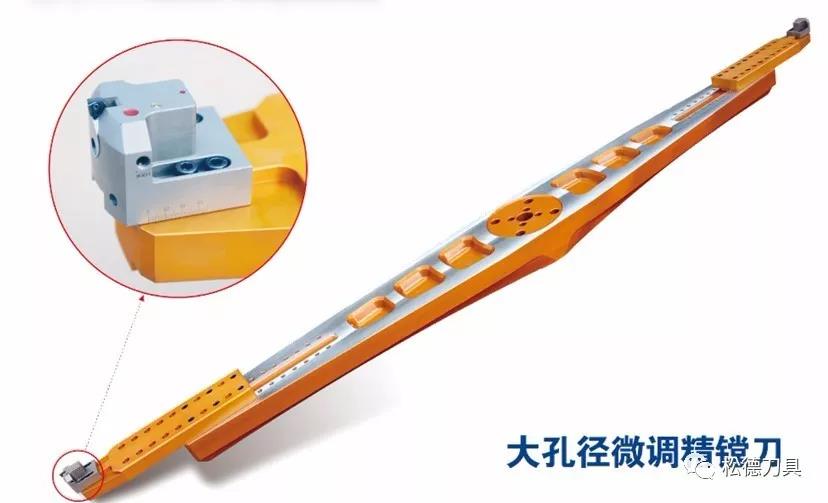

| Head class | Bore range | Adjustment step | Typical use |
|---|---|---|---|
| Small head, D02–22 style | Ø2–Ø22 mm | 0.01 mm per line | Small hydraulic and injection bores |
| Medium head, D06–50 style | Ø6–Ø50 mm | 0.01 mm per line | Pump bodies, bearing seats, valve housings |
| Large head, Ø20–Ø212 mm | Ø20–Ø212 mm | 0.01 mm per line | Gearbox and housing bores on large frames |
| Rough boring head | Same range as its head | 0.05 mm or coarser | Remove stock before the fine pass |
Symptoms, causes and what to change
| Symptom | Likely cause | What to change |
|---|---|---|
| Bore size moves after locking | Locking screw pushes the holder | Use a clamp-plate or flat-pad head |
| Bore tapers along its depth | Bar deflection at long overhang | Shorten overhang or add a support bushing |
| Dial correction overshoots | Head marked radial, not on diameter | Halve your correction and re-measure |
| Size drifts over a run | Chips or dried coolant in the thread | Clean and re-zero the head each shift |
| Roundness error, lobed bore | Loose slide fit or worn insert seat | Replace the holder or the head |
| Chatter at the bore bottom | Rubbing insert or too much nose radius | Reduce nose radius, raise feed slightly |
Short version
If you need a few bores held within ±0.005 mm on a machining center, buy a fine bore tool with a ground thread and a clamp-plate lock, and keep the overhang short. If you only need an open tolerance or you are removing more than 0.5 mm radial stock, a rough boring head plus a reamer is cheaper and faster.
Common questions about fine bore tools
Is the dial graduation radial or on diameter?
Most boring heads are marked on diameter so the number matches a bore micrometer. A few older or specialty heads are radial.
Test it once: adjust ten lines, cut, and compare the bore change with 0.10 mm. If the bore moved 0.20 mm, the head is radial and you should halve every correction.
How much stock should be left for a fine boring pass?
Leave 0.2–0.5 mm radial on a bore that is already round and on axis. Below 0.1 mm the insert tends to rub and work-harden the surface.
Above 0.5 mm the bar deflects and the size becomes unpredictable. Remove the extra stock with a rough boring head or an end mill first.
Can a fine bore tool correct an out-of-position hole?
Only within a small range. The head changes diameter, not the axis of the bore.
If the pre-machined hole is off center, the fine bore tool will follow the existing axis. Fix location with the previous operation, or use a boring cycle that cuts the axis from solid.
Why does the bore size change between the first and tenth part?
Thermal growth of the bar and spindle is the usual reason on a long run. The first bore after a cold start tends to run small.
Measure the first three parts, then re-zero the dial. On tight work, keep the head in the spindle between parts instead of returning it to the tool magazine.
When should we use a reamer instead of a fine bore tool?
A reamer is faster and cheaper for a fixed diameter in a through-hole with a generous tolerance.
A fine bore tool wins when the diameter must be adjusted, when the bore must be corrected for position, or when the hole is blind and needs a flat bottom.
Does coolant pressure affect the finished size?
Indirectly. High-pressure through-tool coolant clears chips but also cools the bar, so size can drift when the coolant is switched off.
Keep the coolant strategy constant across the run, and never change pressure between the trial cut and production.
