Precision CNC Threading: How Threads Are Cut, Measured, and Held to Tolerance

• 1
  What precision CNC threading actually controls
• 2
  Thread milling vs tapping vs single-point turning
• 3
  Why pitch diameter drifts, and how to hold it
• 4
  How threads are inspected on the shop floor
• 5
  Thread callouts that cause problems later
• 6
  When precision CNC threading is the wrong choice
• 7
  Thread process comparison

A thread has five dimensions that matter: major diameter, minor diameter, pitch diameter, flank angle, and lead. Of these, pitch diameter decides whether the fastener fits. Major and minor diameters can look fine on a caliper while the thread still binds, because the flanks are where load transfers. Precision CNC threading means holding pitch diameter, not just cutting a groove that looks like a thread.

The helix is generated by synchronizing spindle rotation with axis feed. On a lathe, the tool moves one thread pitch per spindle revolution. On a mill, the tool orbits while the Z axis advances by the pitch. Any mismatch between rotation and feed shows up as lead error, and lead error is cumulative: a 0.02 mm error per revolution over 20 mm of thread becomes a real problem at assembly.

Material matters here. Aluminum 6061 cuts cleanly and springs back little. Stainless 316 work-hardens at the cut and pushes the tool away. Titanium Ti-6Al-4V does both. In those materials, thread quality depends less on the insert geometry and more on rigidity, coolant delivery, and how many passes you allow.

Threads are also a fatigue feature. The root radius is a stress riser. A sharp root, a torn flank, or a chattered surface will shorten the life of a threaded joint long before the thread strips. That is why we inspect threads for form, not just fit.

Tapping is fast and cheap for small holes in soft material. The tap is a full-form tool, so it cuts the whole thread in one pass. The catch is that a tap has no room to correct itself. If the hole is undersized or the material work-hardens, the tap breaks or the thread tears, and a broken tap in a stainless part is expensive to remove.

Thread milling uses a single-point or multi-tooth cutter that orbits the hole while advancing. Because the cutter is smaller than the hole, chip evacuation is much better, and you can adjust the pitch diameter by changing the orbit radius. One tool covers a range of diameters. It is slower per hole, so it suits low volume, large threads, and hard materials.

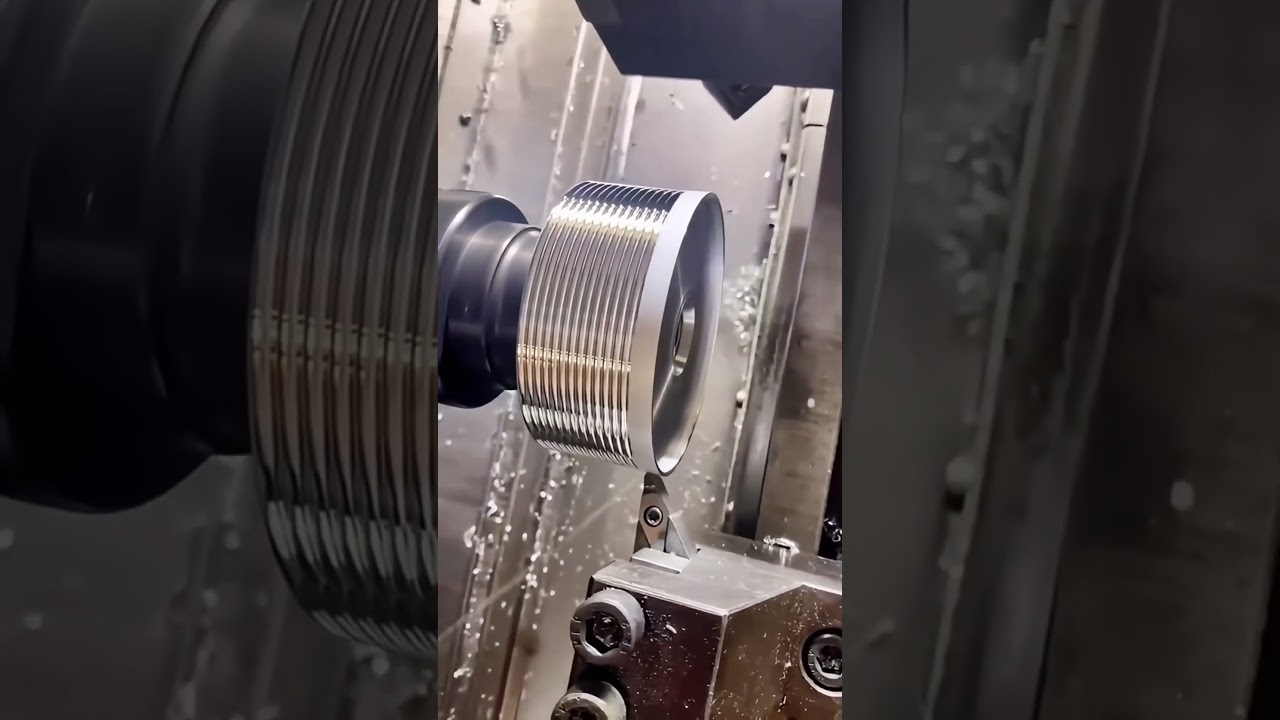

Single-point turning on a lathe cuts external threads with a form tool fed along the axis. It gives the best control over lead and flank finish, and it is the standard for shafts, fittings, and connectors. The limitation is that the part must rotate, so long or unbalanced parts need support or a different process.

A fourth option matters more than it used to: thread milling on a 5-axis center. When the thread is not perpendicular to the part face, or sits on an angled boss, a 5-axis machine can tilt the tool to the thread axis and cut it in one setup. That avoids a second fixture and the position error that comes with it.

• 1
  TappingBest for M2–M12 holes in aluminum and mild steel, high volume, rigid setup.
• 2
  Thread millingBest for large threads, hard alloys, blind holes, and one-tool flexibility.
• 3
  Single-point turningBest for external threads on shafts and fittings, tight lead control.
• 4
  5-axis millingBest for angled or non-normal thread axes in one setup.

Pitch diameter drifts for four reasons: tool wear, thermal growth, material springback, and setup runout. Tool wear is the easiest to manage. A tap or insert wears on the flanks, so the effective pitch diameter creeps up over a run. On a long production run, the first and last parts can sit at opposite ends of the tolerance band even if nothing else changes.

Thermal growth is the quiet one. A spindle running at 12,000 rpm warms up over the first hour. The part grows with it. On a tight thread class, that shift can move pitch diameter by several microns. Shops that hold ±0.005 mm consistently measure parts at a controlled temperature, or they warm the machine before the first cut.

Springback depends on material. Stainless and titanium push back against the tool, so the cut is shallower than the programmed depth. Machinists compensate by cutting a test thread and measuring it, then adjusting the offset. That is why we do not treat the first part as scrap. It is the calibration.

Runout is a setup problem, not a cutting problem. If the tap holder or the milling chuck has 0.02 mm of runout, one flank cuts deeper than the other. The thread looks fine on a ring gauge but fails a functional check under load. For precision CNC threading, the tool holder gets checked before the job, not after.

A ring gauge or plug gauge tells you go or no-go. It does not tell you where in the tolerance band the thread sits. For most commercial work, that is enough. For aerospace, medical, or automotive safety parts, we need the number, not the verdict.

Pitch diameter is measured with the three-wire method on external threads, or with a thread micrometer. Both give a direct reading. The three-wire method uses three wires of known diameter placed in the thread grooves, and the measurement over the wires is converted to pitch diameter with a formula that accounts for the thread angle.

Optical comparators and thread profile projectors check the flank angle and root radius. This matters for fatigue-critical threads, where a sharp root will crack. A comparator overlay shows whether the actual profile matches the specified form, including the root radius that a standard gauge ignores.

For internal threads, we use plug gauges plus, on request, a thread depth and pitch inspection with a bore scope or a cast. We inspect 100% of parts before shipment, and reports are available when the drawing calls for them.

The most common issue is a thread callout with no class of fit. A 1/4-20 UNC thread can be 2A or 3A on an external part, and those two do not interchange. Class 3A is tighter and costs more to produce. If the drawing does not say, the shop will default to a commercial class, and the part may not match the mating component.

Thread depth is the second trap. A blind hole needs a usable thread depth plus clearance for the tap or the thread mill. If the callout says 12 mm of full thread in a 15 mm deep hole, there may not be enough room for the tool to reach full depth. We recommend specifying thread depth and minimum full-thread depth separately.

Thread relief is often missing. On an external thread that runs up to a shoulder, the tool needs a relief groove or an undercut. Without it, the thread runs into the shoulder and the last thread is incomplete. The mating nut will not seat. A simple relief groove solves it, but it has to be on the drawing.

Material choice interacts with thread class. A 3A thread in 316 stainless is harder to hold than the same thread in 6061 aluminum, because of springback and work hardening. If the design allows, moving to a coarser pitch or a slightly larger minor diameter gives the machinist room without losing strength.

Not every thread should be cut. If the part sees high cyclic load, a rolled thread is stronger than a cut thread because the grains flow along the thread form instead of being severed. Rolled threads also have a smoother root and better fatigue life. For a critical joint, rolling is often the better process, and we will say so.

Very fine threads in soft material are another boundary. A 0.5 mm pitch thread in pure aluminum strips easily, and the minor diameter gets small. If the design can use a coarser pitch, the joint will be more forgiving in assembly and repair.

Deep blind holes with small threads are a hard combination. The tool has to reach the bottom without rubbing, and chip evacuation gets difficult past about three times the diameter. If the hole is deeper, we may need to thread mill from both ends or change the design.

Finally, if the thread is only a locating feature and not a load-bearing joint, consider a press-fit pin or a retaining ring. Cutting a thread because the last design had one is not a reason. The drawing should say what the thread does.
