A thread is a helix wrapped around a cylinder or a hole. Producing one means removing material along that helix, or displacing metal into the profile. Everything else in thread machining is a consequence of which of those two things the tool does.

Cutting tools shear material away. A tap has the full thread form ground into it, so it makes the whole profile in one pass through the hole. A single-point tool cuts one flank at a time while the spindle and carriage stay synchronized to the lead of the thread.

Forming tools do not remove material. A roll tap displaces metal outward and upward into the thread shape. The blank hole is drilled larger than for a cut tap, because the displaced volume has to come from somewhere. Grain flow follows the new profile instead of being severed by it.

Thread milling breaks the helix into a series of arcs. A rotating cutter follows a helical path around the bore. The thread is generated by the machine's motion, not by the tool's shape, which is why one insert can cut a wide range of diameters.

• 1
  CuttingMaterial removed; chip produced; works in almost any machinable metal.
• 2
  FormingMaterial displaced; no chip; needs ductile stock and a larger pilot hole.
• 3
  MillingHelix generated by machine motion; tool shape is independent of diameter.

Tapping is the default for holes up to roughly M20 or 3/4 in. A cut tap is fast and needs only a drilled hole and a tapping head or rigid tapping cycle. The catch is chip evacuation. In blind holes, chips pile up at the bottom and can jam the tap, which is the most common cause of a broken tool in thread machining.

Spiral flute taps pull chips up and out, so they suit blind holes. Spiral point taps push chips ahead of the tool and belong in through holes. Getting that backwards is a reliable way to scrap a part.

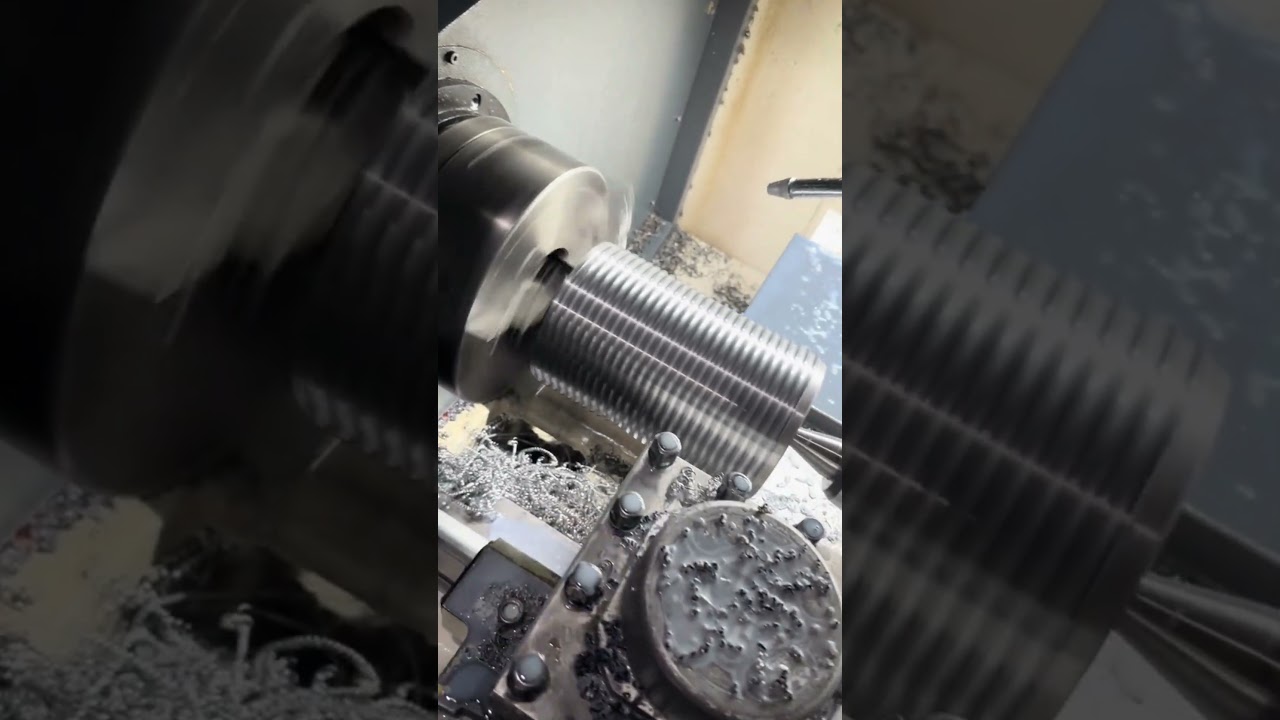

Single-point cutting on a lathe is slower per part, but it lets you dial in the pitch diameter. You can chase a thread, adjust the depth of cut after measuring, and cut right up to a shoulder without a relief groove. For one-off parts and for threads that must gauge tightly, this control is worth the cycle time.

Both methods share one weakness. The tool carries the thread form, so a worn or chipped tap cuts an undersized thread across every part it touches until someone checks it.

Roll forming produces a stronger thread in ductile material because the grain flows around the profile rather than being cut across it. There is no chip, so blind holes are far less risky. Rolled threads also resist fatigue better, which matters on fasteners and on parts under cyclic load.

The pilot hole is the whole game. Displaced metal has to go somewhere, so the hole is drilled to roughly the pitch diameter minus a small allowance, not to the minor diameter. Drill it too small and the tap loads up and snaps. Drill it too large and the crest comes out incomplete.

Forming needs material that can move. Aluminium 6061, 5052, and 6082 roll well. Low-carbon and 4130 steel roll well. Titanium TC4 (Ti-6Al-4V) rolls but loads the tool heavily. Cast irons, most plastics, and anything brittle will crack or tear instead of flowing.

Thin-wall parts are a poor fit. The radial force of forming can bulge the wall, and the bulge shows up as an out-of-round thread. If the wall is under about one thread height, cut the thread instead.

Thread milling uses a small single-form or multi-form cutter that orbits the bore while the machine interpolates the helix. The tool does not need to match the thread diameter, so one cutter covers a range of sizes and pitches within its reach.

This matters on large threads. A Ø100 mm internal thread is impractical to tap by hand and expensive to single-point on a lathe. On a 5-axis or 3-axis mill with a Ø400 mm rotary table, a thread mill handles it in one setup, and can also cut the thread concentric to a bore that was machined in the same fixturing.

Thread milling also repairs threads in place. If a thread is galled or undersized on a finished part, a thread mill can recut it without disturbing the rest of the geometry. On a tapped thread the only options are usually scrap or a helicoil.

The trade-off is cycle time. Milling a small thread is slower than tapping it, and the tool is more fragile than a tap of the same size. Below about M6, tapping usually wins on cost.

Pitch error is a mismatch between the commanded lead and the lead the tool actually produces. On a lathe or a rigid tapping cycle, the spindle and the feed axis are electronically geared. Any lag in that loop shows up as a stretched or compressed thread over its length.

Radial error comes from the tool, the holder, or the setup. Tap runout, a worn collet, or a drill that wandered all push the thread off center. On a gauge, this reads as a tight pitch diameter on one side and a loose one on the other.

Profile error is usually a tool geometry problem. A chipped tap cuts a flat on the crest. An incorrect tip radius on a single-point insert cuts the root wrong. Neither shows up on a simple go/no-go gauge until the thread is loaded.

The practical answer is measurement. Pitch diameter gauges, thread wires, or an optical comparator each catch a different error. On tight work, we inspect threads with the same care as any other critical dimension, and reports can be supplied on request.

A thread callout carries more than a diameter and a pitch. Class of fit decides how much clearance is allowed between mating parts. A 1/4-20 UNC 2B hole is looser than a 3B hole, and if the drawing does not say, the shop has to guess.

Plating changes the thread. Anodizing builds a few micrometres on the surface, which closes the pitch diameter of an external thread. If a part is anodized after machining, the thread has to be cut with an allowance or masked. The same applies to electroless nickel, which can add 10–25 μm per surface.

Material and finish interact with the method. A rolled thread in 6061 aluminium has a bright, work-hardened surface that anodizes differently than a cut thread. On stainless 316L, cut threads can gall during assembly unless the surface is passivated or lubricated.

One more thing worth stating on the drawing: whether the thread is measured before or after finishing. That single note prevents most arguments at incoming inspection.
