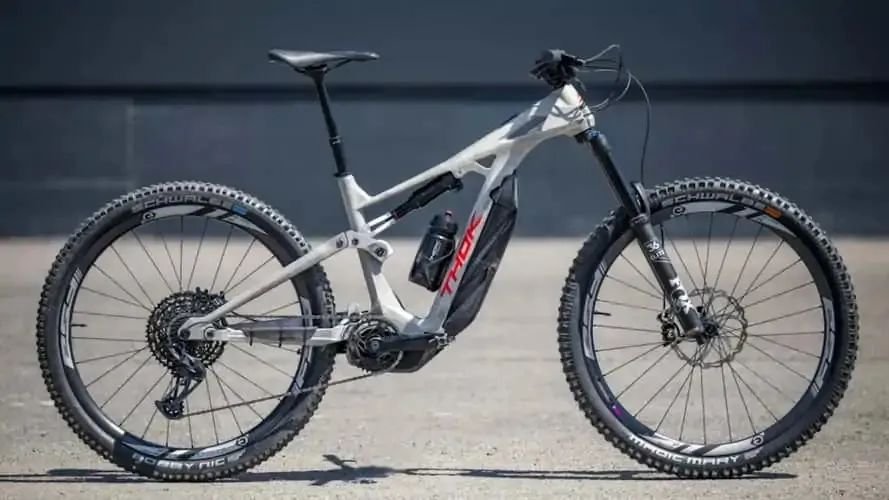

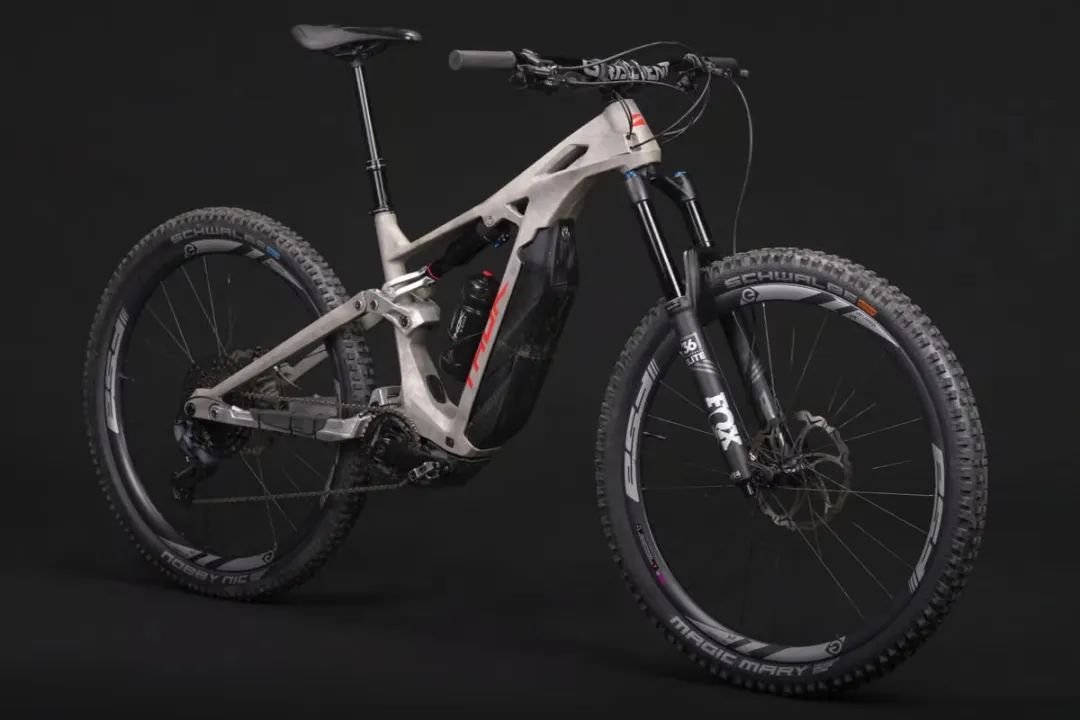

A life-size 3D printed electric mountain bike frame removes the mold from the equation. Instead of casting or laying up carbon in a tool, you deposit material along the load path. The printer follows a toolpath that runs continuous fiber or short-fiber polymer exactly where bending moments peak, so material lands at the tube junctions rather than everywhere.

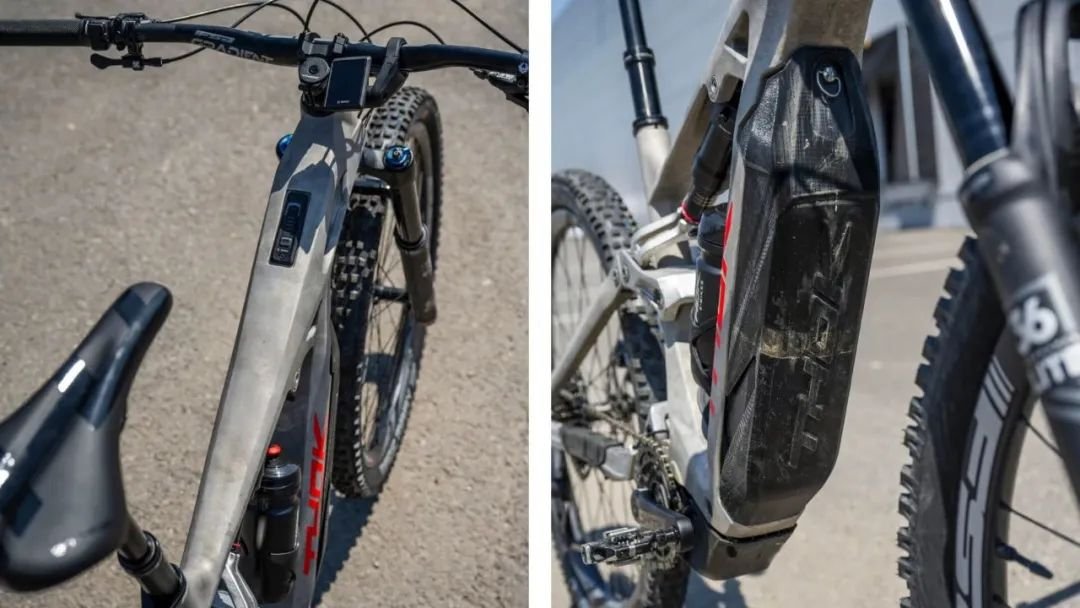

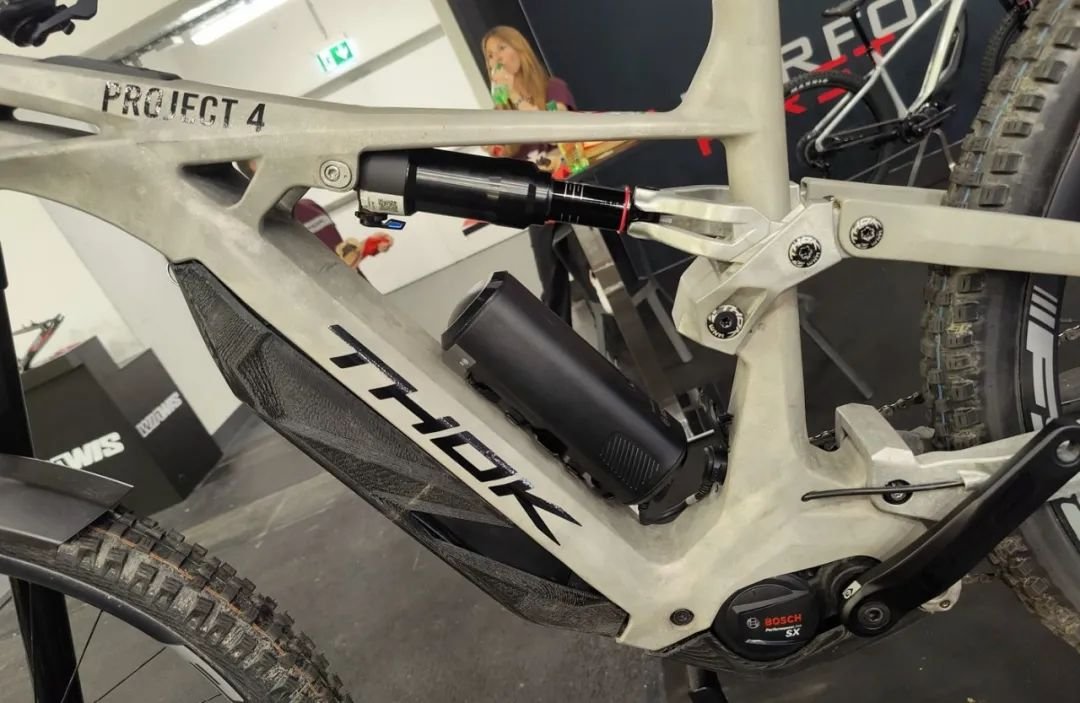

The reason this works at full scale comes down to build envelope. Industrial printers now reach 1,000 mm and beyond on the long axis, and a bike frame needs roughly 1,200–1,300 mm of diagonal reach for an XL front triangle. That still forces segmentation on most machines. THOK's approach splits the frame into a handful of printed sections that bond or bolt at the head tube, bottom bracket, and rear pivot.

Load direction matters more than raw strength. A printed frame handles compressive and shear loads along the deposited bead well. It handles peel loads across layer lines poorly. So the design rule is simple: align beads with the principal stress direction, and never let a critical joint rely on interlayer adhesion alone.

The printed part is also not the finished part. Every interface that touches a bearing, a threaded insert, or a shock eyelet has to be machined after printing. That is where the tolerance budget actually lives, and it is the part most teams underestimate on the first build.

Continuous-fiber printing gives you a specific stiffness that sits between aluminum and unidirectional carbon, but only along the fiber axis. Cross-axis properties can drop to a fraction of that. A printed down tube that looks overbuilt on paper can still flex under braking if the fiber wraps the wrong way.

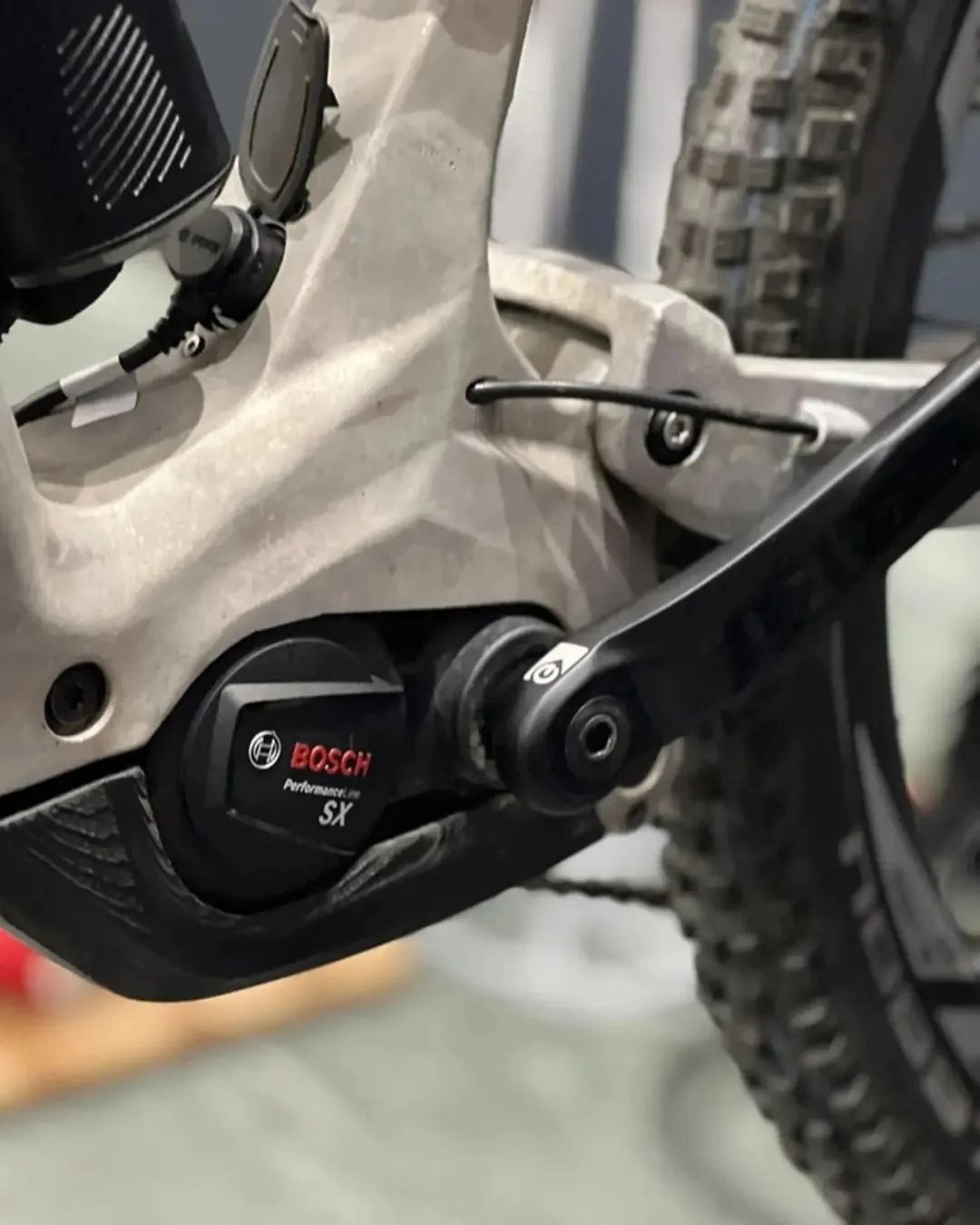

Fatigue is the real test for a mountain bike. A printed frame with a good toolpath survives millions of low-amplitude cycles. A printed frame with a cold joint or a void at the bottom bracket will crack early, and the crack usually starts at a layer boundary, not in the middle of a bead.

The engineering answer is a hybrid. Print the complex organic geometry, then machine the load-bearing interfaces from billet. A 7075-T6 or 6061-T6 insert machined to ±0.005 mm gives you a predictable bearing seat. The printed shell around it carries the shape and the stiffness.

This hybrid route also makes the frame serviceable. If a pivot bore wears, you replace the machined insert, not the whole front triangle. That is a design decision, not a printing limitation, and it is the one we recommend most often to teams building the first article.

A full-size printed frame moves through five stages: print, stress relief, machine, bond, and inspect. Skip any one and the geometry drifts. Printing alone can leave residual stress that pulls the head tube out of alignment by a millimeter or more after the part cools.

Machining the printed shell is where most shops hesitate. Printed polymer cuts easily with sharp carbide tooling, but you need a fixture that supports the thin walls without crushing them. We typically hold printed frames on a machined mandrel or a soft-jaw setup and take light finishing passes.

The metal inserts are a separate machining job, and they are conventional work. A 5-axis cut on a 7075-T6 insert holds the bearing bores, the threaded eyelets, and the shock mounts in one setup, which keeps concentricity tight. That single-setup approach is the main reason a hybrid frame hits its geometry targets.

Bonding is the quiet risk. Adhesive joints need a controlled gap, a clean surface, and a fixtured cure. A 0.2 mm bond line with the wrong surface prep will fail before the printed shell does. We specify the gap and the cure schedule before the first print, not after.

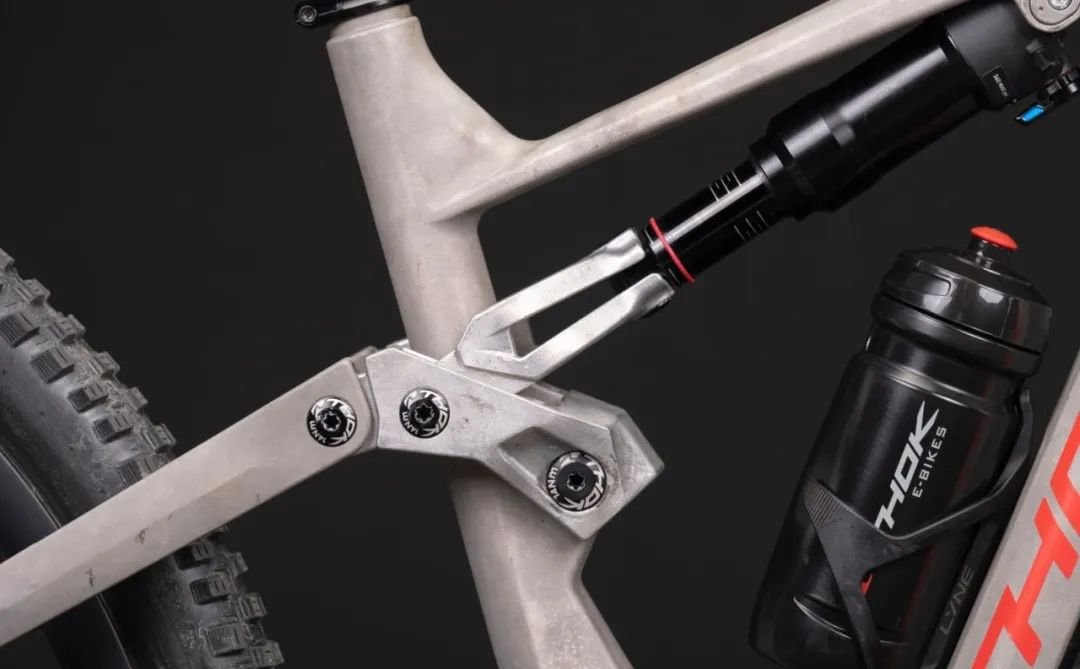

Threaded connections do not belong in a printed frame. A printed thread strips at a fraction of the torque a machined thread holds. Every M5 bottle boss, every shock bolt, every motor mount thread should be a machined insert, bonded or co-cured into the shell.

Bearing seats are the same story. A headset cup or a pivot bearing needs a round bore with a controlled interference fit. Printing gives you a near-net bore that you then ream or bore to size. Trying to print a bearing seat to final dimension is a common first-build mistake.

Large flat mating surfaces are another boundary. Printed surfaces carry layer texture and slight warp. Where two printed sections bolt together, machine the mating faces flat first, or the joint will gap and the bolts will see bending instead of tension.

The rule we give design teams: print the shape, machine the function. Anything that rotates, threads, seals, or carries a bolted preload gets a machined surface. Everything else can stay as printed.

Start with dimensional inspection against the CAD model. Check head tube angle, bottom bracket height, rear axle spacing, and pivot bore positions. A printed frame can be dimensionally correct at the joints and still be off in the middle of a tube, so check the whole centerline, not just the endpoints.

Then inspect the bond lines. A tap test or ultrasonic scan finds voids in the adhesive joint. On a frame that sees repeated shock loads, a 10 mm void at the bottom bracket bond is a crack initiation site waiting to happen.

Finally, run a static load test on the frame before any rider touches it. Load the bottom bracket and the head tube in the directions the bike will actually see, hold the load, and check for permanent set. If the frame does not return to its original geometry, the layup or the bond needs work.

We provide inspection reports on request for every hybrid frame batch, covering the machined interfaces and the as-printed geometry. Raw material certificates come with the metal inserts, since those are the parts carrying the highest stress.
