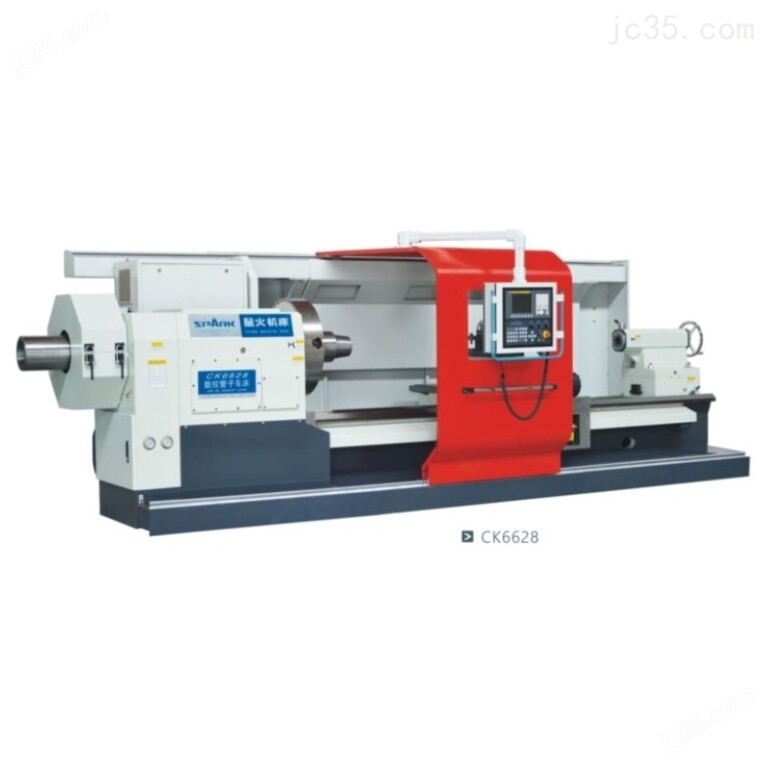

What a Large Canton CNC Can Hold, Cut and Repeat

• 1
  How a large canton CNC can stay accurate over long travels
• 2
  Work envelope, bed mass and why size changes the cutting strategy
• 3
  Sensor feedback and adaptive cutting on long cycles
• 4
  Which materials a large canton CNC can cut well
• 5
  When a large machine is the wrong choice
• 6
  Matching part and machine

Accuracy on a big machine is not the same problem as accuracy on a small one. A 4,000 mm axis accumulates error along its length, so the builder has to control pitch error, yaw and thermal growth instead of just tightening one ball screw. The machine bed is usually cast or welded in one piece, then stress-relieved and machined in a single setup so the guideways share a common reference.

Heat is the slow enemy. A spindle running at 12,000 rpm for two hours will grow several tens of microns, and that growth shows up as taper in a deep bore or as drift on a long face. Builders fight it with chilled spindle jackets, oil coolers on the ball screws and temperature sensors that feed a compensation table inside the control.

Geometry is verified, not assumed. Laser interferometry maps positioning error at dozens of points per axis, and a ballbar test catches squareness and backlash in one sweep. Those numbers go into the control as a compensation map, so the commanded position and the real position stay aligned across the whole envelope.

None of this makes a large machine as stiff as a small one at the tool tip. It makes the error predictable. Predictable error can be compensated; random error cannot.

• 1
  Pitch and yawMapped per axis, then compensated in the control
• 2
  Thermal growthChilled jackets plus sensor-driven offset tables
• 3
  SquarenessChecked with a ballbar, not with a dial indicator alone

A large machine moves a heavy column or gantry, so acceleration is limited. Where a small VMC can reverse direction in milliseconds, a gantry takes noticeably longer. The practical result is that the tool spends more time in cut and less time in rapid, which favors deep, steady passes over many shallow ones.

Bed mass helps here. A heavy bed absorbs vibration and lets the cutter take a deeper axial depth without chatter, especially in steel and cast iron. That is one reason large frames are still machined on large machines: the part itself weighs hundreds of kilograms, and a light machine would ring.

Rigidity is not uniform across the envelope. A column at the far end of travel deflects more under cutting load than one near the center. Process planners keep the heaviest cuts near the middle of the stroke and use lighter finishing passes at the extremes.

Tool reach matters as much as travel. A long boring bar or an extended end mill loses stiffness quickly, so a machine with 4,000 mm of travel may still be limited by a 300 mm overhang. The envelope is a starting point, not the whole answer.

• 1
  Deep passesHeavy bed mass supports higher axial depth of cut
• 2
  Center cutsKeep roughing away from the ends of the stroke
• 3
  Tool overhangOften the real limit, not the axis travel

On a long cycle, small changes compound. A casting with hard spots will push the tool harder in one region than another, and spindle load climbs. Adaptive control reads spindle load or axis current and trims feed rate in real time, so the cutter survives the hard patch and speeds up through the soft one.

Vibration sensing does something similar for thin walls. When a wall starts to sing, the control reduces feed or shifts spindle speed to break the resonance. This does not replace good fixturing, but it buys margin on parts that are hard to support.

The payoff is consistency across a batch. If part one and part fifty see the same feed and speed logic, dimensional spread stays tight without an operator standing at the panel adjusting override. That matters for runs that ship in 3–5 days with 100% inspection before shipment.

Adaptive control has limits. It cannot fix a tool that is already worn, and it cannot correct a setup that is not rigid. It manages variation inside a process that is otherwise sound.

Aluminum is the easy case. Grades such as 6061, 7075 and 6082 cut fast on a large machine, and the lower spindle speed needed for a big frame is not a penalty. Large aluminum plates and housings are a natural fit for a 4,000 × 400 × 150 mm work envelope.

Steels are where the machine earns its place. 1018, 1045, 4140 and 4340 take heavy roughing passes, and the bed mass keeps chatter down on deep pockets. Tool steel and pre-hardened blocks are also workable, but expect more time in the cycle and more attention to tool wear.

Stainless and titanium change the picture. 304, 316L and 17-4PH work-harden, so the cutter has to stay in the cut and keep a minimum chip load. TC4 (Ti-6Al-4V) and Inconel generate heat at the edge, which pushes coolant strategy and tool grade to the front of the plan.

Plastics and composites are usually a poor fit for a heavy machine. POM, PEEK, ABS and carbon fibre want high spindle speed and light engagement, which is exactly what a large frame does not do well. For those parts, a smaller high-speed machine is the better call.

• 1
  Good fitAluminum, carbon steel, 4140, cast iron, large plate
• 2
  Workable304, 316L, 17-4PH with correct chip load
• 3
  Poor fitThin plastic and composite parts needing high rpm

If the part fits in a 500 × 500 × 450 mm envelope and needs tight tolerances on many small features, a large machine is slower and no more accurate. A compact 3-axis or 5-axis center will finish it faster and hold ±0.005 mm with less thermal drift to manage.

If the part is thin-walled and lightly supported, the mass of a big machine works against you. Small high-speed tools on a fast spindle produce less cutting force, which is what a thin wall needs.

If the batch is small and the geometry is simple, the setup time on a large machine can dominate the cycle. Quotation and free DFM analysis within 12 hours helps here, because the DFM review usually shows whether the part can be moved to a smaller platform and run cheaper.

The honest rule: use a large machine when the part is large, heavy, or needs deep, rigid cuts. Otherwise, match the machine to the feature, not to the size of the shop.
