Stamping and welding guide

Aluminum Alloy Stamping Plates: Process Requirements for Stamping and Welding

This page explains how aluminum alloy stamping plates behave in the press and under the torch. It is written for tooling engineers, process planners, and buyers who need to set a route that holds shape and weld quality. Read it to decide alloy temper, blank prep, tooling clearance, and weld parameters before the first trial.

12-hour quote + DFM±0.005 mm machiningNo minimum orderNDA on request
aluminum alloy stamping plates being processed for stamping and welding
Quick answers

Key takeaways

Temper decides formability6061-T6 cracks on tight bends. 5052-H32 and 6061-O form far better.
Springback is the main error sourceAluminum springs back roughly 2 to 3 times more than mild steel at the same radius.
Weld prep starts at the blankSheared edges trap oxide and oil. Degrease and brush within 8 hours of welding.
Heat input is narrowAC TIG at 60 to 90 A for 2.0 mm sheet, travel 150 to 250 mm/min.
Design for the as-formed surfaceRa 1.6 to 3.2 μm as-machined is normal before any finishing step.
Material selection

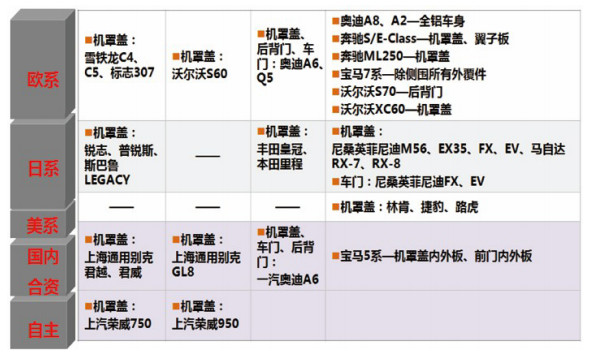

Choose the alloy and temper before you cut the first blank

Aluminum alloy stamping plates fail for one reason most of the time: the temper was picked for strength and not for forming. A 6061-T6 sheet at 2.0 mm cracks at an inside bend radius below about 2t. The same alloy in O temper takes a 0.5t radius without complaint. If the part needs post-weld strength, form it soft and let the weld or a later age cycle do the hardening.

For general enclosures and brackets, 5052-H32 is the safe default. It forms, it welds, and it resists corrosion without coating. For structural parts where weight matters more than weldability, 6061-T6 is common, but plan the bends around it. For high-strength brackets, 7075 offers the best strength-to-weight, though it welds poorly and is usually joined with fasteners or rivets.

Thickness drives the whole process window. Below 1.5 mm, handling damage and oil-canning become the main scrap sources. Above 4.0 mm, press tonnage climbs fast and springback compensation gets harder to hold. Most production aluminum alloy stamping plates sit between 1.0 mm and 3.0 mm.

One more check before release: confirm the sheet grain direction against the bend line. Bending across the rolling direction gives a cleaner result. Bending parallel to it raises the risk of edge cracking on tight radii, especially in 6061 and 7075.

  • 1
    5052-H32Best balance of formability, weldability, and corrosion resistance.
  • 2
    6061-T6Good strength, poor tight-radius formability. Use 2t minimum inside radius.
  • 3
    6061-O then ageForm soft, weld, then age to recover strength where the spec allows.
  • 4

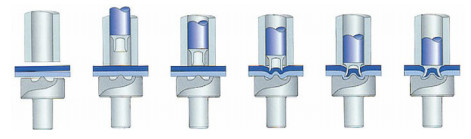

    7075-T6Highest strength, not weldable by arc. Plan mechanical joints.
Blank preparation

Blank preparation sets the tolerance for everything after it

The blank is where most dimensional error is born. Laser-cut blanks carry a heat-affected zone of 0.1 to 0.3 mm with slightly different hardness along the cut edge. That hard edge forms differently from the parent metal. If the part has a bend within 3 mm of a laser-cut edge, expect a small radius variation run to run.

For tight parts, shear or fine-blank the perimeter and leave 0.2 to 0.5 mm of stock for a later trim. Deburr both faces before forming. A 0.05 mm burr on a 1.5 mm sheet becomes a crack starter at the bend line. A quick tumble or a hand pass with a 400 grit pad is enough.

Flatness of the incoming sheet matters more than most shops expect. Coil-set or a bowed sheet will not flatten in a single-hit die. Check flatness on a surface plate with a 0.1 mm feeler over a 300 mm span. If it fails, flatten or re-source before tooling is cut.

Cleanliness belongs here too. Stamping lubricant and shop dust sit in the grain of the sheet. If the plate goes straight from the press to the weld table, those residues burn into the weld pool. Degrease after forming, not only before welding.

  • 1
    Laser edgeKeep bends at least 3 mm away from a laser-cut edge.
  • 2
    Burr limitDeburr to under 0.05 mm on both faces before forming.
  • 3
    Flatness0.1 mm maximum gap over a 300 mm span on a surface plate.
Press setup

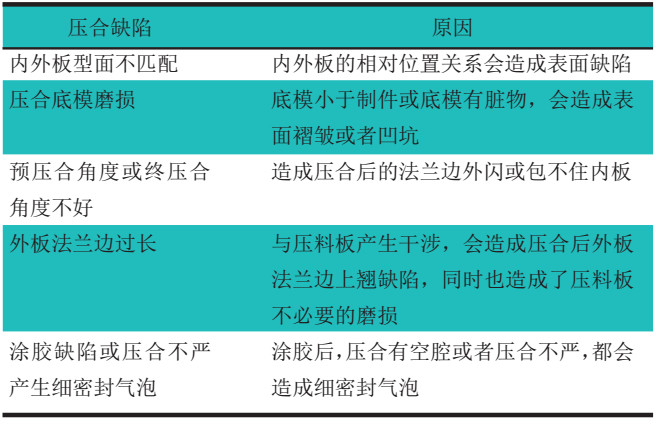

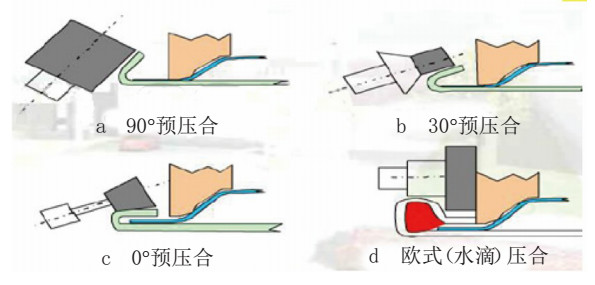

Tooling clearance and springback control in the press

Aluminum needs more die clearance than mild steel. A good starting point is 8 to 10 percent of sheet thickness per side for 5052 and 6061. Too little clearance gall the die and tears the edge. Too much clearance leaves a heavy burr and a rounded edge that will not sit flat on a weld fixture.

Springback is the number one reason a formed plate misses the drawing. Aluminum springs back about 2 to 3 times more than mild steel at the same R/t ratio. For a 90 degree bend in 2.0 mm 5052-H32 at a 3 mm inside radius, plan on 2 to 4 degrees of overbend and verify with a trial hit. Do not trust a table value alone.

For high-volume work, a bottoming or coining step controls the angle far better than air bending. Coining pressures are high, so check the press tonnage against the die area before you commit. For low-volume or prototype runs, air bending plus a shimmed overbend is faster and cheaper to adjust.

Radius and tonnage must be checked together. The minimum inside radius for 5052-H32 is about 0.5t across the grain and 1t along it. For 6061-T6, use 2t across and 3t along the grain. If the drawing calls for a tighter radius than the alloy allows, the fix is a different temper, not more tonnage.

  • 1
    Die clearance8 to 10 percent of thickness per side for 5052 and 6061.
  • 2
    Overbend2 to 4 degrees for a 90 degree bend in 2.0 mm 5052-H32.
  • 3
    Min radius0.5t across grain for 5052-H32. 2t for 6061-T6.
Welding

Weld preparation and heat input limits for aluminum plate

Aluminum oxide melts at roughly 2,050 °C, and the metal underneath melts near 660 °C. That gap is why aluminum welds go wrong. The oxide skin must be removed mechanically, not just chemically. Stainless steel brushing within 8 hours of welding is the standard practice. A wire brush used on steel will contaminate the aluminum surface with iron, so keep a separate brush for aluminum only.

AC TIG is the usual process for 1.5 to 4.0 mm plate. A starting point for 2.0 mm 5052 or 6061 is 60 to 90 A, 60 to 70 percent electrode positive balance, and 150 to 250 mm/min travel. Higher balance cleans the oxide better but puts more heat into the part. On thin plate, that heat shows up as distortion and burn-through at the edge.

Filler choice follows the base alloy. 4043 filler is the general-purpose choice for 6061 and 5052. It flows well and reduces hot cracking. 5356 filler gives higher strength and better ductility but is stiffer to run and less forgiving on fit-up. If the joint will be anodized, 5356 turns dark gray. 4043 anodizes closer to the base color.

Distortion control is a fixturing problem before it is a welding problem. Tack every 50 to 80 mm, alternate the weld sequence from the center outward, and let the part cool in the fixture. Never unclamp a hot weldment. Aluminum loses strength fast above 150 °C, and a hot part pulled from a fixture will spring into a new shape as it cools.

  • 1
    Brush within 8 hoursStainless brush, aluminum-only, then weld before oxide regrows.
  • 2
    4043 fillerGeneral purpose for 6061 and 5052. Anodizes near base color.
  • 3
    5356 fillerStronger and more ductile, but goes dark under anodize.
  • 4
    Cool in fixtureNever unclamp above 60 °C or the part will move.
Process route

Step by step: from blank to welded assembly

Follow this order. Skipping a step moves the error downstream where it costs more to fix.

  • 1
    1. Confirm alloy, temper, and thicknessMatch the drawing to a formable temper. For a 2.0 mm bracket needing a 1.5 mm inside radius, 5052-H32 works. 6061-T6 does not. Lock this before any material is ordered.
  • 2
    2. Check flatness and grain directionSurface plate, 0.1 mm feeler over 300 mm. Mark the rolling direction on each blank with a paint pen so the press operator can orient the bend line across the grain.
  • 3
    3. Cut and deburr the blankLaser, shear, or fine blank. Deburr both faces to under 0.05 mm. Keep any bend at least 3 mm from a laser-cut edge to avoid the heat-affected zone.
  • 4
    4. Set die clearance and overbendStart at 8 to 10 percent of thickness per side. Add 2 to 4 degrees of overbend for a 90 degree bend. Run three trial hits and measure the angle on a granite plate before adjusting.
  • 5
    5. Form with a controlled sequenceForm the tightest bends first while the blank is still flat and easy to locate. Check the first part against the drawing, then every 20th part for angle and radius drift.
  • 6
    6. Degrease and brush the weld zoneRemove stamping lubricant with an alkaline cleaner, rinse, dry. Then stainless brush the joint faces within 8 hours of welding. Keep the brush for aluminum only.
  • 7
    7. Tack, weld, and cool in fixtureTack every 50 to 80 mm. Weld from the center outward, alternating sides. AC TIG at 60 to 90 A for 2.0 mm plate. Leave the part clamped until it drops below 60 °C.
  • 8
    8. Inspect and documentCheck weld bead size, angle, and flatness. Record the parameters that produced a good part so the next run starts from a known point, not from scratch.
Selection data

Alloy and process comparison for stamped and welded plates

Use this as a starting point, then verify on a trial blank.

Alloy and temperFormabilityWeldabilityTypical use
5052-H32Excellent, 0.5t radiusVery good, AC TIGEnclosures, panels, brackets
6061-T6Fair, 2t radius minimumGood with 4043 fillerStructural brackets, frames
6061-OExcellent, 0.5t radiusGood, ages after weldParts aged after forming
6063-T5Good, 1t radiusGood, 4043 fillerExtruded frames, housings
6082-T6Fair, 2t radius minimumGood with 4043 fillerMachined and formed parts
7075-T6Poor, 3t radius or moreNot arc weldableHigh-strength, riveted joints
2024-T3Fair, 2t radius minimumPoor, cracks easilyAerospace, bonded joints
Process window

Stamping and welding parameters by thickness

Starting values for 5052 and 6061. Adjust after the first trial part.

ThicknessDie clearance per sideAC TIG currentTravel speed
1.0 mm0.08 to 0.10 mm40 to 60 A200 to 300 mm/min
1.5 mm0.12 to 0.15 mm50 to 75 A180 to 260 mm/min
2.0 mm0.16 to 0.20 mm60 to 90 A150 to 250 mm/min
3.0 mm0.24 to 0.30 mm90 to 130 A120 to 200 mm/min
4.0 mm0.32 to 0.40 mm130 to 170 A100 to 160 mm/min

Pick formability first, strength second

If the part has tight bends and a weld, choose a formable temper and recover strength after welding. Chasing T6 strength in the press is the most common way these projects fail. Send us the drawing and we will flag the radius and clearance issues before tooling is cut.

FAQs

Questions engineers ask before releasing the route

Can we stamp 6061-T6 and then weld it without cracking?

Yes, if the bend radii respect the 2t minimum across the grain and 3t along it. The weld itself is not the problem. The problem is the cold-worked bend line, which is already near its strain limit. Welding heat can trigger cracking there.

If the part needs a tight radius, form in O temper, weld, then age to T6. That route costs an extra furnace cycle but removes the cracking risk. Confirm the age schedule with the material supplier for the specific alloy.

How much springback should we compensate for?

Plan on 2 to 4 degrees of overbend for a 90 degree bend in 2.0 mm 5052-H32, and 3 to 5 degrees for 6061-T6. These are starting points only.

Measure the first three parts on a granite plate with a digital protractor. Adjust the die shim by the measured error, then re-run. A table value never beats a trial hit on your own press.

Why does the weld go dark or porous on anodized parts?

Anodize is an oxide layer, and it does not conduct or weld. Any anodizing must happen after welding. If the part will be anodized, choose 4043 filler, which anodizes close to the base color.

5356 filler gives a stronger weld but turns gray to black under anodize. Porous welds usually trace back to oil or oxide left on the joint faces before welding.

What is the maximum plate thickness for a stamping route?

Most production aluminum alloy stamping plates run between 1.0 mm and 3.0 mm. Above 4.0 mm, press tonnage rises sharply and springback becomes difficult to hold, so the route often moves to machining or casting.

If the part is 4.0 mm or thicker and the volume is low, CNC machining from plate usually gives a better tolerance and a shorter lead time than building a heavy die.

How do we control distortion on a long weldment?

Tack every 50 to 80 mm, then weld from the center outward and alternate sides. Keep the part clamped until it cools below 60 °C. Aluminum loses strength fast above 150 °C, so a hot part released early will move.

If distortion still exceeds the print, add a stress-relief step or redesign the joint to reduce weld volume. More tacks and less weld metal is usually the cheaper fix.

Can GreatLight support both the formed blank and the machined features?

Yes. We run 127 high-precision CNC machines, including 16 simultaneous 5-axis centers and 16 mill-turn centers, with a 4,000 mm maximum processing size. Formed plates can be trimmed, drilled, or faced after welding to hold ±0.005 mm on critical features.

We quote and return a free DFM analysis within 12 hours. Uploads stay confidential and an NDA is available on request.
