The Proper Use of Horizontal CNC Milling Machines

• 1
  What Makes Horizontal CNC Milling Machines Different
• 2
  When Horizontal CNC Milling Machines Beat a Vertical Setup
• 3
  Tombstone Setup and Workholding Rules
• 4
  Tolerance, Material and the Limits of the Process
• 5
  How Setup Order and Inspection Affect the Result
• 6
  Horizontal vs Vertical: Which Setup Fits the Part

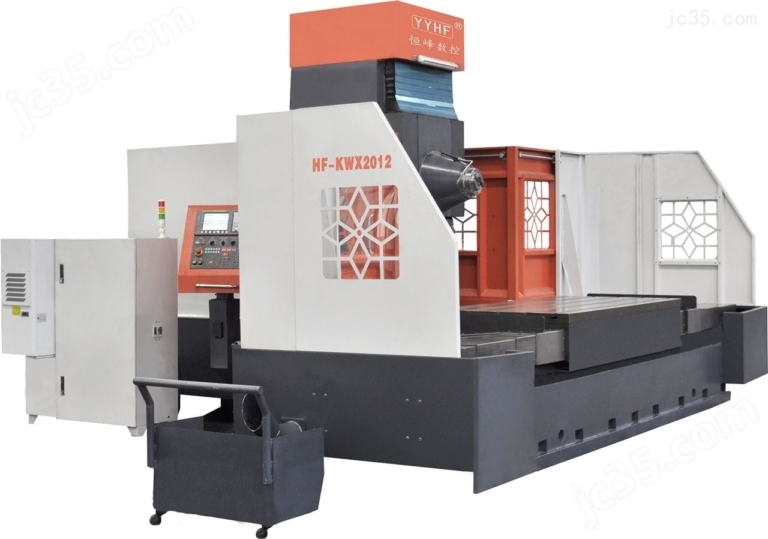

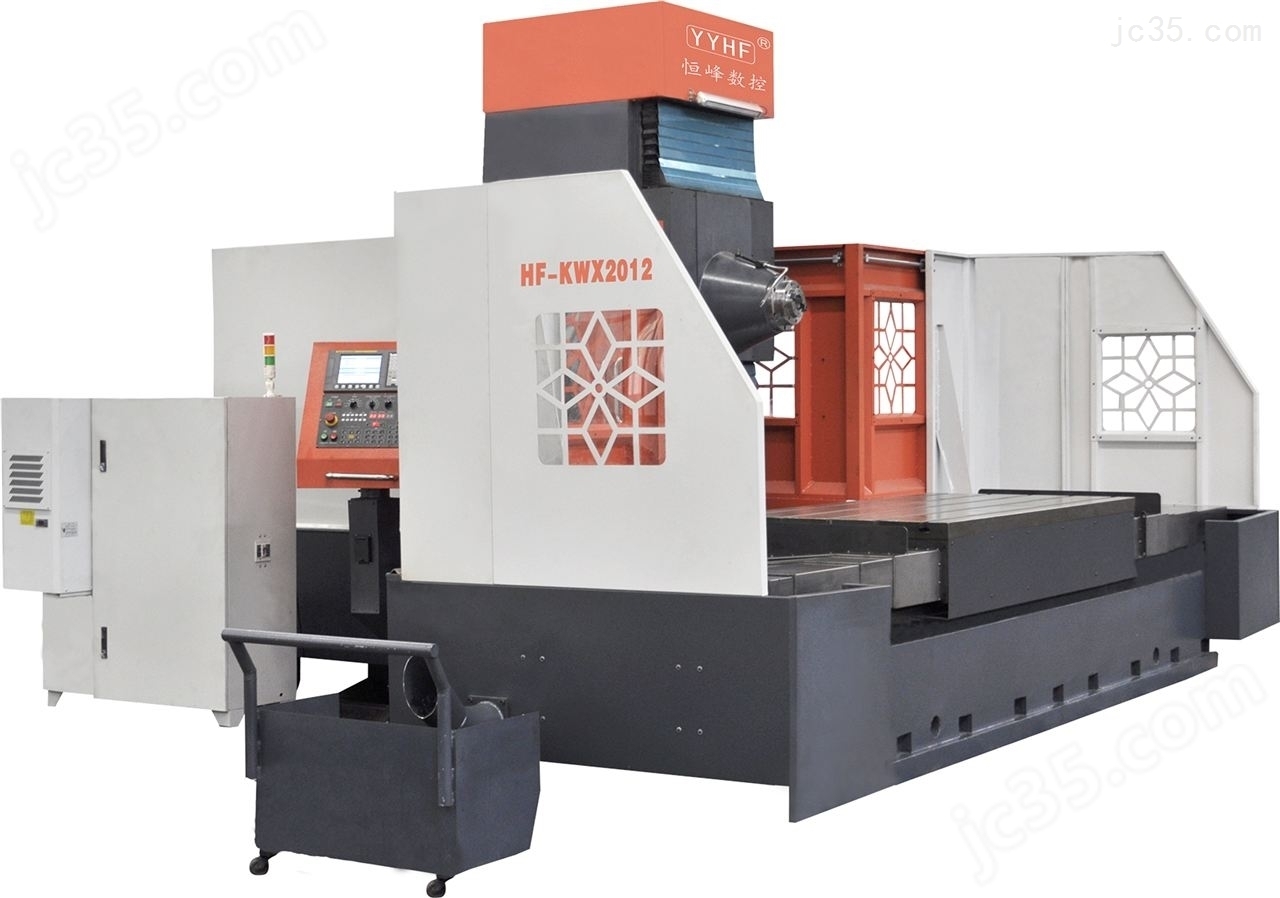

On a vertical machining center the spindle points down and the tool enters the part from above. Horizontal CNC milling machines turn that axis 90 degrees. The spindle sits parallel to the floor, the tool approaches from the side, and the table usually travels in X and Z while the column moves in Y. That single change in geometry drives almost every downstream decision.

Chips fall away from the cut instead of piling on top of it. Gravity does the chip evacuation work, so deep pockets and long slots clear far better than they do on a vertical machine. Tool coolant reaches the cutting edge with less pooling, and operators spend less time stopping to blow out a cavity.

The trade-off is reach. A horizontal spindle cannot easily machine a flat top face or a shallow pocket that opens upward. Those features need the part re-fixtured, or they need a vertical machine. Most shops that run both treat the horizontal as the volume and multi-face machine, not a universal replacement.

The base casting is heavy and the column is supported on both ends, so the structure resists deflection during heavy radial cuts. That stiffness is why horizontals hold up well in cast iron, steel and other materials that push back hard on the tool.

The clearest case is a part with features on four or five faces. A gearbox housing, a manifold block or a valve body might need bores, faces and tapped holes on every side. On a vertical machine that means four or five separate setups, each one adding a re-clamp error and an hour of work. On a horizontal with a tombstone, the part rotates between stations and most of those faces are cut in one cycle.

The second case is volume. A tombstone holds multiple parts at once, so the spindle keeps cutting while the operator loads the next face. For runs in the hundreds or thousands, the cut-time-to-load-time ratio improves enough to change the part cost. For a single prototype, that advantage mostly disappears.

The third case is chip-heavy work. Deep bores, long slots and pockets with a high material removal rate all benefit from gravity chip clearing. A horizontal machine running a 50 mm face mill in aluminium will evacuate chips faster and with less recutting than the same cut on a vertical.

If your part is a thin plate with features on one face only, none of this applies. A three-axis vertical will be cheaper, faster to set up and easier to inspect. Choosing a horizontal for that part adds fixturing cost for no gain.

The tombstone is the fixture that makes a horizontal productive. It is a vertical block, usually with four machined faces, mounted on the rotary table. Parts bolt to each face. The rotary table indexes 90 degrees at a time, so the machine can present a new face to the spindle without an operator touching the part.

Rigidity starts at the tombstone. A hollow block will ring and deflect. A solid or ribbed casting holds tolerance better, especially when the tool is far from the rotary center. Keep the part as close to the tombstone face as the geometry allows, and avoid long cantilevered clamps.

Balance matters once the table indexes. An unevenly loaded tombstone will not seat the same way every time, and the error shows up as a position shift between faces. Load parts symmetrically around the axis. If you run one heavy part and one light one on opposite faces, expect to chase the offset.

The zero point is the other half of the job. Set a single work offset at the rotary center and let the machine's rotation math handle the rest. Shops that set four separate offsets for four faces usually end up with mismatched datums and a scrapped batch. Verify the rotary center with a test bar before the first article, not after.

A well-set horizontal holds ±0.005 mm (±0.0002 in) on bores and faces when the setup is rigid and the tool path is planned around the rotary. That is not a property of the machine alone. It comes from a stable tombstone, a verified rotary center and a warm machine that has been run through a few cycles before the first cut.

Surface finish follows the same logic. A fine finish of Ra 0.2–0.8 μm is reachable on aluminium and brass with sharp tooling and light finishing passes. Steel and titanium settle closer to Ra 0.8–1.6 μm unless you add a separate finishing operation or a different insert grade.

Material changes the cutting data more than the machine. Aluminium 6061 and 7075 run fast with high rake angles and generous coolant. Stainless 316 and 17-4PH work-harden, so the tool has to keep moving and the radial engagement has to stay high enough to cut under the hardened layer. Inconel and titanium push the same rule harder.

The hard limit is reach and geometry. A horizontal spindle cannot drill a hole that points straight up into a top face, and it cannot machine a feature that sits inside a tall wall that blocks the side approach. When a part mixes both, plan the operations in the right order: horizontal first for the side work, vertical second for the top faces, with a single datum carried through both.

Setup order decides how much error you carry into the last operation. Machine the largest stable face first, then use it as the datum for everything else. On a horizontal, that usually means cutting the main bore or the mounting face in the first operation, before the part has been re-clamped several times.

Thermal drift is real on long cycles. A machine that runs a heavy cast iron cut for an hour will move. Rough in the morning, let the part cool, then finish. Shops that rough and finish in the same uninterrupted pass often see the last bore run a few microns off the first.

Inspection should match the feature. A bore gets a bore gauge or a CMM check, not a caliper. A face flatness check needs a surface plate or a laser. Reports are worth requesting when the part is a mating component, because the number matters more than the pass or fail.

Chip control is a maintenance habit, not a setting. Clear the augers and the chip conveyor at the end of a run. A horizontal that sits with wet chips in the enclosure will rust the tombstone faces and change the seating on the next job.
