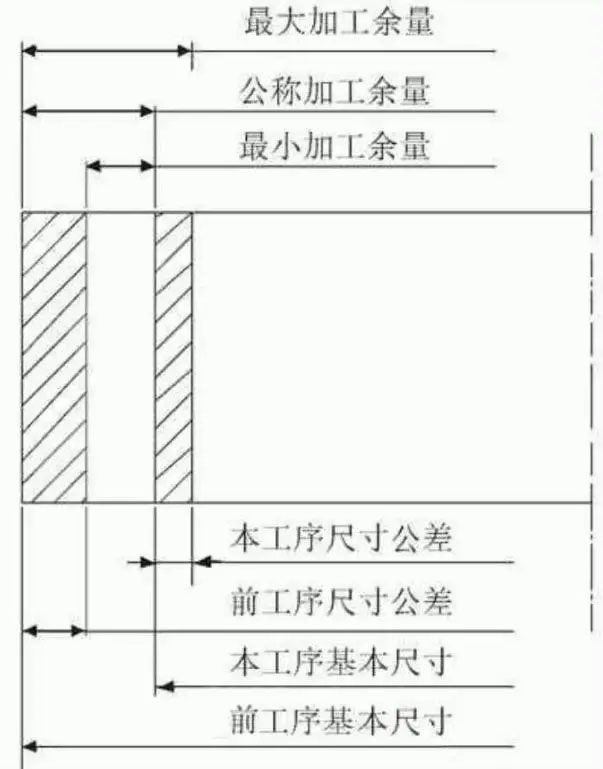

A machining quarrel is any force inside the cut that fights the position the machine thinks the tool is in. The control commands a coordinate. The tool does not quite arrive there. Deflection, vibration, heat, and clamping stress all push the cutting edge away from the nominal path, and the error adds up at the finished surface.

Some of that error is elastic. The tool bends, then springs back when the load drops. Some is permanent. Once the part cools, it has moved. These two behave differently on the machine and need different fixes, which is why the first job is separating them.

On a finishing pass with a 10 mm carbide end mill at 0.3 mm radial engagement, static deflection is often 5–15 μm. That is already at the edge of a ±0.005 mm tolerance before thermal effects are counted.

The practical point is that a machine that rapids accurately to within 2 μm can still cut a part out of tolerance. The quarrel is not in the control. It is in the loop between tool, chip, workpiece, and fixture.

• 1
  Elastic quarrelTool and workpiece bend under load, then recover
• 2
  Thermal quarrelHeat grows the tool and the part during the cut
• 3
  Dynamic quarrelChatter and forced vibration at the tooth-pass frequency
• 4
  Clamping quarrelFixture stress releases after the part leaves the vise

The clearest signature is a dimension that drifts during the run, not one that is off from the first part. If part one measures 20.005 mm and part twenty measures 20.021 mm on a 20 mm bore, the machine is not losing position. The tool is growing or the work is heating.

Chatter gives a different pattern. You hear it, and you see it as a regular ripple on the wall. The spacing matches the tooth-pass frequency, so a four-flute cutter at 8,000 rpm leaves marks about every 1.9 ms. Measure the ripple pitch and you can usually identify the dominant mode.

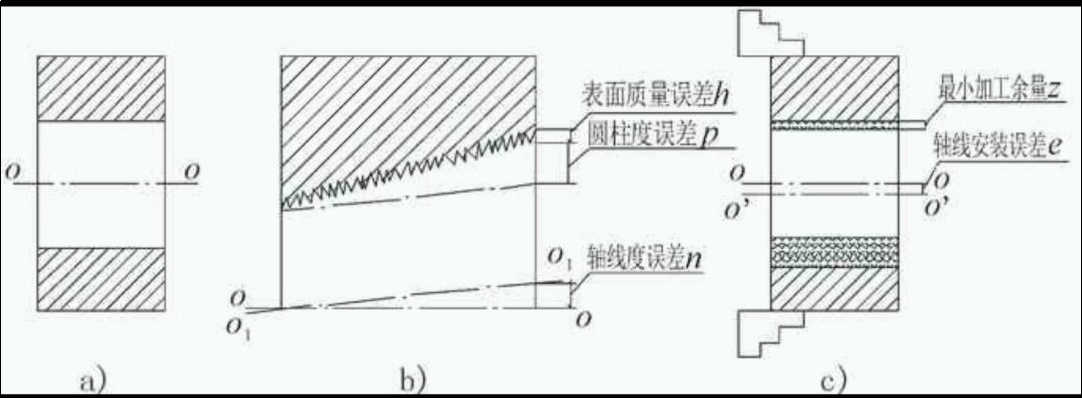

Push-off shows up as a wall that is tapered in one direction, or a floor that is high near a thin web. The tool is simply being pushed away from the material it is trying to remove. Reduce radial engagement and the taper shrinks.

Short tools fight back better. A 3× diameter length-to-diameter ratio is stable. At 8×, deflection rises roughly with the cube of the overhang, so the same cut can move three times as far.

• 1
  Drifting dimensionThermal growth over a long run; check at 20 °C
• 2
  Regular rippleChatter at tooth-pass frequency; change speed or flute count
• 3
  Tapered wallStatic push-off; cut with lighter radial engagement
• 4
  Spring-back after unclampingResidual stress in the blank; stress-relieve first

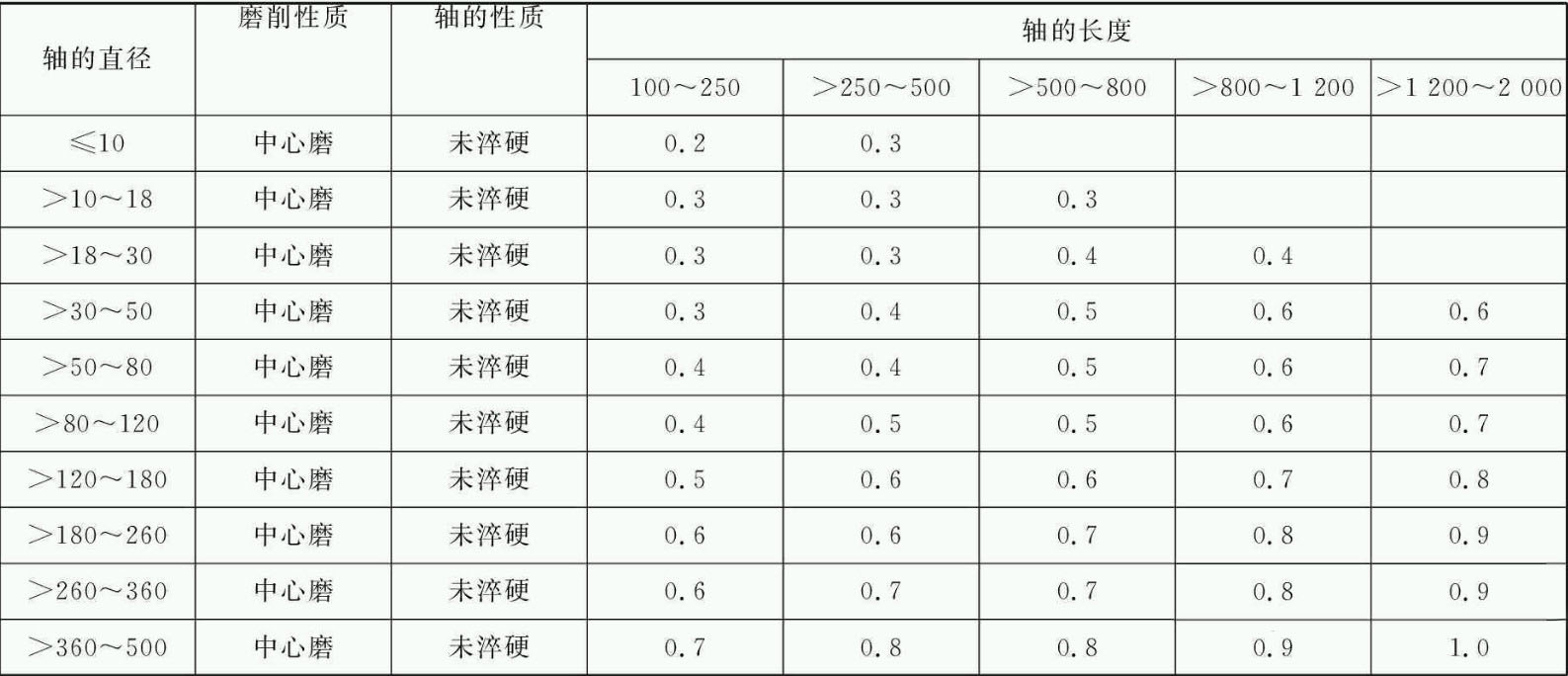

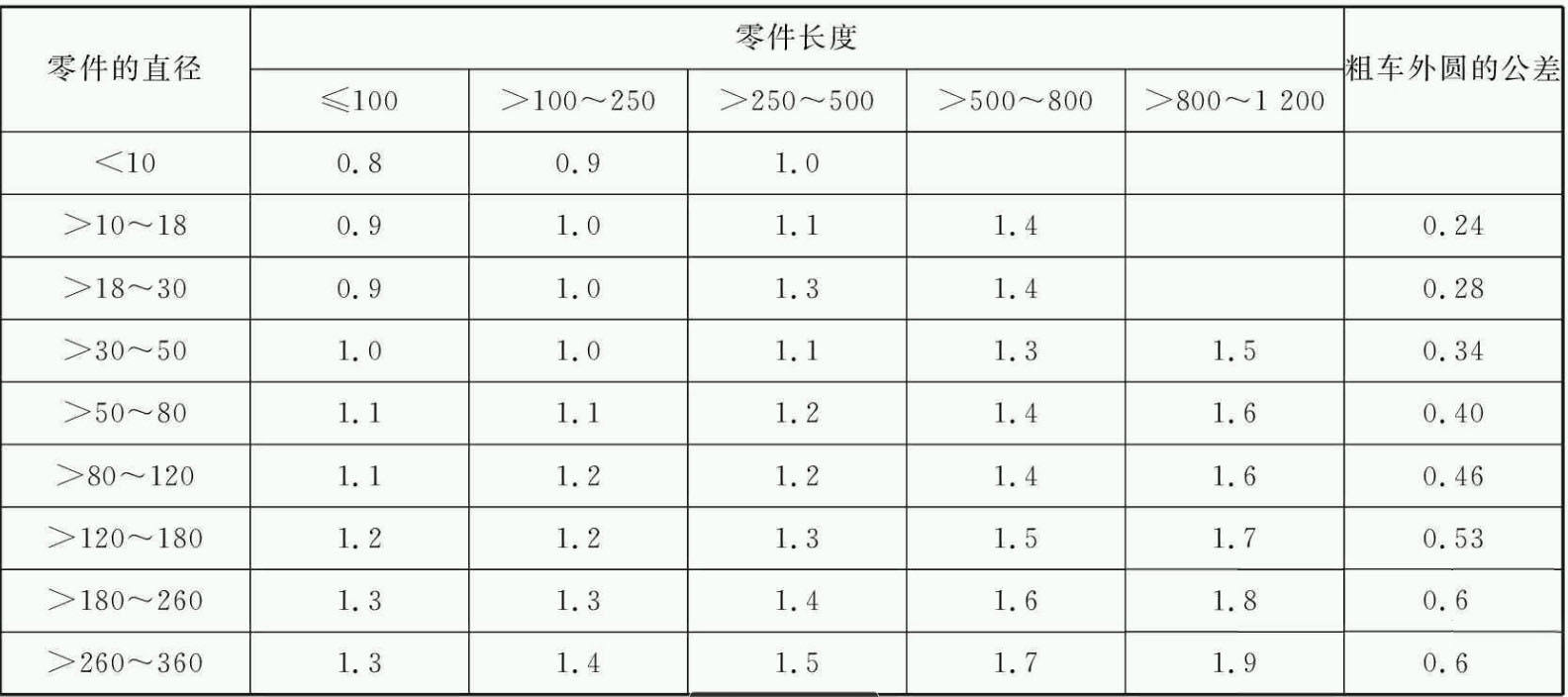

Not every job needs a stability study. A bracket with a ±0.1 mm tolerance, cut in 6061 with a 12 mm cutter at 2× diameter overhang, will hold size all day. The quarrel is real, but it is far below the drawing allowance, so chasing it wastes setup time.

The picture changes on thin walls under 1.5 mm, deep pockets over 5× diameter, and any bore that has to be round within a few microns. Here the quarrel is often the whole tolerance. A 0.8 mm wall in 7075 will deflect visibly under a normal finishing pass.

Material stiffness sets the baseline. Aluminum moves about three times as much as steel under the same cutting force. Titanium moves less than aluminum but conducts heat poorly, so the thermal quarrel grows while the elastic one shrinks. Inconel adds work hardening on top.

Surface finish follows the same logic. A stable cut leaves Ra 0.8–1.6 μm on most aluminum alloys. Add chatter and you are at Ra 3.2 μm or worse, and no amount of polishing will fix a dimension that moved.

• 1
  Low sensitivityOpen tolerances, rigid sections, short tool overhang
• 2
  High sensitivityThin walls, deep pockets, tight roundness, mirror finish
• 3
  Material effectAluminum deflects most; titanium and Inconel run hot
• 4
  Finish tells the storyRa worse than Ra 1.6 μm usually means instability

Control starts with the toolpath, not the machine. Constant radial engagement keeps the cutting force steady, which removes the load steps that trigger both push-off and chatter. Trochoidal roughing at 8–12% radial engagement is a common way to get there.

Next comes thermal discipline. Bring the part to 20 °C before the final pass. Measure with the part at the same temperature as the machine. On long runs, let the spindle warm up for 20–30 minutes, or run a warm-up cycle, so the growth is already in the machine when you touch off.

Fixturing decides how much of the cut reaches the part. Support thin walls from behind. Use soft jaws bored to the actual blank, not the nominal size. For a 0.8 mm wall, a low-melt or wax backing is often cheaper than a redesign.

Then verify. Rough, semi-finish, rest, and inspect the feature that controls the fit, not just the outside profile. A 100% inspection step catches drift before it becomes a batch, and the report shows which dimension moved.

• 1
  Constant engagement8–12% radial stepover in trochoidal roughing
• 2
  Thermal soak20 °C part and machine before finishing
• 3
  Support the wallBacking or soft jaws bored to the blank
• 4
  Inspect the critical featureCheck the fit dimension in-process, not only at the end

Run one controlled test and the three separate themselves. Cut the same feature three times: once at the original parameters, once with half the radial engagement, once with a shorter tool. If the error drops with engagement, it is static or dynamic load. If it drops only with the shorter tool, the overhang was the problem.

If the error appears late in the run and the first parts were good, measure the part hot and cold. A difference of more than 10 μm on a 100 mm aluminum part points to thermal growth rather than a positioning fault.

If the error survives unclamping, the blank had residual stress. Stress-relieve before machining, or take a light finishing pass after a 24-hour rest. Both are cheaper than a new fixture.

Use a dial indicator on the spindle nose and a test bar to check the machine itself. If the machine repeats to 2 μm and the part still drifts, the quarrel is in the process, not the axis.

• 1
  Change one variable at a timeEngagement, then tool length, then fixture
• 2
  Measure hot and coldSeparates thermal drift from position error
• 3
  Check after unclampingReveals residual stress in the blank
• 4
  Verify the machine firstA test bar rules the axis in or out
