A CNC machine does not shape metal by force. It shears it. A carbide or diamond-coated tool with a defined rake angle pushes into the workpiece, and the material ahead of the edge deforms plastically until it separates as a chip. Everything that matters about the finished part comes out of that one event, repeated thousands of times per minute.

Three variables govern the result: cutting speed, feed per tooth, and axial depth of cut. Speed is a function of tool diameter and surface meters per minute. Feed per tooth sets chip thickness, and chip thickness sets the cutting force and the heat that goes into the tool rather than the part.

Heat matters because it moves the part. A 100 mm aluminum bracket can grow 0.12 mm from a 40 °C rise, which is 24 times the ±0.005 mm tolerance we hold on bearing bores. Roughing removes most of the stock, then a finishing pass takes 0.2–0.5 mm after the part has cooled or after a stress-relief cycle.

Tool wear shifts the edge radius. A worn edge rubs instead of shearing, and the surface turns from Ra 0.8–1.6 μm to something closer to Ra 3.2 μm. We track tool life by part count, not by clock time, because aluminum 6061 and 17-4PH stainless eat an edge at very different rates.

• 1
  SpeedSurface meters per minute, set by tool diameter and material.
• 2
  Feed per toothChip thickness, and therefore cutting force and heat split.
• 3
  Depth of cutStock removed per pass; roughing 2–5 mm, finishing 0.2–0.5 mm.
• 4
  Tool wearEdge radius grows; surface finish degrades before dimensions drift.

A machine that can hold ±0.005 mm on a test block will not automatically hold it on a thin-wall housing. Workholding is the limit. Clamp a 3 mm wall with 800 N of side pressure and it deflects before the tool touches it, then springs back after unclamping. The bore measures round on the machine and oval on the CMM.

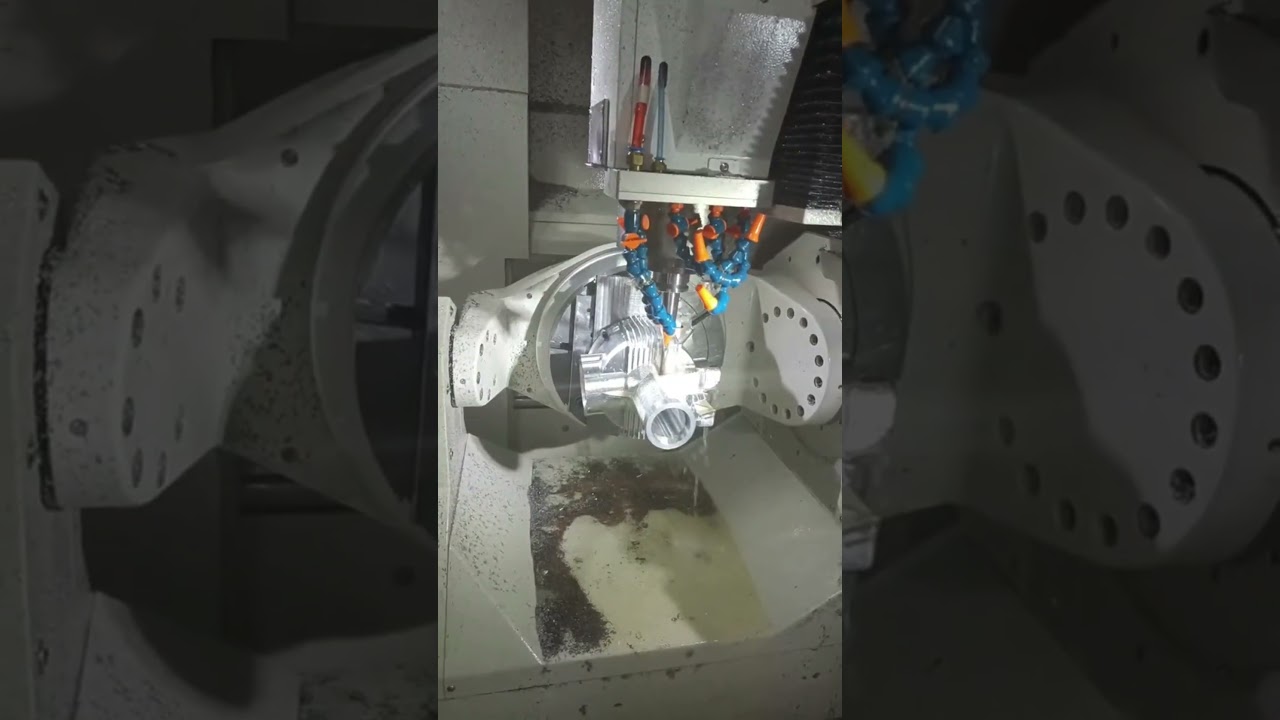

Five-axis work helps here. Tilting the part lets the tool reach a face in one setup instead of three, and each re-clamp is a chance to introduce 0.02–0.05 mm of positional error. On a transmission valve body with bores on four faces, one 5-axis setup with a Ø400 mm rotary table typically beats three 3-axis setups on both tolerance and lead time.

For long parts, we work within a 4,000 × 400 × 150 mm travel envelope and support the overhang with adjustable stands. A 4,000 mm rail that is only clamped at the ends will chatter in the middle; chatter shows up as a periodic pattern in the finish and as tool chipping.

Zero-point systems and dedicated fixtures pay for themselves above roughly 200 parts. Below that, soft jaws machined to the part profile are usually the better trade.

• 1
  Thin wallsReduce clamp force, add support, or machine in two light passes.
• 2
  One setup beats threeEach re-clamp adds 0.02–0.05 mm of positional error.
• 3
  Long partsSupport the overhang; unsupported spans chatter.
• 4
  Fixture choiceSoft jaws for low volume, zero-point systems above ~200 parts.

Machining is expensive per kilogram of chips removed. It earns that cost in three situations: features that must be concentric or perpendicular to each other, surfaces that seal or slide, and geometry that has to be identical on part 1 and part 10,000.

A cylinder head deck needs flatness in the 0.02 mm range across its length so the head gasket seals. A turbo housing needs a bore concentric with a flange face so the shaft does not preload a bearing. A suspension knuckle needs a ball joint taper cut at a specific angle to a mounting face. Casting and forging get you close; the finishing cut gets you to spec.

Repeatability is the quieter benefit. Once the program, tool, and fixture are fixed, part 500 is cut under the same conditions as part 5. That is what makes statistical process control meaningful and what keeps a CPK above 1.33 on a critical diameter.

The process also handles low volumes without tooling. No mold, no die, no pattern. That matters for prototype builds, motorsport parts, and low-run commercial vehicles where a casting pattern would never amortize.

• 1
  ConcentricityBores and faces cut in one setup stay aligned.
• 2
  Sealing facesFlatness and Ra 0.8–1.6 μm control gasket and O-ring behavior.
• 3
  RepeatabilitySame program, same fixture, same result at part 10,000.
• 4
  No tooling costOne prototype or 10,000 parts, no mold required.

Aluminum 6061-T6 is the default for brackets, housings, and EV battery enclosures. It cuts fast, holds tolerance well, and anodizes cleanly. 7075 gives roughly double the yield strength at a cost in machinability and corrosion resistance, so it usually shows up in suspension and motorsport parts that get coated.

Steels behave differently. 1018 and 1045 are straightforward. 4140 and 4340 need slower speeds and more rigid setups, and they move after heat treatment, so a semi-finish, heat treat, then finish sequence is normal. 17-4PH stainless in the H900 condition is common for shafts and fasteners that need strength plus corrosion resistance.

Titanium TC4 (Ti-6Al-4V) cuts at roughly one-quarter the speed of aluminum and work-hardens if the tool rubs. Inconel is slower again. Both are chosen for temperature and strength, not for ease of machining, so the design should keep deep pockets and thin fins to a minimum.

Plastics have their own rules. POM and PA hold tolerance reasonably; PEEK holds it at temperature; carbon fiber reinforced grades dull edges quickly and need diamond-coated tooling.

• 1
  Aluminum6061-T6 for general parts, 7075 for high strength.
• 2
  SteelSemi-finish, heat treat, then finish to control distortion.
• 3
  Titanium and InconelSlow speeds, rigid setup, avoid rubbing the edge.
• 4
  PlasticsPEEK for hot zones, carbon grades need diamond coating.
