Vertical CNC Composite: How a Grinding Machine Works and Where It Is Heading

• 1
  What a vertical CNC composite grinding machine actually is
• 2
  How the two processes share one spindle system
• 3
  Which parts suit vertical CNC composite grinding
• 4
  Six development trends in vertical CNC composite grinding
• 5
  When to use a vertical composite grinder, a grinder, or a mill

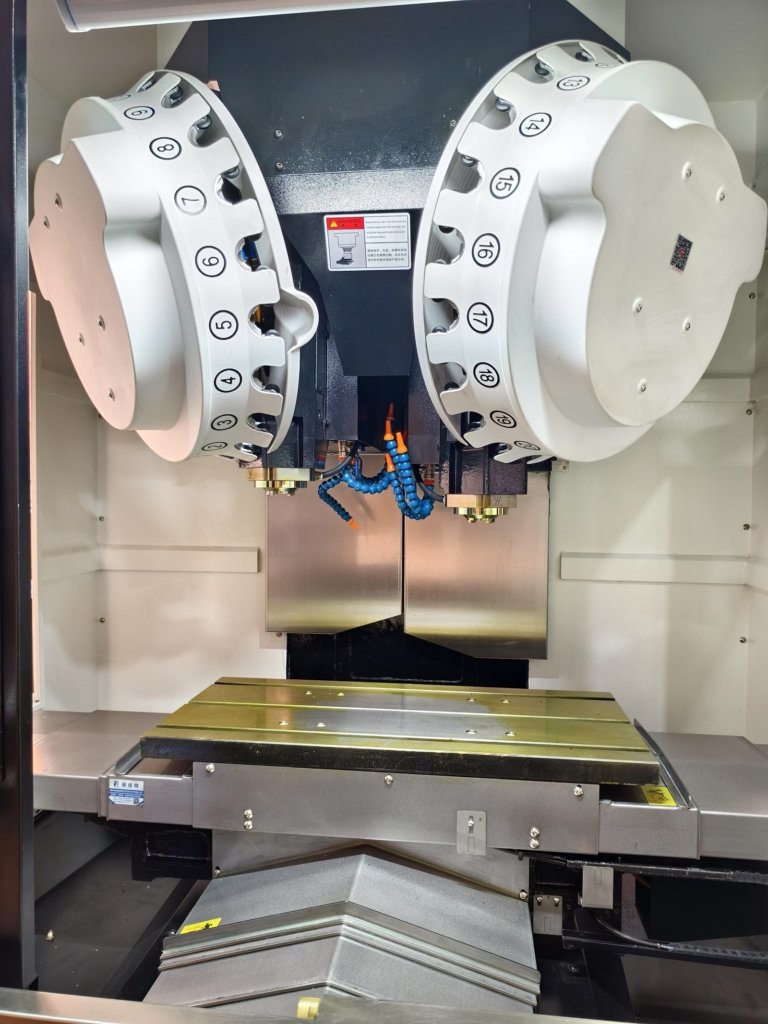

The term is used loosely in the trade. In a true vertical CNC composite grinding machine, the work spindle or table sits on a vertical axis and the part rotates under a grinding wheel, a turning tool, or both. Composite here means two processes in one platform, not a composite material. Turn and grind, or mill and grind, share the same base casting and the same coordinate frame.

That shared frame is the whole point. When turning and grinding happen after one clamping, the ground bore and the turned outside diameter keep their relationship. Errors from re-chucking, which on a hardened shaft can reach 0.02 mm to 0.05 mm, simply do not appear. For a bearing seat or a hydraulic spool, that is often the difference between fitting and scrapping.

Vertical layout changes the fixturing logic. Gravity holds a flat or ring-shaped part down on the table, so a thin disc does not sag the way it can on a horizontal chuck. The trade-off is chip evacuation. Grinding swarf and coolant pool on top of the part rather than falling away, which is why these machines usually run high-pressure coolant and a well-designed table drain.

Typical work includes bearing rings, valve seats, hydraulic valve bodies, seal faces, gear blanks and tooling inserts. Most of it is hardened steel above 45 HRC, plus carbide, ceramic and some Inconel parts where a turned surface is not accurate enough. If your part is soft aluminium with loose tolerances, a vertical composite machine is the wrong tool and you will pay for capacity you never use.

In a turn-grind platform the table carries the part and rotates it, while a tool turret and a grinding head index into position. The turret takes the bulk stock off with a CBN or ceramic insert. Then the grinding head takes the last 0.05 mm to 0.3 mm and holds the geometry. The table is usually a hydrostatic or high-precision roller bearing design because a ground face depends on how steadily the part rotates, not only on the wheel.

The grinding head itself works much like any surface or cylindrical grinder. A vitrified or resin-bond wheel runs at 30 m/s to 60 m/s and cuts a shallow depth, commonly 0.005 mm to 0.02 mm per pass for a finish pass. What is different is the reference. The wheel references the same machine zero the turning tool used, so the ground face lands relative to the turned features without a setup stack-up.

Heat is the main limit. Grinding pushes a lot of energy into a small contact zone, and if coolant does not reach the arc, the surface burns and tensile residual stress follows. On hardened steel you will see temper colours or a soft spot that passes a size check but fails a fatigue test. That is why these machines use through-spindle or high-pressure nozzles, and why the operator watches spark colour instead of only the gauge.

Dressing is the other routine task. A dull wheel glazes, rubs instead of cutting, and pushes the part out of round. Diamond roller dressing on the machine keeps the profile sharp between wheel changes. If a shop dresses by hand with a single-point tool, expect more variation in roundness from batch to batch, especially on interrupted surfaces.

The best candidates are rotationally symmetric parts that need a tight ground face or bore plus a turned profile, and that are hard enough to be difficult to mill after heat treatment. A bearing ring that must be ground on the raceway and turned on the shoulder is a classic case. So is a hydraulic spool with a ground land and a turned groove pattern.

Weight and size matter. Vertical tables handle rings and discs well, but a long shaft is harder because the part hangs or is supported at one end. A 500 mm long shaft on a vertical table needs a tailstock or a steady, and even then the bending is less predictable than on a horizontal cylindrical grinder. If the part is slender, a horizontal machine is usually the more honest choice.

Batch size drives the return. The setup savings from one clamping only pay back when the part is hard, tight, or both. For a soft part with a ±0.05 mm tolerance, a mill and a separate grinder, or simply a mill, will be cheaper per piece. For a hardened part with a ±0.005 mm bore roundness requirement, the composite machine is often the only practical route without extra fixtures.

There is also a metrology question. Because the part stays clamped, in-process gauging can measure the same datum the tools used. That reduces the loop between cutting and inspection. It does not replace final inspection, and any shop claiming otherwise is skipping a step that shows up in the first field failure report.

First, more axes on the grinding side. Early composite machines ground flat faces only. Newer builds add a swivel or a second rotary axis so the wheel can dress a radius, a taper or a spherical seat in the same cycle. That expands the part family from rings to valve components and optical mould inserts.

Second, tighter thermal control. Grinding accuracy is a thermal problem more than a servo problem. Builders now use cooled ball screws, temperature-compensated scales and, on the better machines, a controlled cooling circuit around the table bearing. A 2 °C drift across a 400 mm part is roughly 0.01 mm of growth on steel, so this is not a luxury.

Third, in-process measurement. Touch probes and grinding gauges are moving from an option to a standard feature. The useful version measures the ground feature and feeds the offset back to the wheel, not just confirms size after the fact. This cuts scrap on high-value parts where a single ring can cost more than the grinding cycle.

Fourth, automation and unattended running. Pallet changers, robot loading and wheel-life monitoring let a shop run a grinding cell overnight. The limiting factor is usually swarf and coolant management, not the control. A cell that cannot clear chips reliably will stop itself long before the wheel wears out.

Fifth, energy and coolant efficiency. High-pressure coolant is effective but expensive to run. Builders are tuning nozzle design and filtration so the same heat removal happens at lower flow. Dry and minimum-quantity grinding are being tried on cast iron and some steels, though hardened steel still generally needs flood coolant.

Sixth, integration with turning centres. The line between a turn-mill centre and a composite grinder is blurring. A mill-turn platform with a grinding spindle can cover a wider part range, while a dedicated grinder holds tighter geometry on one feature. Most shops end up with both, and the decision is usually about which feature drives the tolerance.
